5.6.4 Setting Task Precedence

After you have created a task, you must indicate which tasks must be executed prior to the newly created task in a batch.

To set task precedence, follow these steps:

1. Login as the Administrator. The OFSAAI Applications page is displayed.
2. Click Trade Based Anti Money Laundering.
3. In the Navigation List, select Operations, then Batch Maintenance. The Batch Maintenance page is displayed.

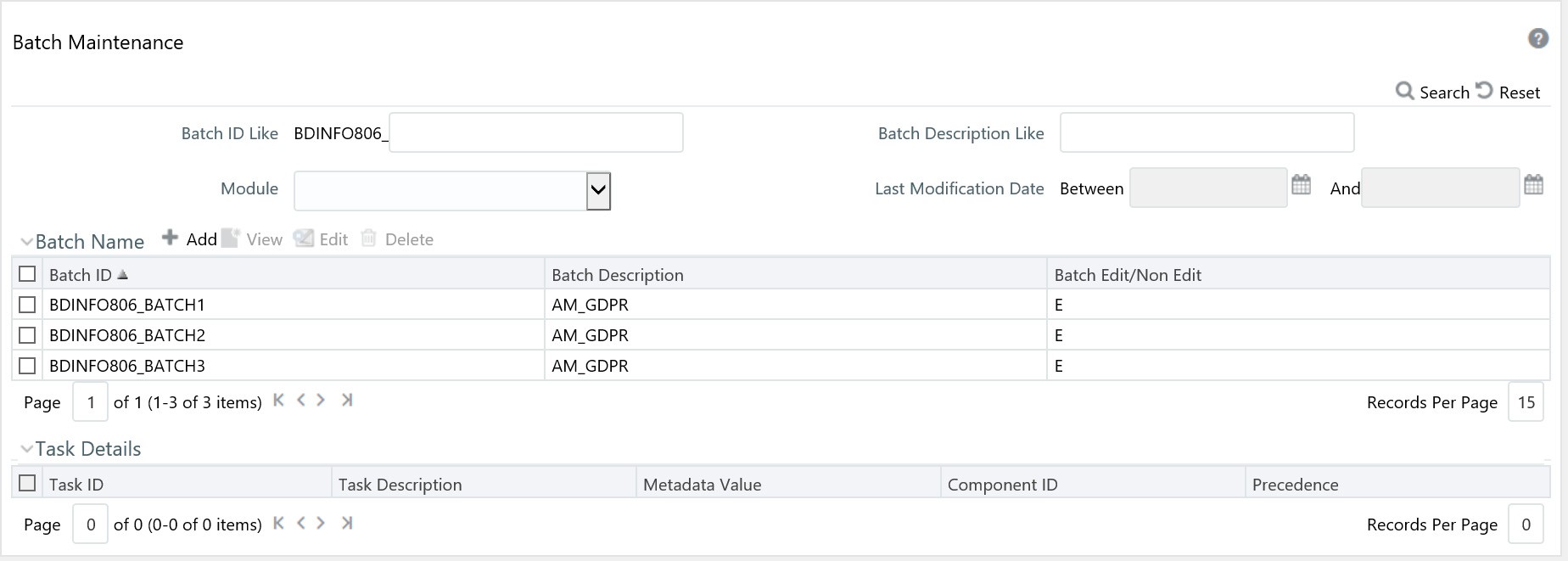

   Figure 5-4 Batch Maintenance page





   Description of "Figure 5-4 Batch Maintenance page"



4. In the Batch Name section, select the batch that you want to set task precedence for.
5. In the Task Details section, click



   . The Task Precedence Mapping window is displayed.

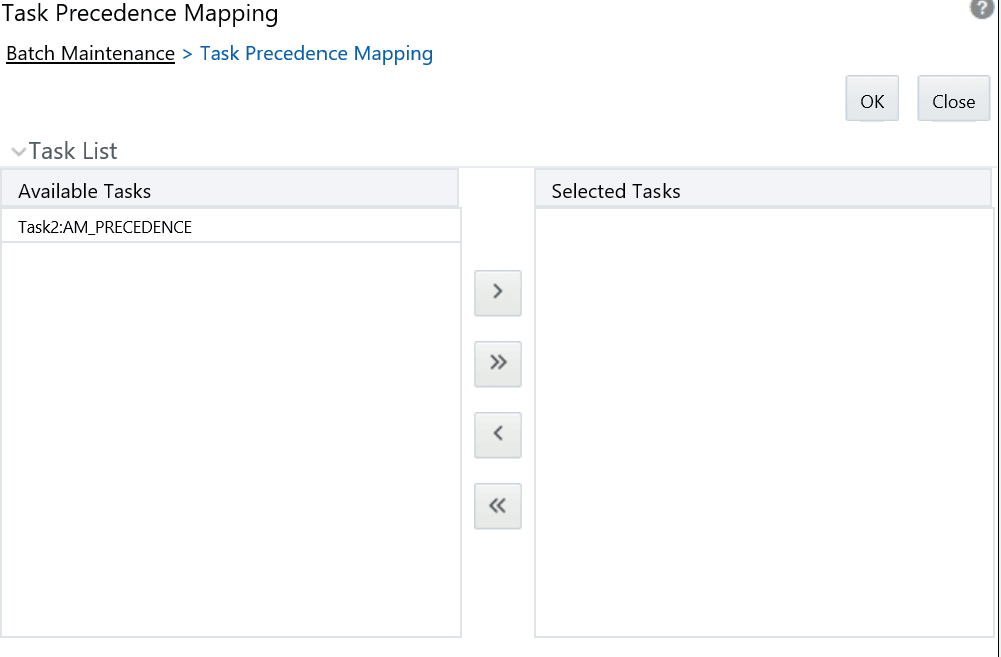

   Figure 5-5 Task Precedence Mapping





   Description of "Figure 5-5 Task Precedence Mapping"



6. Move the tasks which must be executed prior to this task from the Available Tasks pane to the Selected Tasks pane.
7. Click OK after you have selected all tasks which must precede the task. The selected tasks are listed in the Precedence column of the Task Details section.
