Adding Variable Definition

The Add Variable Definition feature enables you to add a variable by filtering through the required parameters. The options available to filter the data vary depending on the variable type selected. The variables created in the Variable Definition window are IDIOSYNCRATIC NUMERIC variables.

To add variable definition, follow these steps:

1. Select from the Variable Management toolbar.
   The Add button is disabled if you have selected any checkbox in the grid. The Variable Definition window is displayed.

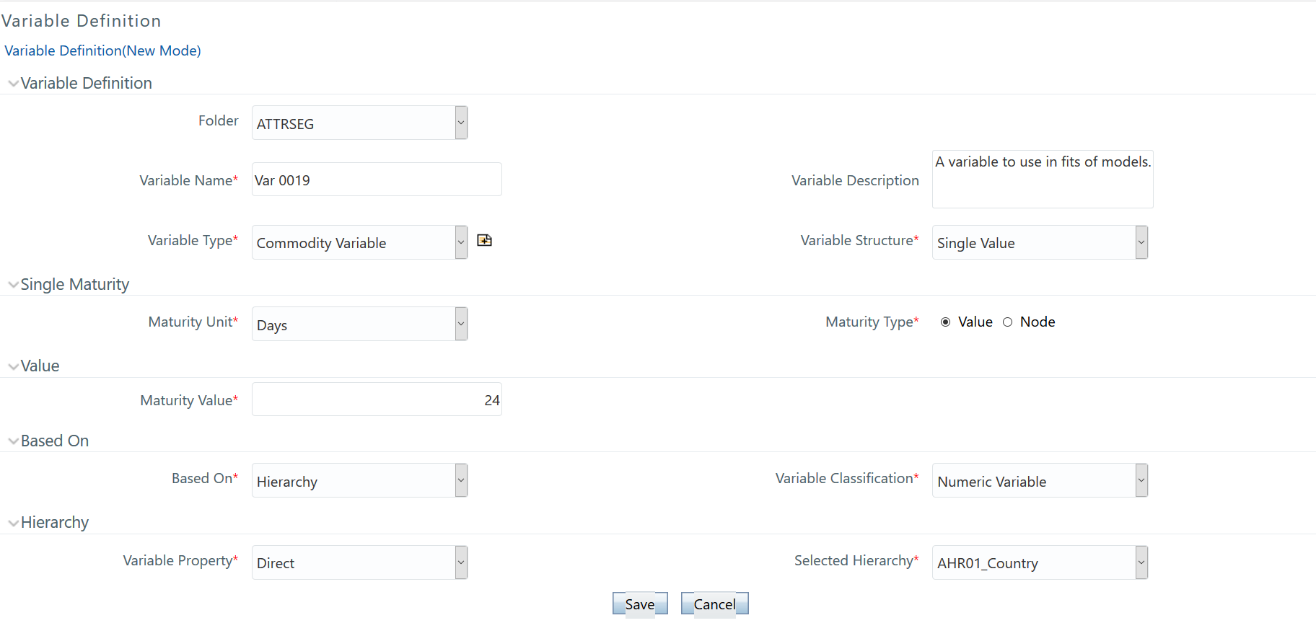

   Figure 8-2 Variable Definition window








2. Enter the Variable details as described in the table in the Adding Variable Definition section in Managing Stress Testing.
   The fields marked in red asterisk (*) are mandatory.
3. Click Save to upload the new Variable Definition details.
