9.3.4.1 Using Data Survival Rules

Use this topic to enable or disable the OOB rules.

You can also modify this Rule's description and ER type attributes and remove rulesets from the existing list.

To use the existing Ruleset, follow these steps:

  1. On the Workspace Summary page, click Launch Workspace to display the CS Production Workspace window with application configuration and model creation menu.
  2. On More menu, click Data Survival. The Data Survival Rules page is displayed.

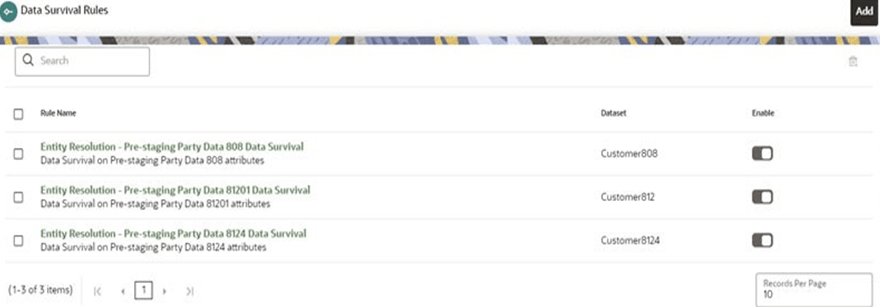

    Figure 9-11 Data Survival Rules


    Description of Figure 9-11 follows
    Description of "Figure 9-11 Data Survival Rules"

  3. To enable the Rule, select the Rule and move the toggle switch to the right.
  4. To add the Rule, click Add. For more details, see Creating Data Survival Rules section.
  5. To delete the Rule(s), select the check box(es) corresponding to the rule(s) and click Delete.
    The confirmation message is displayed with details of Rule(s) to select again. You can check or uncheck check boxes for the required rule(s) and then click Delete.
  6. To edit the Rule, click on the Rule, and the corresponding Rule page is displayed.
  7. On the Rule page, click Edit. The page displays Rule details.
  8. You can modify the Rule details except for the following fields:
    • RuleSet Name
    • Description
    • ER Type
    • Dataset Value

    Note:

    Fields marked with * are mandatory fields.

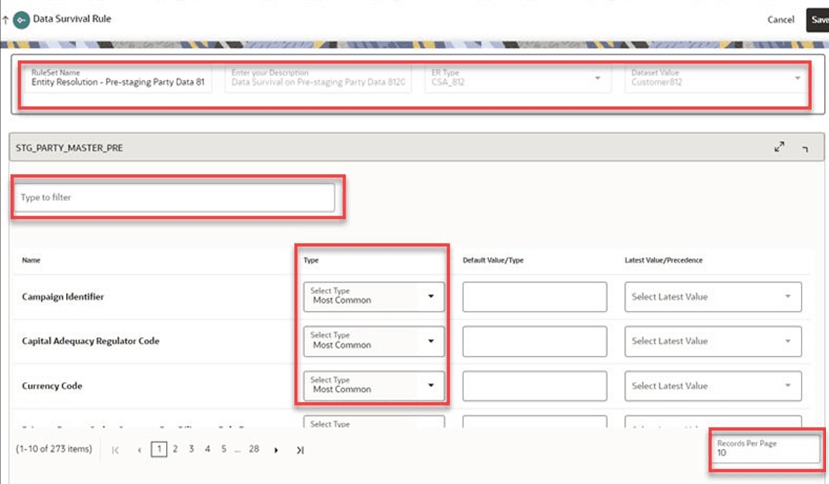

    Figure 9-12 Edit Data Survival Rule


    Description of Figure 9-12 follows
    Description of "Figure 9-12 Edit Data Survival Rule"

  9. On this page, you can perform the following actions:
    • You can use the search filter to search for any particular attribute in each input table. The records will be displayed based on the specified value in the search filter (Type the filter).
    • You can sort the records.
    • Right-click on any of the columns and select Sort > Sort Ascending or Sort Descending for ascending and descending order, respectively. The records will be displayed according to sort order.
    • You can select the method type from the Type drop-down list.

    Note:

    You must sort the records again when changing the value in the Records per Page field.
  10. Click Save to save the changes or click Cancel to revert the changes.
