3.5 Create an Interpreter Variant

1. Log in to the Compliance Studio application.
2. Launch the CS Production Workspace.
3. Click the User Profile drop-down list and select Data Studio Options.
4. Click Interpreters.
   By default, the Interpreters page lists all the available interpreters.
5. Click jdbc interpreter on the LHS. The default configured interpreter variant is displayed on the RHS:

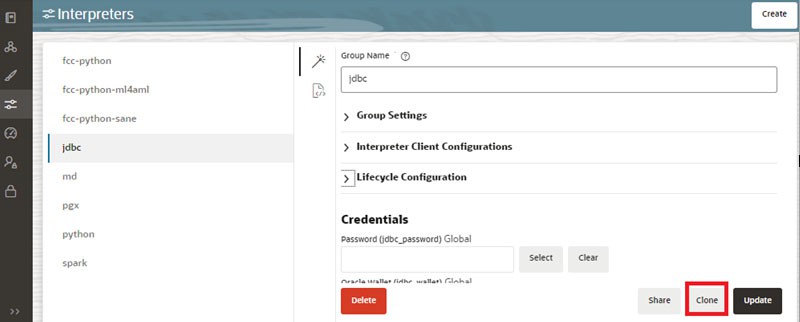

   Figure 3-20 jdbc interpreter screens





   Description of "Figure 3-20 jdbc interpreter screens"



6. Click Clone on the RHS. The pop-up window displayed for the group name.
7. Enter the group name in the Group Name text box and click Create. The new group is created and displayed on LHS.
8. Click <New group name> on the LHS. The default configured interpreter variant is displayed on the RHS.
   You can modify the values in the interpreter properties in the JSON file or Wizard view.
