A.22.8 How to Execute Monthly Model Validation with the Batch Framework

This section explains how to execute Monthly Model Validation using the Batch Framework after the upgrade.

To execute Monthly Model Validation after the upgrade:

1. Log in to the Compliance Studio UI.
2. Select the appropriate Workspace.
3. Click Orchestration menu and then select Schedule Batch. The Schedule Batch page is displayed.

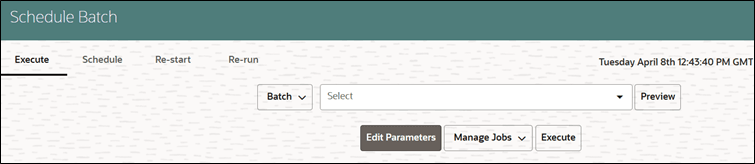

   Figure A-33 Schedule Batch





   Description of "Figure A-33 Schedule Batch"



4. Select the appropriate Batch Scheduler.
5. Click Edit Parameters. The Edit Dynamic Params window is displayed.

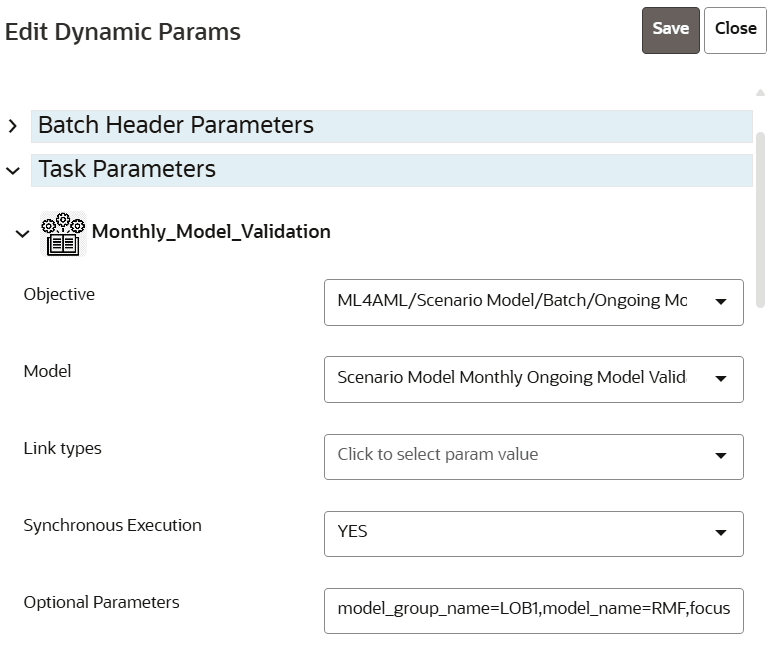

   Figure A-34 Edit Dynamic Params





   Description of "Figure A-34 Edit Dynamic Params"



6. In the Task Parameters, select Objective from the drop-down list. You need to select Data Quality and Model Drift objectives respectively for executing the batches.

   Note:

   Save the Data Quality model and execute the batch. Then, repeat the same steps for the Model Drift model, and vice versa.
   For example, you need to select the following objectives for Behavioral Model.
   ML4AML/Scenario Model/Batch/Ongoing Model Validation/Monthly/Data Quality
   ML4AML/Scenario Model/Batch/Ongoing Model Validation/Monthly/Model Drift
7. Select Model from the drop-down list. The options are:
   • CHAMPION
   • ALL_CHAMPIONS
   • <Model belongs to Published/Previous Version>
   The CHAMPION and ALL_CHAMPIONS indicates the latest upgraded version.
   If the model is built on a previous version of Compliance Studio, select the corresponding model version to execute the batch.
   For example: If you have upgraded to CS 8.1.2.9.0, you need to select the model named <Model Specific Batch Name> 81285_1 to execute model scoring or validation for a model built on CS 8.1.2.8.5.
8. Click Save.
9. Click Execute to execute the batch.

   Note:

   This is also applicable when executing batches via an external scheduler.
