N Adding New Alert Level Action and Standard Comments

To Add new Alert level action in the alert decision follow the subsequent steps:

1. Access the atomic schema in database.
2. Add new entries in the following tables:
   • fcc_zcs_alert_actions_dim
   • fcc_zcs_alert_actions_tl
   For example, to add a new alert decision, provide an entry in the fcc_zcs_alert_actions_dim and fcc_zcs_alert_actions_tl with action code, name and description.

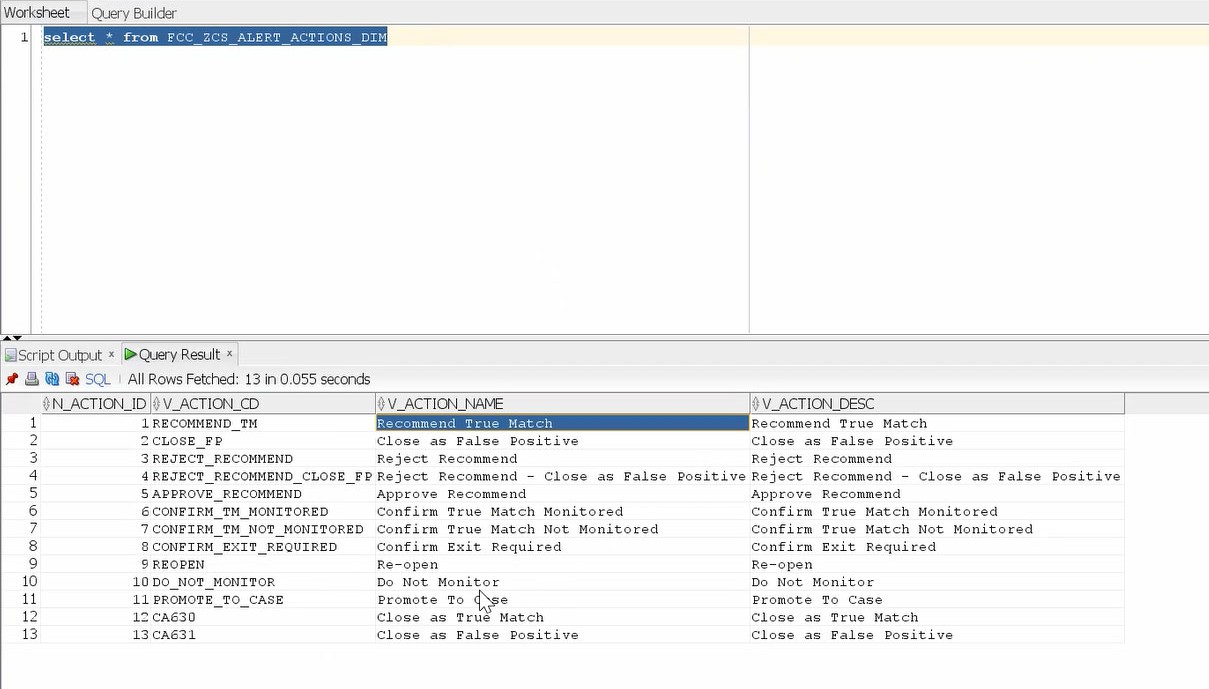

   Figure N-1 fcc_zcs_alert_actions_dim Table








3. If you require any validation for the newly added alert level action before taking action, provide an entry in the following tables:
   • FCC_ZCS_ALERT_ACTIONS_MSG_DIM
   • FCC_ZCS_ALERT_ACTIONS_MSG_TL

To add new standard comments for the alert action, follow the subsequent steps:

1. Access the atomic schema in database.
2. Add new entries in the following table:
   • For simply adding new standard comments in the application:
     • fcc_san_std_cmnts_dim
     • fcc_san_std_cmnts_tl
   • For mapping a newly added standard comment to event/alert in the application:
     • fcc_san_std_cmnts_entity_map
   • For mapping a newly added standard comment to an existing action in the application:
     • fcc_san_scmnts_entity_actn_map
