4.14 Enabling L2 Investigation and OAS for Customer Screening

To enable L2 Investigation for Customer Screening follow these steps:
  1. Navigate to the FCI_DB_HOME/bin directory.
  2. Execute the command /EDQInsert.sh <INFODOM NAME>.
    This step is used to register the EDQ server details. You must replace the INFODOM NAME placeholder with your domain name.
  3. Enter the following details in the console where the command is run:
    • EDQ Server IP
    • EDQ Server Direct Port number (JMX port number). This value must be 8090.
    • EDQ Server User Name
    • EDQ Password details

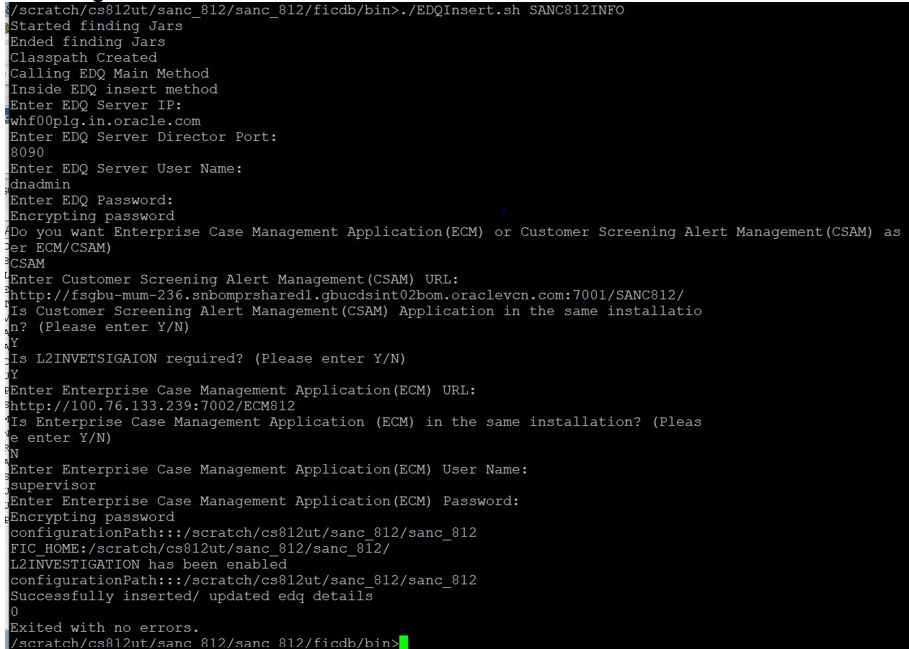

    Figure 4-26 EDQ Details


    This image displays the EDQ Details.

  4. Enter the input as CSAM for the L1 investigation and then press Enter.
  5. Enter the Customer Screening URL and then press Enter.
  6. Enter Y if the Customer Screening installed in the same installation or else N and then press Enter.
  7. Enter Y to enable the L2 Investigation or else N and then press Enter.
  8. Enter Y if Case Management is installed on the same installation of Customer Screening or else N.

    Figure 4-27 EDQ Details


    This image displays the EDQ Details.

  9. If the input for the above step 8 is N, provide the User Name and Password of the Case Management.
  10. Do you want to capture CS Reports Application URL? (Enter Y/N) Y
  11. Enter CS Reports Application URL: http://100.76.166.91:9502

    Note:

    The above URL is the Analytics URL.
