4.13 Scheduling the Customer Screening Run Job

To execute a Customer Screening Run job, follow these steps:
  1. Navigate to the FCI_DB_HOME/bin directory.
  2. Execute the command /EDQInsert.sh <INFODOM NAME>.
    This step is used to register the EDQ server details. You must replace the INFODOM NAME placeholder with your domain name.
  3. Enter the following details in the console where the command is run:
    • EDQ Server IP
    • EDQ Server Direct Port number (JMX port number). This value must be 8090.
    • EDQ Server User Name
    • EDQ Password details

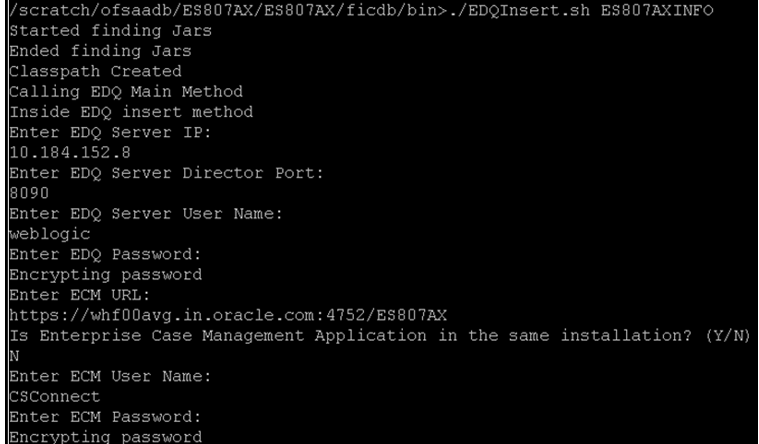

    Figure 4-24 EDQ Details


    This image displays the EDQ Details.

  4. Create and authorize a new ECM user who has no case privileges. For example, CSConnect. For information on how to create or add and authorize a user, see the User Administrator section in the Oracle Financial Services Analytical Applications Infrastructure User Guide.

    Note:

    In the first login as a new user, you are prompted to change the password.
  5. Execute the command /EDQInsert.sh <INFODOM NAME> again only if you are doing a pack- on-pack installation of Enterprise Case Management (ECM) on Sanctions and the ECM URL is unavailable. An entry is made in the ATOMIC schema in the cs_appln_params table.
  6. Copy the following run profiles from the <domain_name>/edq/oedq.local.home / runprofiles/ directory in the WinSCP server to the FIC_DB_HOME/conf directory:
    • watch list-management.properties
    • customer-screening.properties
    • external-entity-screening.properties
    • customer-screening-real-time.properties
  7. Load the stage table data for the customer-related tables. For more information, see Loading Data.
  8. In the Run page, select the CS_Data_Load_Event_Generation run and click Fire Run. The batches must be run in the order mentioned in the following table. It is not mandatory to run all the batches.

    Table 4-2 Sequence of Batches to be Run

    Sequence Batch Name Description
    1 CS_EDQ_Watchlist_Management

    This job is used to run the watch list management project and start real-time screening in EDQ based on the run profile parameters.

    This job must be run daily.
    2 CS_EDQ_Watch list_Analyze This job is used to check the data quality of the downloaded watch list.
    3 CSBusinessDataLoad This job is used to load data from the staging tables to the business tables.
    4 CS_Data_Load_Event_Generation This job is used to match customer data with the downloaded watch list data and to generate alerts.
    5 Oracle_CS_Zipper_Processing

    This job will move the data from the source database to the consolidated database and create an alert based on the Customer.

    NOTE: The Oracle_CS_Zipper_Processing batch is only applicable in the L1 Investigation.

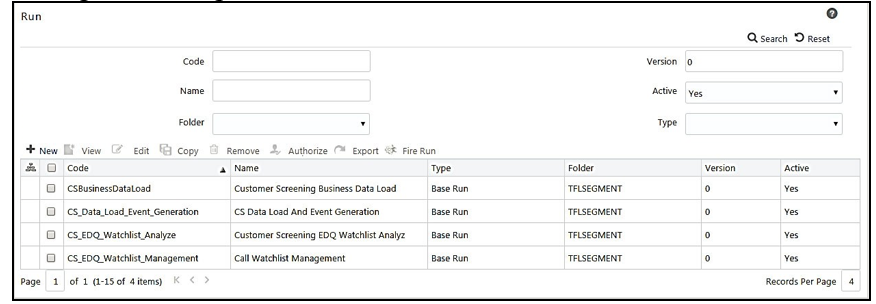

    Figure 4-25 Run page


    This image displays the Run page.
