3.4.7 ML Score

The ML Score is generated based on the deployed ML Models. For more information see ML Integration with Customer Screening section in the Customer Screening Administration Guide.

A sample event which is auto closed by ML model is displayed below. A new ML score option is added to display the ML score generated for the event.

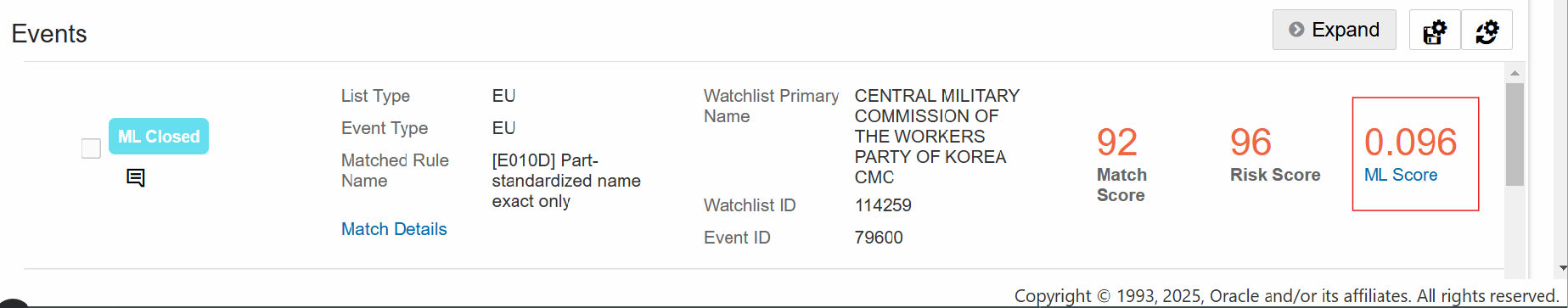

Figure 3-22 ML Score


Description of Figure 3-22 follows
Description of "Figure 3-22 ML Score"

On the ML Alert event details, click ML Score to view the details of score. The ML Event Score Details window appears.

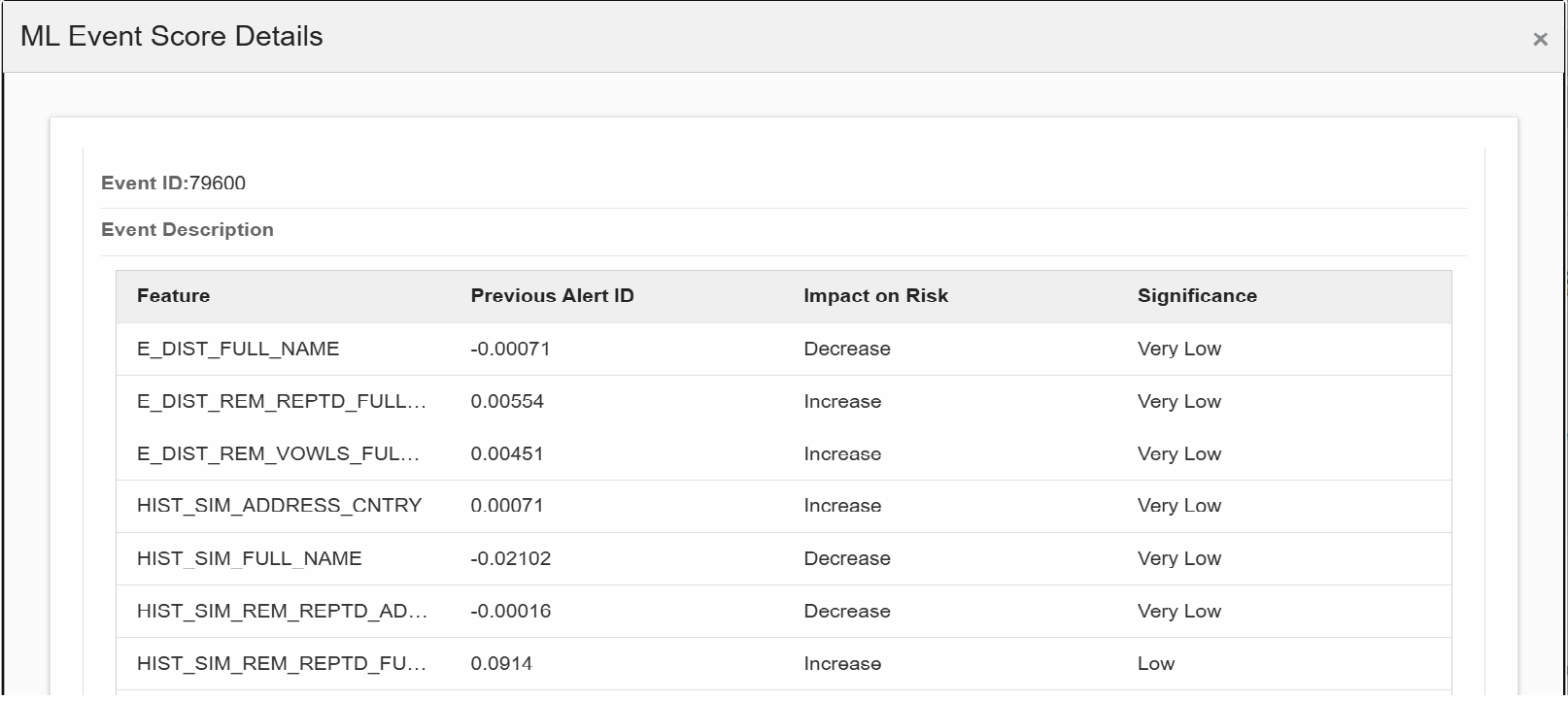

Figure 3-23 The ML Score Window


Description of Figure 3-23 follows
Description of "Figure 3-23 The ML Score Window"

The ML Event Score Details window shows the list of features and their impact on risk and significance details.

Scroll down to the ML Event Score details window, it shows Event Details, Event score and Event Score Percentile for selected ML alert.

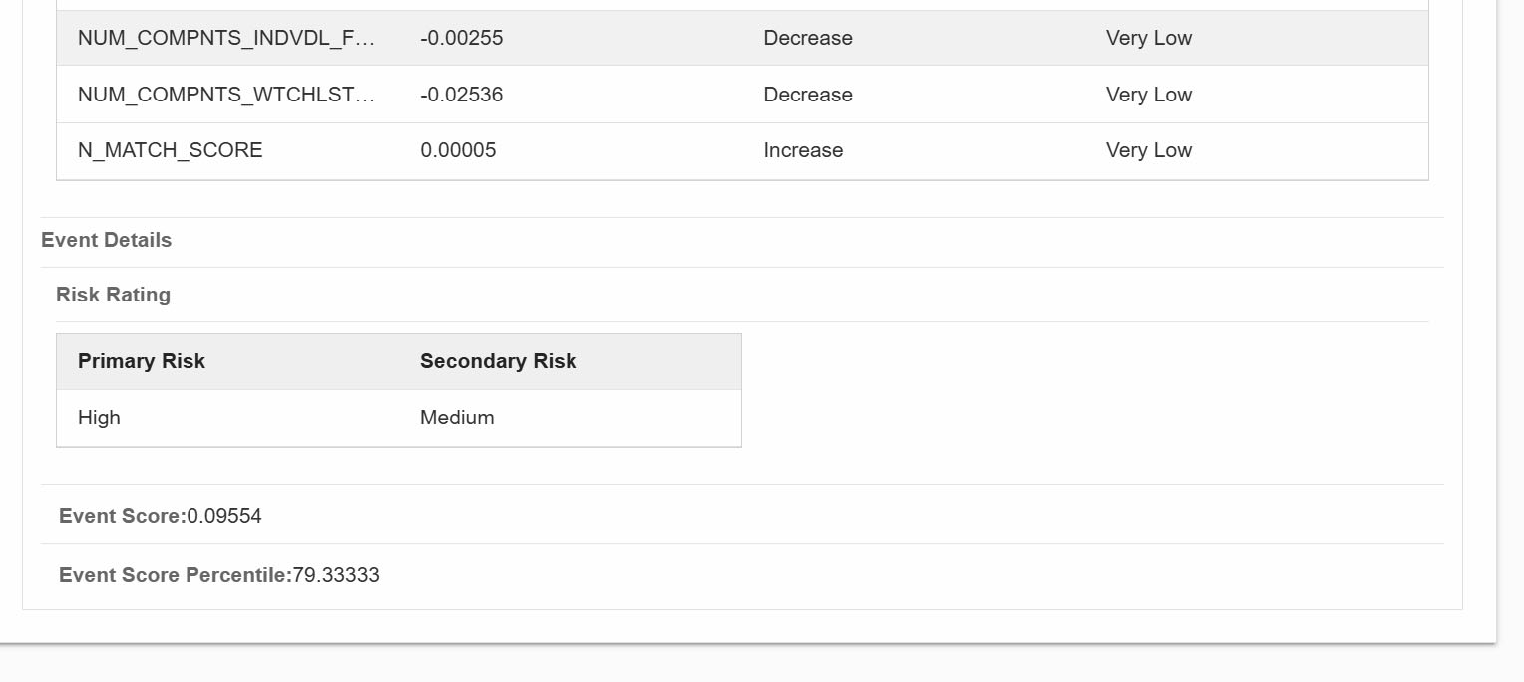

Figure 3-24 The ML Score Window


Description of Figure 3-24 follows
Description of "Figure 3-24 The ML Score Window"

For more information about features, refer to the Feature Engineering section in latest OFS Compliance Studio Use Case Guide.
