8.1.1.3.6 Drill through option

Drill-down functionality enables user to view data at the lowest granularity. The lowest granularity level at which the user is able to drill is specific to a given subject area (SA) on which visualization is based and attributes present in that subject area. For example: In Account subject area, the lowest level granularity would be accounts (account key in fact entities and account identifier in stage entities). Similarly for transaction subject area, lowest level granularity available for viewing via drill through will be transaction identifier.

The solution currently supports drill-through up to data in results entities, and not for stage entities.

Functionality is available for all pre-built reports for attributes that are contributing towards data for that pre-built report. Drill through can be done for all types of visualizations including but not limited to tabular, pivots, graphical, pie charts, time series, and so on.

Data viewed post drill-through pre-applies all the filters and shows user the specific granular data that user was viewing before drill through.

1. Go to chart where user needs to see specific data -> Right click -> Drill to attribute/Hierarchy -> Select specific hierarchy for which user wants to view data.

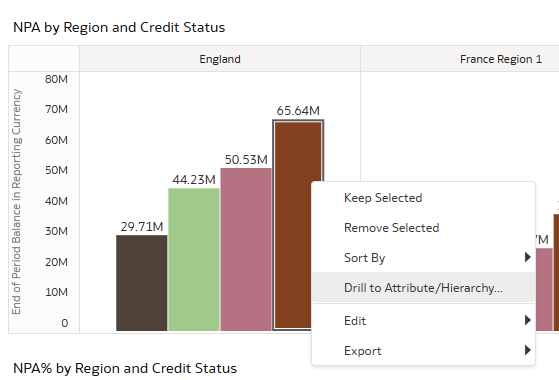

   Figure 8-55 Drill through option

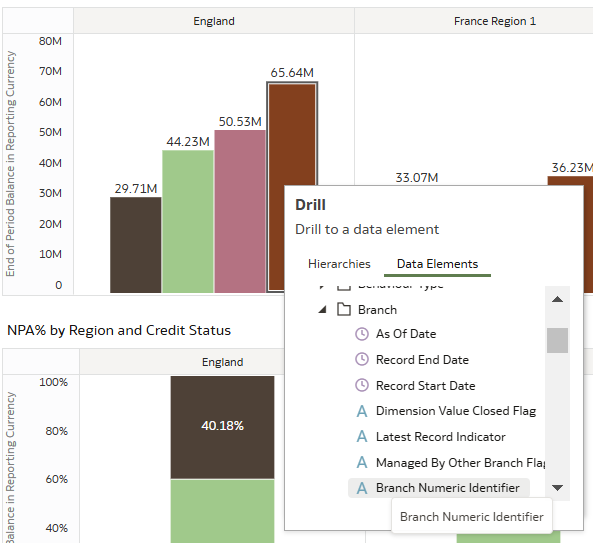

   Figure 8-56 Drill through option Data Elements
