8.2.4.10.1.5 Drill through for KPIs

Drill-down functionality enables user to view KPI data at the lowest granularity.

User starts pre-built report visualization from results (fact entities based) -> drill down to more granular results (multiple levels of drill down in fact entities) -> View data at lowest granularity.

Example:

Time Series report -> Education Loans KPI -> Country name drill down -> Party type (or party name) drill down -> Account skey in fact common account summary -> Stage Loan Contracts

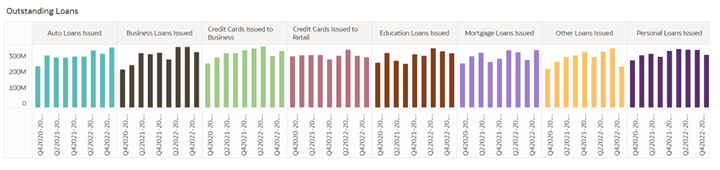

Figure 8-98 Drill through for KPIs

Hover over education loans as shown below to look at overall numbers:

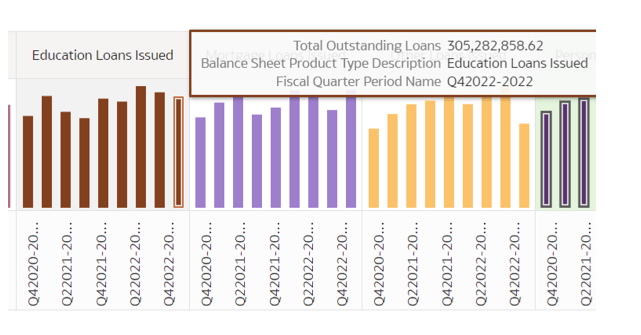

Figure 8-99 Balance Sheet KPIs

Right click and select Country name from drill down option as below:

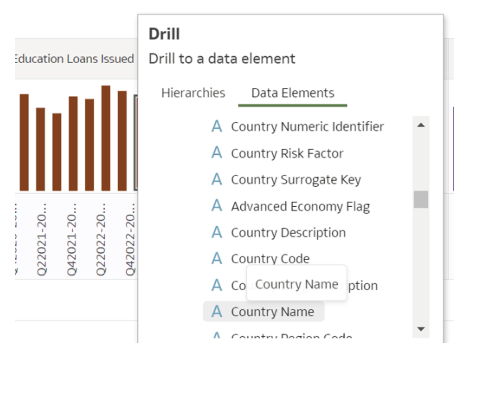

Figure 8-100 Drill

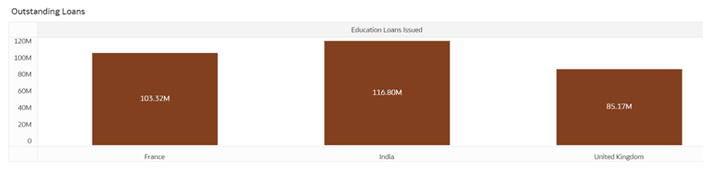

Figure 8-101 Drilldown at Country

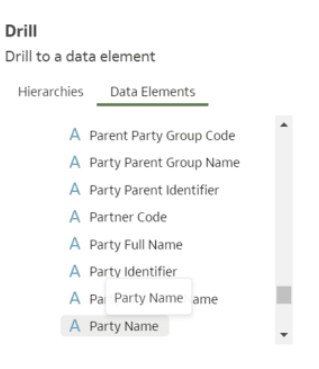

Figure 8-102 Drill down to Party Name

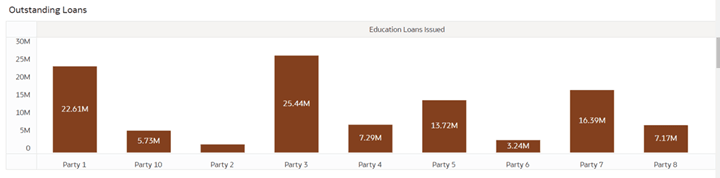

Figure 8-103 Party Name Drill down

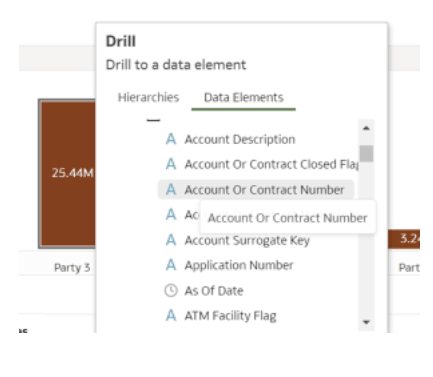

Figure 8-104 Drill down for account level

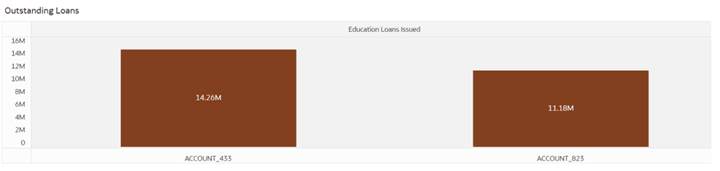

Figure 8-105 Account drilldown
