16.6.3 Prior Period Report

The Variance Analysis Dashboard provides data based on selecting the values from the following list of drop-downs:

Note:

You must manually select the reports and then click Continue.

The Variance % is calculated with the following formula:

Variance % computed = (Current Value – Previous Value)/Previous Value

  • Report: Based on the KI Configuration this drop-down populates, select a Pre-configured Report.
  • Schedule: Based on the KI Configuration this drop-down populates, select a schedule.
  • Cell Identifier: Based on the KI Configuration this drop-down populates, select a Cell Identifier.
  • Entity Name: Select an Entity Name.
  • *Current Date: Select a Date on which the assessment has been done.
  • Variance %: Select a variance %
  • Variance Amount Between: Enter the Variance Amount Range.
  • Breached: Select 'Yes' or 'No' or both.

Note:

Ensure you have configured the Key Indicators. Refer to the Configure a Key Indicator Section.
  1. Click Apply to generate the reports.
  2. Click Reset to reset the values.

    The generated report contains the following details:

    • Report Code: Provides report code of the cell.
    • Schedule Code: Provides schedule code of the cell.
    • Cell Identifier: Provides the MDRM code of the cell.
    • Cell Line Item: Provides line item of the cell. To display the line item data must be maintained in the FSI_REG_CELL_LINE_ITEM table.
    • Cell Description: Provides the description of the code.
    • Entity: The entity for which the assessment was done.
    • Current Value: Provides the current value of the assessment.
    • Previous Value: Provides the previous value of the assessment.
    • Variance: Provides the difference between the current and previous values.
    • Variance %: Provides the percentage value of the variance.
    • Trend: Displays the graphical representation of the assessment across time. You can select between:
      • Trend for All Dates
      • Trend for Date Range

      Note:

      Trend graphs can be exported to PDF and Excel.

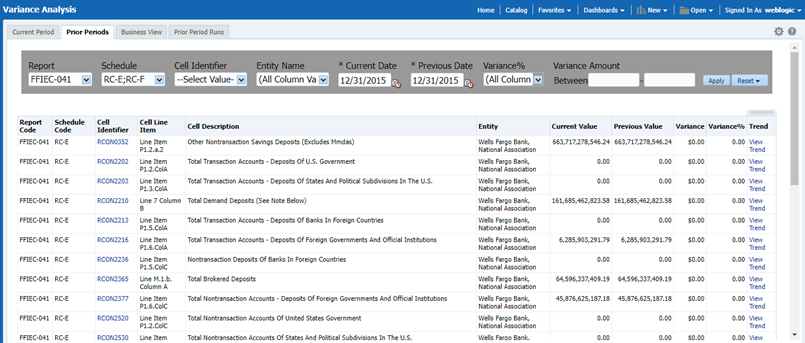

    Figure 16-64 Variance Analysis for Prior Periods


    Variance Analysis for Prior Periods

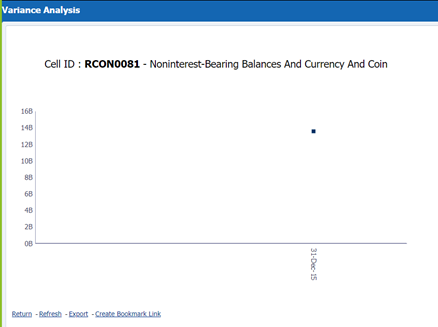

    Figure 16-65 Trend


    This illustration displays the graphical representation of the assessment across time. You can select between Trend for All Dates and Trend for Date Range.
