14.35 Configuring ECM Security Function

This section describes how to configure ECM Security Function.

The user groups listed in the Mapper Maintenance screen can be configured/controlled by the associated function. By default, CMACCESS function code is currently configured out of the box.

To configure the ECM Security Function, follow these steps:
  1. Open the Manage Common Parameters screen.
  2. Select Used For Design from the Parameter Category drop-down list.
  3. Select the ECM Security Function from the Parameter Name drop-down list.

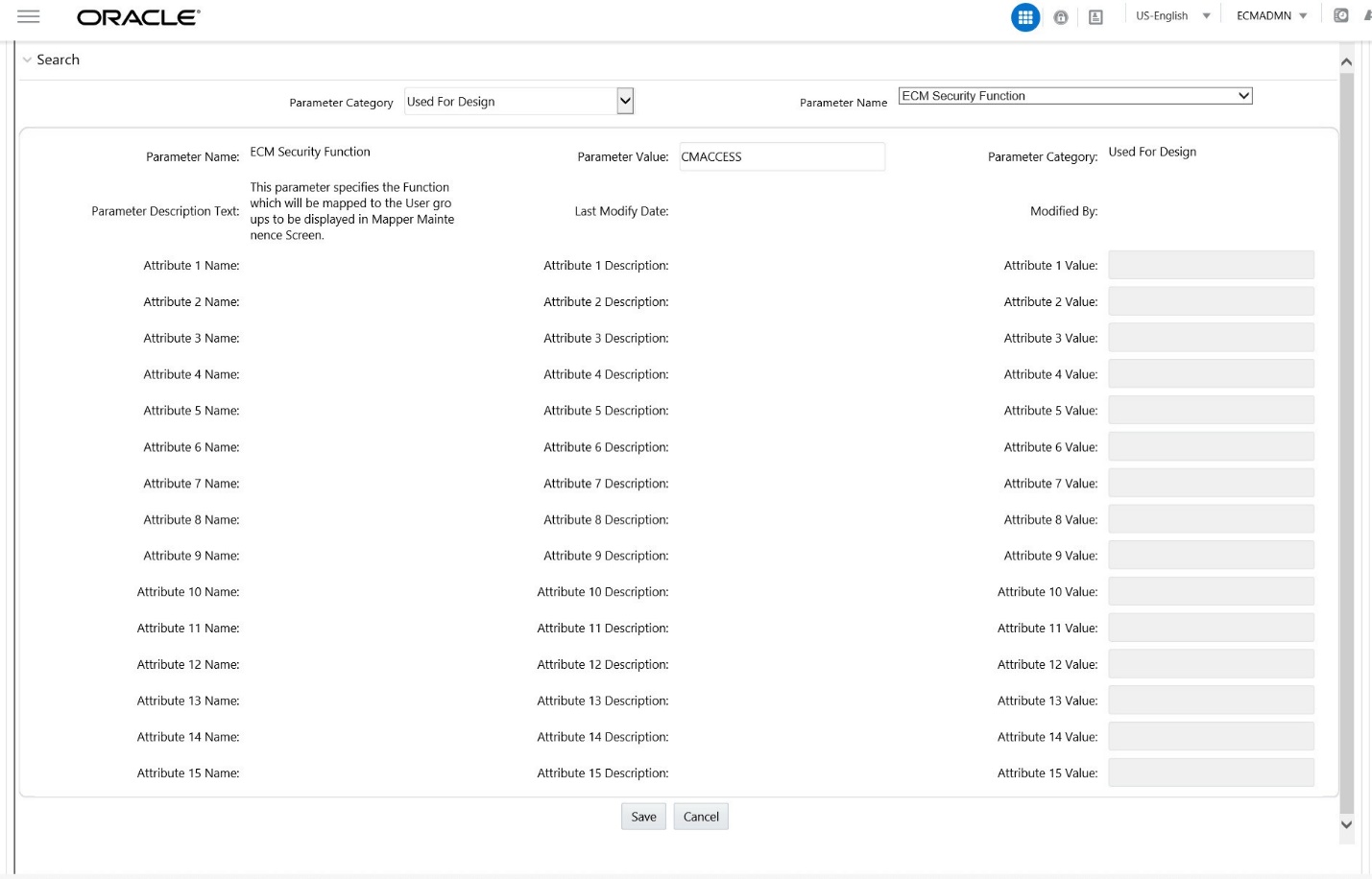

    Figure 14-9 Configuring ECM Security Function

    This image shows the Configuring ECM Security Function screen.
  4. Edit the required parameter details and click Save. A confirmation dialog box appears asking: Would you like to Save these actions?
  5. Click OK. A Confirmation dialog box appears with the message: Update Operation Successful.
  6. Click OK. The Manage Common Parameters page is displayed.
