29.5 Loading the Mapper Maintenance from Backend

In this illustration, load the MAP_GL_CODE_REP_LINE table in the Atomic schema with the V_MAP_ID value as 1494610765133, and load these column values:

  • V_MEMBER_1 = GL Code (values from DIM_GL_ACCOUNT.V_GL_ACCOUNT_CODE).
  • V_MEMBER_2 = Debit Credit Indicator (values should be C or D or M).
  • V_MEMBER_3 = GL Rollup Signage.
  • V_MEMBER_4 = Reporting Line Code (values from DIM_REP_LINE.N_REP_LINE_CD).

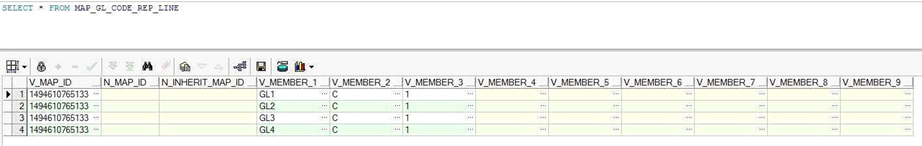

Figure 29-33 Loading the Mapper Maintenance from backend


This illustration shows loading of the Mapper Maintenance from backend.

Note:

These values are real business key columns and not display codes.
