31.3 Executing the BASEL Processing to FSDF Results Integration T2Ts

For BASEL FSDF integration, you must have FSDF, and BASEL installed on the same INFODOM. Also, you must ensure that FSDF and BASEL are running the same version.

There are two ways to integrate BASEL and FSDF:

• Creating Integrated Run at Implementation Site: During implementation, you can merge the tasks of both BASEL and FSDF and create an integrated Run to execute each time. The processes inside Run should be ordered as BASEL first, then FSDF, and finally the BASEL FSDF Integration process. In this Run, the BASEL processing area and the FSDF results area tables must have the same Run SKEY across all tables.

  Note:

  For BASEL-FSDF Integration Run, please use the FSDF Process Modelling Framework (PMF) screen as the Request Report Flag, Override Report Flag, and Approve Report Flag options are not available in the BASEL PMF to enable the Reporting Flag.
• Using approved BASEL Run Execution ID in FSDF Run: In this case, you can use the out-of-the- box BASEL Run as is for execution. After the execution, if the values are correct, you can execute the out-of-the-box FSDF Run by selecting the required BASEL Run SKEY from the PMF page. In this case, BASEL processing area has one RUN SKEY and for the same data, FSDF has a different RUN SKEY in FSDF results area tables, where the data is getting reported. Sample report generation is as follows:
  1. Login to Oracle Financial Services Analytical Applications interface with your credentials.
  2. Navigate to the Process Modeller page. For navigation, see the section Executing Run through Process Modelling Framework in OFSDF.
  3. Select Execute Run.
  4. The Select Run Params page is displayed.
  5. Enter the Run Execution Description. The BASEL Run Execution Identifier and FIC MIS Date is auto-populated from the BASEL Run report used.
  6. Click OK.

     Note:

     Resave Hierarchy HFSDF004 (FSDF BASEL Run Execution Identifier for Run) after BASEL execution for getting values in this BASEL Run Execution Identifier.

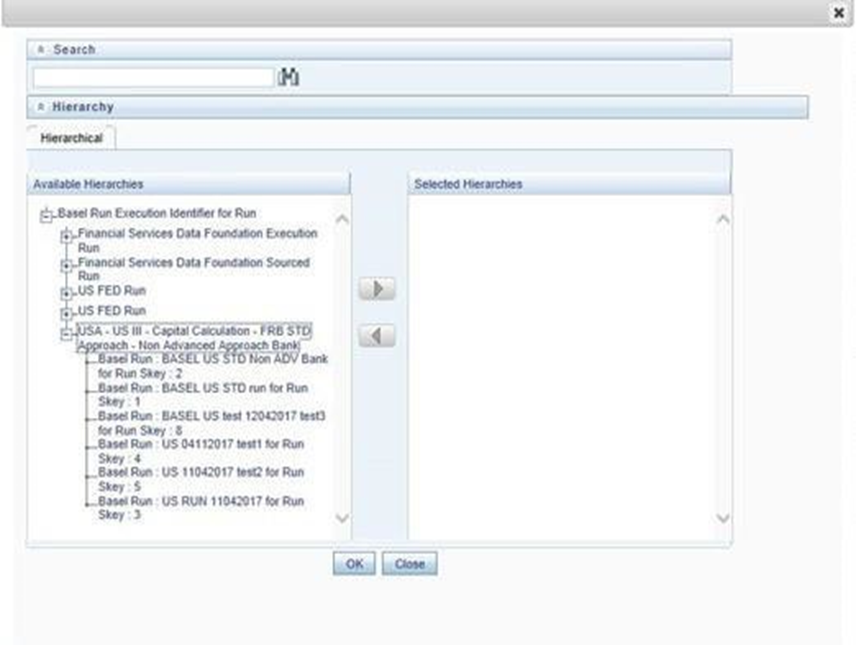

     Figure 31-1 Integration of BASEL and FSDF using approved BASEL Run Execution ID in FSDF Run








  7. Select only one BASEL Run from the Available Hierarchies for the execution and click OK.
