32.3 Executing the LLFP Processing to FSDF Results Integration T2Ts

For LLFP FSDF integration, you must have FSDF and LLFP installed on the same INFODOM. There are two ways to integrate LLFP and FSDF:

1. Creating Integrated Run at Implementation Site: During implementation, you can merge the tasks of both LLFP and FSDF and create an integrated Run to execute each time. The processes inside Run should be ordered as LLFP first, then FSDF, and finally the LLFP FSDF Integration process. In this Run, the LLFP processing area and the FSDF results area tables must have the same Run SKEY across all tables.

   Note:

   For LLFP-FSDF Integration Run, please use the FSDF PMF screen as the Request Report Flag, Override Report Flag, and Approve Report Flag options are not available in the LLFP PMF Screen to enable the Reporting Flag.
2. Using approved LLFP Run Execution ID in FSDF Run: In this case, you can use the out-of-the- box LLFP Run as is for execution. After the execution, if the values are correct, you can execute the out-of-the-box FSDF Run by selecting the required LLFP Run SKEY from the PMF screen. In this case, LLFP processing area has one RUN SKEY and for the same data, FSDF has a different RUN SKEY in FSDF results area tables, where the data is getting reported. Sample report generation is as follows:
   1. Login to Oracle Financial Services Analytical Applications interface with your credentials.
   2. Navigate to the Process Modeller page. For navigation, see the section Executing Run through Process Modelling Framework in OFSDF.
   3. Select Execute Run.
   4. The Select Run Params window is displayed.
   5. Enter the Run Execution Description. The LLFP Run Execution Identifier and FIC MIS Date is auto-populated from the LLFP Run report used.
   6. Click OK.

      Note:

      Resave Hierarchy HFSDF007 (FSDF LLFP Run Execution Identifier for Run) after LLFP execution for getting values in this LLFP Run Execution Identifier.

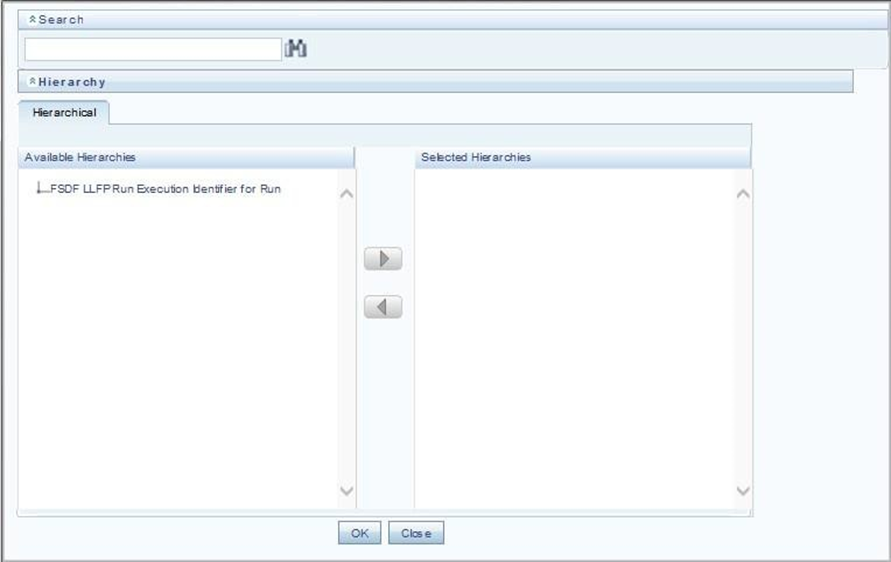

      Figure 32-1 Integration of LLFP and FSDF using approved LLFP Run Execution ID in FSDF Run








   7. Select only one LLFP Run from the Available Heirarchies for the execution and click OK.
