5.15 Multi Level Approval

Model Pipeline deployment process by default requires one level of approval for every stage including model pipeline acceptance, promotion to production, and so on.

The requestor is allowed to select Reviewer and Approver user groups. All the user groups with MDLREVIEW function mapped to them are displayed in the Reviewers selector field. Similarly, the user groups with the MDLAPPROVE function mapped to them are displayed in the Approvers selector field. Applicable Pending requests are shown in the Reviewer/Approver tabs.

To add multi level approvers or reviewers, perform the following:

1. Navigate to <mmg-home>/conf/workflow/model-pipeline/default.yml
   Following are the default values:

   workflow:

   workflow-name: Default Workflow

   num-approver-levels: 1

   levels:

   - level: 1

   approvers:

   escalation-approvers:

   escalation-trigger-time: 0

   lock-approver-selection: false

   enable-approver-notification: true

2. Modify the approver levels based on your requirements as shown below.

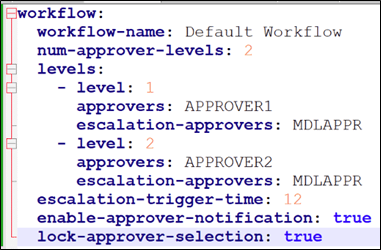

   Figure 5-1 Multi level approval
