6.1.2 Configure Workspace Schema

Enter schema operation and enter connection details in this window.

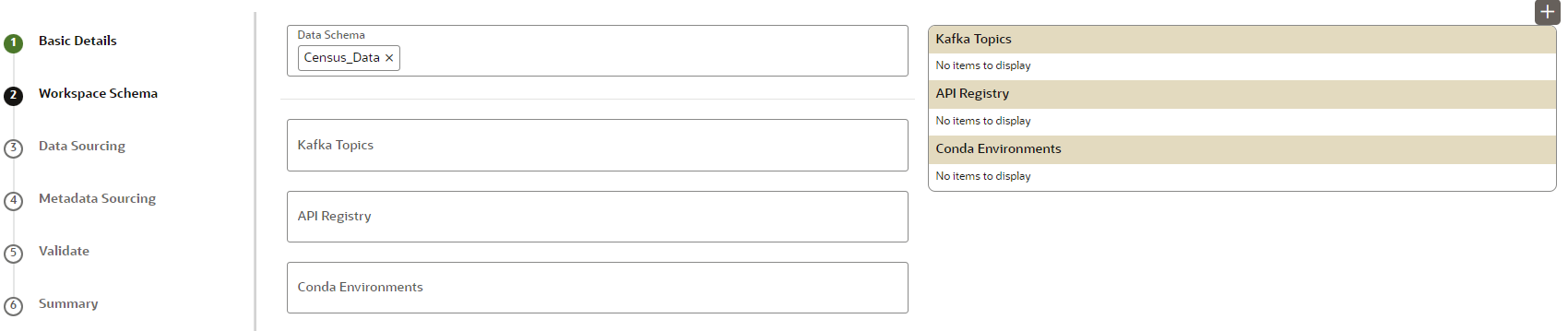

Figure 6-4 Workspace Schema


This image displays the Workspace Schema.
To configure the Workspace Schema:
  1. Select the required schemas from the Data Schema drop-down list. This is the actual data used for model building. You can use multiple Data Schemas for one Meta Source. You can select an existing Schema or add a new Schema by clicking on + icon. The data source options such as Oracle, Hive, and File are displayed.

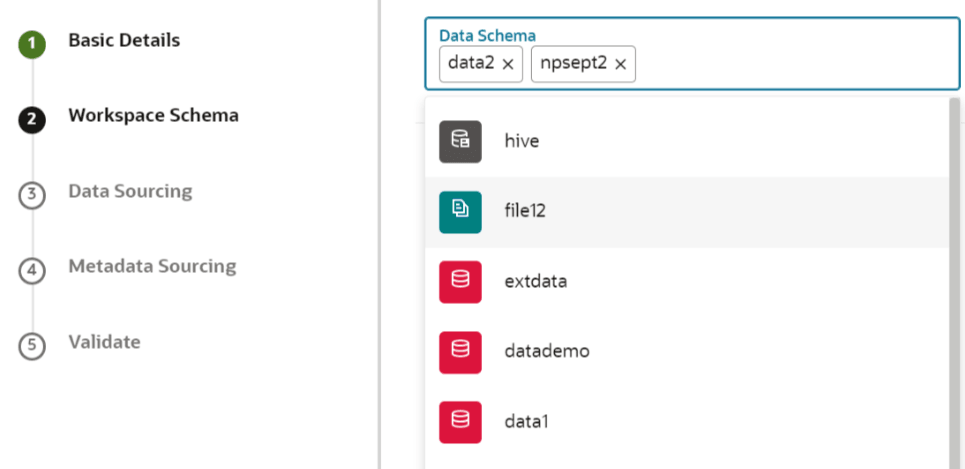

    Figure 6-5 Data Schema


    This image displays the Data Schema.

    Note:

    For details on adding a new data store, see Data Store section.
  2. Select the required options from the Kafka Topics list. The selected Kafka topics are listed in the right side menu with the order of selection. For more details, see Kafka Topics.
  3. Select the required options from the API Registry list. The selected API Registry are listed in the right side menu with the order of selection. For more details, see API Registry.
  4. Select the required options from the Conda Environments list. For more details, see Conda Environments.
  5. Click Next to go to the next step.
    OR
    Click Skip to skip the step.
