B.4.1 Testing the Services through Postman

1. Standard Process Service:

   Request Type: GET

   Header: UserID : FTPUSER

   Figure B-35 Standard Process Service








2. Authorization:

   Type: Basic Auth

   Username : FTPUSER

   password: password1

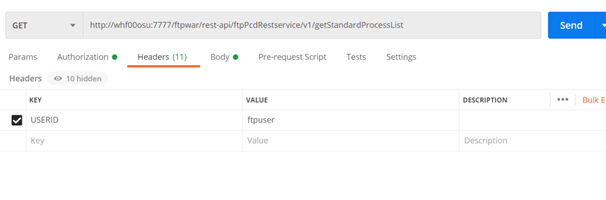

   Figure B-36 Authorization









   URL : http://whf00osu:7777/ftpwar/rest-api/ftpPcdRestservice/v1/getStandardProcessList

3. Response:

   {
       "status": "success",
       "data": {
           "processList": [
               {
                   "processName": "PCD Process",
                   "folderName": "PFTSEG",
                   "folderId": "PFTSEG",
                   "processId": "200044"
               },
               {
                   "processName": "PCD Process2",
                   "folderName": "PFTSEG",
                   "folderId": "PFTSEG",
                   "processId": "200063"
               }
           ]
       },
       "messages": null
   }

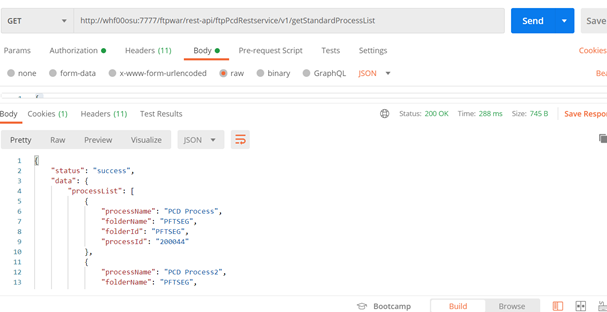

   Figure B-37 getStandardProcessList Reponse
