1. Installation and Configuration Guide
  2. Installation
  3. Install the OFS Profitability Management Pack (OFS PAM Pack)

6.8 Install the OFS Profitability Management Pack (OFS PAM Pack)

Before you begin the installation, ensure you have configured and executed the following files:

  1. Configure the OS File System Settings and Environment Settings in .profile File
  2. Configure the OFT_PAM_PACK.xml File
  3. Configure the OFS_PAM_SCHEMA_IN.xml File
  4. Configure the OFSAAI_InstallConfig.xml File (Do not configure this file if an installation of OFSAAI 8.1.2 already exists.)
  5. Execute the Schema Creator Utility
  6. Configure the Silent.props File

To install the OFS Profitability Management Pack (OFS PAM Pack), follow these steps:

  1. Log in to the system as a non-root user.
  2. Identify a directory for installation and set the same in the user .profile file as follows:

    FIC_HOME=<OFSAA Installation Directory>

    export FIC_HOME

  3. Execute the user .profile file.

    . ./.profile

  4. Navigate to the OFS_PAM_PACK/bin directory.

    Note:

    Do not install the new applications in the same segment if the preinstalled applications use the Run Management functionality of OFSAAI.
  5. Enter the following command in the console to execute the application pack installer.

    ./setup.sh SILENT

    The installer proceeds with the pre-installation checks.

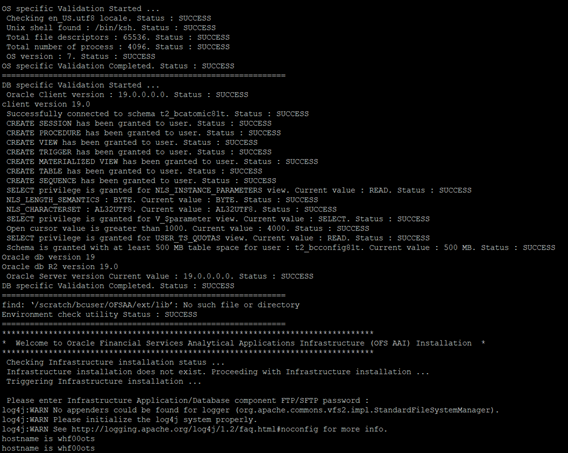

    Figure 6-10 Installation


    This illustration shows triggering of the installation in silent mode.

  6. Enter the OFSAA Processing Tier FTP/SFTP password value when prompted in the Command Prompt and proceed.

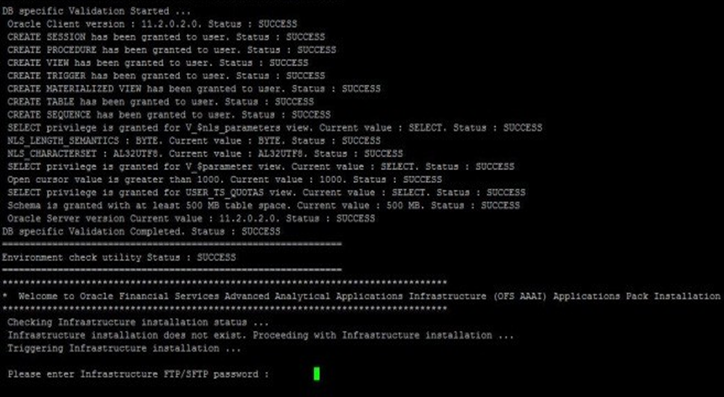

    Figure 6-11 OFSAA Processing Tier FTP/SFTP password


    This illustration shows OFSAA Processing Tier FTP/SFTP password prompt during the installation.

  7. The process displays the OFSAA License Agreement. Enter Y and proceed.

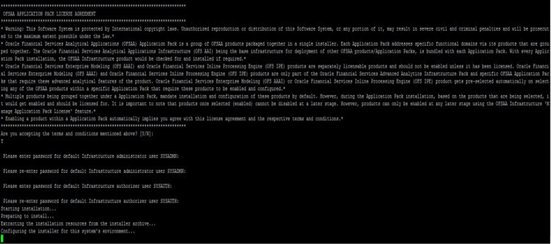

    Figure 6-12 OFSAA License Agreement


    This illustration shows the OFSAA License Agreement prompt during the installation.

  8. The installer installs the OFS AAI application.

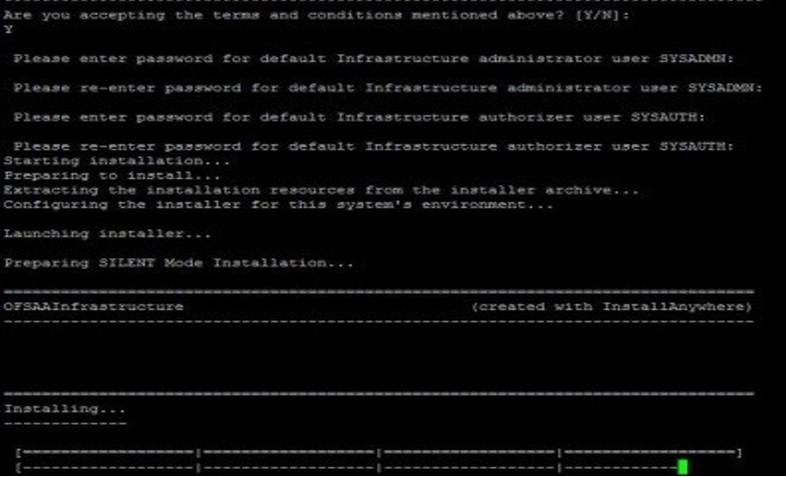

    Figure 6-13 OFS AAI Installation


    This illustration shows the OFSAA silent mode installation.

  9. After OFS AAI is installed, the OFS Profitability Management Pack (OFS PAM Pack) installation begins.

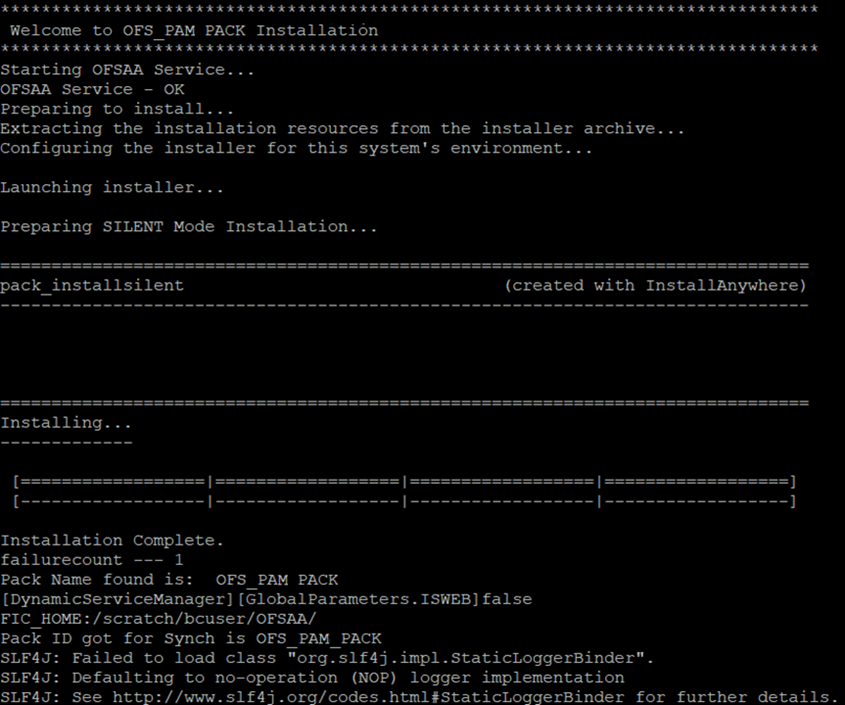

    Figure 6-14 OFS Profitability Management Installation


    This illustration shows the OFS PAM installation.

    The OFSAA Infrastructure installation performs a post-install health check automatically on the successful installation of the product.

    The following message is displayed in the console: Installation completed

  10. To verify if the release is applied successfully, check the log files mentioned in the Verify the Log File Information section.
  11. After the installation of OFS Profitability Management Pack (OFS PAM Pack) 8.1.2.0.0 is successful, complete the required Post-installation steps.
