14.1.2.3 Model Details Pane

To construct a Standard Allocation Model, the Model Details pane allows a single list of allocation rules. To construct a Circular Allocation Model, the Model Details pane allows a list of circular rules and a list of sweep rules.

Click Task Selector to select the rules you want to include.

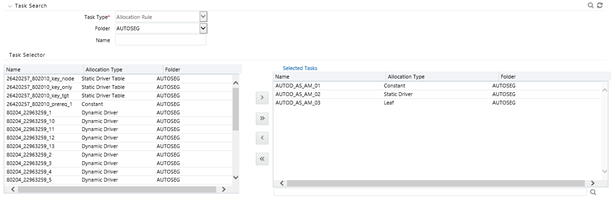

Figure 14-6 Task Selector

The Task Selector consists of the following panes:

• Task Search: Task Search contains Task Type, Folder, and Name. The only Task Type presented for Allocation Models is Allocation Rules. The Allocation Model Task Selector is identical to the Task Selector used within Simplified Batches. Select a Folder and click Search to view all of the allocation rules within that Folder. You can also select a blank or no Folder to search for all the allocation rules. You can also search for rules by name. After executing a search, qualifying rules are displayed on the left-hand side of the Task Selector.

  Figure 14-7 Task Details








• Task Selector: The Allocation Model Task Selector has the same user interface as is used for selecting tasks in Simplified Batches. For details on using the Task Selector for Allocation Models, see Task Selection in Simplified Batches.
