Modular RS232 COM or Powered RJ45 Port Diagram

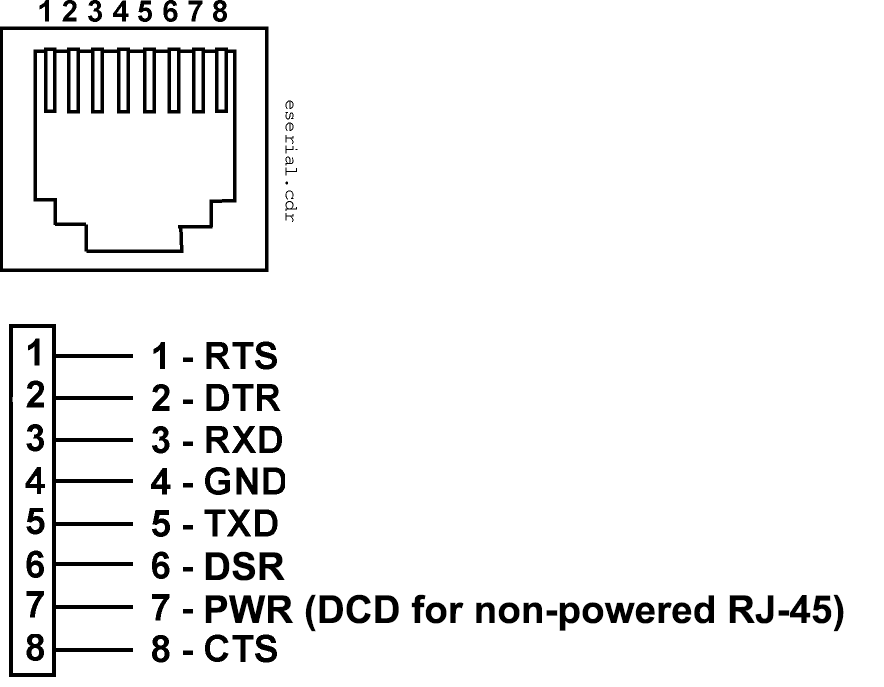

The figure below shows a pin-out of the full featured RJ45 port available on the Workstation 6, PCWS 2015, Workstation 5A, KW270, and Base Station.

Figure 33-3 Modular COM Port with Handshaking
