MICROS 10-Key Bumpbar Mounting Bracket Dimensions

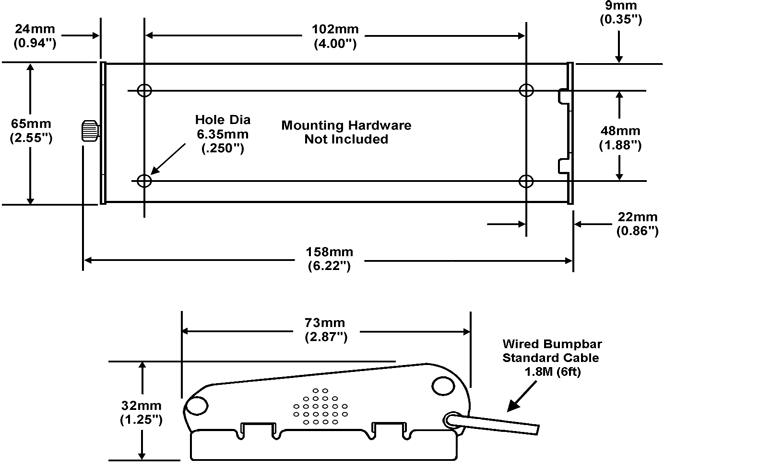

Figure 32-46 10-Key Bumpbar Mounting Bracket Dimensions

This figure shows the MICROS 10-Key Bumpbar Mounting Bracket.

Parent topic: Equipment Dimensions
