MICROS 20-Key Bumpbar Mounting Bracket Dimensions

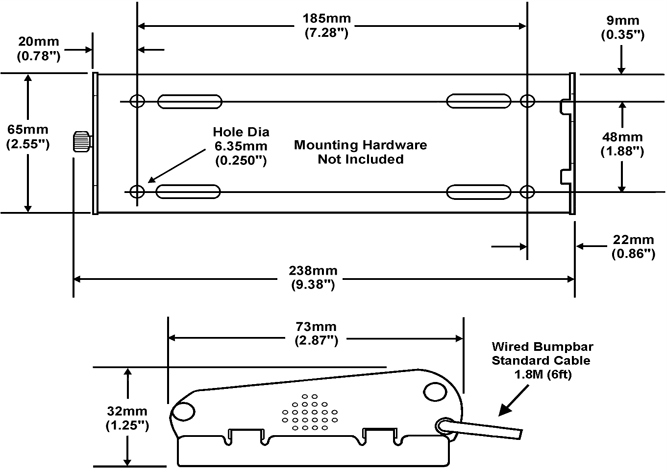

Figure 32-47 20-Key Bumpbar Mounting Bracket Dimensions

This figure shows MICROS 20-Key Bumpbar Mounting Bracket.

Parent topic: Equipment Dimensions
