Null Modem Cable for e7 KVM Controller
The figure below shows a Null Modem Cable that is used for the e7 KVM Controller serial interface.

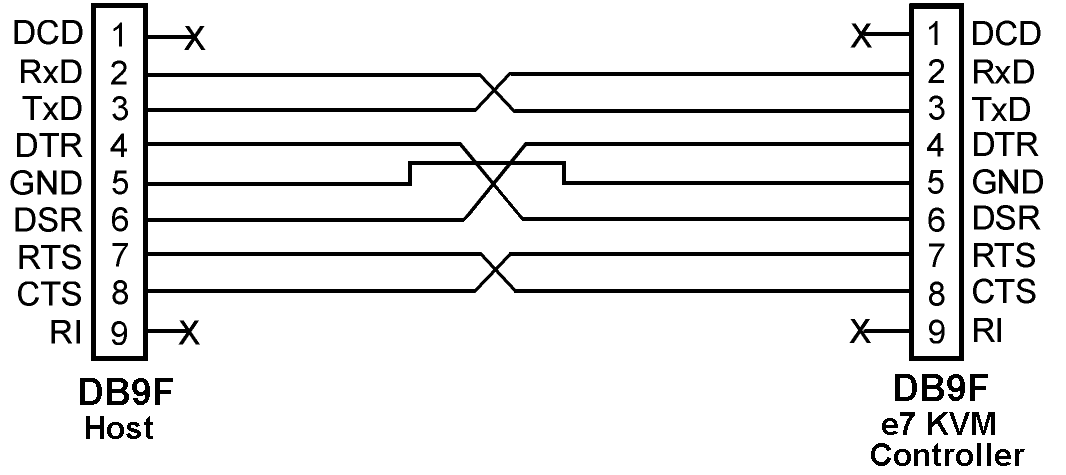

Figure 34-1 Null Modem Cable Pin-Outs
Parent topic: Hook-Up Cables
