Attaching the Epson PS-180 Power Supply to the Adjustable Stand

  1. Place the Workstation 6 Series Adjustable Stand upside down on a flat surface. Note the location of the Epson PS-180 power supply mounting bracket.

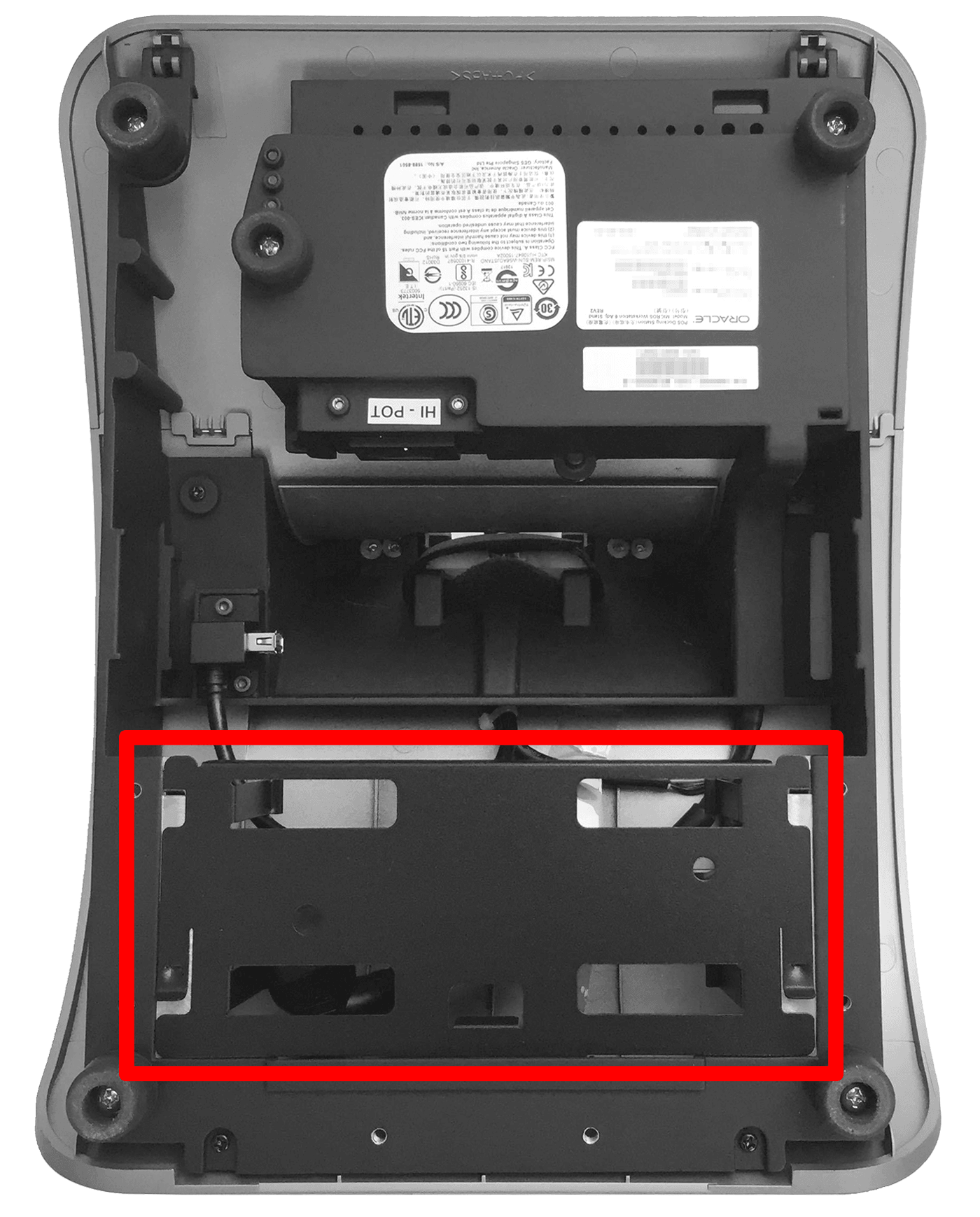

    This figure shows the location of the power supply bracket on the Adjustable Stand.
  2. Lift the two raised-edge corners of the bracket and slide it out of the mounting slots.

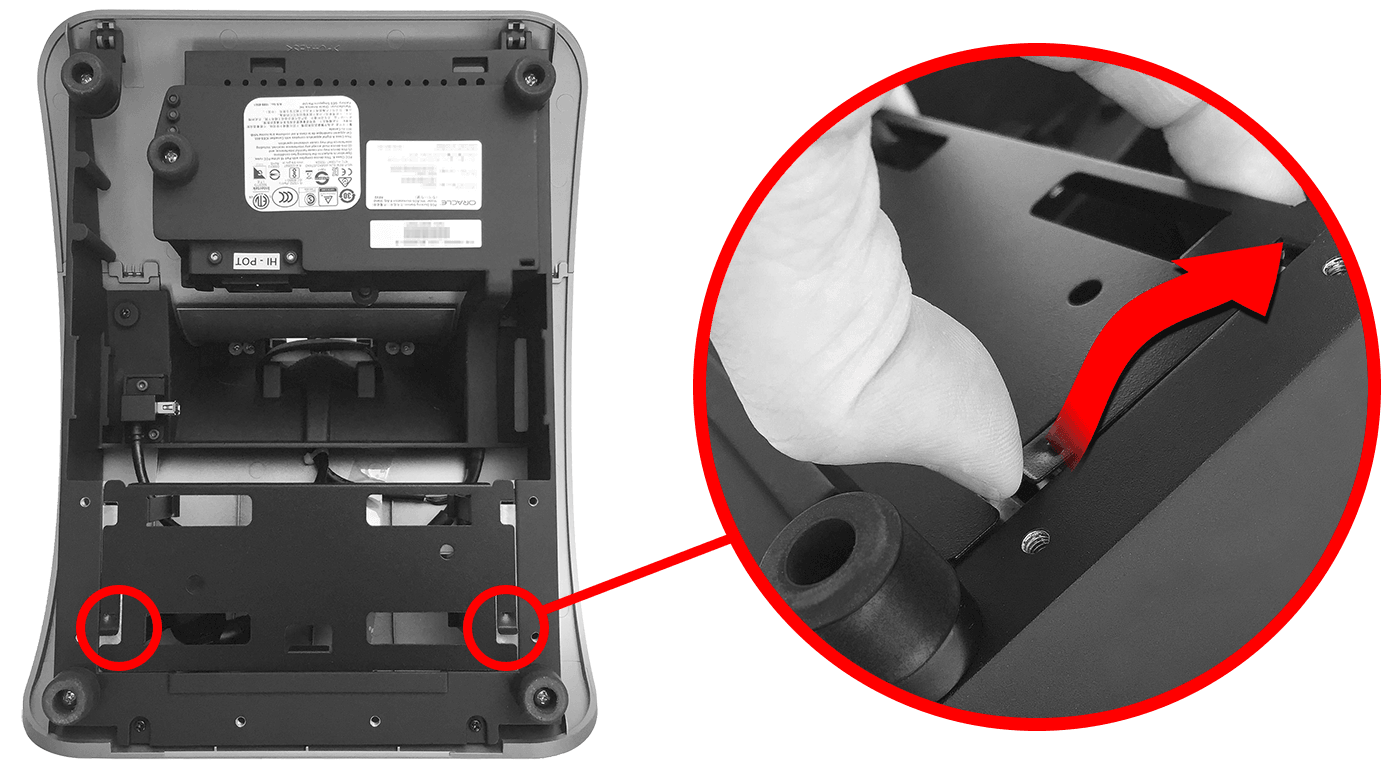

    This figure shows a hand removing the power supply bracket.
  3. Place the bracket on a flat surface.

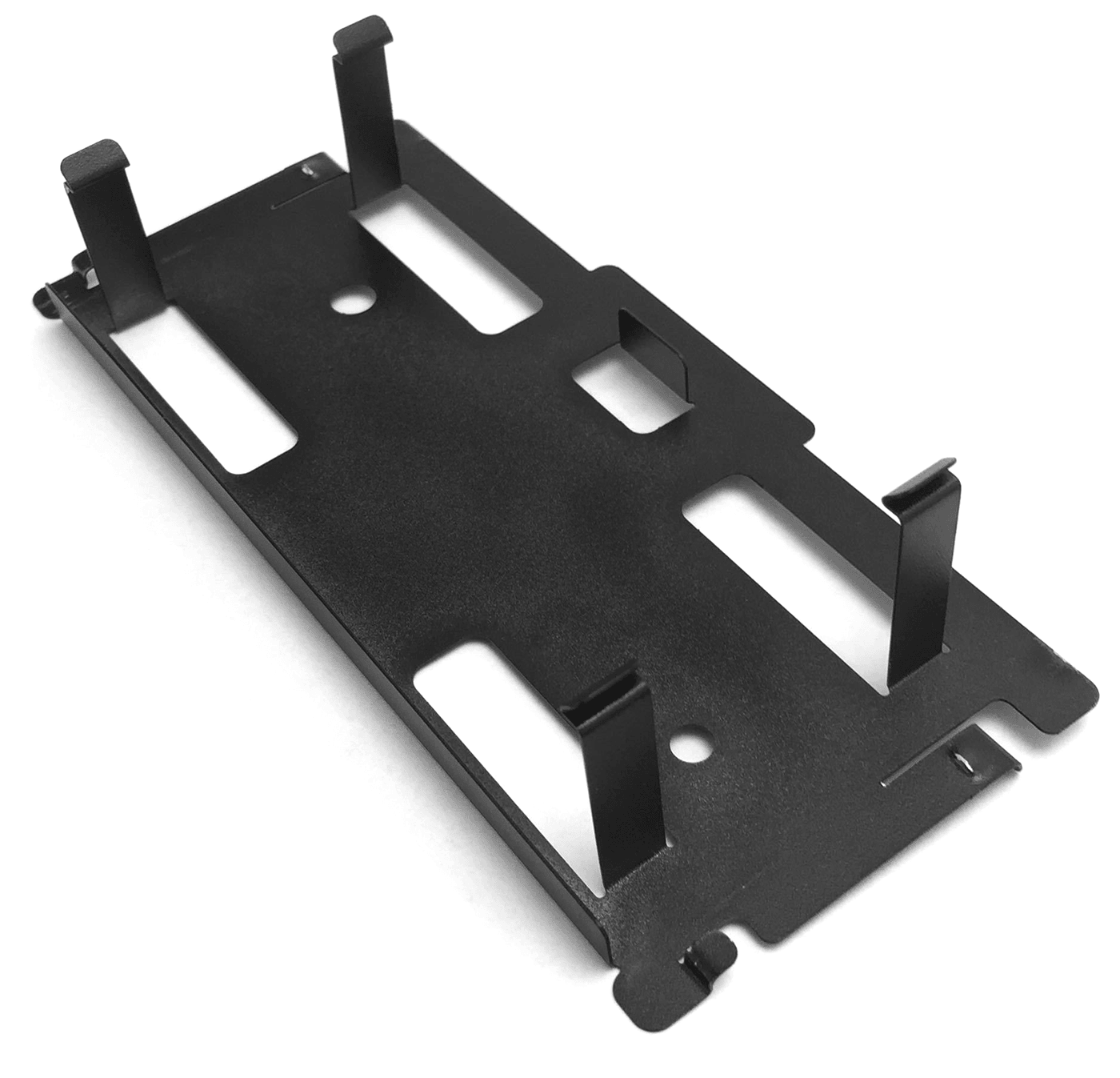

    This figure shows the power supply bracket.
  4. Insert the Epson PS-180 power supply into the bracket until the retaining clips snap into place and it is flush with the bracket face. Note the orientation of the power supply on the bracket.

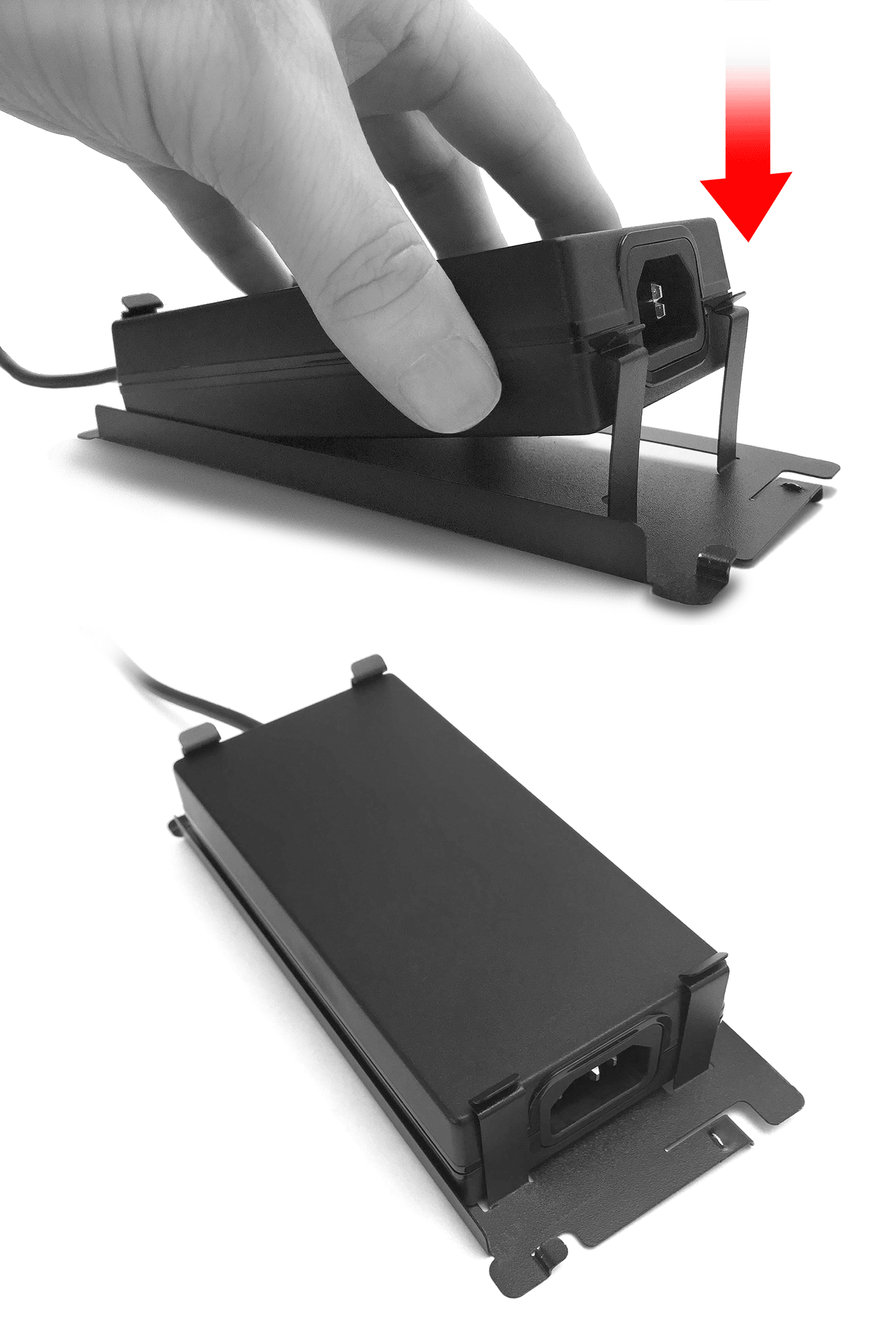

    This figure shows the power supply being inserted into the bracket and an image of the fully assembled bracket and power supply.
  5. Locate the C13 power cord in the Adjustable Stand interior.

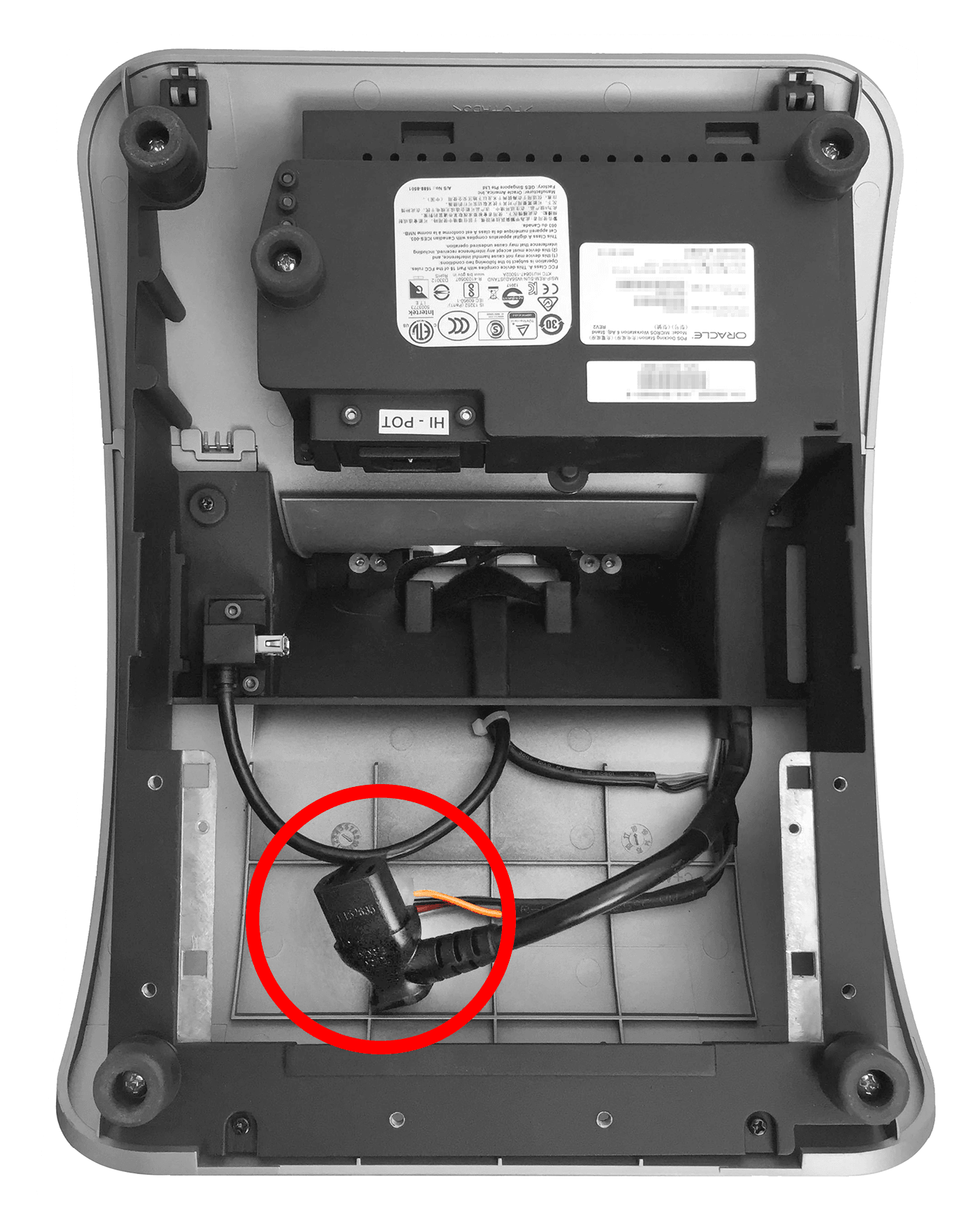

    This figure shows the location of the C13 power cord in the Adjustable Stand.
  6. Connect the C13 power cord to the power supply.

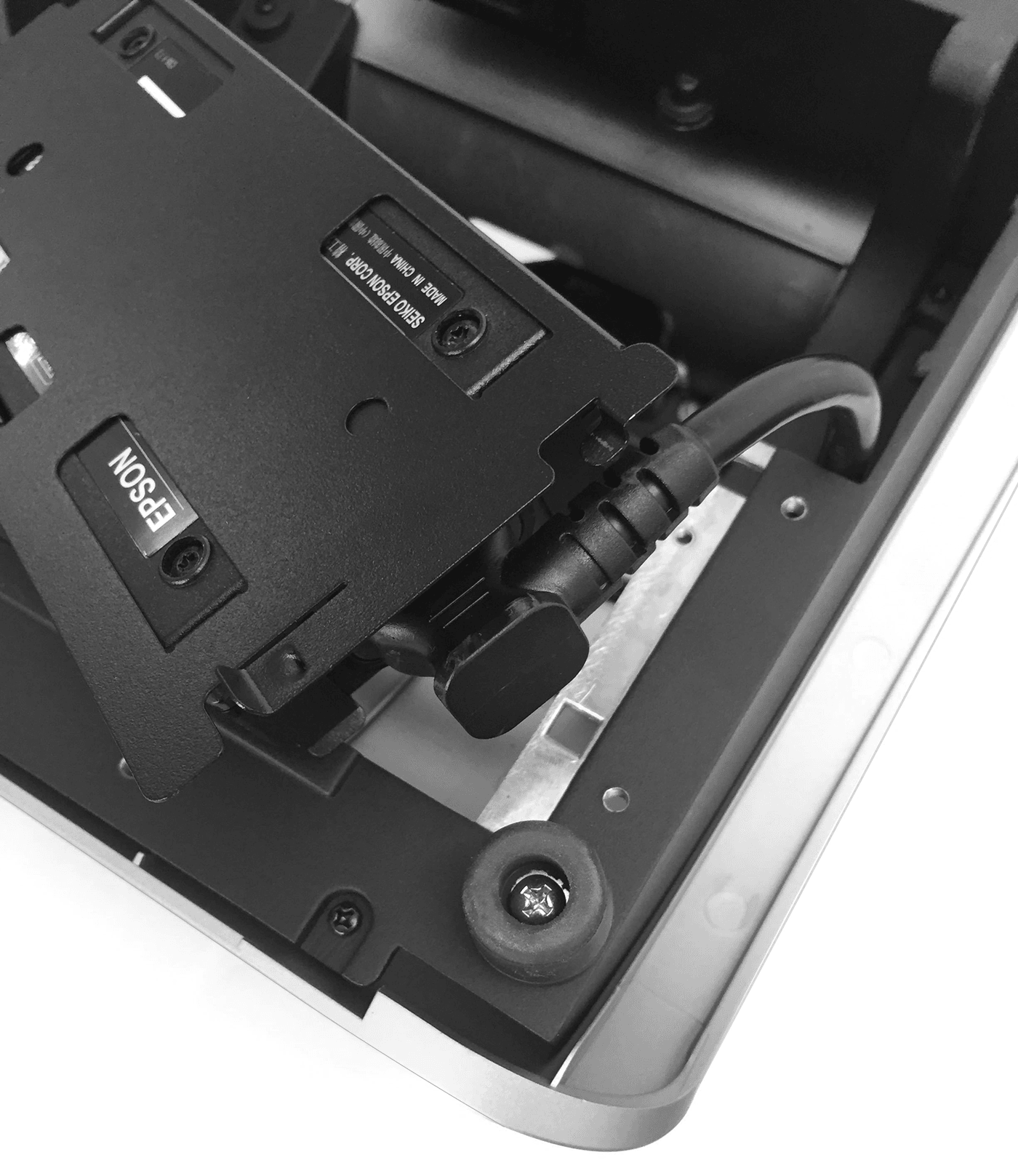

    This figure shows the C13 power cord connected to the power supply.
  7. Place the assembled power supply and bracket in its original position in the Adjustable Stand by sliding the bracket feet into the two mounting slots until it snaps into place. Route cables as needed.

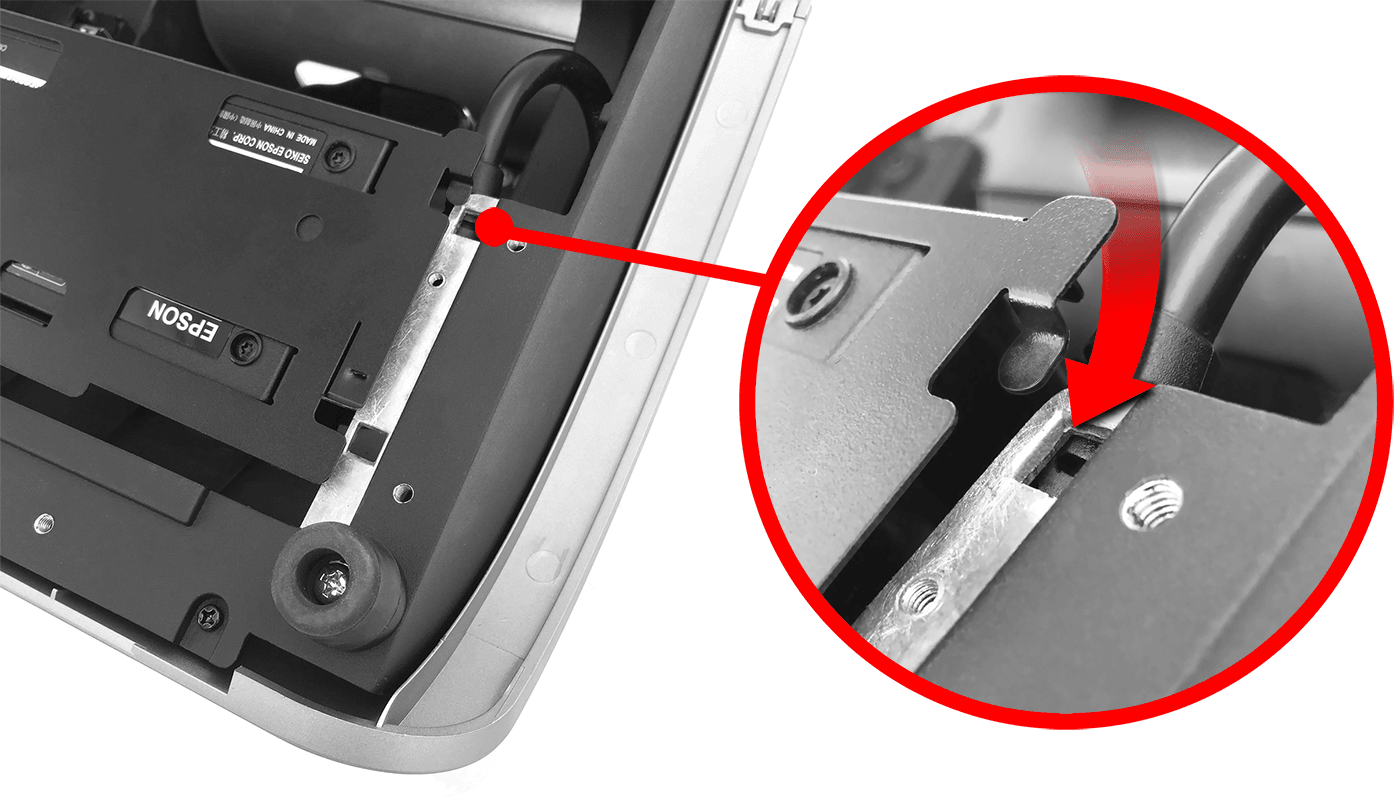

    This figure shows inserting the power supply bracket into the mounting slots of the Adjustable Stand.
  8. When properly installed, the power supply is securely attached to the Adjustable Stand.

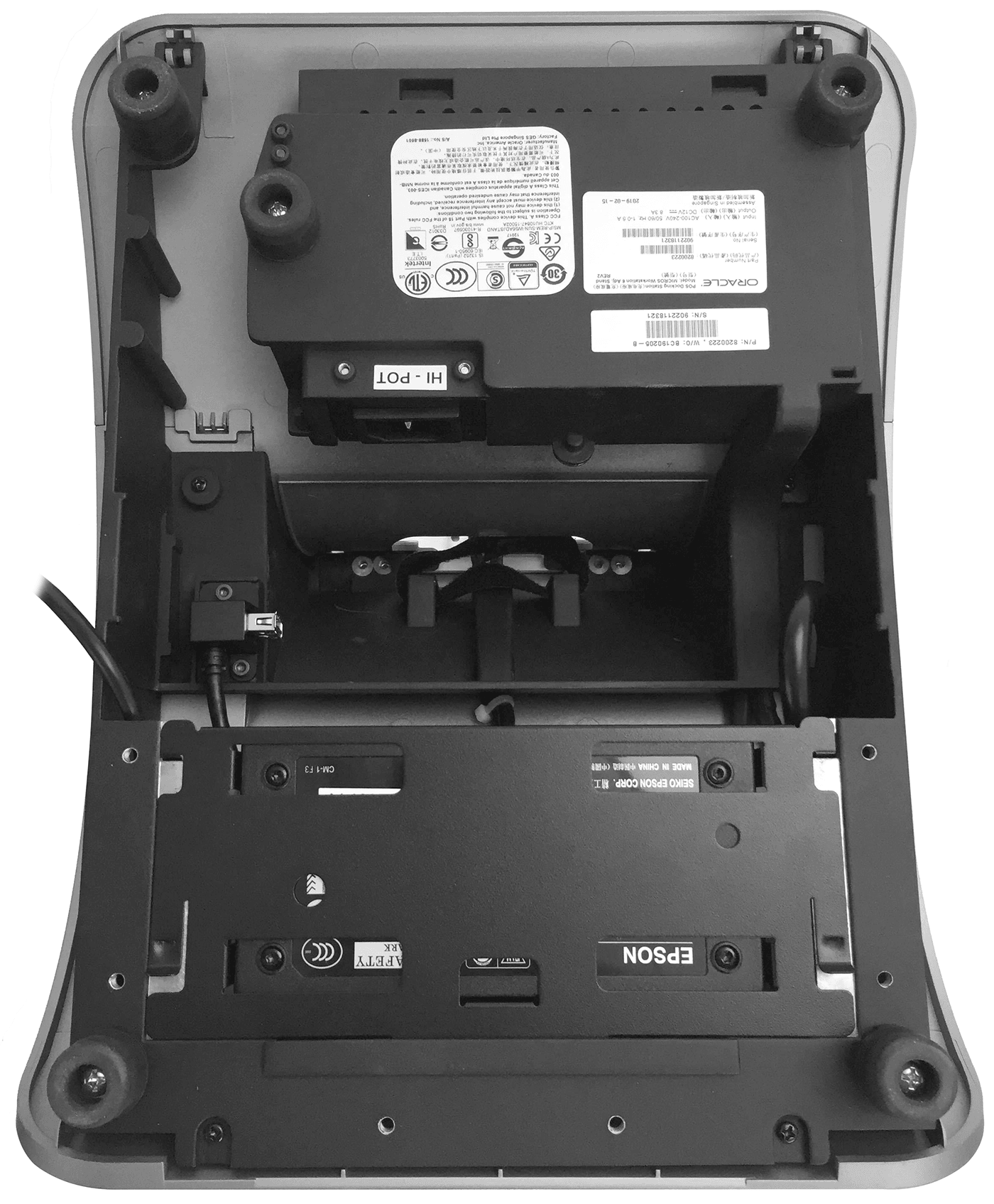

    This figure shows the power supply mounted on the Adjustable Stand.
