Securing the Adjustable Stand to a Counter

The Adjustable Stand is a mounting option for each configuration of the Workstation 6 Series. When using this option, ensure that the adjustable stand is properly secured to a counter.

  1. Place the Adjustable Stand flat on the counter surface, and then turn the unit upside down.
  2. Unscrew and remove the fifth rubber foot located in the upper middle of the stand. This hole will be used to secure the Adjustable Stand to the counter.

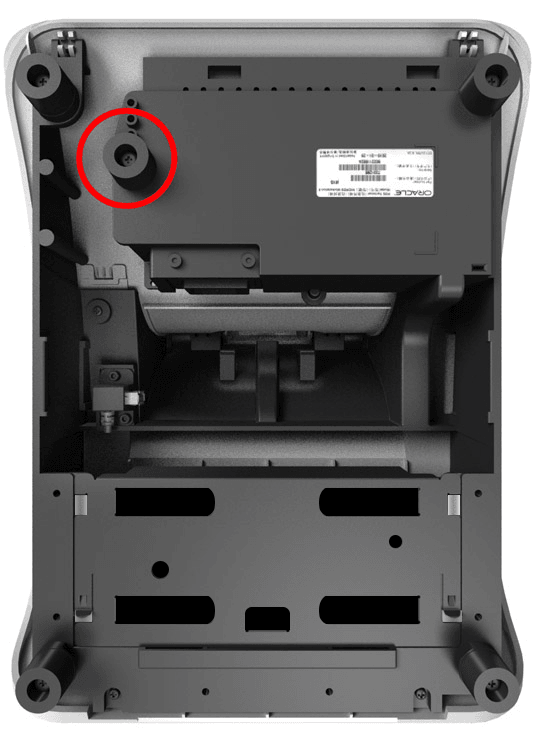

    This figure shows the location of the fifth foot on the bottom of the Adjustable Stand.
  3. Use the following dimensions to map out the location on the counter where the stand and fifth foot will sit.

    This figure shows the dimensions of the bottom of the stand and where the fifth foot sits.
  4. Mark the position of the hole for the fifth foot on the counter, and then use a drill to create the hole.
  5. Place the Adjustable Stand on the counter and align the hole for the fifth foot to its matching hole on the counter.
  6. Secure the Adjustable Stand to the counter using a mounting screw. The mounting screw is not provided. Ensure that you are using the correct screw that meets the needs of the installation. The screw thread is M4 and the length is a minimum of one inch plus the thickness of the counter.
