Securing the Adjustable Stand Cover

Securing the adjustable stand cover is a common procedure used when setting up any configuration of the Workstation 6 Series.

  1. Place the Adjustable Stand on a flat surface.
  2. Locate and retrieve the hex key and security hex bolts.
  3. Use the front tabs and the edges to ensure the cover is properly aligned and firmly closed.
  4. Use the hex key to tighten the two security hex bolts to secure the cover.

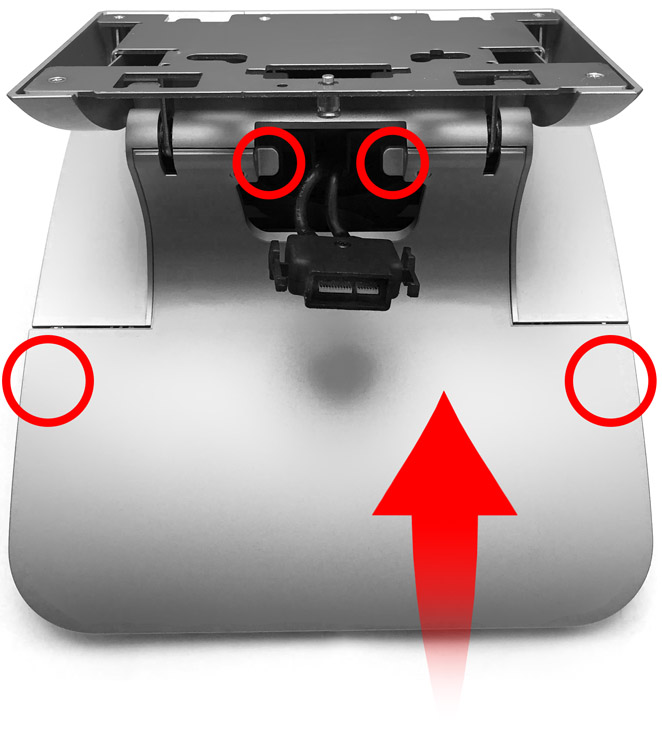

    This figure shows the Workstation 6 Adjustable Stand.
