Set Up the Terminal

Follow these steps to set up the terminal. These steps supplement the pamphlet in the payment terminal box.

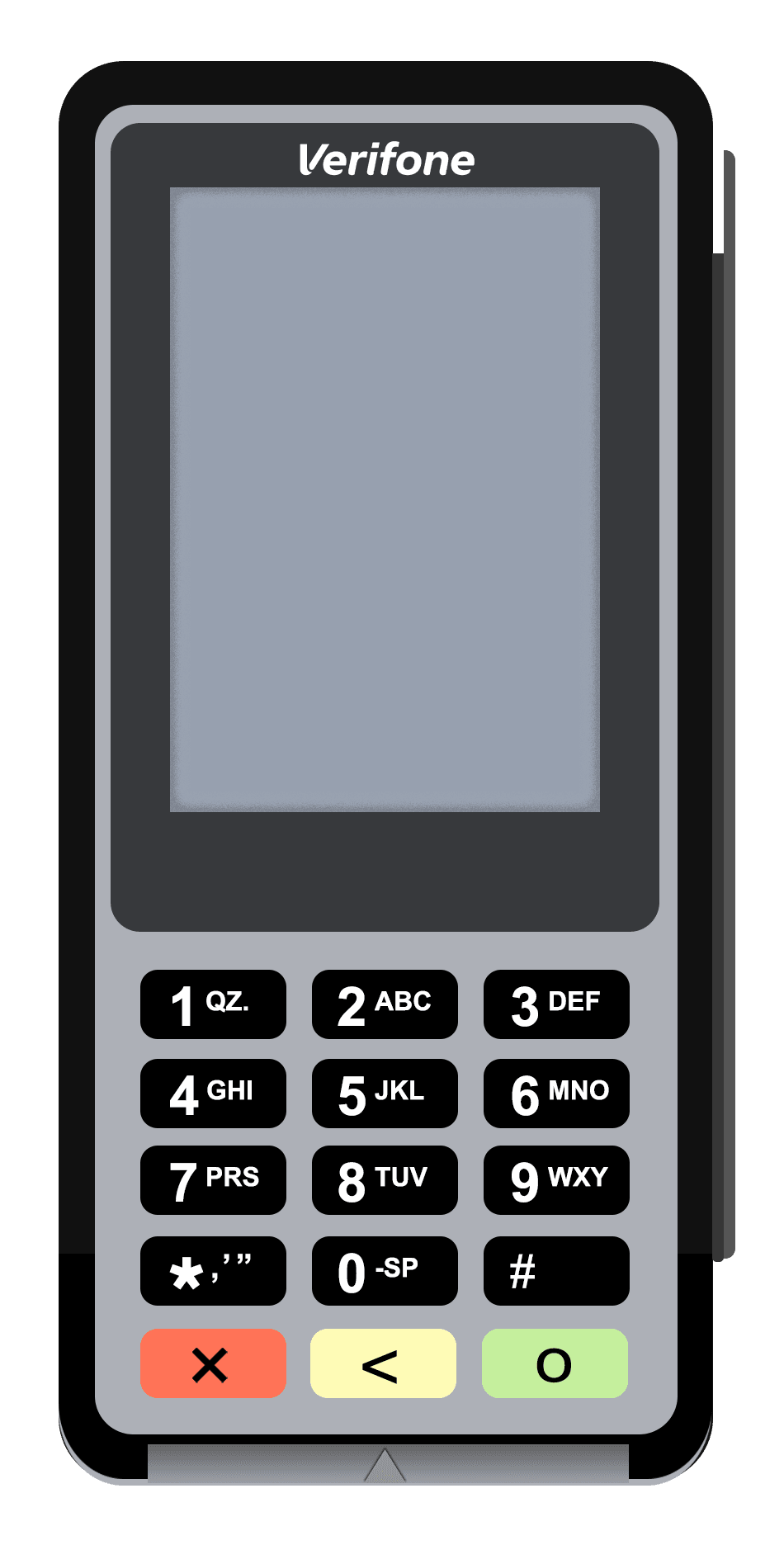

This image shows the Verifone P400 payment terminal with a screen and numbered buttons.

  1. Open the box and take out the payment terminal, dongle, and power supply.
  2. Turn the payment terminal upside down and slide the cover off the bottom of the terminal.
  3. Plug in the dongle to the back of the terminal.
  4. Slide the cover back on the terminal over the dongle.
  5. Connect the power supply to the dongle, plug the power supply into an outlet, and then plug in the Ethernet cable for the network.
  6. Turn the payment terminal back over and the device starts up.
