Adjust Display Scaling

When using the EMC on Microsoft Windows devices, you may notice perceived defects in the application's UI when viewing particular modules or fields. This may include aspects of the pages being skewed, overlapping or truncated text, font sizes within forms varying in size to the point where the status of checkboxes being enabled (or not) is unclear. Follow these directions to fix this issue.

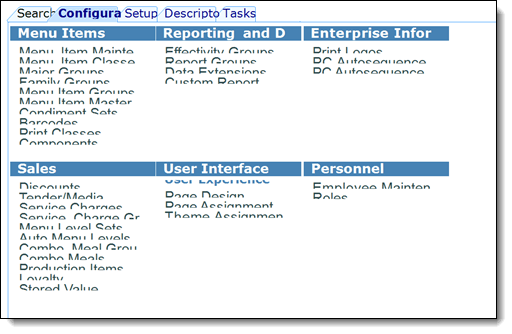

Figure 3-5 Display Scaling Issue Example


This figure shows a screen capture of an EMC displaying overlapping truncated text, and oversized fonts.

To modify your display scaling settings:

  1. Close EMC.
  2. Navigate to the folder where EMC.exe is located.
  3. Right-click the EMC.exe file.
  4. Select Properties.
  5. Click the Compatibility tab.
  6. Click the Change high DPI settings button.

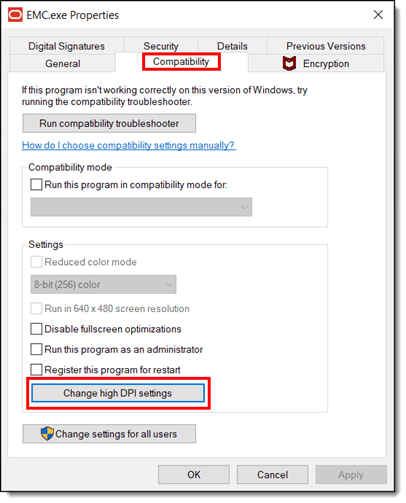

    Figure 3-6 EMC.exe Properties Window


    This figure shows the EMC.exe Properties window.
  7. Select Override high DPI scaling behavior.

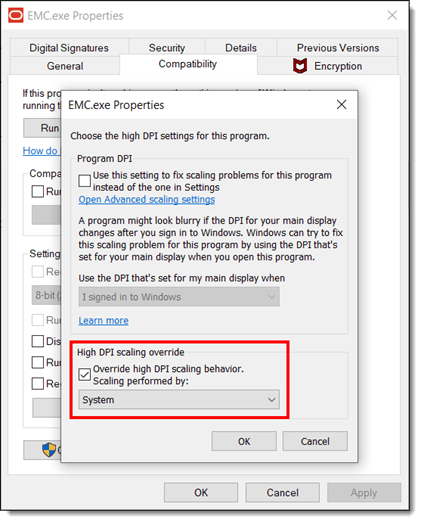

    Figure 3-7 EMC.exe Properties Window Scaling Override Settings


    This figure shows the EMC.exe Properties window and the scaling override settings.
  8. Change the scaling override to System.
  9. Click OK.
  10. Click Apply.
  11. Reopen the EMC.
