Create and configure the HDR WebLogic machine and node manager

To create and configure WebLogic machine and node manager:

1. Log in to the WebLogic administration console.
2. In the left pane, click hdr_domain and expand Environment.
3. Click Machines and then click Lock & Edit.
4. Click New.

   The Create a New Machine screen is displayed.

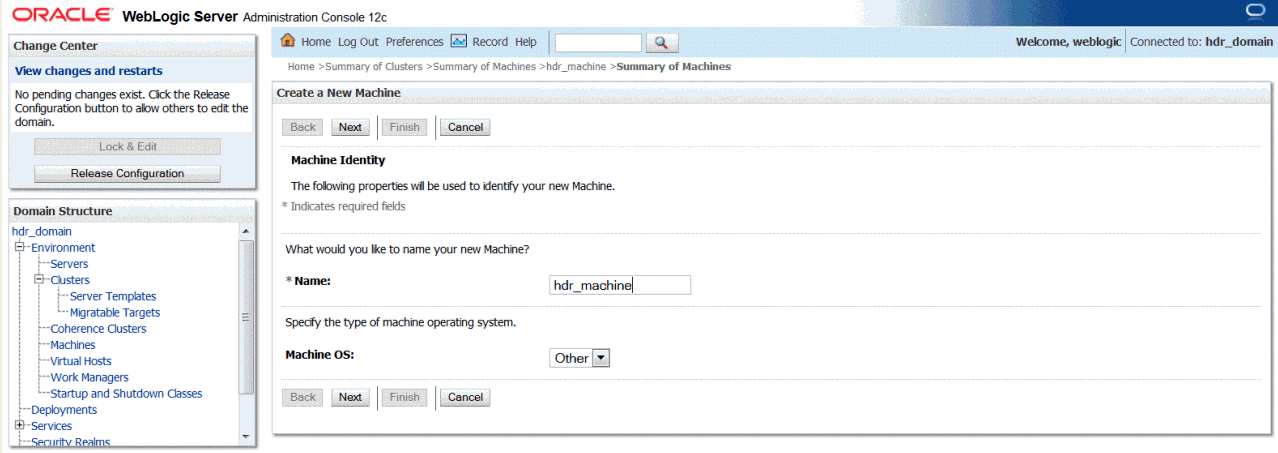

   Figure 5-1 Create a New Machine


5. Enter hdr_machine (or any other preferred name) in the Name field and click Next.
6. Specify the node manager properties.

   Typically, node manager runs on localhost with SSL port 5556.

7. Click Finish.
