Element definition lists
Element definition lists are provided for pulldown or listbox controls (including RefName, internal value, display value, and design note information for each element).
To include element definition lists in the annotations, select Control/Unit Comparison Tables in the Annotated CRF Settings dialog box. To include the Value column in the lists, showing the internal value of each element as defined in the database, select Selection/Element Values in the Annotated CRF Settings dialog box.

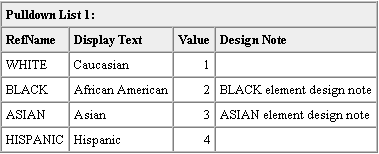

The following figure illustrates an element definition list for a pulldown control annotated with the label Pulldown List 1.
