Creating a Clintrial mapping definition object

In the InForm Architect application, you can create a data mapping definition by using the data mappings menu or toolbar commands or by loading an XML file containing MedML tags that specify a data mapping definition.

Note: Oracle recommends that you create data mapping definitions only after installing your completed trial definition in the strict mode of the MedML Installer tool. This insures that your component definitions are complete and all dependencies among definitions are satisfied. If you do not use strict mode (the default MedML Installer mode), any incomplete component definitions that nonstrict mode allows to process are carried over into the data mapping definition.

To create a Clintrial mapping definition object:

  1. Do one of the following:
    • Select Trial > Create Data Mappings > Clintrial.
    • In the Trial toolbar, click the Data Mappings button . In the Data Mappings Type dialog box, select Clintrial and click OK.
    • In the Trial Objects window, right-click the Data Mappings node and select Clintrial from the right-click menu.

    The Create Data Mappings dialog box appears.

  2. Select Manual and click OK.

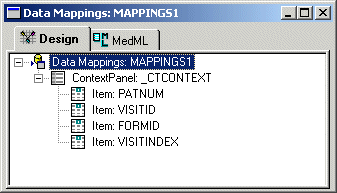

    The Data Mappings window opens in the Trial Design workspace. The mapping definition generated by the InForm Architect application includes the definition of a context panel along with the standard context panel items, PATNUM, VISITID, FORMID, VISITINDEX, and FORMINDEX.

  3. Edit the Clintrial mapping property values in the Properties window. For more information, see Mapping definition object properties.
