Customizing page keys and block keys

You can specify a customized page key and block key for each InForm data point mapped to the Clintrial software by using the Page Key and Block Key properties of an item control path mapping definition. When you specify a Page Key and Block Key value, CIS uses those values instead of autogenerating page key and block key values from the form and visit RefNames.

To customize page keys and block keys for a control path mapping definition:

  1. Using the InForm Architect application, autogenerate mappings for the InForm trial. For more information, see Autogenerating mappings.

    The InForm Architect application generates mappings and includes a node for the mappings definition in the Trial Objects tree.

  2. In the Trial Objects tree, double-click the mappings definition node.

    The Data Mappings window appears.

  3. Select the control path definition for which you want to customize the page key and block key.

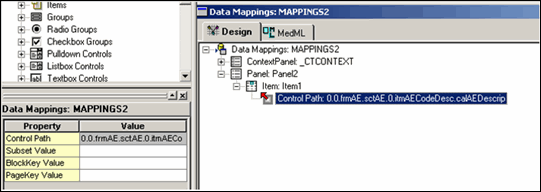

    BlockKeyPageKeyMappings

  4. In the BlockKey Value property, type the value of the block key to which the visit in the control path mapping corresponds.
  5. In the PageKey Value property, type the value of the page key to which the form in the control path mapping corresponds.

    Note: Make sure that the length of the BlockKey Value and PageKey Value that you specify does not exceed the size of the visit key and page key columns in the Clintrial CONTEXT panel. Also, make sure that the CONTEXT panel columns have an alphanumeric data type if the BlockKey Value and PageKey Value that you specify include alphabetic characters.

  6. Save the mapping definition.
