Dragging a control to add or update a code target path

To add or update a code target path by dragging a control:

In the Trial Objects window, double-click the name of the coding mapping object.
The Data Mappings window opens with the mapping object name selected.
In the Trial Objects window, double-click the name of the form containing the code target control for which you want to create or update a mapping.
The Form window appears.

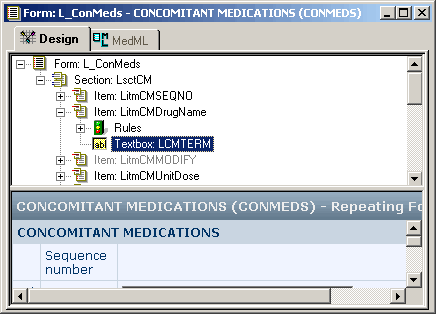

In the Form window tree, expose the code target control.
Drag the code target control from the Form window to the Data Mappings window and release it over the Code Target node where you want to create or update the mapping.
The Target Visit dialog box appears.
Select the visit to use in the code target path and click OK.
The InForm Architect application enforces restrictions on code target control path definition. For more information, see Code target control path restrictions. If the selected control results in a valid code target control path, the InForm Architect application inserts or replaces the code target control path in the Target node.
