6 OHC GL Accounting
The OHC GL Accounting module is used to generate the payment file and submit to the bank. Once the payout is processed at the end of the pay period, Credit posting is made available to the crew member of the selected credit card, made through Ocean Pay.
The parameter Payroll, Pay codes for OceanPay Top-Up Transactions holds the pay code for payroll deduction pay codes that need to be transferred into the payment file when transactions are posted.

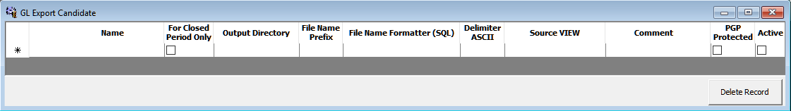

Below is the field definition of GL Export Setup.
Figure 6-1 GL Export Setup
Table 6-1 GL Export Field Definition
Column Name | Definition |
---|---|
Name |
OceanPay Export used for the file generation. |
For Close Period Only |
When enabled, you can only generate the transaction file when the pay period is closed. |
Output Directory |
Location of the output file once generated. For security purposes, the directory/folder defined must be within the network. |
File Name Prefix |
Output filename. For example: ExampleData120100629 46065.txt.PGP |
File Name Formatter (SQL) |
An SQL query to select a specific column as part of the filename. |
Delimiter ASCII |
Use in output file if it has multiple columns. Define blank if file is fixed length field. |
Source View |
Refers to a database view. For example: PAY_OCEANPAY_TOPUP |
Comment |
File description |
PGP Protected |
If enabled, the browser prompts you to upload the public key provided by the bank. |
Active |
Active if enabled, Inactive if disabled. |

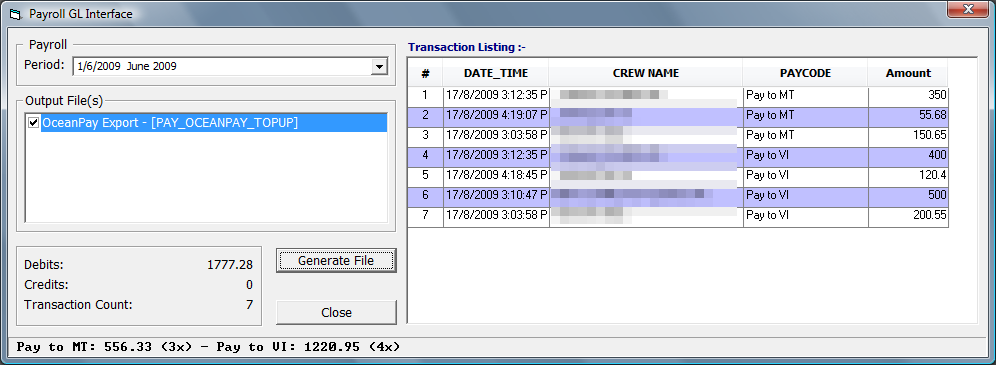

The following screenshot shows the transaction listing of the pay code deduction defined in the parameter Pay codes For OceanPay Top-Up Transactions.
Figure 6-2 Payroll GL Interface
The Program exports the records by referring to the pre-defined Source View. Only the column with prefix “F_” will be exported.
Below are the reserved fields that must exist in the View script.
-
PCY_ID
-
SPP_ID
The following fields are optional in the View script.
-
ROW_NUM
-
PAY_ID
-
PAY_AMOUNT
The records generated are stored in the PTG table to prevent double postings.
