4 Functions
This following sections describes the Webservice functions with its required parameters and return values.
ActivateCreditCard
This function deactivates the credit card of the guest.
Input Parameters
psFunction=“DeactivateCreditCard.” Below is the list of psParam or poParam.
Table 4-1 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnCrdID |
Integer |
Unique Credit Card ID. |
Yes |
pbAssignInvoice1 |
Boolean |
Assign the Credit Card to Invoice 1. |
Yes |
pbAssignInvoice2 |
Boolean |
Assign the Credit Card to Invoice 2. |
Yes |
pbAssignInvoice3 |
Boolean |
Assign the Credit Card to Invoice 3. |
Yes |
pbAssignInvoice4 |
Boolean |
Assign the Credit Card to Invoice 4. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("ActivateCreditCard",
"SessionID", New Object() {12345, True, True, True, True})
AddHKTask
This function adds a new housekeeping task created externally into the SPMS database.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“AddHKTask” — below is the list of poParam:
Table 4-2 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pdTaskDate |
Date |
Housekeeping Task Date. |
Yes |
psCabin |
String |
Cabin Number. |
Yes |
psLocation |
String |
Location |
Yes |
pnStatus |
Integer |
0-Pending, 1-Started, 2-Completed. |
Yes |
pnCrewID |
Integer |
Task assigned to this Crew ID. |
Yes |
pnTaskID |
Integer |
Housekeeping Task ID. |
Yes |
pnPortID |
Integer |
Port ID. |
Yes |
psComment |
String |
Task Comments. |
Return Values
CResponseXml.bSuccess = False when AddHKTask has failed.
CResponseXml.bSuccess = True when AddHKTask is successful.
For Example:
oResponse = goWS.FidelioSPMSWSXML("AddHKTask", "Session ID", New
Object() {DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified),
<Cabin>, <Location>, 0, 123, 2, 123, <Comments>})
AddRouting
This function allows you to add the routing, please take note we support both - all department route from passenger A to passenger B and route specify department from passenger A to passenger C. The individual department routing will take priority.

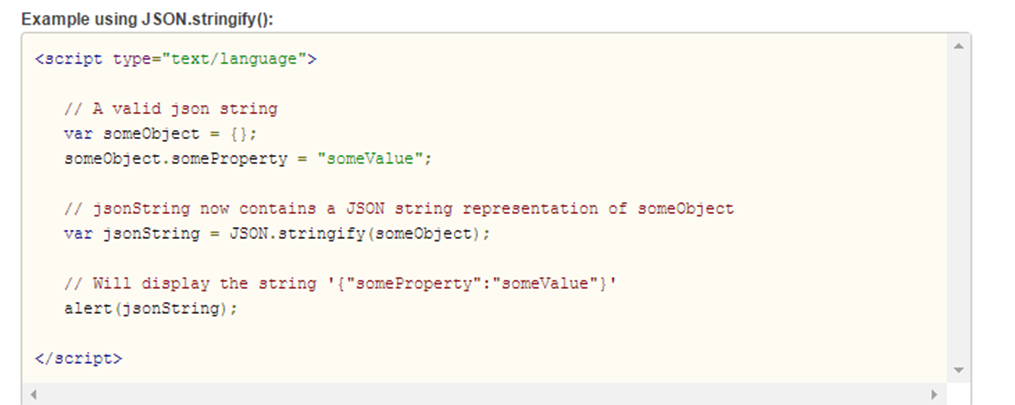

For JSON the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example:
“A,”””,”B,” = 2 Element
Element 1 = A,”
Element 2 = B,
Input Parameters
psFunction=“AddRouting” — below is the list of psParam or poParam.
Table 4-3 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnBuyer |
Integer |
Unique Buyer Account ID. |
Yes |
pnPayer |
Integer |
Unique Payer Account ID. |
Yes |
pnWindow |
Integer |
Invoice Window (0 to 3) only. |
Yes |
psNote |
String(40) |
Reason of the routing. |
Yes |
psDept |
Array of String(10) |
Array of department. |
Yes |
Below are the descriptions of the parameters.
pnBuyer
Unique Buyer Account ID.
pnPayer
Unique Payer Account ID.
pnWindow
Invoice Window, valid value 0 to 3, the default is 0, if the buyer and payer are the same then the valid value is 1 to 3.
psNote
Reason of the routing. The field can be empty.
psDept
An array of department. If the routing is all department, please pass in nothing or an empty array. Please note that if the department pass in does not exist, it will just skip, no error will be returned.
Return Values
CResponseXml.bSuccess = False when Add Routing failed.
CResponseXml.bSuccess = True when Add Routing successful.
Example:
oResponse
= goWS.FidelioSPMSWSXML("AddRouting", "SessionID", New Object() {12345,12346,0,"Testing",New
String() {"9011","9012"}})
AdvanceGuestSearch
This function searches for a guest with various criteria from the SPMS system
Input Parameters
psFunction=“AdvanceGuestSearch”— below is the list of psParam or poParam.
Table 4-4 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCabCategory |
String |
Cabin Category. |
Yes |
psNationalty |
String |
Nationality. |
Yes |
psVipStatus |
String |
Guest Classification. |
Yes |
psPosDiscountLevel |
String |
Loyalty Discount Level. |
Yes |
pnGrpID |
Integer |
Group ID. |
Yes |
peGuestType |
GuestType |
Guest Type Enumerator. |
Yes |
peReservationType |
ReservationType |
Reservation Type Enumerator. |
Yes |
pdDate |
Date |
Embarkation Date. |
Yes |
Pnscdid |
Integer |
Current port ID. |
Optional |
Peonboardstatus |
Onboardstatus |
0 – all. 1 – onboard. 2 – shoreside. |
Optional |
Below are the descriptions of the parameters.
psCabCategory
This searches the guest stays in the specific cabin category. Enter a blank to skip this criteria.
psNationality
This searches the guest nationality. Enter a blank to skip this criteria.
psVipStatus
This searches the guest classification. Enter a blank to skip this criteria.
psPosDiscountLevel
This searches the guest POS Discount Level. Enter a blank to skip this criteria.
pnGrpID
This searches the guest base on the group. Enter 0 to skip this criteria.
peGuestType
(Enumerator)
Guest |
0 |
=> |
Search guest matching search criteria |
Crew |
1 |
=> |
Search crew matching search criteria |
Visitor |
2 |
=> |
Search visitor matching search criteria |
All |
3 |
=> |
Search guest, crew, visitor matching search criteria |
peReservationType
(Enumerator)Reserve = Search only passenger with reservation status only. Note: visitors always have reservation status only.
Reserve |
0 |
=> |
Reservation passenger |
CheckIn |
1 |
=> |
Search only passenger that had check-in |
All |
2 |
=> |
Search both check-in and reserve passenger |
CheckOut |
3 |
=> |
Search check-out passenger only |
ReserveFCManagement |
4 |
=> |
Reservation passenger, for shore viewer |
CheckInFCManagement |
5 |
=> |
Search only passenger that had check-in, for shore viewer |
CheckOutFCManagement |
6 |
=> |
Search check-out passenger only, for shore viewer |
Cancelled |
7 |
=> |
Canceled reservation passenger. |
pdDate
Embarkation date, if you want to search for all guest regardless of the embarkation date, pass in #12:00:00AM#
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid. The data table will contain all fields in uxp and res table, see SPMS Data Dictionary for details of the data fields.
Example:
oResponse = goWS.FidelioSPMSWSXML("AdvanceGuestSearch",
"SessionID", New Object() {"D04","","","",0,3,0, #01-01-2011#})
AmenityCompleted
This function updates the amenity status as “Completed.”
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“AmenityCompleted” — below is the list of psParam or poParam.
Table 4-5 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAmeID |
Integer |
Amenity Unique ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("AmenityCompleted",
"SessionID", New Object() {12334})
ApproveCrewWorkedHoursDaily
This function approves the Crew Worked hours for a specified date.
Input Parameters
psFunction=“ApproveCrewWorkedHoursDaily” — below is the list of psParam or poParam.
Table 4-6 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. |
Yes |
pdDayToApprove |
Date |
Date of the worked hours to be approved. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("ApproveCrewWorkedHoursDaily",
"SessionID", New Object() {12345, DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified)})
ChangeBoardStatus
This function toggles the onboard/offboard status of the passenger.
Input Parameters
psFunction=“ChangeBoardStatus” — below is the list of psParam or poParam.
Table 4-7 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
pbSwipe |
Boolean |
True, the information is captured using swipe card, False, the information is manually entered. |
Yes |
pbResponseYes |
Boolean |
Default response to confirmation message. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Account ID.
pbSwipe
True, the information is captured using swipe card.
False, the information is manually entered.
pbResponseYes
-
Warning! Resident is NOT expected today. Are you sure you want to check in?
-
Do you want to Check-In <Guest Name>?
-
This person is on duty and ashore denied, do you want to override the onboard status?
-
This person is ashore denied, do you want to override the onboard status?
Return Values
CResponseXml.bSuccess = False when Status change failed.
CResponseXml.bSuccess = True when Status change successful.
In both instances, CResponse.oObj returns the guest onboard status 0 – Onboard, 1- Shore Side.
Example:
oResponse = goWS.FidelioSPMSWSXML("ChangeBoardStatus",
"SessionID", New Object() {123456, True, True})
ChangePassword
This function changes the user password.
Input Parameters
psFunction=“ChangePassword” — below is the list of psParam or poParam.
Table 4-8 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psOldPassword |
String |
Plain Text Password. |
Yes |
psNewPassword |
String |
New Password, due to system limitation we cannot hash this value, so it will be plain text. |
Yes |
psOldPassword
Plain text password
psNewPassword
Plain text password
Return Values
CResponseXml.bSuccess = True when change password is successful.
CResponseXml.bSuccess = False when change password has failed.
CheckCabinAvailable
This function checks the cabin availability for the specific booking date.
Input Parameters
psFunction=“CheckCabinAvailable” — below is the list of psParam or poParam.
Table 4-9 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCabin |
String |
Cabin Number. |
Yes |
pdEmbDate |
Date |
Embarkation Date. |
Yes |
pdDisDate |
Date |
Disembarkation Date. |
Yes |
pnAccID |
Array of Integer |
Array of Unique Account ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Cabin is not available, the reason will be returned as an error message.
CResponseXml.bSuccess = True when Cabin is available.
Example:
oResponse = goWS.FidelioSPMSWSXML("CheckCabinAvailable",
"", New Object() {"05002", DateTime.SpecifyKind(#1/1/2011#, DateTimeKind.Unspecified),_DateTime.SpecifyKind(#2/1/2011#, DateTimeKind.Unspecified),12334})
Checkin
This function checks in the expected guest into the SPMS system.
Input Parameters
psFunction=“CheckIn” — below is the list of psParam or poParam.
Table 4-10 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
Below are the descriptions of the parameters.
pnAccID
This is the SPMS Guest Unique ID; this value can be retrieved using GuestSearch function. The field name is UXP_A_ID.
Return Values
CResponseXml.bSuccess = True when check-in is successful.
CResponseXml.bSuccess = False when check-in has failed.
Returns True when check-in is successful.
Returns False when check-in has failed.
Note:
The UpdateGuestInfo must be called before the CheckIn function. This is because the CheckIn function will also update the guest record and may overwrite any previous updates. If a CheckIn is called before UpdateGuestInfo, another call to GuestSearch must be made again before an update is allowed.Example:
oResponse = goWS.FidelioSPMSWSXML("CheckIn", "SessionID", New Object()
{12345})
CheckSag
This function allows the client to check for custom Gangway alert information.
Input Parameters
psFunction=“CheckSag” — below is the list of psParam or poParam.
Table 4-11 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
pbShoreToShip |
Boolean |
True-From Shore to Ship, False from Ship to Shore. |
Yes |
Return Values
CResponseXml.bSuccess = Always return True
CResponseXML.oObj(0)
0-Allow Pass
1-Allow Overwrite
2-Denied Pass
CResponseXML.oObj(1)
Message to show the guest.
Example:
oResponse = goWS.FidelioSPMSWSXML("CheckSag",
"SessionID", New Object() {12345, True})
ClockInMobile
This function allows a clock-in transaction.
Input Parameters
psFunction=“ClockInMobile” — below is the list of psParam or poParam.
Table 4-12 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. |
Yes |
pnWorkCodeId |
Integer |
Task Work Code ID. TARS_ID |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful
Example:
oResponse = goWS.FidelioSPMSWSXML("ApproveCrewWorkedHours",
"SessionID", New Object() {12345, 2})
ClockInOutGetStatus
This function retrieves the last clock-in/out transaction of the crew.
Input Parameters
psFunction=“ClockInOutGetStatus” — below is the list of psParam or poParam.
Table 4-13 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psBoardCardNo |
String |
Crew boardcard number (RES_BOARDCC) Either psBoardCardNo or pnAccID is required. |
|
pnAccID |
Integer |
Unique Crew Account ID. Either psBoardCardNo or pnAccID is required. |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful, CResponse.oDataset will have 1 Data Table.
Table 4-14 ADO.NET Data Table field structure for data table (“CLOCKINOUT_STATUS”)
Code | Type | Description |
---|---|---|
TARS_ID |
Integer |
Unique task work code ID. |
TARS_CODE |
String |
Task work code. |
TARS_NAME |
String |
Task work name. |
TCLK_DATETIMESTAMP |
Date |
Clock-in/out datetime stamp. |
TCLK_IN_OUT |
String |
‘I’ for clock-in, ‘O’ for clock-out. |
CRW_NAME |
String |
Last Name. |
CRW_FSTN |
String |
First Name. |
CRW_DIV |
String |
Department. |
CRW_STAFF_POS |
String |
Position. |
RES_CAB |
String |
Cabin Number. |
Example:
oResponse = goWS.FidelioSPMSWSXML("ClockInOutGetStatus",
"SessionID", New Object() {“12345”, 0})
ClockOutMobile
This function allows a clock-out transaction.
Input Parameters
psFunction=“ClockOutMobile” — below is the list of psParam or poParam.
Table 4-15 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. |
Yes |
pnWorkCodeId |
Integer |
Task Work Code ID. TARS_ID Optional, if 0 then will use the last clock-in task work code ID. |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("ApproveCrewWorkedHours",
"SessionID", New Object() {12345, 0})
DeactivateCreditCard
This function deactivates the credit card for the gues
Input Parameters
psFunction=“DeactivateCreditCard” — below is the list of psParam or poParam.
Table 4-16 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnCrdID |
Integer |
Unique Credit Card ID. |
Optional |
pnAccID |
Integer |
Unique Account ID. |
Optional |
Either pnCrdID or pnAccID must be pass in a valid value.
pnCrdID > 0 mean deactivate single credit card record.
pnAccID > 0 mean deactivate all credit card belong to the guest.
If both pnCrdID > 0 and pnAccID > 0, we will deactivate a single credit card record base on pnCrdID.
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeactivateCreditCard",
"SessionID", New Object() {12345,0})
DeleteAmenity
This function deletes the guest amenity.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteAmenity” — below is the list of psParam or poParam.
Table 4-17 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAmeID |
Integer |
Unique Amenity ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteAmenity",
"SessionID", New Object() {12345})
DeleteComment
This function deletes the guest comment.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteComment” — below is the list of psParam or poParam.
Table 4-18 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnCplID |
Integer |
Unique Guest Comment ID. |
Optional |
pnCplLinkID |
Integer |
Guest Comment Link ID. |
Optional |
You must pass in either pnCplID or pnCplLinkID.
If pnCplLinkID > 0 mean it will delete all comments including the resolution for the same link ID.
If pnCplId > 0 then it will only delete the single comment (only the comment will be deleted)
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = FidelioWS("DeleteComment",
New Object() {1234,0})
DeleteGuestMessage
This function deletes the guest message.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteGuestMessage” — below is the list of psParam or poParam.
Table 4-19 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMsgID |
Integer |
Unique Message ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteGuestMessage",
"SessionID", New Object() {12345})
DeleteLuggageLink
This function removes the luggage link for the guest.
Input Parameters
psFunction= “UpdateRFIDEncoded” — below is the list of psParam or poParam.
Table 4-20 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psRFIDUID |
String(16) |
Convert the value to HEX. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteLuggageLink",
"SessionID", New Object() {”E01581A07C123B”})
DeleteResolution
This function deletes the guest comment.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteResolution” — below is the list of psParam or poParam.
Table 4-21 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnCplLinkID |
Integer |
Guest Comment Link ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = FidelioWS("DeleteResolution",
New Object() {1243})
DeleteRouting
This function deletes the routing, you can either delete all routing or delete individual department routing. Deleting all routing also deletes all individual department routing.
For JSON, the array of string will be a string separated by “,”, and each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,”
Element 2 = B,
Input Parameters
psFunction= “DeleteRouting” — below is the list of psParam or poParam.
Table 4-22 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSearchStr |
String |
Unique Buyer Account ID or Board Card or PGID or Pax ID depends on the peSearchType. |
Yes |
psDept |
Array of String(10) |
Array of department. |
Yes |
peSearchType |
Enum |
InternalID = 0 'res_acc PGID = 1 'res_pgid BoardCard = 2 'res_boardcc PaxID = 3 'res_referenz |
Optional |
Below are the descriptions of the parameters.
psSearchString
Unique Buyer Account ID or
Board Card or
PGID or
Pax ID depends on the peSearchType
psDept
An array of department, if the routing is all departments, please pass in nothing or an empty array. Please note that if the department pass in does not exist, it will just skip; no error will be returned.
peSearchType
InternalID = 0 ‘res_acc’
PGID = 1 ‘res_pgid’
BoardCard = 2 ‘res_boardcc’
PaxID = 3 ‘res_referenz’
Return Values
CResponseXml.bSuccess = False when Delete Routing failed.
CResponseXml.bSuccess = True when Delete Routing successful.
Example:
oResponse
= goWS.FidelioSPMSWSXML("DeleteRouting", "SessionID", New Object()
{12345,2,New String() {"9011","9012"}})
DeleteSpecialRequest
This function deletes the guest amenity.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteSpecialRequest” — below is the list of psParam or poParam.
Table 4-23 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnSrtID |
Integer |
Unique Special Request ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteSpecialRequest",
"SessionID", New Object() {12345})
DeleteTravelDoc
This function deletes the travel document record.
Input Parameters
psFunction= “DeleteTravelDoc” — below is the list of psParam or poParam.
Table 4-24 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnVisID |
Integer |
Unique Travel Document ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteTravelDoc",
"SessionID", New Object() {12345})
DeleteWorkOrder
This function deletes the maintenance work order.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteWorkOrder” — below is the list of psParam or poParam.
Table 4-25 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwrID |
Integer |
Unique Work Order ID. |
Yes |
psReason |
String(1000) |
Reason to delete. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteWorkOrder",
"SessionID", New Object() {12345, "Testing"})
DeleteWorkOrderAssignment
This function removes a person/group from the maintenance work order.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteWorkOrderAssignment” — below is the list of psParam or poParam.
Table 4-26 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwaID |
Integer |
Unique Work Order Assignment ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteWorkOrderAssignment",
"SessionID", New Object() {12345})
DeleteWorkOrderImage
This function deletes the maintenance work order image.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteWorkOrderImage” — below is the list of psParam or poParam.
Table 4-27 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwpID |
Integer |
Unique Work Order Image ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteWorkOrderImage",
"SessionID", New Object() {12345})
DeleteWorkOrderItem
This function deletes the maintenance work order item.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “DeleteWorkOrderItem” — below is the list of psParam or poParam.
Table 4-28 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwiID |
Integer |
Unique Work Order Item ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Delete failed.
CResponseXml.bSuccess = True when Delete successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("DeleteWorkOrderItem",
"SessionID", New Object() {12345})
EvtBooking
This function creates an event booking in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “EvtBooking” — below is the list of psParam or poParam.
Table 4-29 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
psUniqID |
String(30) |
Unique Event Booking ID. |
Yes |
pnEvtID |
Integer |
Event ID. |
Yes |
psPriceCategory |
String(6) |
Price Category Code. |
Yes |
psPersonGroup |
String(6) |
Person Group Code. |
Yes |
pnTicket |
Integer |
Number of Tickets. |
Yes |
psNotes |
String(50) |
Notes (Default Empty). |
Optional |
psPin |
String(4) |
Pin Code (Default Empty). |
Optional |
psSource |
String(100) |
Booking Source (Default Empty). |
Optional |
pbForceBooking |
Boolean |
True = Allow posting even the guest does not have credit limit or posting is disabled, False – Normal posting. |
Yes |
pbIsFixedSeating |
Boolean |
True-Fixed Seating assignment booking, False – regular free seating booking. |
Optional |
pnSeatID |
Integer |
Seat ID. |
Optional |
pnPriceID |
Integer |
Price ID. |
Optional |
pnAccID
Unique Guest ID, return from SearchPassenger.
psUniqID
The field identifies the booking unique ID within the entire external system. The field is used as a cross-reference to obtain detailed information about all the transactions recorded on a booking.
pnEvtID
The field identifies the unique event ID. This ID can be obtained through GetEvent WebMethod. The field is an internal, unique event number.
psPriceCategory
The field identifies the Price Category. This Price Category can be obtained through GetEvent WebMethod message. This field is an internal, unique price category code.
psPersonGroup
The field identifies the Person Group. This Person Group can be obtained through GetEvent WebMethod message. This field is an internal, unique person group code.
pnTicket
The field identifies the number of tickets to book.
psNotes
The field identifies the additional information send by third-party.
psPin
The field identifies the telephone PIN code of the reservation account. The valid character is 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS Parameter setting.
psSource
The field identifies the source of the booking. For example, Workstation ID, Kiosk ID, etc. or any other details describing the location where the booking was made.
pbForceBooking
True = Allow posting even the guest do not have a credit limit or posting is disabled. This is applicable to check-in guest only.
False = Normal posting
pbIsFixedSeating
True-Fixed Seating assignment booking, False – regular free seating booking.
pnSeatID
The field identifies the unique seat identification number. This ID can be obtained through GetSeatingZoneAvailability WebMethod. The field is an internal, unique seat number.
pnPriceID
The field identifies the unique pricing setup identification number. This ID can be obtained through GetEvent WebMethod. The field is an internal, unique pricing setup number.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-30 ADO.NET Data Table field structure for data table xxx
Code | Type | Description |
---|---|---|
Code |
Type |
Description. |
AccID |
Integer |
Account Posted. |
Balance |
Double |
Account Balance. |
CruiseID |
Integer |
Posted Cruise ID. |
AccID
The account posted can be different from the pnAccID pass in if the pbForceBooking is set to True and the said account does not exist and not allow to do posting the return value will be internal system error account ID.
Balance
The field identifies the balance after the posting is applied. This field can return positive (account is to be invoiced) or negative (account prepaid) values.
CruiseID
The field identifies the posted cruise ID.
Example:
oResponse
= goWS.FidelioSPMSWSXML("EvtBooking", "SESSIONID", New Object() {12345,
37464, 245457, "123", "A", 1, "", "", "", False})
For fixed seating assignment bookings:
oResponse = goWS.FidelioSPMSWSXML("EvtBooking",
"SESSIONID", New Object() {12345, 37464, 245457, "123", "A", 1, "",
"", "", False, True, 802, 762})
ExcBooking
This function creates an excursion booking in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “ExcBooking” — below is the list of psParam or poParam.
Table 4-31 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
psUniqID |
String(30) |
Unique Excursion Booking ID. |
Yes |
pnExcID |
Integer |
Excursion ID. |
Yes |
pnAdultTicket |
Integer |
Number of Adult Tickets. |
Yes |
pnChildTicket |
Integer |
Number of Child Tickets. |
Yes |
pnAdultPromoID |
Integer |
Adult Promotion ID (Default = 0). |
Optional |
pnChildPromotID |
Integer |
Child Promotion ID (Default = 0). |
Optional |
psLanguage |
String(2) |
ISO Language Code (Default Empty). |
Optional |
psNotes |
String(200) |
Notes (Default Empty). |
Optional |
psPin |
String(4) |
Pin Code (Default Empty). |
Optional |
psSource |
String(100) |
Booking Source (Default Empty). |
Optional |
pbForceBooking |
Boolean |
True = Allow posting even the guest who does not have credit limit or posting is disabled. False – Normal posting. |
Yes |
pbKiosk |
Boolean |
Kiosk Flag. |
Optional |
pbySigImage |
Array of Byte |
Signature Byte Array. |
Optional |
pbPercentageDiscount |
Boolean |
True = Percentage Discount, False = Value Discount |
Optional |
pnDiscount |
Decimal |
Discount Percentage Rate or Discount Value depends on pbPercentageDiscount. |
Optional |
pnOvewriteSalesPrice |
Decimal |
User define price. |
Optional |
pnWeight |
Decimal |
Weight, 0 if overweight is not used, > 0 it will charge overweight depend on the setup. |
Optional |
pnHeight |
Decimal |
Height, for information only. |
Optional |
pbAllowWaitList |
Boolean |
True = Allow Wait List when shore excursion is fully booked, False = Return error when shore excursion is fully booked. |
Optional |
pnParticipant |
Integer |
Unique Guest ID for the person who will take part in the excursion. |
Optional |
pnAccID
Unique Guest ID, return from SearchPassenger.
psUniqID
The field identifies the booking unique ID within the entire external system. The field is used as a cross-reference to obtain detailed information about all the transactions recorded on a booking.
pnExcID
The field identifies the unique excursion identification number. This ID can be obtained through GetExcursion WebMethod. The field is an internal, unique excursion number.
pnAdultTicket
The field identifies the number of adult priced tickets to book.
pnChildTicket
The field identifies the number of child priced tickets to book.
pnAdultPromoID
The field identifies the adult promotion ID. If this field is ignored, the guest is still entitled to the promotion price if available, or else, the normal price is applied. If the promotion ID is sent and the promotion price no longer available, an error message is returned.
For example, if a promotion price is valid for only one seat, and the guest tries to book two seats:
-
With pnAdultPromoID send.
An error message will return indicating only one seat is available.
-
Without pnAdultPromoID send.
Booking is made with one seat at the promotion price and one seat at the normal price.
pnChildPromoID
The field identifies he child promotion ID. If this field is ignored, the guest is still entitled to the promotion price if available, or else, the normal price is applied. If the promotion ID is sent and the promotion price no longer available, an error message returned.
psLanguage
The field identifies the language ID of the tour.
psNotes
The field identifies the additional information send by third-party.
psPin
The field identifies the telephone PIN code of the reservation account. The valid characters are 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS Parameter setting.
psSource
The field identifies the source of the booking. For example, Workstation ID, Kiosk ID, and so on, or any other details describing the location where the booking was made.
pbForceBooking
True = Allow posting even the guest who does not have a credit limit or posting is disabled. This is only applicable to checked-in guest only.
False = Normal posting
pbKiosk
For future use, currently no effect.
pbySignature
This is the signature image in byte array format.
pbPercentageDiscount
True = Percentage discount: False = dollar value discount.
pnDiscount
If pbPercentageDiscount = True, this is the discount percentage, or else this is the discount value.
pnOvewriteSalesPrice
If this is > 0, this price is used to post instead of the price defined in the DB. Use it with care.
pnWeight
Pass is 0 if overweight is not used. If more than 0, it will charge overweight depending on the setup.
pnHeight
For information only.
pbAllowWaitList
True = Allow Wait List when shore excursion is fully booked.
False = Return error when shore excursion is fully booked. (Default value).
If the booking is posted to the waitlist, CResponseXml.oObj(0) returns the Wait List Number. This only happens when pbAllowWaitList = True and the booking is fully booked.
pnParticipant
0-pnAccID is the participant.
>0 - Must be a valid unique guest ID, the guest who will participate in the excursion, no validation on the ID.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid. CResponse.Xml.oObj(0) will be > 0 if the booking is posted to a wait list.
Table 4-32 ADO.NET Data Table field structure. It will always return one record when the input is valid
Code | Type | Description |
---|---|---|
Code |
Type |
Description. |
AccID |
Integer |
Account Posted. |
Balance |
Double |
Account Balance. |
CruiseID |
Integer |
Posted Cruise ID. |
AccID
The account posted can be different from the pnAccID pass in if the pbForceBooking is set to True and the said account does not exist and is not allowed to do posting. The return value will be internal system error account ID.
Balance
The field identifies the balance after the posting is applied. This field can return positive (account is to be invoiced) or negative (account prepaid) value.
CruiseID
The field identifies the posted cruise ID.
Example:
oResponse =
goWS.FidelioSPMSWSXML("ExcBooking", "SESSIONID", New Object() {12345,
37464, 245457, 1, 0, 0, 0, "", "", "", "", False})
ExcBookingPackage
This function creates an excursion package booking in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“ExcBookingPackage” — below is the list of psParam or poParam.
Table 4-33 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
psUniqID |
String(30) |
Unique Excursion Package Booking ID. |
Yes |
pnExcPkgID |
Integer |
Excursion Package ID. |
Yes |
pnAdultTicket |
Integer |
Number of Adult Tickets. |
Yes |
pnChildTicket |
Integer |
Number of Child Tickets. |
Yes |
pnAdultPromoID |
Integer |
Adult Promotion ID (Default = 0). |
Optional |
pnChildPromotID |
Integer |
Child Promotion ID (Default = 0). |
Optional |
psLanguage |
String(2) |
ISO Language Code (Default Empty) |
Optional |
psNotes |
String(200) |
Notes (Default Empty). |
Optional |
psPin |
String(4) |
Pin Code (Default Empty). |
Optional |
psSource |
String(100) |
Booking Source (Default Empty). |
Optional |
pbForceBooking |
Boolean |
True = Allow posting even the guest who does not have credit limit or posting is disabled. False – Normal posting. |
Yes |
pbKiosk |
Boolean |
Kiosk Flag. |
Optional |
pbySigImage |
Array of Byte |
Signature Byte Array. |
Optional |
pnWeight |
Decimal |
Weight, 0 if overweight is not used, > 0 it will charge overweight depend on the setup. |
Optional |
pnHeight |
Decimal |
Height, for information only. |
Optional |
pbAllowWaitList |
Boolean |
True = Allow Wait List when shore excursion is fully booked, False = Return error when shore excursion is fully booked. |
Optional |
pnParticipant |
Integer |
A Unique Guest ID for the person who takes part in the excursion. |
Optional |
pnAccID
Unique Guest ID, return from SearchPassenger.
psUniqID
The field identifies the booking unique ID within the entire external system. The field is used as a cross-reference to obtain detailed information about all of the transactions recorded on a booking.
pnExcPkgID
The field identifies the unique excursion package ID. This ID can be obtained through GetExcPackage WebMethod. The field is an internal, unique excursion number.
pnAdultTicket
The field identifies the number of adult priced tickets to book.
pnChildTicket
The field identifies the number of child priced tickets to book.
pnAdultPromoID
The field identifies the adult promotion ID. If this field is ignored, the guest is still entitled to the promotion price, if available, or else the normal price is applied. If the promotion ID is sent and the promotion price is no longer available, an error message is returned.
For example, the promotion price is valid for one seat, and the guest tries to book two seats.
-
With pnAdultPromoID send
An error message is returned indicating only one seat is available.
-
Without pnAdultPromoID send:
Booking is made with one seat at the promotion price and one seat at the normal price.
pnChildPromoID
The field identifies the child promotion ID. If this field is ignored, the guest is entitled to promotion price, if available, or else the normal price is applied. If promotion ID is sent and promotion price no longer available, an error message is returned.
psLanguage
The field identifies the language ID of the tour.
psNotes
The field identifies the additional information sent by a third-party.
psPin
The field identifies the telephone PIN code of the reservation account. The valid characters are 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS parameter setting.
psSource
The field identifies the source of the booking. For example, Workstation ID, Kiosk ID, and so on or any other details describing the location where the booking was made.
pbForceBooking
True = Allow posting even if the guest does not have a credit limit or the posting is disabled. This only applies to checked-in guests.
False = Normal posting.
pbKiosk
For future use, current no effect.
pbySignature
This is the signature image in byte array format.
pbPercentageDiscount
True = Percentage discount.
False = Dollar value discount.
pnDiscount
If pbPercentageDiscount = True, this is the discount percentage or else this is the discount value.
pnOvewriteSalesPrice
If this is > 0, we will use this price to post instead of the price defined in the database. Use with care.
pnWeight
Pass in 0 if overweight is not used. If > 0, it will charge overweight depending on the setup.
pnHeight
For information only.
pbAllowWaitList
True = Allow Wait List when shore excursion is fully booked.
False = Return error when shore excursion is fully booked. (Default value).
If the booking is posted to the waitlist, CResponseXml.oObj(0) will return the Wait List Number. This only happens when pbAllowWaitList = True and the booking is fully booked.
pnParticipant
When the pnParticipant is set to 0 - the guest pnAccID is the participant of this excursion.
When the pnParticipant is not 0 - the pnAccID book the excursion for a participant.
For example, if there are two people joining the excursion, there will be two requests sent to the server and the pnAccID will be the person who pays the bill.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid. CResponse.Xml.oObj(0) will be > 0 if the booking is posted to wait list.
Table 4-34 ADO.NET Data Table field structure. Return one record when input is valid
Code | Type | Description |
---|---|---|
Balance |
Double |
Account Balance. |
CruiseID |
Integer |
Posted Cruise ID. |
Balance
The field identifies the balance after the posting is applied. This field can return positive (account is to be invoiced) or negative (account prepaid) values.
CruiseID
The field identifies the posted cruise ID.
Example:
oResponse
= goWS.FidelioSPMSWSXML("ExcBookingPackage", "SESSIONID", New Object()
{12345, 37464, 245457, 1, 0, 0, 0, "", "", "", "", False})
FCUIFolio
This function returns the guest posting list.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “FCUIFolio” — below is the list of psParam or poParam.
Table 4-35 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
psPin |
String |
Pin Code (Can be blank). |
Yes |
pbIncludePackage |
Boolean |
Include Package. |
Yes |
Return Values
CResponseXml.bSuccess = False when failed.
CResponseXml.bSuccess = True when success, CResponse.oDataset will have 1 Data Table.
Table 4-36 ADO.NET Data Table field structure for data table
Code | Type | Description |
---|---|---|
DEP_MAINID |
String |
Main Department ID. |
DEM_COMMENT |
String |
Main Department Description. |
POSDATE |
Date |
Posting System Date. |
POSDEMFLAG |
String |
P-Package,C-Credit,D-Debit. |
POS_PPP_ID |
Integer |
Unique Package ID. |
POSDEBIT |
Decimal |
Debit Total. |
POSCREDIT |
Decimal |
Credit Total. |
POSCLOSED |
String |
Always = No. |
POSNOPRINT |
String |
Yes Or No. |
POS_WIN |
Integer |
Invoice Windows. |
POS_POSNOTE_I |
String |
Posting Remark |
POS_MIB_BILL_NO |
String |
Check No. |
POS_TRANS_ID |
Internal |
Internal Transaction ID. |
Example:
oResponse = goWS.FidelioSPMSWSXML("FCUIFolio",
"SessionID", New Object() {12345, "", True})
FCUIGuestInquiry
This function queries the list of guest from SPMS based on the input parameter. The function is compatible with the FCUI Inquire message.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“ FCUIGuestInquiry” — below is the list of psParam or poParam.
Table 4-37 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSearchStr |
String |
Search String. |
Yes |
peSearchType |
Integer |
Search String type. |
Yes |
peAccountStatus |
Integer |
Account Status. |
Yes |
peAccountType |
Integer |
Account Type. |
Yes |
pbIncludePicture |
Boolean |
Include Guest Picture in Return Result. |
Yes |
Below are the descriptions of the parameters.
psSearchStr
Entered by the external system operator (manually or through a magnetic card reader) and generally contains any information necessary to identify the account. The field can be an account number, card number, cabin number or person name.
peSearchType
The field identifies the type of entry in the Account ID field. The following Account ID Entry Types are defined:
0 |
→ |
Card identification number (RES_BOARDCC) |
1 |
→ |
Cabin number or System account (RES_CAB/UXP_A_SYS_ACC) |
2 |
→ |
Name of a person or company account(UXP_A_NAME_N) |
3 |
→ |
Internal identification number (UXP_A_ID) |
4 |
→ |
Group ID number (RES_GRP) |
5 |
→ |
External identification number (RES_BOOKNR) |
6 |
→ |
Phone trunk number (CAB_TEL or CAB_TEL2) |
7 |
→ |
e-mail ID (UXP_H_EMAIL or RES_EMAIL_SHIP) |
8 |
→ |
Internal ID number(UXP_C_INTERNALID) |
9 |
→ |
Guest Category(GCT_CODE) |
10 |
→ |
RFID UID (RFID_ID) |
11 |
→ |
Manning Number/Safety Number |
12 |
→ |
Loyalty Number (UXP_A_FRQ_CARDNO) |
13 |
→ |
Pre-generated Random Number (RES_PGID) |
14 |
→ |
External ID (UXP_C_EXTERNALID) |
peAccountStatus
The field identifies the account current reservation status. The following status values are defined:
0 |
→ |
Reservations |
1 |
→ |
Checked-In |
2 |
→ |
Active (Reservations and Checked-in) |
3 |
→ |
Disembarked |
4 |
→ |
Disembarked Residents (Owners – Valid only for ResidenSea) |
5 |
→ |
Checked-In and all Reservation for the current cruise |
peAccountType
The field identifies the account type. The following account types are defined:
If this field is ignored or blank then it will return all types.
0 |
→ |
All |
1 |
→ |
Passenger (Guest) |
2 |
→ |
Resident (Guest) |
3 |
→ |
Crew member |
4 |
→ |
Group |
5 |
→ |
Visitor |
6 |
→ |
System account |
7 |
→ |
Staff |
8 |
→ |
Gift Card |
pbIncludeIncludePicture
To include a guest picture in the return result, true will cause the query to take a longer time to return, you can expect a large amount of data to return.
Return Values
Returns True when a search is successful.
Returns False when nothing is found.
Return of GuestInfo When success
CResponse.oGuest
This is the search result.
When single record is returned, the result will in JSON object format {}.
When there are multiple record returned, it is an Array of GuestInfo class.
Please refer details in GuestInfo Class Details.
Table 4-38 GuestInfo Class
Code | Type | Description | Required | SPMS Data Field Reference |
---|---|---|---|---|
gnAccID |
Integer |
Account ID. |
Yes |
RES_ACC |
geAccountType |
Integer |
Account Type. |
Yes |
RES_TAG |
gbAllowPosting |
Boolean |
Account Enabled. |
Yes |
UXP_A_POSTING |
gsName |
String |
Salutation, Forename and Surname |
Yes |
UXP_A_SALUT, UXP_A_FSTN, UXP_A_NAME |
gsCabin |
String |
Cabin Number. |
Optional |
RES_CAB |
gdEmbDate |
Date |
Embarkation Date. |
Yes |
RES_EMB_E for expected accounts, RES_EMB_A for checked in accounts. |
gdDisDate |
Date |
Disembarkation Date. |
Yes |
RES_DIS_E for expected & checked in accounts, RES_DIS_A for checked out accounts. |
gdBirthDate |
Date |
Date of birth. |
Optional |
UXP_H_BIRTHD |
gsEMail |
String |
E-mail address. |
Optional |
UXP_H_EMAIL |
gnBalance |
Decimal |
Balance |
Yes |
(UXP_A_POS_DEBIT –UXP_A_POS_CREDIT) |
gsFirstName |
String |
First Name. |
Yes |
UXP_A_FSTN |
gsLastName |
String |
Last Name. |
Yes |
UXP_A_NAME |
gsSalutation |
String |
Salutations |
Yes |
UXP_A_SALUT |
gsTitle |
String |
Title |
Yes |
UXP_A_TITEL |
gsGender |
String |
Gender |
Yes |
UXP_H_SEX |
geAgeGroup |
Integer |
Minor |
Yes |
Parameter “Adult Min Age” compared to Birthdate. |
gsLanguage |
String |
Language. |
Yes |
UXP_H_LANG |
gsResStatus |
String |
Reservation Status. |
Yes |
RES_STATUS translated to E/C/D. |
gsGroup |
String |
Group ID & Description [ID–Description] |
Optional |
RES_GRP + UXP_A_NAME |
gsGroupShoreID |
String |
Group ID. |
Optional |
RES_SHOREID (refer to Group) |
gsCategory |
String |
Category ID & Description [ID–Description; ID–Description]. |
Optional |
GCT_CODE + TYP_GCT.TYP_COMMENT |
gsAddress |
String |
Address. |
Optional |
UXP_A_STREET |
gsStreet |
String |
Street. |
Optional |
UXP_A_STREET2 |
gsCity |
String |
City. |
Optional |
UXP_A_CITY |
gsZip |
String |
ZIP Code. |
Optional |
UXP_A_ZIP |
gsState |
String |
State. |
Optional |
UXP_A_STATE |
gsCountry |
String |
Country Code. |
Optional |
UXP_A_COUNTRY |
gsTel |
String |
Telephone Number. |
Optional |
UXP_H_TELNO |
gnCreditLimit |
Decimal |
Credit Limit. |
Optional |
Credit limit as per assigned credit department code, unless individual credit limit is assigned in UXP_A_CRELIM |
gsShipEMail |
String |
Ship’s e-Mail ID. |
Optional |
RES_EMAIL_SHIP |
gsPin |
String |
PIN Code |
Optional |
RES_PIN_CODE |
gsAuthKey |
String |
Authorization Key. |
Optional |
Refer to PAR Value for PAR- Interfaces-“AuthKey Criteria”. |
gsBookNo |
String |
Booking ID. |
Optional |
RES_BOOKNR |
gsShoreID |
String |
Shore ID. |
Optional |
RES_SHOREID |
gsVGuestID |
String |
Unique Guest ID. |
Optional |
RES_V_GUESTID |
gsAward |
String |
Award Level. |
Optional |
RES_AWARD_LEVEL |
gsBoardCard |
String |
Onboard Cabin Card. |
Optional |
RES_BOARDCC |
gnRoutedAcc |
Integer |
Routed Account ID. |
Optional |
RES_QROUTE_ACC |
gbRoutedEnable |
Boolean |
Routed Account Enable. |
Optional |
UXP_A_POSTING(refer to the payer) |
gnRouteCreditLimit |
Decimal |
Routed Account Credit Limit. |
Optional |
Routed Account Credit limit per assigned credit department code, unless individual credit limit is assigned in UXP_A_CRELIM |
gsPassportCountry |
String |
Passport Nationality. |
Optional |
UXP_H_PASSPI_COUNTRY |
gbyPicture |
Byte Array |
Guest Picture (Unlimited Length). |
Optional |
SEC_IMAGE |
gsCabinStewardName |
String |
Cabin Steward Name. |
Optional |
RES_ACC (linked to CAB_KEEPER) |
gsHandicap |
String |
Handicap Description Separate by ASCII 28. |
Yes |
RES_HANDICAPCODE |
gsHandicapRemark |
String |
Handicap Remarks. |
Yes |
RES_HANDIREMARKS |
gsMusterStation |
String |
Muster Station Description. |
Yes |
MST_NAME |
gbOnboard |
Boolean |
Onboard/Shoreside status. |
Yes |
RES_OFFBOARD |
gsSafetyNo |
String |
Safety Number. |
Optional |
UXP_C_POS |
goSafetyMusterStation |
Class |
Muster Station Class. |
Optional |
ORG_ASSEMBLY(linked to MST_ID), MST_NAME |
goEmergencyMusterStation |
Array of Class |
Muster Station Class 0 to 5. |
Optional |
ORG_E_MST1 to ORG_E_MST6(linked to MST_ID), MST_NA<E |
gbNoSafetyDrill |
Boolean |
Excuse From Safety Drill (Yes/No). |
Optional |
UXP_C_NODRILL |
gePicture |
Integer |
Picture Source. |
Yes |
SEC_SOURCE |
gdLastPictureDate |
Date |
Picture Last Modified Date Time. |
Optional |
SEC_MODDATE |
gsFreqCardNo |
String |
Frequent Traveller Card Number. |
Yes |
UXP_A_FRQ_CARDNO |
gsPriceCategory |
String |
Price Category. |
Yes |
RES_PCATEGORY |
gsCabinType |
String |
Cabin Type. |
Yes |
CAB_TYPE |
gnNoneRefundableCredit |
Decimal |
None Refundable Credit Balance. |
Optional |
UXP_A_NR_BAL |
gnCurrentCruiseID |
Integer |
Current Cruise ID. |
Optional |
SCR_ID |
gsPassportNo |
String |
Passport Number. |
Optional |
UXP_H_PASSNO |
gsPaymentDep |
String |
Default Payment Type. |
Optional |
RES_DEP_PAY |
gsClaasification |
String |
Reservation Classification/Vip Flag. |
Optional |
RES_CLASSFICATION |
gdSysdate |
Date |
SPMS System Date. |
Yes |
sys_date |
gdCurrentCruiseStartDate |
Date |
Current Cruise Start Date. |
Yes |
scr_a_date of current cruise |
gnPGID |
Integer |
Pregenerated Random ID. |
Yes |
RES_PGID |
gsCruiseItnID |
String |
Cruise external system identifier. |
Yes |
SCR_ITN_ID |
gsResRefrence |
String |
External reservation ID. |
Yes |
RES_REFERENZ |
gsDeck |
String |
Cabin deck code. |
Optional |
CAB_DECK |
gsExternalID |
String |
External Crew ID. |
Yes |
UXP_C_EXTERNALID |
Table 4-39 MusterStation Class
Code | Type | Description | Required | SPMS Data Field Reference |
---|---|---|---|---|
gsCode |
String |
Code |
Yes |
MST_ID |
gsName |
String |
Name |
Yes |
MST_NAME |
gnAccID
The field identifies the unique account (person) ID. The field is an internal, unique account (person) number (I type).
geAccountType
The field identifies the account type. The following account types are defined:
1 |
→ |
Passenger (Guest) |
2 |
→ |
Resident (Guest) |
3 |
→ |
Crew member |
4 |
→ |
Group |
5 |
→ |
Visitor |
6 |
→ |
System account |
7 |
→ |
Staff |
8 |
→ |
Gift Card |
gbAllowPosting
The field identifies the information if an account is enabled (True) or disabled (False).
gsName
The field identifies the salutation, forename, and surname fields (separated with space) of an account (person).
gsCabin
The field identifies the cabin number that the account (person) occupies. If the account number is returned (not a person), the cabin number field is omitted.
gdEmbDate
The field identifies the date and the time the account (person) is expected or embarked.
gdDisDate
The field identifies the date and the time the account (person) is expected to disembark.
gdBirthDate
The field identifies the person date of birth. If the account number is returned (not a person) or date of birth is not present, the field is omitted.
gsEMail
The field identifies the person’s e-mail address. If the account number is returned (not a person) or e-mail is not present, the field is omitted.
gnBalance
The field identifies the account (person) current balance. This field can return positive (account is to be invoiced) or negative (account prepaid) value.
gsFirstName
The field identifies the forename of an account (person).
gsLastName
The field identifies the surname of an account (person).
gsSalutation
The field identifies the salutation of an account (person).
gsTitle
The field identifies the title of an account (person).
gsGender
The field identifies the gender of an account (person).
geAgeGroup
0 - Adult
1 - YoungAdult
2 - Minor
gsLanguage
The field returns the language of an account (person).
gsResStatus
The field identifies the reservation status [E–Expected, C–Checked-In, D-Departed] of an account (person).
gsGroup
The field identifies the group ID & the name of the group if a passenger is assigned to a group.
gsGroupShoreID
The field identifies the group shore ID of the group if a passenger is assigned to a group.
gsCategory
The field identifies the category IDs and the names of the categories if a passenger is assigned any categories.
gsAddress
The field identifies the address (Line 1).
gsStreet
The field identifies the street (Line 2).
gsCity
The field identifies the city.
gsZip
The field identifies the zip code.
gsState
The field identifies the state.
gsCountry
The field identifies the country code.
gsTel
The field identifies the telephone number.
gnCreditLimit
The field identifies the credit limit set for the person(s).
gsShipEMail
The field identifies the Ship’s e-Mail ID for the person(s).
gsPin
The field identifies the telephone PIN code for the person(s). The valid characters are 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS Parameter setting.
gsAuthKey
The field identifies the authorization key for the person(s).
gsBookNo
The field identifies the booking ID.
gsShoreID
The field identifies the shore ID.
gsVGuestID
The field identifies the unique guest ID.
gsAward
The field identifies the guest award level.
gsBoardCard
It contains Track 2 field 1 value of the onboard cabin card excluding start sentinel and end sentinel.
For example, The value encode in track 2 is ;9910000657580701=20060810?, we will only send 9910000657580701
gnRoutedAcc
The field identifies the routed account ID (payer account ID).
gbRoutedEnable
The field identifies the information if the routed account is enabled (1) or disabled (0).
gnRouteCreditLimit
The field identifies the credit limit set for the routed person(s) (payer account).
gsPassportCountry
The field identifies the guest passport nationality
gbyPicture
The field identifies the guest pictures.
gsCabinStewardName
The field identifies the housekeeper assign to this cabin
gsHandicap
If the guest has handicap, it will be shown. For a non-handicapped guest it will be blank. For example, Wheel Chair Require<FS>Deaf .
gsHandicapRemark
This is special remark for the handicapped guest.
gsMusterStation
The master station associate with the guest.
gbOnboard
True-Onboard, False = Shoreside.
gsSafetyNo
Safety Number (only apply to crew).
goSafetyMusterStation
Return MusterStation Class with Safety Muster Station Code and Description (only apply to crew).
goEmergencyMusterStation(5)
Return MusterStation Class with Emergency Muster Station Code and Description (The emergency type is user define) (only apply to crew).
gbNoSafetyDrill
Excuse From Safety Drill (only apply to crew).
gePicture
Picture Source
-1 = No Picture
0 = Unknown
1 = Web Cam
2 = RFID Passport
3 = Scan Passport Image
4 = Guest History
gdLastPictureDate
Picture Last Modified Date, due to the size of the picture, it is not efficient to return the picture in FCUIGuestInquiry message, you must compare the last modified date of the picture store in your DB and if the picture had been updated, send WSFunction with GuestPicture and gnAccID as parameter message to get the picture in a separate call.
gsFreqCardNo
Frequent Traveller Card Number.
gsPriceCategory
Booking Price Category (res_pcategory).
gsCabinType
Cabin Type.
gnNoneRefundableCredit
None Refundable Credit, there is an option set in Web.Config to indicate do not return None Refundable credit if the guest search is x number of more. This is for performance purpose. Default is five.
gnCurrentCruiseID
Current Cruise ID.
gsPassportNo
Passport Number.
gsPaymentDep
Default payment department ID.
gsClaasification
This field identified the reservation classification/VIP Flag.
gdSysdate
Current SPMS System Date.
gdCurrentCruiseStartDate
Current cruise start date.
gnPGID
Pregenerated Random Number.
gsCruiseItnID
Cruise external system identifier.
gsResRefrence
External reservation ID.
gsDeck
Cabin Deck code.
gsExternalID
External Crew ID.
Example:
This is to search all checked-in guest/crew stay in cabin 05002 and include the picture in the response message.
oResponse = goWS.FidelioSPMSWSXML("FCUIGuestInquiry", "SESSIONID", New Object() { "05002", 1, 1, 0, True})
FCUIPayment
This function posts the payment to the SPMS account based on the input parameter. This is mainly for generic usage and is compatible with FCUI Payment.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “FCUIPayment” — below is the list of psParam or poParam.
Table 4-40 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSearchStr |
String |
Search String. |
Yes |
peSearchType |
Integer |
Search String type. |
Yes |
peAccountStatus |
Integer |
Account Status. |
Yes |
peAccountType |
Integer |
Account Type. |
Yes |
pbIncludePicture |
Boolean |
Include Guest Picture in Return Result. |
Yes |
psUniquePostingID |
String(20) |
Unique Posting ID. |
Yes |
psOutletID |
String(13) |
Outlet ID. |
Yes |
pnValue |
Decimal |
Posting Total. |
Yes |
psNote |
String |
Notes. |
Yes |
pnInvoiceWin |
Integer |
Invoice Windows (0 – 3). |
Yes |
Below are the descriptions of the parameters.
psSearchStr
Entered by the external system operator manually or through a magnetic card reader and generally contains any information necessary to identify the account. The field can be an account number, card number, cabin number or person name.
peSearchType
The field identifies the type of entry in the Account ID field. The following Account ID Entry Types are defined:
0 |
→ |
Card identification number (RES_BOARDCC) |
1 |
→ |
Cabin number or System account (RES_CAB/UXP_A_SYS_ACC) |
2 |
→ |
Name of a person or company account(UXP_A_NAME_N) |
3 |
→ |
Internal identification number (UXP_A_ID) |
4 |
→ |
Group ID number (RES_GRP) |
5 |
→ |
External identification number (RES_BOOKNR) |
6 |
→ |
Phone trunk number (CAB_TEL or CAB_TEL2) |
7 |
→ |
e-mail ID (UXP_H_EMAIL or RES_EMAIL_SHIP) |
8 |
→ |
Internal ID number(UXP_C_INTERNALID) |
9 |
→ |
Guest Category(GCT_CODE) |
10 |
→ |
RFID UID (RFID_ID) |
11 |
→ |
Loyalty Number (UXP_A_FRQ_CARDNO) |
12 |
→ |
Manning Number/Safety Number |
13 |
→ |
Pre-generated Random Number (RES_PGID) |
peAccountStatus
The field identifies the current account reservation status. The following status values were defined:
0 |
→ |
Reservations |
1 |
→ |
Checked-In |
2 |
→ |
Active (Reservations and Checked-in) |
3 |
→ |
Disembarked |
4 |
→ |
Disembarked Residents (Owners – Valid only for ResidenSea) |
5 |
→ |
Checked-In and all Reservation for the current cruise |
peAccountType
The field identifies the account type. The following account types are defined:
If this field is ignored of blank then it will return all type.
0 |
→ |
All |
1 |
→ |
Passenger (Guest) |
2 |
→ |
Resident (Guest) |
3 |
→ |
Crew member |
4 |
→ |
Group |
5 |
→ |
Visitor |
6 |
→ |
System account |
7 |
→ |
Staff |
8 |
→ |
Gift Card |
pbIncludeIncludePicture
To include a guest picture in the return result, true will cause the query to take a longer time to return and expect a huge amount of data to return.
psUniquePostingID
The field identifies the guest check uniquely within the whole external system. The field is used as a cross-reference to obtain detailed information about all the transactions recorded on a check.
psOutletID
The field identifies the revenue center of the outlet from which the charge originated. The SPMS description equivalent to the Outlet ID will be displayed or printed on a customer invoice.
pnValue
The field identifies the payment amount, for forex this is the forex amount receive.
psNote
The field identifies the additional information send by a third-party system.
pnInvoiceWin
The invoice windows, a valid value is from 0 to 3, any invalid value will default to 0.
Return Values
CResponseXml.oObj(0) Returns 0 when update is successful
CResponseXml.oObj(0) Returns 1 when update has failed
CResponseXml.oObj(0) Returns 2 when the search string return more than 1 persons, it is recommend to use Unique Account ID to make sure it is unique.
FCUIPosting
This function will post to an SPMS account based on the input parameter, this is mainly for generic usage and is compatible with FCUI Posting.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “FCUIPosting” — below is the list of psParam or poParam.
Table 4-41 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSearchStr |
String |
Search String. |
Yes |
peSearchType |
Integer |
Search String type. |
Yes |
peAccountStatus |
Integer |
Account Status. |
Yes |
peAccountType |
Integer |
Account Type. |
Yes |
pbIncludePicture |
Boolean |
Include Guest Picture in Return Result. |
Yes |
poPosting |
PostingDetails Class |
The is the Posting Data. |
Yes |
Below are the descriptions of the parameters.
psSearchStr
Entered by the external system operator (manually or through a magnetic card reader) and generally contains any information necessary to identify the account. The field can be an account number, card number, cabin number or person name.
peSearchType
The field identifies the type of entry in the Account ID field. The following Account ID Entry Types are defined:
0 |
→ |
Card identification number (RES_BOARDCC) |
1 |
→ |
Cabin number or System account (RES_CAB/UXP_A_SYS_ACC) |
2 |
→ |
Name of a person or company account(UXP_A_NAME_N) |
3 |
→ |
Internal identification number (UXP_A_ID) |
4 |
→ |
Group ID number (RES_GRP) |
5 |
→ |
External identification number (RES_BOOKNR) |
6 |
→ |
Phone trunk number (CAB_TEL or CAB_TEL2) |
7 |
→ |
e-mail ID (UXP_H_EMAIL or RES_EMAIL_SHIP) |
8 |
→ |
Internal ID number(UXP_C_INTERNALID) |
9 |
→ |
Guest Category(GCT_CODE) |
10 |
→ |
RFID UID (RFID_ID) |
11 |
→ |
Loyalty Number (UXP_A_FRQ_CARDNO) |
12 |
→ |
Manning Number/Safety Number |
13 |
→ |
Pre-generated Random Number (RES_PGID) |
peAccountStatus
The field identifies the account current reservation status. The following status values were defined:
0 |
→ |
Reservations |
1 |
→ |
Checked-In |
2 |
→ |
Active (Reservations and Checked-in) |
3 |
→ |
Disembarked |
4 |
→ |
Disembarked Residents (Owners – Valid only for ResidenSea) |
5 |
→ |
Checked-In and all Reservation for the current cruise |
peAccountType
The field identifies the account type. The following account types are defined:
If this field is ignored of blank then it will return all type.
0 |
→ |
All |
1 |
→ |
Passenger (Guest) |
2 |
→ |
Resident (Guest) |
3 |
→ |
Crew member |
4 |
→ |
Group |
5 |
→ |
Visitor |
6 |
→ |
System account |
7 |
→ |
Staff |
8 |
→ |
Gift Card |
pbIncludeIncludePicture
To include a guest picture in the return result, “True” will cause the query to take a longer time to return and expect a huge amount of data to return.
poPosting
Information of the transactions to be posted.
Please refer to PostingDetails Class for more detail.
Return Values
CResponseXml.oObj(0) Returns 0 when update is successful.
CResponseXml.oObj(0) Returns 1 when update has failed.
CResponseXml.oObj(0) Returns 2 when the search string return more than 1 person, it is recommend to use Unique Account ID to make sure it is unique.
CResponse.oGuest
This is the search result; it is an Array of GuestInfo class.
It will have 1 record if return result is 0.
It will have 0 or 1 record if return result is 1 depend on fail reason.
It will more than 1 record if return result is 2.
Please refer detail in GuestInfo Class Details.
CResponse.oObj(1) = Pos Transactions ID, only valid when CResponse.oObj(0) = 0
Posting Class
Table 4-42 PostingDetails Class
Code | Type | Description | Required |
---|---|---|---|
gbCallPosting |
Boolean |
Indicate this is call posting. |
Yes |
gsPin |
String |
PIN Code. |
Yes |
gsUniquePostingID |
String(20) |
Unique Posting ID. |
Yes |
gsCheckImage |
String |
Receipt image. |
Yes |
gbyCheckImage |
Byte Array |
Receipt image including signature in JPG format. |
Yes |
gsPosInfo |
String |
Notes. |
Yes |
gsItemDetail |
String(x) |
Refer Item Detail for. |
Yes |
gbForcePosting |
Boolean |
True = Allow posting even when the guest has reached his credit limit or posting is disabled. False = Normal posting. |
Yes |
goPosting |
Array of PostingTotal Class |
Refer to PostingTotal Class. |
Yes |
gbCallPosting
If this is a call posting the behavior will be the same as gbForcePosting with the exception that for a call posting when the guest is not found it will then post to system error account. It will use a different data in the goPosting.
For normal posting, it will return 2 when more than 1 guest found but for call posting, it will post to the first guest.
gsPin
The field identifies the telephone code of the reservation account. The valid characters are 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS Parameter setting.
Pass in an empty string if not in use.
gsUniquePostingID
The field identifies the bill (check) uniquely within the whole external system. The field is used as a cross-reference to obtain detailed information about all the transactions recorded on a check.
gsCheckImage
The field identifies the receipt image that shows the same data as printed on the customer receipt. This should be plain text with CR & LF characters separating each line of the text. It should be formatted to be displayed using non-proportional fonts. Pass in an empty string if not in use.
gbyCheckImageThis is the customer receipt which include a digital signature.
You can use the below VB .NET sample code to merge the text base check image with JPG digital signature. Pass in nothing if not in use
oImage = MergeCheckAndSignatureImage(TextToImage(gsCheckImage), oSignature)
Private Function MergeCheckAndSignatureImage(ByVal poCheckImage As Image, ByVal poSignatureImage As System.Drawing.Image) As Image
MergeCheckAndSignatureImage = Nothing
Try
'check Width of check and signature image
'width
If Not poCheckImage.Width = poSignatureImage.Width Then
Dim oNewImage As Image = ResizeImage(poCheckImage, poSignatureImage)
poSignatureImage.Dispose()
poSignatureImage = oNewImage
End If
Dim oImage As New Bitmap(Math.Max(poCheckImage.Width, poSignatureImage.Width), poCheckImage.Height + poSignatureImage.Height)
Dim gGraphic As Graphics = Graphics.FromImage(oImage)
gGraphic.DrawImage(poCheckImage, New Point(0, 0))
gGraphic.DrawImage(poSignatureImage, New Point(0, poCheckImage.Height))
gGraphic.Dispose()
gGraphic = Nothing
poCheckImage.Dispose()
Return oImage
Catch ex As Exception
End Try
End Function
'Resize image if check width is larger than signature width ,if the signature image not same width as check image, the picture seems a bit out of place (please see, signature.jpg)
Private Function ResizeImage(ByVal poRefenceImage As Image, ByRef poTargetImage As Image) As Image
Dim oCurrentImage As New Bitmap(poTargetImage)
Dim oNewImage As New Bitmap(poRefenceImage.Width, poTargetImage.Height)
Dim oGraphic As Graphics = Graphics.FromImage(oNewImage)
oGraphic.InterpolationMode = Drawing2D.InterpolationMode.HighQualityBicubic
oGraphic.DrawImage(oCurrentImage, New Rectangle(0, 0, poRefenceImage.Width, poTargetImage.Height), _
New Rectangle(0, 0, oCurrentImage.Width, oNewImage.Height), GraphicsUnit.Pixel)
oGraphic.Dispose()
oCurrentImage.Dispose()
Return oNewImage
End Function
Private Function TextToImage(ByVal psText As String) As Image
Dim oGra As Graphics
Dim sStr() As String
Dim oImage As Image
sStr = Split(psText, vbNewLine)
oImage = New Bitmap(32 * 7, sStr.Length * 12.2 + 18, PixelFormat.Format32bppArgb)
oGra = Graphics.FromImage(oImage)
oGra.FillRectangle(Brushes.White, 0, 0, CSng(32 * 7), CSng(sStr.Length * 12.2 + 18))
oGra.DrawString(psText, New Font("Courier New", 8), Brushes.Black, 0, 30)
oGra.DrawImage(oImage, New PointF(0, 0))
TextToImage = oImage
End Function
gsPosInfo
The field identifies the additional information send by a third-party system.
gsItemDetail
In order to maintain compatibility with FCUI, the class object will not be used.
This field identify the items order on the external system. The field contains many sub-field, with each field separated with <FS>. If the external systems do not have the particular field, just pass in the default value indicated in bracket.
Table 4-43 Item Identifier
Field | Type | Description |
---|---|---|
1 |
Integer |
Employee Number (Default 0). |
2 |
String(30) |
Employee Name (Default Blank). |
3 |
Integer |
Guest Count (Default 0). |
4 |
Integer |
Table Number (Default 0). |
5 |
String(60) |
Outlet Name. |
6 |
String |
Variable Length field. Each record will have 6 fields and separate by pipe “|”, each field will be separated by comma “,” Field 1: Item Number (9). Field 2: Item Name X(50). Field 3: Quantity (9). Field 4: Sales Total (9.9). Field 5: 1-Voided, 0-Normal. Field 6: 1-Refunded, 0-Normal. |
7 |
String (12) |
Posting Server Information. |
For example, Guest A order 1 T-Shirt for 10.00 and 2 Key Chain for 2.50 each
1234<FS>Cashier 1<FS>1<FS>0<FS>Gift
Shop<FS>205789412,T-Shift,1,10.00,0,0|205789123,Key Chain,2,5.00,0,0
gbForcePosting
True = Allow posting even the guest who has reached his/her credit limit or posting is disabled. This only applies to check-in guest and the posting will fail if the guest not found.
PostingTotal Class
True = Allow posting even the guest who has reached his credit limit or posting is disabled. This only applies to check-in guest and the posting will fail if the guest not found.
Table 4-44 PostingTotal Class
Code | Type | Description | Required |
---|---|---|---|
gnServingPeriod |
Integer |
Serving Period |
Yes |
gnPostingTotal |
Decimal |
Posting Total |
Yes |
gnPostingDiscount |
Decimal |
Discount Total |
Yes |
gnPostingServiceCharge |
Decimal |
Service Charge Total |
Yes |
gnPostingTip |
Decimal |
Tip Total |
Yes |
gnPostingTax |
Decimal |
Tax Total |
Yes |
gnInvoiceWin |
Integer |
Invoice Windows (0 – 3) |
Yes |
gsOutletID |
String(13) |
Outlet ID |
Yes |
gdCallStart |
Date |
Call Start Date or Time (For Call Accounting Posting) |
Yes |
gsCallNoDialed |
String |
Dialed Number (For Call Accounting Posting) |
Yes |
gnCallDuration |
Integer |
Call Duration (For Call Accounting Posting) |
Yes |
gsCallType |
String |
Call Type (For Call Accounting Posting) |
Yes |
gnServingPeriod
The field identifies the serving period number that is active when the charge is posted.
Pass in 0 if not in use.
gnPostingTotal
The field identifies the actual amount (gross) is posted. This value represents value in full (including discount, service charge and tip). This field can have positive (account is debited) or negative (void) value.
gnPostingDiscount
The field identifies the total amount of discounts taken against the transaction total amount. This field can have positive (account is debited) or negative (void) value.
gnPostingServiceCharge
The field identifies the total amount of any automatic percentage add-on amounts to the transaction total. This field can have positive (account is debited) or negative (void) value.
gnPostingTip
The field identifies the total amount of any add-on amounts to the transaction total such as tips, cover charges etc. This value is typically entered manually per customer specification. This field can have positive (account is debited) or negative (void) value.
gnPostingTaxThe field identifies the total amount of any tax to the transaction total. This field can have positive (account is debited) or negative (void) value.
gnInvoiceWinThe invoice windows, a valid value is from 0 to 3, any invalid value will default to 0
gsOutletIDThe field identifies the revenue center of the outlet from which the charge originated. The FCSPMS description equivalent of the Outlet ID will be displayed or printed on a customer invoice.
gdCallStartThe field identifies the date and the time when the phone call started. Full date and time format is required.
gsCallNoDialed
The field identifies the phone number called.
gnCallDurationThe field identifies the phone call duration in seconds.
gsCallTypeThe field identifies the phone call type. The following types are defined:
VL |
→ |
Line Voice Call |
VC |
→ |
Cellular Voice Call |
VS |
→ |
Satellite Voice Call |
VN |
→ |
Non-chargeable Voice Call |
FL |
→ |
Line Fax |
FC |
→ |
Cellular Fax |
FS |
→ |
Satellite Fax |
FN |
→ |
Non-chargeable Fax |
DL |
→ |
Line Data Call |
DC |
→ |
Cellular Data Call |
DS |
→ |
Satellite Data Call |
DN |
→ |
Non-chargeable Data Call |
Example:
Dim oPosting As New FidelioSPMSWS.PostingDetils
With oPosting
.gbCallPosting = False
.gbForcePosting = False
If File.Exists("c:\jpg.jpg") Then
.gbyCheckImage = File.ReadAllBytes("c:\jpg.jpg")
End If
.gsCheckImage = <Check Image>
.gsItemDetail = "1234<FS>Cashier <FS>1<FS>0<FS>Gift Shop<FS>2xxxxxxxxx|T-Shift|1|100.00"
.gsPin = ""
.gsPosInfo = "Remark"
.gsUniquePostingID = "<POSTINGID>" 'You have to generate you own unique number
End With
ReDim oPosting.goPosting(0)
oPosting.goPosting(0) = New FidelioSPMSWS.PostingTotal
With oPosting.goPosting(0)
.gnInvoiceWin = 0
.gnPostingDiscount = 0.00 'No Discount
.gnPostingServiceCharge = 10.00 '10% Service Charge
.gnPostingTax = 5.00 '5% Tax
.gnPostingTip = 0.00
.gnPostingTotal = 115.00
.gnServingPeriod = 0
.gnCallDuration = 0
.gsCallNoDialed = ""
.gsCallType = ""
.gsOutletID = "123" 'This value need to setup in SPMS dep mapping
.gdCallStart = Now()'This is only use for call posting
End With
oResponse = goWS.FidelioSPMSWSXML("FCUIPosting", "SESSIONID", New Object() { 2358, 3, 1, 0, False, oPosting})
Sample JSON Http Post
For JSON you must serialize the object to string first.
Figure 4-1 Sample JSON String
POST /OHCWebServices/OHCWebServices.asmx/FidelioSPMSWSJsonPost HTTP/1.0
Host: localhost
Content-Length: 1771
{callback:"Testing",psSessionID:"ad765829-3fb7-4f1b-9754-587d43a879ab",psFunction:"FCUIPosting",psParam:["2440167",3,1,0,true,"{\"gbCallPosting\":false,\"gsPin\":\"\",\"gsUniquePostingID\":\"1234\",\"gsCheckImage\":\"INVOICE – EXAMPLE COMPANY \\r\\n RESTAURANT \\r\\n1 CASHIER 1\\r\\n--------------------------------\\r\\n1/1 1234 GST 1\\r\\n JUN12'07 6:44PM \\r\\n--------------------------------\\r\\n 1 FRIED RICE 12.34\\r\\n DISCOUNT\\t\\t 2.10- \\r\\n SERVICE CHARGE 0.12 \\r\\n TIP 1.00 \\r\\n TOTAL PAID 11.36 \\r\\n 05000\\r\\n XXXN070612184500\\r\\n MANUAL ENTRY\\r\\n Cabin/Acc:05000\\r\\n <LAST/FIRST NAME>\\r\\n CABIN CHARGE 00.00 \\r\\n---1168 CLOSED JUN12 6:45PM----\\r\\n . \\r\\nSIGN:...........................\\r\\n . \\r\\nAll Amounts in US Dollars (USD$)\",\"gbyCheckImage\":null,\"gsPosInfo\":\"\",\"gsItemDetail\":\"1234?Cashier 1?1?0?Gift Shop?205789412|T-Shift|1|12.34\",\"gbForcePosting\":false,\"goPosting\":[{\"gnServingPeriod\":0,\"gnPostingTotal\":10.01,\"gnPostingDiscount\":1.01,\"gnPostingServiceCharge\":1.02,\"gnPostingTip\":1.03,\"gnPostingTax\":1.04,\"gnInvoiceWin\":0,\"gsOutletID\":\"264\",\"gdCallStart\":\"20130620100105\",\"gsCallNoDialed\":\"12345678\",\"gnCallDuration\":159,\"gsCallType\":\"Sat\"},{\"gnServingPeriod\":0,\"gnPostingTotal\":11.0,\"gnPostingDiscount\":1.01,\"gnPostingServiceCharge\":1.02,\"gnPostingTip\":1.03,\"gnPostingTax\":1.04,\"gnInvoiceWin\":0,\"gsOutletID\":\"262\",\"gdCallStart\":\"20130620100105\",\"gsCallNoDialed\":\"12345678\",\"gnCallDuration\":259,\"gsCallType\":\"Sat\"}]}"]}
FCUIUDFUpdate
This function updates the guest custom information.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “FCUIUDFUpdate” — below is the list of psParam or poParam.
Table 4-45 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
psUDFID |
Array of String |
Array of UDF_ID. |
Yes |
psValue |
Array of String |
Max length 1000 for each value. |
Yes |
Return Values
CResponseXml.bSuccess = False when failed.
CResponseXml.bSuccess = True when success.
Example:
oResponse = goWS.FidelioSPMSWSXML("FCUIFolio",
"SessionID", New Object() {12345, New String() {"1","1"}, New String()
{"6411", "0123"}})
FCUIUpdatePin
This function updates the guest pin code.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“FCUIUpdatePin” — below is the list of psParam or poParam.
Table 4-46 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
psCabin |
String |
Cabin Number. |
Yes |
psAuthKey |
String |
4 Digits authentication code to prevent unauthorize update. |
Yes |
psPin |
String |
Pin Code. |
Yes |
Return Values
CResponseXml.bSuccess = False when failed.
CResponseXml.bSuccess = True when success.
Example:
oResponse = goWS.FidelioSPMSWSXML("FCUIFolio",
"SessionID", New Object() {12345, "678", "6411", "0123"})
GangwayGuestSearch
This function is used to search the guest by Gangway movement.
Input Parameters
psFunction= “GangwayGuestSearch” — below is the list of psParam or poParam.
Table 4-47 psParam
Code | Type | Description | Required |
---|---|---|---|
pbAshore |
Boolean |
True=Guest at shoreside, False=Guest Onboard. |
Yes |
peGuestType |
Integer |
0-All. 1-Guest Only. 2-Resident Only. 3-Crew Only. 4-Visitor Only. 5-Check-Out but onboard. |
Yes |
pbShowCurrentPortOnly |
Boolean |
For ferry operator only, true=only return guest which disembark at the current port only. |
Yes |
pnExcludeOvernightTour |
Boolean |
True=Exclude guest stay at shoreside for overnight tour. |
Yes |
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-48 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
Res_status |
String |
Reservation Status. |
Tname |
String |
Guest Name. |
Res_cab |
String |
Cabin Number. |
Res_owner |
Integer |
0-Normal Guest, 1-Owner. |
Nationality |
String |
Nationality Code |
Res_id |
Integer |
Unique Reservation ID. |
Res_emb_a |
Date |
Actual Embarkation Date. |
Res_signonport |
String |
Port where the guest embark. |
Res_dis_e |
Date |
Expected Disembarkation Date. |
Res_signoffport |
String |
Port where the guest disembark. |
Uxp_a_name |
String |
Last Name. |
Uxp_a_fstn |
String |
First Name. |
Uxp_a_as_crw |
Integer |
Guest show in crew manifest. |
Uxp_c_as_pax |
Integer |
Crew show in pax manifest. |
Res_acc |
Integer |
Unique Guest ID. |
SwitchAcc |
Integer |
1-Switch Manifest. |
ManingNumber |
String |
Crew Safety Number. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GangwayGuestSearch",
"SESSIONID", New Object() {False, 0, False, False})
GetAccBalance
This function gets the account outstanding balance.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetAccBalance” — below is the list of psParam or poParam.
Table 4-49 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pbPreBill |
Boolean |
True – Get the Pre-Cruise Balance, False – Get the account balance. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from GuestSearch.
pbPreBill
True – Get the Pre-Cruise Balance, False – Get the account balance
Return Values
CResponseXml.bSuccess = True when GetAccBalance is successful, CResponse.oObj returns an Array with 2 value, the first value is the Pre-Cruise Balance or Account Balance depending on pbPreBill and the second value is Non-Refundable Credit Pre-Cruise Balance or Non-Refundable Credit Balance.
CResponseXml.bSuccess = False when GetAccBalance has failed
Example:
oResponse = goWS.FidelioSPMSWSXML("GetAccBalance",
"", New Object() {12345, False})
GetAdvanceLoyaltyDiscount
This function gets the guest loyalty discount eligibility from SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“ GetAdvanceLoyaltyDiscount” — below is the list of psParam or poParam.
Table 4-50 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
pnRvc |
Integer |
MICROS POS Revenue Center Number. |
Yes |
Return Values
CResponseXml.bSuccess = False when GetAdvanceLoyaltyDiscount failed
CResponseXml.bSuccess = True when GetAdvanceLoyaltyDiscount is successful and return Class CAdvanceLoyaltyDiscount
Table 4-51 CAdvanceLoyaltyDiscount Class
Code | Type | Description | Required |
---|---|---|---|
gnDiscNo |
Integer |
MICROS POS Discount Number. |
Yes |
gnDiscLimit |
Decimal |
Maximum Discount Allow Per Check. |
Yes |
goEligibility |
Array of CDiscRate |
Discount eligibility. |
Yes |
Table 4-52 CAdvanceLoyaltyDiscount Class
Code | Type | Description | Required |
---|---|---|---|
gsType |
String |
M-Menu Item ,G-Major Group, F-Family Group. |
Yes |
gnNumber |
Integer |
Object Number. |
Yes |
gnRate |
Decimal |
Discount Percentage. |
Yes |
GetCheckImage
This function gets the check image from SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetCheckImage” — below is the list of psParam or poParam.
Table 4-53 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMibID |
Integer |
SPMS Unique Check Image ID. |
Yes |
Below are the descriptions of the parameters.
pnMibID
SPMS Unique Check Image ID, return from GetInvoiceTotal.
Return Values
CResponseXml.bSuccess = True when GetCheckImage is successful
CResponseXML.oObj(0)
This is the check image from MICROS POS with signature. This is the preferred image to display if both pbyImage and psCheckImage exists.
CResponseXML.oObj(1)
This is the text image of a guest check.
CResponseXml.bSuccess = False when GetCheckImage has failed or no record found
Example:
oResponse = goWS.FidelioSPMSWSXML("GetCheckImage",
"SESSIONID", New Object() {12345678})
GetCreditCardInfo
This function gets the list of register credit card assign to the passenger.
Input Parameters
psFunction= “GetCreditCardInfo” — below is the list of psParam or poParam.
Table 4-54 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from GuestSearch.
Return Values
CResponseXml.bSuccess = False when GetCreditCardInfo has failed
CResponseXml.bSuccess = True when GetCreditCardnfo is successful, CResponse.oDataset will have 2 Data Tables.
Table 4-55 ADO.NET Data Table field structure for FIRST DATA Credit Card Information
Code | Type | Description |
---|---|---|
CRD_NO |
String |
Credit Card No, the card number will always mask to XX**********XXXX |
CRD_EXP |
String |
Expiry Date in MMYY format. |
CRD_NAME |
String |
Credit Card owner name. |
CRD_ACTIVE |
String |
Yes or No. |
CRD_LIMITS |
String |
‘No Limit’ or the credit limit amount. |
CRD_ID |
Integer |
Unique ID. |
CRD_INVOICE |
String |
‘All’ or the individual invoice separated by ‘,’ |
CRD_DCC |
String |
Y or N for Dynamic Currency Exchange. |
CRD_PARCELADO |
String |
Y or N special Parcelado flag, currently not is use. |
CRD_SIG_ID |
String |
Yes or No, indicate the signature image exists. |
DCC_EXRATE |
Double |
Exchange Rate. |
CRD_CUR |
String |
Currency code. |
SIGN_ID |
Integer |
Signature Unique ID. |
Table 4-56 ADO.NET Data Table field structure for second data table
Code | Type | Description |
---|---|---|
CRD_NO |
String |
Credit Card No, the card number will always mask to XX**********XXXX |
CRD_EXP |
String |
Expiry Date in MMYY format. |
CRD_NAME |
String |
Credit Card owner name. |
CRD_ID |
Integer |
Unique ID. |
CRD_ACTIVE |
String |
Yes or No. |
CRD_REWARDS |
Integer |
1 - Reward Card, 2 - Gift Card. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetCreditCardInfo",
"", New Object() {12345})
GetEvent
This function search and list the available ticket events in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“GetEvent” — below is the list of psParam or poParam.
Table 4-57 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pdSDate |
Date |
Event start date. |
Yes |
pdEDate |
Date |
Event end date. |
Yes |
peCodeType |
EvtCodeType |
Code Type. |
Yes |
psCode |
String |
Code. |
Optional |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
pdSDate
The field identifies the minimum date the event can start from.
pdEDate
The field identifies the maximum date the event must be completed.
peCodeType
(Enumerator)
The field identifies the type of the code being passed for querying events.
None |
0 |
→ |
No Code will be used |
LocationID |
1 |
→ |
Event Location ID, you can get the value from WSFunction, GetLocationInfo, LOC_ID. |
EventNo |
2 |
→ |
Event No (EvtNo) |
UniqueID |
3 |
→ |
Event Unique ID (EvtID) |
psCode
The code for the Events to run the query on. It can be either the location code, The Event No (EvtNo), the Unique ID (EvtID).
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-58 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
EvtID |
Integer |
Event ID. |
EvtNo |
String(20) |
Event Number. |
EvtName |
String(50) |
Event Name. |
EvtBegDate |
Date |
Starting Date and Time. |
EvtEngDate |
Date |
Ending Date and Time . |
EvtLastCall |
Date |
Last Call Time. |
EvtStatus |
String(1) |
Booking Status. |
EvtPriceCategory |
String(6) |
Price Category Code. |
EvtPriceDesc |
String(50) |
Price Category Description. |
EvtPersonCode |
String(6) |
Person Group Code. |
EvtPersonDesc |
String(50) |
Person Group Description. |
EvtIsFixedSeatingEvent |
Boolean |
True-Fixed Seating Event, False = regular Free Seating Event. |
EvtIsLevelHybrid |
Boolean |
True-Level Hybrid mode. |
EvtHybridLevelOpenSeatingCapacity |
Integer |
Open Seating max capacity for Hybrid Levels. |
EvtLayoutLevelCode |
String(20) |
Layout Level Code. |
EvtLayoutLevelDesc |
String(50) |
Layout Level Description. |
EvtSeatingZoneCode |
String(20) |
Seating Zone Code. |
EvtSeatingZoneDesc |
String(50) |
Seating Zone Description. |
EvtIsFixedSeatingPrice |
Boolean |
True- Fixed Seating Price Setup, False = regular Free Seating Price. |
EvtPrice |
Double |
Price. |
EvtDesc |
String(200) |
Event Description. |
EvtShowInKiosk |
Boolean |
Show in Kiosk [External Booking System]. |
EvtBookInKiosk |
Boolean |
Book in Kiosk [External Booking System]. |
EvtMaxSeat |
Integer |
Maximum Seats. |
EvtBooked |
Integer |
Seats Currently Booked. |
EvtLocation |
String(50) |
Location Name. |
EvtShowInITV |
Boolean |
Show in Internet TV (ITV) - [External Booking System]. |
EvtBookInITV |
Boolean |
Book in ITV [External Booking System]. |
EvtLongDesc |
X(1000) |
Event Long Description. |
EvtPriceID |
Integer |
Price ID. |
EvtLayoutLevelID |
Integer |
Layout Level ID. |
EvtSeatingZoneID |
Integer |
Seating Zone ID. |
EvtID
The field identifies the unique event identifier. This ID can be used for event booking. The field is an internal, unique event number.
EvtNo
The field identifies the custom, users entered, a number that identifies the event.
EvtName
The field identifies the event name.
EvtBegDate
The field identifies the event starting date and time.
EvtEndDate
The field identifies the event ending date and time.
EvtLastCall
The field identifies the last call time, please ignore the date part.
EvtStatus
The field identifies the event booking status. The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully booked |
O |
→ |
Overbooked |
For Fixed Seating Events, the Booking status applies to the Seating Zone.
EvtPriceCategory
The field identifies the event price category code, this field is required during booking.
For example, Gold Class, Silver Class
EvtPriceDesc
The field identifies the event price category description.
EvtPersonCode
The field identifies the person group code, this field is required during booking. For example, Adult, Child or Senior
EvtPersonDesc
The field identifies the person group description
EvtIsFixedSeatingEvent
True = Fixed Seating Event, False = regular Free Seating Event
EvtIsLevelHybrid
True = Level Hybrid mode (Fixed Seating plus Open Seating Capacity), False = Level is only Fixed Seating
The field identifies the layout level description for fixed seating assignment bookings.
EvtHybridLevelOpenSeatingCapacity Open Seating max attendees capacity for Hybrid Levels
EvtLayoutLevelCode The field identifies the layout level code for fixed seating assignment bookings.
EvtLayoutLevelDesc
EvtSeatingZoneCode
The field identifies the seating zone code for fixed seating assignment bookings.
EvtSeatingZoneDesc
The field identifies the seating zone description for fixed seating assignment bookings.
EvtIsFixedSeatingPrice
True = Fixed Seating Price Setup, False = regular Free Seating Price
EvtPrice The field identifies the event selling price.
EvtDesc The field identifies the additional information about the event.
EvtShowInKiosk
The flag to denote if the event can be shown on the external system.
EvtBookInKiosk
The flag to denote if the event can be booked on the external system.
EvtMaxSeat
Total seats available on the event.
Note: For the same event ID the same seat could be sold at a different price depending on the price category and person group. The total seats appear on different price category and person group is representation of the same seats as shown in below example.
Below table means the event ID=1 only have 50 seats available, for the same EID will always have the same MAX value.
EID | PCT | PGT | MAX |
1 | Gold | Adult | 50 |
1 | Silver | Adult | 50 |
1 | Gold | Child | 50 |
1 | Silver | Child | 50 |
For Fixed Seating Events, the total seat count applies to the Seating Zone.
EvtBooked
The field indicates the total event seat booked.
For Fixed Seating Events, the total seats booked count applies to the Seating Zone.
EvtLocation
The field identifies the location name of the event.
EvtShowInITV
The flag to denote if the event can be shown on ITV the external system.
EvtBookInITV
The flag to denote if the event can be booked on the ITV external system, the field returns ‘Yes’ or ‘No’ only.
EvtLongDesc
The field indicates the Event Long Description intended for ITV usage.
EvtPriceID
The field identifies the unique pricing setup identification number. This ID must be used for event fixed seating booking. The field is an internal, unique pricing setup number.
EvtLayoutLevelID
The field identifies the unique Layout Level identification number. This ID must be used for event fixed seating booking. The field is an internal, unique layout level number.
EvtSeatingZoneID
The field identifies the unique Seating Zone identification number. This ID must be used for event fixed seating booking. The field is an internal, unique seating zone number.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetEvent",
"SESSIONID", New Object() {12345, #1/1/2011#, #1/12/2011#, 0, ""})
GetEvtFolio
This function is used to request a list of event booked on a specific account in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetEvtFolio” — below is the list of psParam or poParam.
Table 4-59 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-60 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
EvtID |
Integer |
Event ID. |
EvtNo |
String(20) |
Event Number. |
EvtName |
String(50) |
Event Name. |
EvtBegDate |
Date |
Starting Date and Time. |
EvtEngDate |
Date |
Ending Date and Time. |
EvtStatus |
String(1) |
Booking Status. |
EvtBookDate |
Date |
Booking Date and Time. |
EvtPriceCategory |
String(6) |
Price Category Code. |
EvtPriceDesc |
String(50) |
Price Category Description. |
EvtPersonCode |
String(6) |
Person Group Code. |
EvtPersonDesc |
String(50) |
Person Group Description. |
EvtLayoutLevelCode |
String(20) |
Layout Level Code. |
EvtLayoutLevelDesc |
String(50) |
Layout Level Description. |
EvtSeatingZoneCode |
String(20) |
Seating Zone Code. |
EvtSeatingZoneDesc |
String(50) |
Seating Zone Description. |
EvtSeatCode |
String(20) |
Seat Code. |
EvtLocation |
String(50) |
Location Name. |
EvtQty |
Integer |
Number of Tickets Booked. |
EvtTotal |
Double |
Booking Value. |
EvtNotes |
String(200) |
Notes. |
EvtPrint |
Integer |
Ticket Printed Count. |
EvtDiscount |
Double |
Discount Amount. |
EvtControl |
Integer |
Internal Booking Number. |
EvtPrepaid |
Boolean |
Prepaid. |
EvtID
The field identifies the unique event identifier. This ID can be used for event booking. The field is an internal, unique event number.
EvtNo
The field identifies the custom, users entered, a number that identifies the event.
EvtName
The field identifies the event name description.
EvtBegDate
The field identifies the event starting date and time.
EvtEndDate
The field identifies the event ending date and time.
EvtStatus
The field identifies the event booking status. The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully booked |
O |
→ |
Overbooked |
EvtBookDate
The field identifies the excursion booking date and time (real date and time).
EvtPriceCategory
The field identifies the event price category code; this field is required during booking. For example, Gold Class or Silver Class
EvtPriceDesc
The field identifies the event price category description.
EvtPersonCode
The field identifies the person group code, this field is required during booking. For example, Adult, Child or Senior
EvtPersonDesc
The field identifies the person group description.
EvtLayoutLevelCode
The field identifies the layout level code for fixed seating assignment bookings.
EvtLayoutLevelDesc
The field identifies the layout level description for fixed seating assignment bookings.
EvtSeatingZoneCode
The field identifies the seating zone code for fixed seating assignment bookings.
EvtSeatingZoneDesc
The field identifies the seating zone description for fixed seating assignment bookings.
EvtSeatCode
The field identifies the seat ID, For example, B15 for fixed seating assignment bookings.
EvtLocation
The field identifies the location name of the event.
EvtQty
The field identifies the number of tickets booked.
EvtTotal
The field identifies the total value of the bookings for the returned excursions.
EvtNotes
The field identifies the additional information about the event.
EvtPrint
The field identifies how many times the tickets had been printed.
EvtDiscount
Discount Amount.
EvtControl
Internal Booking Number.
EvtPrepaid
True – Prepaid at shore side, False – Book onboard.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetEvtFolio", "SESSIONID", New
Object() {12345})
GetExcFolio
This function is used to request a list of excursions booked on a specific account in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetExcFolio” — below is the list of psParam or poParam.
Table 4-61 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
Unique Guest Id, return from SearchPassenger.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-62 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
ExcID |
Integer |
Excursion ID. |
ExcNo |
String(10) |
Excursion Number. |
ExcName |
String(50) |
Excursion Name. |
ExcBegDate |
Date |
Starting Date and Time. |
ExcEndDate |
Date |
Ending Date and Time. |
ExcStatus |
String(1) |
Excursion Status. |
ExcBookDate |
Date |
Booking Date and Time. |
ExcQty |
Integer |
Number of Tickets Booked. |
ExcTotal |
Double |
Booking Value. |
ExcMeetDate |
Date |
Meeting Date and Time. |
ExcMeetPlace |
String(100) |
Meeting Point. |
ExcClothes |
String(100) |
Recommended Clothes. |
ExcNotes |
String(200) |
Notes. |
ExcTag |
String(1) |
TAG. |
ExcPrint |
Integer |
Ticket Printed Count. |
ExcDiscount |
Double |
Discount Amount. |
ExcControl |
Integer |
Internal Booking Number. |
ExcLanguage |
String(250) |
Language. |
ExcPrepaid |
Boolean |
Prepaid. |
ExcCategory |
String(500) |
Category ID & Description [ID–Description; ID–Description]. |
ExcID
The field identifies the unique excursion identifier. This ID can be use to link the excursion with items retrieved from Excursions message. The field is an internal, unique excursion number.
ExcNo
The field identifies the custom, users entered, a number that identifies excursion.
ExcName
The field identifies the excursion name (description).
ExcBegDate
The field identifies the excursion starting date and time.
ExcEndDate
The field identifies the excursion ending date and time.
ExcStatus
The field identifies the excursion booking status. The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully Booked |
O |
→ |
Overbooked |
ExcBookDate
The field identifies the excursion booking date and time (real date and time).
ExcQty
The field identifies the number of tickets booked.
ExcTotal
The field identifies the total value of the bookings for the returned excursions.
ExcMeetDate
The field identifies the excursion participants meeting date and time.
ExcMeetPlace
The field identifies the excursion participants meeting place.
ExcClothes
The field identifies the recommended clothes for excursions participants.
ExcNotes
The field identifies the additional information about the excursion.
ExcTag
The field identifies the adult or children indicator.
A |
→ |
Adult |
C |
→ |
Children |
ExcPrint
The field identifies how many times the tickets had been printed.
ExcDiscount
Discount Amount.
ExcControl
Internal Booking Number.
ExcLanguage
Language use. For example, English.
ExcPrepaid
True – Prepaid at shore side, False – Book onboard.
ExcCategory
The field identifies the categories for the excursion.
Example:
oResponse =
goWS.FidelioSPMSWSXML("GetExcFolio", "SESSIONID", New Object() {12345})
GetExcPackage
This function searches the list of excursion package available in SPMS.
The message is usually used to display a list of excursion packages that fall within the start and end date criteria. The following is the description of the fields in the message data block. A package usually contains more than one excursion; all tours within the package must fall within the start date and end date. If either date is ignored, it will return all the package belongs to current cruise.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetExcPackage” — below is the list of psParam or poParam.
Table 4-63 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pdSDate |
Date |
Excursion start date. |
Yes |
pdEDate |
Date |
Excursion end date. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest IdD, return from SearchPassenger.
pdSDate
The field identifies the minimum date the excursions package can start from. Enter 30-Dec-1899 to return all package belong to current cruise.
pdEDate
The field identifies the maximum date the excursions package must be completed. Enter 30-Dec-1899 to return all packages belong to current cruise.
psErrMsg
It will return an error message, For example, DB connection is down.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-64 ADO.NET Data Table field structure for data table xxx. Return one record when input is valid
Code | Type | Description |
---|---|---|
ExcPkgID |
Integer |
Package ID. |
ExcPkgNo |
String(10) |
Package Number. |
ExcPkgName |
String(50) |
Package Name. |
ExcAdultPrice |
Double |
Package Adult Price. |
ExcChildPrice |
Double |
Package Child Price. |
ExcShowInKiosk |
Boolean |
Show in Kiosk [External Booking System]. |
ExcBookInKiosk |
Boolean |
Book in Kiosk [External Booking System]. |
ExcMaxSeat |
Integer |
Maximum Package or Maximum Adult Package |
ExcBooked |
Integer |
Package or Adult Package Currently Booked |
ExcAdultStatus |
String(1) |
Booking or Adult Booking Status. |
ExcAdultAv |
Integer |
Package or Adult package available. |
ExcMaxChildSeat |
Integer |
Maximum Childs Package. |
ExcChildBooked |
Integer |
Child Package Booked. |
ExcChildStatus |
String(1) |
Child Booking Status. |
ExcChildAv |
Integer |
Child package available. |
ExcProAdultPrice |
Integer |
Promotion Adult Price. |
ExcProAdultAv |
Integer |
Promotion Adult Availability. |
ExcProAdultID |
Integer |
Adult Promotion ID. |
ExcProChildPrice |
Integer |
Promotion Child Price. |
ExcProChildAv |
Integer |
Promotion Child Availability. |
ExcProChildID |
Integer |
Child Promotion ID. |
ExcID |
Integer |
Excursion ID. |
ExcNo |
String(10) |
Excursion Number. |
ExcName |
String(50) |
Excursion Name. |
ExcBegDate |
Date |
Starting Date and Time. |
ExcEndDate |
Date |
Ending Date and Time. |
ExcMeetDate |
Date |
Meeting Date and Time. |
ExcMeetPlace |
String (100) |
Meeting Point. |
ExcClothes |
String (100) |
Recommended Clothes. |
ExcNotes |
String (200) |
Notes. |
ExcPort |
String (50) |
Port Name. |
ExcCategory |
String(500) |
Category ID & Description [ID–Description; ID–Description]. |
ExcLang |
String(500) |
Language ID + “-“ + Language Description With “,” as field separator. |
ExcLongDesc |
String(1000) |
Tour Long Description. |
ExcPkgID
The field identifies the unique excursion identifier. This ID can be used for excursion package booking. The field is an internal, unique excursion number.
ExcPkgNo
The field identifies the custom, users entered, a number that identifies excursion.
ExcPkgName
The field identifies the excursion name (description).
ExcAdultPrice
The field identifies the excursion adult price.
ExcChildPrice
The field identifies the excursion child price.
ExcShowInKiosk
The flag to denote if the excursion can be shown on the external system.
ExcBookInKiosk
The flag to denote if the excursion can be booked on the external system.
ExcMaxSeat
If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the maximum adult packages available, if the PAR is Disabled this is the total packages available.
ExcBooked
If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the adult packages currently booked on the excursion, if the PAR is Disabled this is the total packages booked.
ExcAdultStatus
The field identifies the excursion booking status. If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the adult booking status, if the PAR is Disabled this is the general booking status.
The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully booked |
O |
→ |
Overbooked |
ExcAdultAv
If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the current adult package available on the excursion, if the PAR is Disabled this is the total package available.
ExcMaxChildSeat
The field identifies the maximum child packages available. This field only valid when PAR ‘Use Adult/Child Max Counts’ is Enabled.
ExcChildBooked
The field identifies the child packages currently booked. This field only valid when PAR ‘Use Adult/Child Max Counts’ is Enabled.
ExcChildStatus
The field identifies the excursion booking status. If PAR ‘Use Adult/Child Max Counts’ is Enabled. This field only valid when PAR ‘Use Adult/Child Max Counts’ is Enabled.
The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully booked |
O |
→ |
Overbooked |
ExcChildAv
If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the current child package available. This field only valid when PAR ‘Use Adult/Child Max Counts’ is Enabled.
ExcProAdultPrice
This is the adult promotion price.
ExcProAdultAv
This is the number of packages available for adult promotion price.
ExcProAdultID
This is the adult promotion ID, it can be used during ‘ExcPackageBooking’. Please refer to pnAdultPromoID in ExcPackageBooking message type for more details.
ExcProChildPrice
This is the child promotion price.
ExcProChildAv
This is the number of packages available for child promotion price.
ExcProChildID
This is the child promotion ID, it can be used during Booking. Please refer to pnChildPromoID in ExPackageBooking message type for more details
ExcID
The field identifies the unique excursion identifier. This ID can be used for excursion booking. The field is an internal, unique excursion number.
ExcNo
The field identifies the custom, users entered, a number that identifies excursion.
ExcName
The field identifies the excursion name description.
ExcBegDate
The field identifies the excursion starting date and time.
ExcEndDate
The field identifies the excursion ending date and time.
ExcMeetDate
The field identifies the excursion participants meeting date and time.
ExcMeetPlace
The field identifies the excursion participants meeting place.
ExcClothes
The field identifies the recommended clothes for excursions participants.
ExcNotes
The field identifies the additional information about the excursion.
ExcPort
The field identifies the port for the excursion.
ExcCategory
The field identifies the categories for the excursion.
ExcLang
The field identifies the Language ID (2 digits) + “-“ + Language Description, + “,” as the field separator. In one tour there could be more than 1 language available
For example,
EN – English
DE – German
The field will be “EN-English, DE-German”
ExcLongDesc
Tour long Description intended for ITV usage.
Example:
oResponse
= goWS.FidelioSPMSWSXML("GetExcPackage", "SESSIONID", New Object()
{12345, #1/1/2011#, #1/12/2011#})
GetExcursion
This function searches and list the available excursion in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetExcursion” — below is the list of psParam or poParam.
Table 4-65 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pdSDate |
Date |
Excursion start date. |
Yes |
pdEDate |
Date |
Excursion end date. |
Yes |
peCodeType |
ExcCodeType |
Code Type. |
Yes |
psCode |
String |
Code. |
Optional |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
pdSDate
The field identifies the minimum date the excursions can start from.
pdEDate
The field identifies the maximum date the excursions must be completed.
peCodeType
(Enumerator)
The field identifies the type of the code being passed for querying excursions.
None |
0 |
→ |
No Code will be used |
PortName |
1 |
→ |
Excursion Port Name |
ExcursionNo |
2 |
→ |
Excursion No (ExcNo) |
UniqueID |
3 |
→ |
Excursion Unique ID (ExcID) |
Category |
4 |
→ |
Excursion Category Code |
psCode
The code used to query the excursions. It can be either the Port name, The Excursion No (ExcNo), the Unique ID (ExcID) or the Excursion Category Code.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-66 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
ExcID |
Integer |
Excursion ID. |
ExcNo |
String (10) |
Excursion Number. |
ExcName |
String (50) |
Excursion Name. |
ExcBegDate |
Date |
Starting Date and Time. |
ExcEndDate |
Date |
Ending Date and Time. |
ExcAdultStatus |
String (1) |
Booking or Adult Booking Status. |
ExcAdultPrice |
Double |
Adult Price. |
ExcChildPrice |
Double |
Child Price. |
ExcMeetDate |
Date |
Meeting Date and Time. |
ExcMeetPlace |
String (100) |
Meeting Point. |
ExcClothes |
String (100) |
Recommended Clothes. |
ExcNotes |
String (200) |
Notes. |
ExcShowInKiosk |
Boolean |
Show in Kiosk [External Booking System] |
ExcBookInKiosk |
Boolean |
Book in Kiosk [External Booking System]. |
ExcMaxSeat |
Integer |
Maximum Seats or Maximum Adult Seats. |
ExcBooked |
Integer |
Seats or Adult Seats Currently Booked. |
ExcPort |
String (50) |
Port Name. |
ExcCategory |
String (500) |
Category ID & Description [ID–Description; ID–Description]. |
ExcLang |
String (500) |
Language ID + “-“ + Language Description With “,” as field separator |
ExcShowInITV |
Boolean |
Show in ITV [External Booking System]. |
ExcBookInITV |
Boolean |
Book in ITV [External Booking System]. |
ExcBookChildInITV |
Boolean |
Book Child Ticket in ITV [External Booking System]. |
ExcMaxChildSeat |
Integer |
Maximum Childs Seats. |
ExcChildBooked |
Integer |
Child Seats Booked. |
ExcChildStatus |
String(1) |
Child Booking Status. |
ExcProAdultPrice |
Integer |
Promotion Adult Price. |
ExcProAdultAv |
Integer |
Promotion Adult Availability. |
ExcProAdultID |
Integer |
Adult Promotion ID. |
ExcProChildPrice |
Integer |
Promotion Child Price. |
ExcProChildAv |
Integer |
Promotion Child Availability. |
ExcProChildID |
Integer |
Child Promotion ID. |
ExcLongDesc |
String(1000) |
Tour Long Description. |
ExcNo2 |
String |
Excursion Brochure Number. |
ExcMinSeat |
Integer |
Excursion minimum capacity. |
ExcWeight |
Integer |
Total weight allow for the excursion. |
ExcWeightPerGuest |
Boolean |
True the weight is per guest, False the weight is per tour. |
ExcExternalID |
String |
External ID. |
ExcID
The field identifies the unique excursion identifier. This ID can be used for excursion booking and is an internal, unique excursion number.
ExcNo
The field identifies the custom, users entered, a number that identifies excursion.
ExcName
The field identifies the excursion name (description).
ExcBegDate
The field identifies the excursion starting date and time.
ExcEndDate
The field identifies the excursion ending date and time.
ExcAdultStatus
The field identifies the excursion booking status. If PAR ‘Use Adult/Child Max Counts’ is ‘Enabled’, this is the adult booking status. If the PAR is ‘Disabled’ this is the general booking status.
The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully booked |
O |
→ |
Overbooked |
ExcAdultPrice
The field identifies the excursion adult price.
ExcChildPrice
The field identifies the excursion child price.
ExcMeetDate
The field identifies the excursion participants meeting date and time.
ExcMeetPlace
The field identifies the excursion participants meeting place.
ExcClothes
The field identifies the recommended clothes for excursions participants.
ExcNotes
The field identifies the additional information about the excursion.
ExcShowInKiosk
The flag to denote if the excursion can be shown on the external system.
ExcBookInKiosk
The flag to denote if the excursion can be booked on the external system.
ExcMaxSeat
If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the maximum adult seats available on the excursion, if the PAR is Disabled this is the total seats available on the excursion.
ExcBooked
If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the adult seats currently booked on the excursion, if the PAR is Disabled this is the total seats booked on the excursion.
ExcPort
The field identifies the port for the excursion.
ExcCategory
The field identifies the categories for the excursion.
ExcLang
The field identifies the Language ID (2 digits) + “-“ + Language Description, + “,” as the field separator. In one tour there could be more than 1 language available
For example,
EN – English
DE – German
The field then becomes “EN-English, DE-German”
ExcShowInITV
The flag to denote if the excursion can be shown on ITV the external system.
ExcBookInITV
The flag to denote if the excursion can be booked on the ITV external system.
ExcBookChildInITV
The flag to denote if the excursion child ticket can be booked on the ITV external system.
ExcMaxChildSeat
The field identifies the maximum child seats available on the excursion. This field only exists when PAR ‘Use Adult/Child Max Counts’ is Enabled.
ExcChildBooked
The field identifies the child seats currently booked on the excursion. This field only exists when PAR ‘Use Adult/Child Max Counts’ is Enabled.
ExcChildStatus
The field identifies the excursion booking status. If PAR ‘Use Adult/Child Max Counts’ is Enabled, this is the child booking status. This field does not exist if the PAR is Disabled.
The following status identifiers values are defined:
A |
→ |
Available |
F |
→ |
Fully booked |
O |
→ |
Overbooked |
ExcProAdultPrice
This is the adult promotion price.
ExcProAdultAv
This is the number of seats available for adult promotion price.
ExcProAdultID
This is the adult promotion ID, it can be used during Booking. Please refer to pnAdultPromoID in ExcBooking message type for more details.
ExcProChildPrice
This is the child promotion price.
ExcProChildAv
This is the number of seats available for child promotion price.
ExcProChildID
This is the child promotion ID, it can be used during Booking. Please refer to pnChildPromoID in ExcBooking message type for more details.
ExcLongDesc
Tour long description intended for ITV usage.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetExcursion",
"SESSIONID", New Object() {12345, #1/1/2011#, #1/12/2011#, 0, ""})
GetFreeCabin
This function gets the available cabin for booking.
Input Parameters
psFunction= “GetFreeCabin” — below is the list of psParam or poParam.
Table 4-67 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCabinType |
String |
Cabin Type, “P” – Passenger, “C” - Crew. |
Yes |
pdEmbDate |
Date |
Embarkation Date. |
Yes |
pdDisDate |
Date |
Disembarkation Date. |
Yes |
pdFromDoneDate |
Date |
Work Order Completed From Date. |
Optional |
pdToDoneDate |
Date |
Work Order Completed To Date. |
Optional |
psWorkOrderDone |
String |
Completed Work Order Task Code, link to TYP_MWT.TYP_ART, default value XXX. |
Optional |
psWorkOrderNotDone |
String |
Unfinish Work Order Task Code, link to TYP_MWT.TYP_ART, default value XXX. |
Optional |
psCabinCategory |
String |
Cabin Category. |
Optional |
psFeature |
String |
Cabin Feature |
Optional |
psPartialCabin |
String |
First few digit of partial cabin number. |
Optional |
psDeck |
String |
Cabin Deck. |
Optional |
psSpecialNeed |
Enum |
0-All. 1-With Special Need. 2-Without Special Need. |
Optional |
Return Values
CResponseXml.bSuccess = False when GetFreeCabin has failed
CResponseXml.bSuccess = True when GetFreeCabin is successful, CResponse.oDataset will have 1 Data Tables.
Table 4-68 ADO.NET Data Table field structure for data table
Code | Type | Description |
---|---|---|
CAB_ID |
String |
Cabin Number. |
TYP_COMMENT |
String |
Cabin Category Description. |
CAB_DECK |
String |
Cabin Deck Code. |
CAB_STATUS |
String |
Cabin Status. |
CAB_BEDS |
Integer |
Number of bed in this cabin. |
CAB_TYPE |
String |
Cabin Category Code. |
CAB_DECK |
String |
Cabin Deck. |
CAB_CONNECTED |
String |
Connected Cabin Number. |
CAB_FEATURE |
String |
List of Cabin Feature separated by “,”. |
CAB_AVAILABLE |
Integer |
Available Berth. |
CAB_SORT |
Integer |
Sort Priority. |
CAB_SPECIALNEED |
Integer |
0-Normal Cabin, 1-cabin with special needs feature. |
CAB_DECK_NAME |
String |
Cabin Deck Description. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetFreeCabin",
"", New Object() {"P", DateTime.SpecifyKind(#1/1/2011#, DateTimeKind.Unspecified),
_ DateTime.SpecifyKind(#2/1/2011#,
DateTimeKind.Unspecified)})
GetHouseKeepingSections
This function returns a list of ALL housekeeping section codes and names based on the criteria below.
Input Parameters
psFunction=“GetHouseKeepingSections” — below is the list of poParam.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,
Element 2 = B,
Note: Not supported when it is connected to an offline QCI Sync database.
Table 4-69 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCrewIds |
Array of String |
List of unique crew Account IDs. If this is not passed in, then all HouseKeeping sections are returned. |
Yes |
psCabin |
Array of String |
List of Cabins. |
Yes |
psLocations |
Array of String |
List of Locations. |
Yes |
psDeck |
Array of String |
List of Deck. |
Yes |
psCabinCategory |
Array of String |
List of Cabin Categories. |
Yes |
psCabinType |
Array of String |
List of Cabin Types. |
Yes |
psCabinVerticalZone |
Array of String |
List of Cabin Vertical Zones. |
Yes |
Return Values
CResponseXml.bSuccess = False when SearchHouseKeepingSections has failed
CResponseXml.bSuccess = True when SearchHouseKeepingSections is successful, CResponse.oDataset will have 1 Data Table.
Table 4-70 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
HSC_NAME |
String |
Housekeeping Section Code. |
HSC_COMMENT |
String |
Housekeeping Section Name. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetHouseKeepingSections",
"Session ID", New Object() { Nothing , Nothing , Nothing , Nothing
, Nothing , Nothing , Nothing })
GetILOViolations
This function retrieves all the ILO violations on a specified date for a crew.
Input Parameters
psFunction= “GetILOViolations” — below is the list of psParam or poParam.
Table 4-71 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. Either psBoardCardNo or pnAccID is required. |
Yes |
pdDayRequested |
Date |
Date of the ILO Violations. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful, CResponse.oDataset will have 1 Data Table
Table 4-72 ADO.NET Data Table field structure for data table TALG
Code | Type | Description |
---|---|---|
TALG_ID |
Integer |
Unique ID of the record. |
TALG_TCLK_ID |
Integer |
Unique ID of the TCLK record. Linked to TCLK.TCLK_ID. |
TALG_MODDATE |
Date |
Last modified date. |
TALG_ILO_NOTES |
String |
ILO Violation Notes. |
TALG_MGR_NOTES |
String |
Manager approval notes. |
TALG_ILO_7DAYS |
Integer |
1=violation for ILO for 7 days (exceeded max worked hours for the last 7 days). |
TALG_ILO_24HRS |
Integer |
1=violation for ILO 24hrs (exceeded max worked hours for the last 24hrs). |
TALG_ILO_MINRESTBLOCK |
Integer |
1=violation for ILO minimum rest hr block. |
TALG_ILO_MINREST_7DAYS |
Integer |
1=violation for ILO minimum rest hours in 7 days. |
TALG_ILO_MINREST_24HRS |
Integer |
1=violation for ILO minimum rest hours for the last 24hrs. |
GetLuggageInfo
This function retrieves the luggage movement of the guest.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetLuggageInfo” — below is the list of psParam or poParam.
Table 4-73 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peSearchType |
Enum |
InternalID = 0 'res_acc. PGID = 1 'res_pgid. BoardCard = 2 'res_boardcc. PaxID = 3 'res_referenz. Cabin = 4 'res_cab. |
Yes |
psSearchStr |
String |
Unique Payer Account ID or Board Card or PGID or Pax ID depends on the peSearchType. |
Yes |
peSearchLevel |
Enum(Byte) |
0 – By Passenger. 1 – By Cabin. 2 – By Booking No. |
Yes |
peSearchStatus |
Enum(Byte) |
0 – All Location (All Status). 1 – Latest Location (Current Status). |
Yes |
Return Values
CResponseXml.bSuccess = False when nothing is found or invalid input parameters.
CResponseXml.bSuccess = True when successful. CResponse.oDataset will have 1 Data Tables.
The Data Tables will be different depending on peSearchStatus input parameter.
Table 4-74 ADO.NET Data Table field structure for data table for peSearchStatus = 0
Code | Type | Description |
---|---|---|
LUG_ACC_ID |
Integer |
Unique Account ID. |
UXP_A_FSTN |
String(40) |
Guest First Name. |
UXP_A_NAME |
String(40) |
Guest Last Name. |
LUM_RFID |
String(20) |
RFID Tag. |
LUM_ZONE |
String(20) |
Zone ID. |
LUM_TYPE |
String(20) |
RFID Type – as send from Strategic. |
PAIRING_TIME |
Date |
The time the tag is associated with the guest |
LUM_MOVEMENT |
Date |
The scan time of the tag. |
TIME_REMAINING |
Integer |
Number of minutes before delivery to room/pier (From the last movement time). |
LUZ_LOCATION |
String(50) |
Actual Location. |
DIRECTION |
String(8) |
Inbound or Outbound. |
GUEST_LOCATION |
String(50) |
Guest Friendly Location Description. |
DELIVERED |
Integer |
1-Delivery to guest room, 0-Not yet delivery. |
QUARANTINE |
Integer |
Y-In quarantine zone, N-In normal zone. |
PERCENT_COMPLETE |
Double |
Percentage complete for delivery. |
Table 4-75 ADO.NET Data Table field structure for data table for peSearchStatus = 1
Code | Type | Description |
---|---|---|
LUG_ACC_ID |
Integer |
Unique Account ID. |
UXP_A_FSTN |
String(40) |
Guest First Name. |
UXP_A_NAME |
String(40) |
Guest Last Name. |
LUM_RFID |
String(20) |
RFID Tag. |
LUM_ZONE |
String(20) |
Zone ID. |
LUM_TYPE |
String(20) |
RFID Type – as send from Strategic. |
PAIRING_TIME |
Date |
The time the tag is associated with the guest |
FIRSTSCAN_TIME |
Date |
The time the tag first scan, For example,on X-Ray machine |
LUM_MOVEMENT |
Date |
Last movement time of the bag. |
DELIVERY_TIME |
Date |
Expected delivery time. |
TIME_REMAINING |
Integer |
Number of minutes before delivery to room/pier from current time. |
LUZ_LOCATION |
String(50) |
Actual Location. |
DIRECTION |
String(8) |
Inbound or Outbound. |
GUEST_LOCATION |
String(50) |
Guest Friendly Location Description. |
DELIVERED |
Integer |
1-Delivery to guest room, 0-Not yet delivery. |
QUARANTINE |
Integer |
Y-In quarantine zone, N-In normal zone. |
PERCENT_COMPLETE |
Double |
Percentage complete for delivery. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetLuggageInfo",
"SessionID", New Object() {0,12345,0,1})
GetMicrosAdvanceDiscount
This function gets the list of eligible advance MICROS discount list.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetMicrosAdvanceDiscount” — below is the list of psParam or poParam.
Table 4-76 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from GuestSearch.
Return Values
CResponseXml.bSuccess = True when GetMicrosAdvanceDiscount is successful, CResponse.oObj returns list of discount in a string separated by ASCII 10, it mainly for display purpose only.
CResponseXml.bSuccess = False when GetMicrosAdvanceDiscount has failed.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetMicrosAdvanceDiscount",
"", New Object() {12345})
GetPackageInfo
This function gets the list of Package Plan assigned to the passenger.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“GetPackageInfo” — below is the list of psParam or poParam.
Table 4-77 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pbIncludeDisablePackage |
Boolean |
True=Include Disable Package. False=Just return active package. |
Optional |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from GuestSearch.
Return Values
CResponseXml.bSuccess = False when GetPackageInfo has failed
CResponseXml.bSuccess = True when GetPackageInfo is successful, CResponse.oDataset will have 2 Data Tables.
Table 4-78 ADO.NET Data Table field structure for first data table
Code | Type | Description |
---|---|---|
PPN_NAME |
String |
Name of the Package Plan. |
PPN_DAY_CREDIT |
Double |
Package Total. |
PPP_DEBIT |
Double |
Package Used. |
PPP_BOOKMARK |
Integer |
A point to the record position of the second data table. |
PPP_SELECTED |
Integer |
Record filtering, when 0 should hide the record from the second data table. However, the implementation is up to the client. |
PPN_USE_DEP_TOTAL |
Integer |
1 - Different Department Total has it own limit |
PPP_ID |
Integer |
Unique Package ID. |
PPN_FLEX_PACKAGE |
Integer |
Flexible Package Flag, the guest will need to choose the available department from the setup. |
AvailableBalance |
Double |
Available Balance = PPN_DAY_CREDIT – PPP_DEBIT |
Table 4-79 ADO.NET Data Table field structure for second data table
Code | Type | Description |
---|---|---|
DEP_PPP_ID |
Integer |
Unique Package ID = PPP_ID of the first data table. |
DEP_ID |
String |
Department ID or Main Department ID. |
DEP_NAME |
String |
Department Name or Main Department Name. |
DEP_TOTAL |
Double |
This will be the individual department total when PPN_USE_DEP_TOTAL = 1. |
DEP_MAIN |
Boolean |
Indicate this record is the Department or Main Department. |
DEP_DISC |
Double |
Discount Percentage that the posting amount will go to package plan. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetPackageInfo",
"", New Object() {12345})
GetPeopleCount
This function gets the onboard/shoreside count per the WPF Security module.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetPeopleCount”, no parameter.
psParam
None.
Return Values
CResponseXml.bSuccess = False when not connection to the DB.
CResponseXml.bSuccess = True and CResponseXML.PeopleCoun
Table 4-80 PeopleCount field structure
Parameter | Type | Description |
---|---|---|
nPaxTotal |
Integer |
Total Passenger. |
nPaxShoreside |
Integer |
Total Passenger shore side. |
nPaxOnboard |
Integer |
Total Passenger on board. |
nPaxOvernight |
Integer |
Total Passenger shore side with overnight tour. |
nPaxExpected |
Integer |
Total expected passenger to check-in today. |
nPaxDisembaraked |
Integer |
Total passenger disembark today. |
nResTotal |
Integer |
Total Resident. |
nResShoreside |
Integer |
Total Resident shore side. |
nResOnboard |
Integer |
Total Resident on board. |
nResOvernight |
Integer |
Total Resident shore side with overnight tour. |
nResExpected |
Integer |
Total expected resident to check-in today. |
nResDisembaraked |
Integer |
Total resident disembark today. |
nCrwTotal |
Integer |
Total Crew. |
nCrwShoreside |
Integer |
Total Crew shore side. |
nCrwOvernight |
Integer |
Total Crew on board. |
nCrwOnboard |
Integer |
Total Crew shore side with overnight tour. |
nCrwExpected |
Integer |
Total expected crew to check-in today. |
nCrwDisembaraked |
Integer |
Total crew disembark today. |
nTotal |
Integer |
Total. |
nTotalOnboard |
Integer |
Total shore side. |
nTotalShoreside |
Integer |
Total on board. |
nTotalOvernight |
Integer |
Total shore side with overnight tour. |
nTotalExpected |
Integer |
Total expected to check-in today. |
nTotalDisembaraked |
Integer |
Total disembark today. |
nVisTotal |
Integer |
Total visitor on board. |
nPaxNotPassImmigration |
Integer |
Total passenger not yet pass immigration gate. |
nCrewNotPassImmigration |
Integer |
Total crew not yet pass immigration gate. |
nResNotPassImmigration |
Integer |
Total resident not yet pass immigration gate. |
nPaxExcludeImmigration |
Integer |
Total passenger no need to pass immigration gate. |
nCrewExcludeImmigration |
Integer |
Total crew no need to pass immigration gate. |
nResExcludeImmigration |
Integer |
Total resident no need to pass immigration gate. |
sPortName |
String |
Port Description. |
oVisitor |
Array or CVisitorDetailCount |
This only applies to HRG only. |
Table 4-81 CVisitorDetailCount
Parameter | Type | Description |
---|---|---|
Code |
String |
Visitor Category Code. |
Description |
String |
Visitor Category Description. |
Count |
Integer |
Total Visitor on board. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetPeopleCount",
"SESSIONID", New Object() {})
GetPreviousClockInOutActivities
This function retrieves the previous days’ clock-in/out transactions.
Input Parameters
psFunction= “GetPreviousClockInOutActivities” — below is the list of psParam or poParam.
Table 4-82 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. |
Yes |
pnDays |
Integer |
Optional. The number of previous days to get. If 0 then will default to days defined in parameter ‘Display Previous X Days Clock-In/Out at terminal.’ |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful, CResponse.oDataset will have 1 Data Table.
Table 4-83 ADO.NET Data Table field structure for data table TCLK
Code | Type | Description |
---|---|---|
TCLK_DATETIMESTAMP |
Date |
Date time stamp of the clock-in/out transaction. |
TCLK_IN_OUT |
String |
‘I’ for clock-in, ‘O’ for clock-out. |
TCLK_ENTRYTYPE |
String |
‘A’ for auto, ‘M’ for manual. |
TARS_CODE |
String |
Task work code. |
TARS_NAME |
String |
Task work name. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetPreviousClockInOutActivities",
"SessionID", New Object() {12345, 0})
GetRFIDEncodingData
This function retrieves the Ving door lock information and charge card information from SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetRFIDEncodingData” — below is the list of psParam or poParam.
Table 4-84 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peSearchType |
Enum |
0 = Internal ID. 1 = PGID. 2 = BoardCard. 3 = Pax ID. |
Yes |
psSearchStr |
String |
Unique Payer Account ID or Board Card or PGID or Pax ID depends on the peSearchType. |
Yes |
psRFIDUID |
String(16) |
Convert the value to HEX. |
Yes |
Return Values
CResponseXml.bSuccess = False when failed.
CResponseXml.bSuccess = True when successful. CResponse.oDataset will have 1 Data Tables.
Table 4-85 ADO.NET Data Table field structure for data table
Code | Type | Description |
---|---|---|
TRACK1 |
String(76) |
Track 1 – Custom Information. |
TRACK2 |
String(37) |
Track 2 – SPMS Charge Card information. |
TRACK2_BIN |
Byte(7) |
Numeric Track 2 In Binary Format (Excluding Expiry). |
TRACK3 |
String(200) |
Track 3 - Ving encoding string format. |
ENCODED |
Boolean |
True=Previously Encoded, False=New RFID. |
ACCID |
Integer |
Unique Guest ID. |
TRACK1_CUSTOM |
STRING(168) |
84-byte Hex String representing ASCII track 1 - including 00s at the end For example, 32363534323735315E4C5E4F415E43335E32303134303530335E4A6F686E5E536D6974685E416E74686F6E7900000000000000000000000000000000000000000000000000000000000000000000000000000000. |
TRACK2_CUSTOM |
STRING(24) |
Custom Track 2 - 8-byte Hex String representing numerical RES_BOARDCC concatenated with 4 byte- Hex String representing numerical DEBARK_DATE) For example, 8126E86056F62200E5513301. |
TRACK3_CUSTOM |
STRING(96) |
48-byte HexString representation of the VING String including any 00s at the end. For example, B824935021D7B0C2A81573C63456F85AB3B15D2DFA7E91F0000000000000000000000000000000000000000000000000. |
Example:
oResponse = goWS.FidelioSPMSWSXML("GetRFIDEncodingData",
"SessionID", New Object() {0,12345,”E01581A07C123B”})
GetSeatingZoneAvailability
This function requests for all available Seats of a given Event, Layout Level and Seating Zone from the SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetSeatingZoneAvailability” — below is the list of psParam or poParam.
Table 4-86 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnEvtID |
Integer |
Event ID. |
Yes |
EvtLayoutLevelID |
Integer |
Layout Level ID. |
Yes |
EvtSeatingZoneID |
Integer |
Seating Zone ID. |
Yes |
Below are the descriptions of the parameters.
pnEvtID
The field identifies the unique event ID. This ID can be obtained through GetEvent WebMethod. The field is an internal, unique event number.
EvtLayoutLevelID
The field identifies the unique Layout Level identification number. This ID can be obtained through GetEvent WebMethod. The field is an internal, unique layout level number.
EvtSeatingZoneID
The field identifies the unique Seating Zone identification number. This ID can be obtained through GetEvent WebMethod. The field is an internal, unique seating zone number.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-87 ADO.NET Data Table field structure for data table
Code | Type | Description |
---|---|---|
TKSD_ID |
Integer |
Unique ID of the record. |
TKSD_CODE |
String(20) |
Seat ID. |
TKSD_ID
The field returns the unique ID for each Seat.
TKSD_CODE
The field returns the Seat ID.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetSeatingZoneAvailability",
"SESSIONID", New Object() {62, 82, 24})
GetTreatmentGroupsForLocation
This function is used to request for all Treatment Groups assigned to each Location from the SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetTreatmentGroupsForLocation” — below is the list of psParam or poParam.
Table 4-88 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSPATreatmentGroups |
String |
All Default Treatment Groups assigned to a Location, separated by commas. |
Yes |
psSPATreatmentGroups
All Default Treatment Groups assigned to a Location, separated by commas as returned by WSF function, GetSPALocation in field spl_treatment_groups.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-89 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
typ_art |
String |
Treatment Group Code. |
typ_comment |
String |
Treatment Group Description. |
TYP_ART
The field returns the Treatment Group Code.
TYP_COMMENT
The field returns the Treatment Group Description.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetTreatmentGroupsForLocation",
"SESSIONID", New Object() {"BODY,FACE,"})
GuestSearch
This function searches for guests with various criteria from the SPMS.
Input Parameters
psFunction= “GuestSearch” — below is the list of psParam or poParam.
Table 4-90 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSearchStr |
String |
Search Criteria. |
Yes |
pdDate |
Date |
Embarkation Date. |
Yes |
peGuestType |
GuestType |
Guest Type Enumerator. |
Yes |
peReservationType |
ReservationType |
Reservation Type Enumerator. |
Yes |
pbUseSearchType |
Boolean |
True-Use specific search type False = Use only Search Criteria. |
Yes |
peSearchType |
SearchType |
SearchType Enumerator. |
Yes |
pnScdID |
Integer |
Current Port ID. |
Optional |
peOnboardStatus |
OnboardStatus |
– All. – Onboard. – Shoreside. |
Optional |
Below are the descriptions of the parameters.
psSearchStr
-
Cabin number
-
Guest Name
-
Board Card Track 2 and must include “;” and “?” in the string. For example, “;9841000241243900?”
-
Credit Card Track Data and must include the start and end sentinel in the search string. For example “;” and “?”)
-
Cabin List, separate by “,”. For example,”05002,05000”.
-
Passport Number
-
Name List (Last Name separate by “,”)
-
Booking Number
pdDate
Embarkation date, if you want to search for all guest regardless of the embarkation date, pass in #12:00:00AM#
peGuestType
(Enumerator)
Guest |
0 |
→ |
Search guest matching search criteria |
Crew |
1 |
→ |
Search crew matching search criteria |
Visitor |
2 |
→ |
Search visitor matching search criteria |
All |
3 |
→ |
Search guest,crew,visitor matching search criteria |
peReservationType
(Enumerator)
Reserve = Search only passenger with reservation status only (Note visitor always have reservation status only)
Reserve |
0 |
→ |
Reservation passenger |
CheckIn |
1 |
→ |
Searches only passenger that had check-in |
All |
2 |
→ |
Search both check-in and reserve passenger |
CheckOut |
3 |
→ |
Search check-out passenger only |
ReserveFCManagement |
4 |
→ |
Reservation passenger, for shore viewer |
CheckInFCManagement |
5 |
→ |
Searches only passenger that had check-in, for shore viewer |
CheckOutFCManagement |
6 |
→ |
Search check-out passenger only, for shore viewer |
Cancelled |
7 |
→ |
Canceled reservation passenger. |
AQCIWizardCheckIn |
8 |
→ |
Use by AQCI Wizard Only |
AQCIWizardRegister |
9 |
→ |
Use by AQCI Wizard Only |
ReserveExcludeNoShow |
10 |
→ |
Reservation passenger excluding No Show |
NoShow |
11 |
→ |
No Show Passenger only |
pbUseSearchType
-
Search using passport number; function will return list of guests staying in the same cabin
-
Search using credit card number; function will return a list of guests staying in the same cabin.
-
Want to return a specific guest using UXP_A_ID (SPMS unique key) value.
Below is anincorrect use of search type:-
Search by name;
In general, there could be more than one guest with the same name, if this happens then the function will search for the first guest in SPMS database that matches the name criteria and returns the list of guests staying in that same cabin. Since this is based on the first found record and returns the list of names based on that, this may not be accurate.
False = Use only Search Criteria
peSearchType
(Enumerator)
-
This only works when search criteria psSearchStr passed in is the last name, board card track 2 or credit card track data.
-
The psSearchStr is the partial last name, it will search for guest with matching the partial last name.
-
The psSearchStr is board card track 2 or credit card track data, it will search using the supplied information. When there are records found, it will take the first record last name and search again for all guest with the same partial last name.
-
If the search criteria are other than three of the above, it will only return the first record matching the search criteria.
-
It will search using the supplied information. When there are records found, it will take the first record last name and search again for all guest with the same last name.
-
However, if the first record last name is blank, it will only return the first record.
-
If the search criteria passed in is a list of last names separate by “,”, it will search for guests matching the partial last names in the list.
-
If the psSearchStr is a partial last name, it will search for guest matching the partial last name
-
If the psSearchStr is board card track 2 or credit card track data, it will search using the supplied information. When there are records found, it will take the first record last name and search again for all guests with the same partial last name.
-
For other search criteria, it will search using the supplied information.
-
It will search using the supplied information. When there are records found, it will take the first record cabin number and search again for all guests with the same cabin number.
-
However, if the first record cabin number is blank, it will only return the first record.
-
If the search criteria passed in is a list of cabin numbers separate by “,”, it will search for all guests matching the cabin number in the list.
-
The psSearchStr is cabin number, it will search for all guests matching the cabin number
-
For other search criteria, it will search using the supplied information.
-
t will search using the supplied information. When there are records found, it will take the first record booking number and search again for all guest with the same booking number.
-
However, if the first record booking number is blank, it will only return the first record.
-
It will search using the supplied information. When there are records found, it takes the first record group number and searches again for all guests with the same group number.
-
However, if the first record group number is blank, it only returns the first record.
-
It will search using the supplied information. When the first record is found, it will check if this account has routings to another account. If yes, then the list of records returned would include the first record found and all other accounts that share the same routing as the first account.
-
However, if the first record found does not have routings to another account, then it will search for all accounts that have routings to the first record found.
AccountID = 8
This is an SPMS internal account ID, so the parameter psSearchStr passed in should be a valid ID (UXP_A_ID). All other parameters (pdDate, peGuestType, peReservationType) passed in will be ignored.
Return Values
-
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid. The data table contains
-
all fields in uxp table, all fields in res table,
-
uxp_a_name field or uxp_a_othname field,
-
uxp_a_fstn field or uxp_a_othfstn field, and
-
org_assembly field or res_station field or cab_station field or par_value from par table.
See SPMS Data Dictionary for details of the data fields.
Note
In all the above statements when we mention “first record found” and the function returns more than one record and the list of records returned does not have any specific sort order, we cannot predict which record will be the first to display.
Example:
oResponse = goWS.FidelioSPMSWSXML("GuestSearch",
"SessionID", New Object() {"05002",#01-01-2011#,3,0,True,3})
GetPackageTreatmentAvailability
This function requests the SPA Package Treatment Availability by time slot from the SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetPackageTreatmentAvailability” — below is the list of psParam or poParam.
Table 4-91 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Account ID. |
Yes |
pnSPATreatmentItem |
Integer |
Treatment Item ID. |
Yes |
pnSPAPackageID |
Integer |
Package ID. |
Yes |
pdDateFrom |
Date |
Starting Date period. |
Optional |
pdDateTo |
Date |
Ending Date period. |
Optional |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
pnSPATreatmentItem
The field identifies the unique Package treatment item identification. The field is an internal, unique code. This field is retrieve from GetSPAPackageItems or GetSPAPackageItemsForPeriod WebMethods.
pnSPAPackageID
The field identifies the unique Package ID. The field is an internal, unique code. This value is retrieved from GetSPAPackages WebMethod.
pdDateFrom
The fields identify the optional Starting and Ending Dates period for which the system will return availability time slots when pnAccID is set to 0.
pdDateTo
The fields identify the optional Starting and Ending Dates period for which the system will return availability time slots when pnAccID is set to 0.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-92 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
spa_date |
Date |
Date and Time. |
spa_price |
Double |
Treatment Price. |
SPA_DATE
The field returns the date which the treatment is available.
SPA_PRICE
The field identifies the Package treatment item price.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetPackageTreatmentAvailability",
"SESSIONID", New Object() {12345, 12, 15})
oResponse = goWS.FidelioSPMSWSXML("GetPackageTreatmentAvailability",
"SESSIONID", New Object() {0, 12, 15, #1/1/2011#, #1/12/2011#})
GetTreatmentAvailability
This function requests the SPA Treatment Availability by time slot from the SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “GetTreatmentAvailability”, — below is the list of psParam or poParam.
Table 4-93 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Account ID. |
Yes |
pnSPALocation |
Integer |
Location ID. |
Yes |
pnSPATreatmentItem |
Integer |
Treatment Item ID. |
Yes |
pdDateFrom |
Date |
Starting Date period. |
Optional |
pdDateTo |
Date |
Ending Date period. |
Optional |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
pnSPALocation
The field identifies the unique location ID. The field is an internal, unique code. This value is retrieved from GetSPALocation WebMethod.
pnSPATreatmentItem
The field identifies the unique treatment item identification. The field is an internal, unique code. This field is retrieve from GetSPATreatmentItem or GetSPATreatmentItemForPeriod WebMethods.
pdDateFrom
The fields identify the optional Starting and Ending Dates period for which the system will return availability time slots when pnAccID is set to 0.
pdDateTo
The fields identify the optional Starting and Ending Dates period for which the system will return availability time slots when pnAccID is set to 0.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables(0) = ADO.NET data table when input values are valid.
Table 4-94 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
spa_date |
Date |
Date and Time. |
spa_price |
Double |
Treatment Price. |
SPA_DATE
The field returns the date which the treatment is available.
SPA_PRICE
The field identifies the treatment item price.
Example:
oResponse = goWS.FidelioSPMSWSXML("GetTreatmentAvailability",
"SESSIONID", New Object() {12345, 123, 12})
oResponse = goWS.FidelioSPMSWSXML("GetTreatmentAvailability", "SESSIONID",
New Object() {0, 123, 12, #1/1/2011#, #1/12/2011#})
Login
This function logged in the user into the system and return a session ID. You must use this session ID to subsequence a function call.
Note:
The Login function can only be called with JSON POST or WS XML. JSON GET is not supported for Login.Input Parameters
psFunction= “Login” — below is the list of psParam or poParam.
Table 4-95 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psLoginName |
String |
User Login Name. |
Yes |
psPassword |
String |
Plain Text Password. |
Yes |
pnRowsPerPage |
Integer |
Default 0 = Unlimited, Number of Rows Return per Page. |
Optional |
psPassword
Plain text password
Return Values
CResponseXml.bSuccess = True when Login is successful
CResponseXml.bSuccess = False when Login has failed
When login is successful
CResponseXML.oObj return array of string
Table 4-96 Return Values
Parameter | Type | Description | Required |
---|---|---|---|
oObj(0) |
String |
Session ID, you must use this ID when making a subsequence call. |
Yes |
oObj(1) |
String(99000) |
User Security Access, a string of “0” and “1”. |
Yes |
oObj(2) |
Boolean |
True = Is Administrator. |
Yes |
oObj(3) |
String |
User Full Name. |
Yes |
oObj(4) |
Integer |
User Crew ID if link. |
Yes |
oObj(5) |
Boolean |
Must change the password before proceeding. If you do not change the password, you are not allowed to call any other function. |
Yes |
oObj(6) |
Boolean |
Allow to change the password. |
Yes |
If oObj(5) and oObj(6) both is True mean you should not allow the user to login.
Example:
oResponse
= goWS.FidelioSPMSWSXML("Login", "", New Object() {"admin", "23f9d46d769b154c511f80a016784059"})
Logout
This function logout the user and the session ID will become invalid, you must call the “Login” function again in order to use the system.
Input Parameters
psFunction= “Logout” do not have any parameter
Return Values
CResponseXml.bSuccess always = True
Example:
oResponse = goWS.FidelioSPMSWSXML("Logout",
"SessionID", Nothing)
MarkAsNoShow
This function marks the expected guest as no show.
Input Parameters
psFunction= “MarkAsNoShow” — below is the list of psParam or poParam.
Table 4-97 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("MarkAsNoShow",
"SessionID", New Object() {12345})
MarkAssignmentStatus
This function updates all housekeeping assignment task status for a particular cabin or location for a selected date and port.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“MarkAssignmentStatus” — below is the list of psParam or poParam.
Table 4-98 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnHASstatus |
Integer |
Housekeeping Assignment Task Status (0-Pending, 1-Started, 2-Completed) |
Yes |
pbIsCabin |
Boolean |
True – Cabin, False – Public Location. |
Yes |
psLocation |
String |
Cabin Number or Public Location Code. |
Yes |
pdAssignedDate |
Date |
Date of the Housekeeping Assignment Task. |
Yes |
pnPortID |
Integer |
Port ID. Linked to SCD.SCD_ID. A task that was created and linked to this port. |
Yes |
psHASComment |
String |
Assignment Comment. |
Yes |
Return Values
CResponseXml.bSuccess = True when Update is successful
CResponseXml.bSuccess = False when Update has failed
Example:
oResponse =
goWS.FidelioSPMSWSXML("MarkAssignmentStatus", "SessionID", New Object()
{2,True,1024,<AssignedDate>,123, "Comment"})
MarkSingleAssignmentStatus
This function updates a single housekeeping assignment task status for a particular housekeeping assignment record.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“MarkSingleAssignmentStatus” — below is the list of psParam or poParam
Table 4-99 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnHASstatus |
Integer |
Housekeeping Assignment Task Status (0-Pending, 1-Started, 2-Completed). |
Yes |
pbIsCabin |
Boolean |
True – Cabin, False – Public Location. |
Yes |
psLocation |
String |
Cabin Number or Public Location Code. |
Yes |
pdAssignedDate |
Date |
Date of the Housekeeping Assignment Task. |
Yes |
pnPortID |
Integer |
Port ID. Linked to SCD.SCD_ID. A task that was created and linked to this port. |
Yes |
psHASComment |
String |
Assignment Comment. |
Yes |
Return Values
CResponseXml.bSuccess = True when Update is successful
CResponseXml.bSuccess = False when Update has failed
Example:
oResponse =
goWS.FidelioSPMSWSXML("MarkAssignmentStatus", "SessionID", New Object()
{2,True,1024,<AssignedDate>,123, "Comment"})
MessageDelete
This function flag a message as deleted in SPMS database.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “MessageDelete” — below is the list of poParam.
Table 4-100 psParam
Code | Type | Description | Required |
---|---|---|---|
pnMsgID |
Integer |
Unique Message ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when MessageDelete has failed
CResponseXml.bSuccess = True when MessageDelete is successful
Example:
oResponse = goWS.FidelioSPMSWSXML("MessageDelete", "Session ID",
New Object() {123)})
MessageRead
This function returns a list of messages from SPMS database.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “MessageRead” — below is the list of poParam.
For Date field pass in 30-Dec-1899 if not required.
Table 4-101 psParam
Code | Type | Description | Required |
---|---|---|---|
psMsgDirection |
String |
S - All sent messages from the user that logged in. R – All received messages for the user that logged in. |
Yes |
pdMsgDateFrom |
Date |
Retrieve Messages from this date. Pass in DEFAULT_DATE if this is not required. |
Yes |
pdMsgDateTo |
Date |
Retrieve Messages until this date. Pass in DEFAULT_DATE if this is not required. |
Yes |
pnMsgProfileType |
Integer |
1=message to/from a guest. 2=message to/from another crew member (private messages). 3=Official ship messages including broadcasted alert messages. |
Yes |
pnMsgDeleted |
Integer |
Message deleted? (1-deleted, 0-not deleted yet). |
Yes |
psMsgModule |
String |
Messaging for which module (TA=TimeAttendance, HK=HouseKeeping, OTHER=for others). |
Yes |
Return Values
CResponseXml.bSuccess = False when MessageRead has failed
CResponseXml.bSuccess = True when MessageRead is successful, CResponse.oDataset will have 1 Data Table.
Table 4-102 ADO.NET Data Table field structure for data table ordered by field TAMS_MODDATE in descending order
Code | Type | Description |
---|---|---|
TAMS_ID |
Integer |
Unique Message ID. |
TAMS_CRW_ID |
Integer |
Message for this crew. Unique Crew identifier. Linked to RES.RES_ACC. |
TAMS_FROM |
Integer |
Message from this crew. Unique user login identifier. Linked to USR.USR_ID |
TAMS_SUBJECT |
String |
Message subject. |
TAMS_MSG |
String |
Message Content. |
TAMS_MSG_CREATED |
Date |
Message created date. |
TAMS_READ |
String |
Message read? (1-read, 0-not read yet). |
TAMS_READ_DATE |
Date |
Message read date. |
TAMS_DELETED |
String |
Message deleted? (1-deleted, 0-not deleted yet). |
TAMS_MSG_TYPE |
Number |
0-Individual message, 1-Broadcasted message. |
TAMS_MODULE |
String |
Messaging for which component (TA=TimeAttendance, HK=HouseKeeping, CPL=Complaints, CHKIN=Upon Checkin, CABCHG=Cabin Change). |
TAMS_PROFILE |
Number |
Type of Message (1-Passenger, 2-Crew, 3-Ship). |
TAMS_LEVEL |
Number |
Message Level (1-Normal, 2-High). |
TAMS_TO_USR_ID |
Number |
Message for this person. Linked to USR.USR_ID. |
TAMS_FROM_ACCID |
Number |
Message from this person. Linked to RES.RES_ACC. |
TAMS_MODDATE |
Date |
Last modified date. |
CRWNAME |
String |
Crew Member’s Name. |
CRW_ID |
Number |
Crew ID. |
OPO_ID |
String |
Position ID. |
OPO_POSITION |
String |
Position Name. |
DEPTID |
String |
Department ID. |
DEPTNAME |
String |
Department Name. |
TAMS_EXTERNALID |
Number |
Linked to external record ID. (TAMS_MODULE='CPL',>>CPL_ID), (TAMS_MODULE='CHKIN',>>RES_ACC), (TAMS_MODULE='CABCHG',>>RES_ACC). |
XDOC_FILE |
Blob |
Binary file contained inside the table that stored the document (Compressed). |
XDOC_FILENAME |
String |
Name of the file. |
XDOC_SIZE |
Number |
Size of file before compression. |
Example:
oResponse = goWS.FidelioSPMSWSXML("MessageRead",
"Session ID", New Object() {‘R’, DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified), DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified),2,0,’OTHER’})
MessageSend
This function adds new messages created externally into SPMS database.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “MessageSend”, — below is the list of poParam.
For Date field pass in 30-Dec-1899 if not required.
Table 4-103 psParam
Code | Type | Description | Required |
---|---|---|---|
pnMsgID |
Integer |
Unique Message ID (TAMS_ID). Put 0 for adding new record. |
Yes |
pnFromUsrLogin |
Long |
Unique User ID of the crew that is sending the message. In SPMS, this is the USR.USR_ID value. |
Yes |
pnToUsrLogin |
Long |
Unique User ID of the crew that is receiving the message. In SPMS, this is the USR.USR_ID value. |
Yes |
psMsgSubject |
String |
Message subject. |
Yes |
psMsgContent |
String |
Message content. |
Yes |
pnProfileType |
Integer |
Message Profile Type. 1-Guest, 2-Crew, 3-Ship. |
Yes |
pnMsgLevel |
Integer |
Message Level. 1-Normal, 2-High. |
Yes |
pnMsgStatus |
Integer |
Message Status. 1-Sent, 2-Read, 3-Deleted. |
Yes |
pdMsgCreated |
Date |
Message created date & time. |
Yes |
psMsgModule |
String |
Messaging for which module (TA=TimeAttendance, HK=HouseKeeping, OTHER=for others). |
Yes |
Return Values
CResponseXml.bSuccess = False when MessageSend has failed
CResponseXml.bSuccess = True when MessageSend is successful
CResponesXml.oObj = TAMS_ID when bSuccess = True
Example:
oResponse = goWS.FidelioSPMSWSXML("MessageSend",
"Session ID", New Object() {123, 345, <Subject>, <MessageContent>,
2, 1, 2, DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified)
,’OTHER’})
MessageSetRead
This function flag a message as read in SPMS database.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction=“MessageSetRead” — below is the list of poParam.
Table 4-104 psParam
Code | Type | Description | Required |
---|---|---|---|
pnMsgID |
Integer |
Unique Message ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when MessageSetRead has failed
CResponseXml.bSuccess = True when MessageSetRead is successful
Example:
oResponse = goWS.FidelioSPMSWSXML("MessageSetRead", "Session
ID", New Object() {123)})
OHCCreditCardAddRouting
This function identifies a list of guests to be routed to the payer with a registered credit card.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “OHCCreditCardAddRouting” — below is the list of psParam or poParam.
Table 4-105 psParam
Parameter | Type | Description | Required |
---|---|---|---|
TerminalId |
Integer |
POS Terminal Identifier. |
Yes |
paBuyer |
Array of String |
Unique Buyer Account Numbers. |
Yes |
pnPayer |
Integer |
Unique Payer Internal Account Number. |
Yes |
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML. CCreditCard when input values are valid.
Table 4-106 CCreditCard field structure
Code | Type | Description |
---|---|---|
TerminalId |
Integer |
POS Terminal Identifier which sent the request. |
Example:
oResponse = goWS.FidelioSPMSWSXML("OHCCreditCardAddRouting",
"SESSIONID", New Object() {12345678, New String() {“1026604”,”1026605”,”1026606”}
, 1026601})
OHCCreditCardGetAmount
This function obtains the guest card type (debit/credit) and the pre-authorization/payment amount.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “OHCCreditCardGetAmount” — below is the list of psParam or poParam.
Table 4-107 psParam
Parameter | Type | Description | Required |
---|---|---|---|
TerminalId |
Integer |
POS Terminal Identifier. |
Yes |
pnPayer |
Integer |
Unique Payer Internal Account Number. |
Yes |
pnCardBin |
Integer |
First 6 digit (BIN) of the Payment Card Number (PAN). |
Yes |
TerminalMode |
String |
POS Mode: “UNATTENDED” or “ATTENDED”. |
Yes |
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML. CCreditCard when input values are valid.
Table 4-108 CCreditCard field structure
Code | Type | Description |
---|---|---|
TerminalId |
Integer |
POS Terminal Identifier which sent the request. |
gnTransID |
Integer |
Unique Transaction Reference ID. |
gsCardType |
String |
“DEBIT” or “CREDIT” or “COMBO”. |
gsCurrency |
String |
Currency used onboard. Only “EUR” or “USD”. If the currency is different from the one used by the POS, the POS will abort the current transaction. In that case, after the periodic function (TmlTweet) an automatic currency alignment procedure is performed by the POS (no need of any other FC action). |
gnAmount1 |
Integer |
PreAuthorization (only for Credit Card during registration) or Payment Amount. The amount is expressed In cents. For example, 125000 = 1.250,00. |
gnAmount2 |
Integer |
Second Payment Amount (only for Debit/Combo card) (in cents). |
gnAmount3 |
Integer |
Third Payment Amount (only for Debit/Combo card) (in cents). |
gnAmount4 |
Integer |
Fourth Payment Amount (only for Debit/Combo card) (in cents). |
gnAmount5 |
Integer |
Fifth Payment Amount (only for Combo card) (in cents). |
gbDebitRefund |
Boolean |
Indicate if there is refund amount on debit card True – charge amount >= invoice balance. False – charge amount < invoice balance. POS in unattended mode: if <gbLastday> askfor a payment only if <gbDebitRefund> is false. POS in unattended mode: if not <gbLastDay> doesn’t care about <gbDebitRefund>. |
gsCruiseId |
String |
Cruise Identifier. |
Example:
oResponse = goWS.FidelioSPMSWSXML("OHCCreditCardGetAmount",
"SESSIONID", New Object() {12345678, 1026601, 411111, “UNATTENDED”})
OHCCreditCardGuestSearch
This function searches the guest account by cruise card.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “OHCCreditCardGuestSearch” — below is the list of psParam or poParam.
Table 4-109 psParam
Code | Type | Description | Required |
---|---|---|---|
TerminalId |
Integer |
POS Terminal Identifier. |
Yes |
psSearchStr |
String |
Swiped MSC Cruise Card PAN within ‘;’ and ‘?’. Example: 9841000099628100? |
Yes |
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.CCreditCard when input values are valid.
Table 4-110 CCreditCard field structure
Code | Type | Description |
---|---|---|
TerminalId |
Integer |
POS Terminal Identifier which sent the request. |
gnPayer |
Integer |
Unique Payer Account Number. It matches with one record (usually the first) in goAccount array (see below). |
gsCabin |
String |
Guest Cabin Number. |
gdEmbDate |
Date |
Guest Embarkation Date (DD/MM/YYYY). |
gdDebDate |
Date |
Guest Debarkation Date (DD/MM/YYYY). |
gbCardRegistration |
Boolean |
Identify if card registration is allowed. |
gsCruiseId |
String |
Cruise Identifier. |
gbRouting |
Boolean |
Identify if routing can be performed. True – routing allowed. False – routing not allowed (routing already done). |
gbLastDay |
Boolean |
Indicate if today it’s the last day cruise for the guest. |
goAccount |
Array of CGuest |
Array of CGuest. |
Table 4-111 CGuest field structure
Code | Type | Description |
---|---|---|
gnAccID |
Integer |
SPMS Internal Account Number. |
gsFirstName |
String |
First Name. |
gsLastName |
String |
Last Name. |
Example:
oResponse = goWS.FidelioSPMSWSXML("OHCCreditCardGuestSearch",
"SESSIONID", New Object() {12345678, “;9841000099628100”})
OHCCreditCardTmlTweet
This function is used to monitor the POS mode and provide POS information.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “OHCCreditCardTmlTweet” — below is the list of psParam or poParam.
Table 4-112 psParam
Code | Type | Description | Required |
---|---|---|---|
TerminalId |
Integer |
POS Terminal Identifier. |
Yes |
IpAddress |
String |
Ip address assigned to POS. |
Yes |
ReleaseSW |
String |
SW version loaded into the POS. |
Yes |
TerminalMode |
String |
POS Mode: “ATTENDED” or “UNATTENDED”. |
Yes |
Currency |
String |
Only “USD” or “EUR”. |
Yes |
PendingNumber |
Integer |
A number of pending transactions to be performed once the connection with Payment Server (GT) will be automatically established. |
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.TerminalNotification when input values are valid.
Table 4-113 TerminalNotification field structure
Code | Type | Description |
---|---|---|
TerminalId |
Integer |
POS Terminal Identifier which sent the request. |
Settings |
TAG Settings |
TAG Settings (see below). |
Table 4-114 TAG Settings field structure
Code | Type | Description |
---|---|---|
TerminalId |
Integer |
POS Terminal Identifier which sent the request. |
Settings |
TAG Settings |
TAG Settings (see below). |
Example:
oResponse = goWS.FidelioSPMSWSXML("OHCCreditCardTmlTweet",
"SESSIONID", New Object() {12345678, “[IP ADDRESS]”, “01.10”, ”UNATTENDED”,
”EUR”, 0}})
OHCCreditCardUpdateCardInfo
This function sends the results of pre-authorization (credit card registration) or payment transaction to SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “OHCCreditCardUpdateCardInfo”, — below is the list of psParam or poParam.
Table 4-115 psParam
Parameter | Type | Description | Required |
---|---|---|---|
TerminalId |
Integer |
POS Terminal Identifier. |
Yes |
pnAccID |
Integer |
Unique Payer Internal Account Number (Equal to gnPayer of GuestSearchResponse). |
Yes |
pnTransID |
Integer |
Unique Transaction Reference ID (Equal to gnTransID of GetAmountResponse). |
Yes |
psCardExpMMYY |
String |
Card Expiry Date in MMYY. |
|
pnCDebitIndicator |
Integer |
0=Credit Card; 1=Debit Card. |
Yes |
psCaptureMethod |
String |
‘I’= ICC (Chip); ‘A’=Swiped (ICCFallback); ‘M’=MoTo (pending executed). |
Yes |
psToken |
String |
Credit Card Token First 6 and last 4 digits are the same as the credit card number (PAN) If “pending transaction” is generated (psResult = “PENDING”) Token is temporary (pseudoToken): For example, “41111199999999999999999999991111” |
Yes |
psSignature |
String |
Hex ASCII signature or Hex (jpg,bmp,png) format. |
|
pnAmount |
Integer |
Amount being authorized/settled The amount is expressed In cents. For example, 30000 = 300,00 |
Yes |
psResult |
String |
Update Card Info Status: “PENDING” = only for a credit card if, during a registration, the online connection to the Payment Server (GT) is not possible. psToken is temporary. “APPROVE” = transaction (debit or credit, auth or direct sale) approved. “DECLINE” = transaction (debit or credit, auth or direct sale) not approved/aborted. |
Yes |
psTransType |
String |
‘AUTH’=Pre-authorization (only credit card). ‘PAYMENT’=Direct sales for credit/debit card. |
Yes |
psAuthCode |
String |
Authorization Code. |
|
pnSTAN |
Integer |
STAN of the transaction. Sequential Transaction Number in Payment Gateway (GT). |
|
psReceipt |
String |
Transaction Receipt. |
|
pnCardBin |
Integer |
First 6 digits (BIN) of Payment Card Number (PAN). |
Yes |
psCurrency |
String |
The currency used for the transaction. Only ‘USD’ or ‘EUR’ |
|
pnActionCode |
Integer |
Action Code. |
|
psAcquirerName |
String |
Acquirer/Card name. |
|
psDateTime |
String |
Transaction Date and Time in the following format: YYYY-MM-DDThh:mm:ssZ. For example, “2014-11-28T15:17:46Z” Note that the Date and Time are of the POS/GT, not the current ones (on the vessel). |
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML. CCreditCard when input values are valid.
Table 4-116 CCreditCard field structure
Code | Type | Description |
---|---|---|
TerminalId |
Integer |
POS Terminal Identifier which sent the request. |
Example:
oResponse = goWS.FidelioSPMSWSXML("OHCCreditCardUpdateCardInfo",
"SESSIONID", New Object() {12345678, 1026604, 171859, “”, 0, “I”,
“4111111EF6BBE22235E0AA0D7E43F1111“, “”, 25000, “APPROVE”, “AUTH”,
“x12345”, 000002, “”, 411111})
PayCrewInvoice
This function searches for folio deduction for payrolls using various criteria from the SPMS system.
Input Parameters
psFunction= “PayCrewInvoice” — below is the ordered list of input parameters and its descriptions
Table 4-117 psParam
Parameter | Type | Description | Required |
---|---|---|---|
UXP_A_ID |
Integer |
Required input. Unique identifier of UXP record - UXP_A_ID. |
Yes |
BTD |
String |
Required input. Balance-to-date specifier. If TRUE, folio deduction will be based on up-to-date payroll balance. If FALSE, folio deduction will be based on total payroll end-balance supposedly available at the end of the month. |
Yes |
AmountPayable |
Decimal |
Required input. The amount of folio deduction. |
Yes |
Currency |
String |
Required input. Currency sign. Can use the currency sign return from previous ”QueryCrewInvoice” function call. |
Yes |
Return Values
CResponseXml.bSuccess = False when WS function did not execute successfully. For example, due to invalid input parameters.
CResponseXml.bSuccess = True when WS function executed successfully, and
CResponseXML.oDataSet = ADO.NET dataset. The dataset will contain table SSH and SPP of the payroll used in folio deduction. *
Remark:
See SPMS Data Dictionary for details of the fields.
Example:
oResponse = goWS.FidelioSPMSWSXML("PayCrewInvoice",
"SessionID", New Object() {12345, True, 250.00, “USD”})
PurchasePackage
This function is used for Package Plan purchase. Please refer to FCWSFunction Technical Specification, GetPackagePurchase function on how to obtain a list of package preset for user selection.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “PurchasePackage” — below is the list of psParam or poParam.
Table 4-118 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Account ID. |
Yes |
pnPpnID |
Integer |
Unique Package Plan ID. |
Yes |
pnRvc |
Integer |
MICROS POS Revenue Center Number. |
Yes |
psRvcName |
String(30) |
MICROS POS Revenue Center Name. |
Yes |
pnEmpl |
Long |
MICROS POS Employee Number. |
Yes |
pnWSID |
Long |
MICROS POS Workstation ID. |
Yes |
pbyImage |
Byte Array |
Signature Image. |
Optional |
psTeam1 |
String(12) |
Posting additional information - Server number 1 |
Optional |
pnChkEmplNum |
Long |
Employee number on initial order |
Optional |
Return Values
CResponseXml.bSuccess = False when Purchase failed.
CResponseXml.bSuccess = True when Purchase successful. CResponseXml.oObj return the check image for printing
Example:
oResponse = goWS.FidelioSPMSWSXML("PurchasePackage",
"SessionID", New Object() {12345,123457,1,"Restaurant",1234,1,<Signature
Image byte array>)
Use WSFunction->GetPackagePurchase to get a list of available package to purchase
QueryCrewInvoice
This function returns crew member’s invoice information along with information about his/her available payroll credit for folio deduction.
Input Parameters
psFunction= “QueryCrewInvoice” — below is the ordered list of input parameters and its descriptions.
Table 4-119 psParam
Parameter | Type | Description | Required |
---|---|---|---|
UXP_A_ID |
Integer |
Required input. Unique identifier of UXP record - UXP_A_ID. |
Yes |
BTD |
String |
Required input. Balance-to-date specifier. If TRUE, will return up-to-date payroll balance available for folio deduction. If FALSE, will return total payroll end-balance supposedly available at the end of the month. |
Yes |
Return Values
CResponseXml.bSuccess = False when WS function did not execute successfully. For example, due to invalid input parameters.
CResponseXml.bSuccess = True when WS function executed successfully, and
CResponseXML.oDataSet = ADO.NET dataset. The dataset will contain table SSH and SPP of the payroll to be used for folio deduction. *
-
Amount = uxp_a_pos_debit - uxp_a_pos_credit, total invoice amount in onboard currency.
-
AmountPayable = invoice amount, in wage currency, that can be settled via folio deduction.
-
Currency = onboard currency.
-
AvailPay = available payroll amount or credit.
-
WageCurrency = CTR_WAGE_CUR_TYP *CurrencyConvRate = onboard to wage currency conversion rate.
Remark:
See SPMS Data Dictionary for details of the fields.
Example:
oResponse = goWS.FidelioSPMSWSXML("QueryCrewInvoice",
"SessionID", New Object() {12345, True})
RegisterRFIDBoardCard
This function associates a RFID board card to a guest for the purpose of door key encoding at door lock with Visionline System. This feature is applicable to cards encoded externally before embarkation day. The door key encoding will happen at the door lock only when the guest has checked in and the card is used at the lock.
The guest to be registered must have an expected reservation. Guests that are checked-in, checked-out or with a canceled reservation will be rejected. Also, guests already issued with a door-key encoded board card will be rejected as well.
In the event that the card belongs to another person, the function will also reject the registration. The only time such card can be re-registered under the new person is when the card has not been encoded with door key and the person is currently not checked-in.
When registration is successful, it will override the previously registered board card for the guest.
Note: The above validation is not applicable when connected to offline QCI Sync DB.
Input Parameters
psFunction= “RegisterRfidBoardCard” — below is the list of psParam or poParam.
Table 4-120 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Long |
Unique Payer Account ID. |
Yes |
psUID |
String |
UID of The RFID Board Card. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
This function supports enhanced error messaging:
CResponseXml.sErrorMsg: detailed long description of the error.
CResponseXml.sErrWord: short brief description of error title.
CResponseXml.sErrCode: 6-CHAR or less error code.
Example:
oResponse = goWS.FidelioSPMSWSXML("RegisterRfidBoardCard",
"SessionID", New Object() {12345,”CD125E84”})
RegisterRFIDBoardCardQuery
This function queries SPMS on the passed in UID before “RegisterRfidBoardCard” is called to make sure “RegisterRfidBoardCard” will be successful.
Input Parameters
psFunction= “RegisterRfidBoardCardQuery” — below is the list of psParam or poParam.
Table 4-121 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Long |
Unique Payer Account ID. |
Yes |
psUID |
String |
UID of The RFID Board Card. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
This function supports enhanced error messaging:
CResponseXml.sErrorMsg: detailed long description of the error.
CResponseXml.sErrWord: short brief description of error title.
CResponseXml.sErrCode: 6-CHAR error code. (can be less than 6-char).
Example:
oResponse = goWS.FidelioSPMSWSXML("RegisterRfidBoardCardQuery",
"SessionID", New Object() {12345,”CD125E84”})
RetrievePage
This function searches for a guest using various criteria from the SPMS system.
Input Parameters
psFunction= “GuestSearch” — below is the list of psParam or poParam.
Table 4-122 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnPage |
Integer |
Page Number. |
Yes |
psFunction |
String |
Last call function. |
Yes |
psWSFunction |
String |
Need to pass in when psFunction = ‘WSFunction.’ |
Optional |
Return Values
CResponseXml.bSuccess = False when RetrievePage has failed.
CResponseXml.bSuccess = True when RetrievePage is successful.
Other value depend on the psFunction and psWSFunction, refer to the psFunction for detail.
SearchAmenity
This function is an advanced amenity search.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchAmenity” — below is the list of poParam
Please take note some parameters are optional. However, the more parameters passed in, the fewer records it will return.
For Date field pass in 30-Dec-1899 if not required.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,
Element 2 = B,
Table 4-123 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peReservationType |
Integer |
ReserveAndCheckIn, 1 – Reserve, 2- CheckIn, 3- CheckOut. |
|
pdExpDeliveryDateFrom |
Date |
Amenity Delivery Date (AME_DDATE)If nothing is passed in, then it will skip this criteria. |
|
pdExpDeliveryDateTo |
Date |
Amenity Delivery Date (AME_DDATE)If nothing is passed in, then it will skip this criteria. |
|
pdDeliveredDateFrom |
Date |
Amenity Service Done Date (AME_DONE_DATE)If nothing is passed in, then it will skip this criteria. |
|
pdDeliveredDateTo |
Date |
Amenity Service Done Date (AME_DONE_DATE)If nothing is passed in, then it will skip this criteria. |
|
psGuestLastName |
String |
Guest Last Name (UXP_A_NAME)If nothing is passed in, then it will skip this criteria. |
|
psGroupID |
Array of String |
Travel Group ID (UXP_A_ID)If nothing is passed in, then it will skip this criteria. |
|
psCabinCategory |
Array of String |
Cabin Category (TYP_CAT.TYP_ART)If nothing is passed in, then it will skip this criteria. |
|
psDeliveryLocation |
Array of String |
Amenity Delivery Location (AME_LOCATION)If nothing is passed in, then it will skip this criteria. |
|
psDeck |
Array of String |
Cabin Deck (TYP_DEK.TYP_ART)If nothing is passed in, then it will skip this criteria. |
|
psDeliveredBy |
Array of String |
Amenity Delivery By (USR.USR_ID)If nothing is passed in, then it will skip this criteria. |
|
psCabin |
Array of String |
Unique Cabin IDs (CAB.CAB_ID)If nothing is passed in, then it will skip this criteria. |
|
psAmenityCode |
Array of String |
Amenity Code (TYP_AMT.TYP_ART)If nothing is passed in, then it will skip this criteria. |
|
psDepartment |
Array of String |
Amenity Delivery Division (AME_ODI_ID)If nothing is passed in, then it will skip this criteria. |
|
psHKSection |
Array of String |
Housekeeping Section Name (HSC_NAME)If nothing is passed in, then it will skip this criteria. |
Return Values
CResponseXml.bSuccess = False when SearchAmenity has failed
CResponseXml.bSuccess = True when SearchAmenity is successful, CResponse.oDataset will have 1 Data Table.
Table 4-124 ADO.NET Data Table field structure
Code | Type | Description |
---|---|---|
AME_ID |
Integer |
Amenity ID (Unique ID). |
AMECODE |
String |
Amenity Code. Linked to TYP_AMT.TYP_ART. |
AMENAME |
String |
Port Name. Linked to TYP_AMT.TYP_COMMENT. |
ACCID |
Integer |
Account ID. |
NAME |
String |
Guest Name. |
RESSTATUS |
String |
Reservation Status. |
VIPCODE |
String |
VIP ID. Linked to TYP_VIP.TYP_ART. |
VIPNAME |
String |
VIP Name. Linked to TYP_VIP.TYP_COMMENT. |
PORTID |
String |
Embarkation Port ID. |
PORTNAME |
String |
Embarkation Port Name. Linked to TYP_HRB.TYP_COMMENT. |
GROUPID |
Integer |
Travel Group Reference ID. |
GROUPNAME |
String |
Travel Group Name. |
CABINID |
String |
Unique Cabin ID. |
HSC_NAME |
String |
Housekeeping Section Code. |
HSC_COMMENT |
String |
Housekeeping Section Name. |
AME_LOCATION |
String |
Amenity Delivery Location. |
AME_ODI_ID |
String |
Amenity Delivery Division ID. Linked to TYP_ODI.TYP_ART. |
TYP_COMMENT |
String |
Amenity Delivery Division Name. Linked to TYP_ODI.TYP_COMMENT. |
CAB_VZONE |
String |
Cabin vertical zone. Linked to TYP_VTZ.TYP_ART. |
CAB_VZONE_NAME |
String |
Cabin vertical zone description. Linked to TYP_VTZ.TYP_COMMENT. |
CAB_TYPE |
String |
Cabin Type ID. Linked to TYP_CAT.TYP_ART. |
TYP_COMMENT1 |
String |
Cabin Type Name. Linked to TYP_CAT.TYP_COMMENT. |
CAB_DECK |
String |
Cabin Deck ID. Linked to TYP_DEK.TYP_ART. |
TYP_COMMENT2 |
String |
Cabin Deck Name. Linked to TYP_DEK.TYP_COMMENT. |
AME_DDATE |
Date |
Amenity Delivery Date. |
AME_DONE_DATE |
Date |
Amenity Service Done Date. |
AME_DONE_USERID |
Integer |
Amenity Service done by the waiter. Linked to USR.USR_ID. |
USR_LOGIN |
String |
User Login Name. |
CAB_KEEPER |
Integer |
Housekeeper ID. Linked to RES.RES_ACC. |
CAB_KEEPER_NAME |
String |
Housekeeper Name. |
CAB_A_KEEPER |
Integer |
Assistant Housekeeper ID. Linked to RES.RES_ACC. |
CAB_A_KEEPER_NAME |
String |
Assistant Housekeeper Name. |
CAB_G_WAITER |
Integer |
Waiter ID. Linked to RES.RES_ACC. |
CAB_G_WAITER_NAME |
String |
Waiter Name. |
CAB_A_WAITER |
Integer |
Assistant Waiter. Linked to RES.RES_ACC. |
CAB_A_WAITER_NAME |
String |
Assistant Waiter Name. |
AME_AMOUNT |
Double |
Amenity Price. |
AME_COMMENTS |
String |
Amenity Comments. |
AME_COST |
Integer |
Amenity Cost. |
AME_CREATED_BY |
Integer |
User Created Amenity Request. |
AME_CREATED_DATE |
Date |
Amenity Created Date. |
AME_CURR_ID |
String |
Amenity price currency. Linked to TYP_CUR.TYP_ART. |
AME_EXT_CODE |
String |
External Brochure Code. |
AME_EXT_ID |
String |
External ID. |
AME_FLG |
String |
Displayed as a flag in the Amenities section in guest billing screen. Not been referenced anywhere else. |
AME_MESSAGE |
String |
Message From Sender. |
AME_MODDATE |
Date |
Last Modified Date. |
AME_NOTE |
String |
Amenity Description. |
AME_OCCURRENCE |
String |
Amenity Deliver Occurrence. |
AME_QUANTITY |
Integer |
Amenity Quantity. |
AME_RESBOOKNR |
String |
External Reservation Booking Number. Linked to RES.RES_BOOKNR. |
AME_RESID |
Integer |
Reservation account ID. Linked to RES.RES_ID. |
AME_SENDER1 |
String |
Amenity Sender. |
AME_SENDER2 |
String |
Amenity Sender 2 (Not been referenced). |
AME_V_GUESTID |
Integer |
Reservation System account ID. Linked to RES.RES_V_GUESTID. |
AME_VID |
String |
Unique ID. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchAmenity",
New Object() {<ReservationType>,<ExpDeliveryDateFrom>,<ExpDeliveryDateTo>,<DeliveryDateFrom>,<DeliveryDateTo>,<LastName>,<GroupID>,<CabinCategory>,<DeliveryLocation>,<Deck>,<DeliveryBy>,<CabinID>,<AmeCode>,<Department>,<HKSection>})
SearchCabin
This function performs an advanced search on cabins in SPMS. If a date is passed in, then only the list of crash cabins found for that date will be returned.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchCabin — below is the list of poParam.
Please note that all the parameter is “Optional” and the more parameters pass in, the fewer records it will return.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For Date field pass in 30-Dec-1899 if it is not required.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,
Element 2 = B,
Table 4-125 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCabin |
Array of String |
Unique Cabin IDs. |
Yes |
psCabinHKStatus |
Array of String |
Cabin Housekeeping Status (OD, OC, VD, VC). |
Yes |
psCabinAvlStatus |
Array of String |
Cabin Availability (OO, OV, BL, AV). |
Yes |
psHKSection |
Array of String |
Housekeeping section codes. |
Yes |
psDeck |
Array of String |
Cabin Deck (TYP_DEK.TYP_ART). |
Yes |
psCabinCategory |
Array of String |
Cabin Category (TYP_CAT.TYP_ART). |
Yes |
psCabinType |
Array of String |
‘P’ for Pax, ‘C’ for Crew. |
Yes |
psCabinVerticalZone |
Array of String |
Cabin Vertical Zone (TYP_VTZ.TYP_ART). |
Yes |
pdCrashCabinDate |
Date |
Date to check for crash cabins. If do not require to check for crash cabins please pass in 30-Dec-1899. |
Yes |
psCabinSpecialNeeds |
Array of String |
0-Normal Cabin,1-Cabin with special need feature. |
Yes |
psCabinFeatures |
Array of String |
Features available in the cabin. Linked to TYP_CAF.TYP_ART. |
Yes |
Return Values
CResponseXml.bSuccess = False when SearchCabin has failed.
CResponseXml.bSuccess = True when SearchCabin is successful, CResponse.oDataset will have 2 Data Table.
Table 4-126 ADO.NET Data Table field structure for data table (“CAB”). This lists the cabins and its details.
Code | Type | Description |
---|---|---|
CAB_ID |
String |
Unique Cabin ID. |
CAB_DESIGN |
String |
‘P’ for Pax, ‘C’ for Crew. |
CAB_STATE |
String |
Cabin Availability Status (OO=Out of Order, OS=Out of Service, BL=Blocked, AV=Available). |
CAB_BEDS |
Number |
No of beds/berths in the cabin. |
CAB_BEDS_SETUP |
String |
Beds setup for each cabin. Format saved A,B,C,D,E or 1,2,3,4,5. |
CAB_TEL |
String |
Cabin Telephone Number. |
CAB_TEL2 |
String |
Cabin Telephone Number 2. |
CAB_BEG_BLOCK_D |
Date |
The cabin is pending repairs, this field stores the date for when this cabin is blocked from.This is the 'Block From' field in FC Admin Cabin setup. |
CAB_REPAIR_D |
Date |
The cabin is pending repairs, this field stores the date for when this cabin is blocked until.This is the 'Block Until' field in FC Admin Cabin setup. |
CAB_REPAIR_T |
String |
The cabin is pending repairs, this field stores the unavailability reason when CAB_STATE=OO or OS or BL. This is the 'Unavailability Reason' field in FC Admin Cabin setup. |
CAB_LIFEBOAT |
String |
Lifeboat this cabin is assigned to. TYP_BOT.TYP_ART. |
CAB_LIFEBOAT_NAME |
String |
Lifeboat this cabin is assigned to. TYP_BOT.TYP_COMMENT. |
CAB_STATION |
String |
Muster Station this cabin is assigned to. Linked to MST.MST_ID. |
CAB_STATION_NAME |
String |
Muster Station this cabin is assigned to. Linked to MST.MST_NAME. |
CAB_LOCATION |
Integer |
Null-Undefine,1-Forward,2-Mid Ship.3-Aft |
CAB_STARBOARD |
Integer |
0-Portside,1-Starboard. |
CAB_CAT |
String |
Cabin Type. Linked to TYP_CAT.TYP_ART. |
CAB_CAT_NAME |
String |
Cabin Type Description. Linked to TYP_CAT.TYP_COMMENT. |
CAB_DECK |
String |
Cabin Deck. Linked to TYP_DEK.TYP_ART. |
CAB_DECK_NAME |
String |
Cabin Deck Description. Linked to TYP_DEK.TYP_COMMENT. |
CAB_HKSTATUS |
String |
Cabin Housekeeping status (OD, VD, OC, VC). Linked to TYP_CCS.TYP_ART. |
CAB_HKSTATUS_NAME |
String |
Cabin Housekeeping status description. Linked to TYP_CCS.TYP_COMMENT. |
CAB_VZONE |
String |
Cabin vertical zone. Linked to TYP_VTZ.TYP_ART. |
CAB_VZONE_NAME |
String |
Cabin vertical zone description. Linked to TYP_VTZ.TYP_COMMENT. |
CAB_CRW_POSITION |
String |
Assign default crew position to a cabin. |
CAB_KEEPER |
Integer |
Unique Crew ID. Housekeeper assigned to this cabin for gratuity distribution. Linked to RES.RES_ACC. This is the 'Keeper' field in the FC Admin Cabin setup. |
CAB_KEEPER_NAME |
String |
Keeper’s Crew Name. |
CAB_A_KEEPER |
Integer |
Unique Crew ID. The assistant housekeeper that is assigned to this cabin for gratuity distribution. Linked to RES.RES_ACC. This is the 'Assistant Keeper' field in the FC Admin Cabin setup. |
CAB_A_KEEPER_NAME |
String |
Assistant Keeper’s Crew Name. |
CAB_H_WAITER |
Integer |
Unique Crew ID. Head Waiter that is assigned to this cabin for gratuity distribution. Linked to RES.RES_ACC. This is the Head Waiter' field in the FC Admin Cabin setup. |
CAB_H_WAITER_NAME |
String |
Head Waiter’s Crew Name. |
CAB_A_WAITER |
Integer |
Unique Crew ID. The assistant waiter that is assigned to this cabin for gratuity distribution. Linked to RES.RES_ACC. This is the 'Assistant Waiter' field in the FC Admin Cabin setup. |
CAB_A_WAITER_NAME |
String |
Assistant Waiter’s Crew Name. |
CAB_G_WAITER |
Integer |
Unique Crew ID. The waiter that is assigned to this cabin for gratuity distribution. Linked to RES.RES_ACC. This is the Waiter' field in the FC Admin Cabin setup. |
CAB_G_WAITER_NAME |
String |
Waiter’s Crew Name. |
HKSECTION_NAME |
Integer |
Housekeeping Section Name. Linked to HSC.HSC_NAME. |
HKSECTION_COMMENT |
String |
Housekeeping Section Comment. Linked to HSC.HSC_COMMENT. |
HSC_CRW |
String |
Housekeeping Crew ID. List of Housekeeping crew ID that can be assigned housekeeping tasks. |
CAB_SPECIALNEED |
Integer |
0-Normal Cabin,1-Cabin with special need feature. |
CAB_FEATURE |
String |
Features available in the cabin. Linked to TYP_CAF.TYP_ART. |
SearchCntrAssgn
Input Parameters
psFunction= “SearchCntrAssgn” — below is the ordered list of input parameters and its descriptions.
Table 4-127 psParam
Parameter | Type | Description | Required |
---|---|---|---|
MemoryLifeSpan |
Integer |
Optional in seconds, default as zero. If set to non-zero, resultset will be kept in memory for reuse when a subsequent call is issued within the specified time interval with MemoryReuse = TRUE. |
Optional |
MemoryReuse |
Boolean |
Optional, default as FALSE. When set to TRUE, the search will not query DB but instead just return records from the previous result set. |
Optional |
RecordPerPage |
Integer |
Optional, default as zero. Specify the number of unique person records for which their contracts will be returned. If it is zero, it will return all records in the result set. |
Optional |
PageNum |
Integer |
Optional, default as zero for page 1. Specify the page to return in a multi-page result set. |
Optional |
UXP_A_IDs |
String |
Optional. Comma delimited UXP_A_ID. |
Optional |
SearchStr |
String |
Optional. If specified, will be used to search based on following fields. The order of following also determines the sequence in which the search is carried out until a match is received. RES_BOARDCC (exact match), RES_CC_NUMBER (exact match), RES_CAB (exact match), UXP_A_NAME_N (partial match), and UXP_C_EXTERNALID or UXP_C_INTERNALID (exact match) depending on PAR “Display UXP_C_EXTERNALID As Crew ID”. |
Optional |
ORDER_BY |
String |
Optional. Only supports UXP, RES and CTR column ordering. |
Optional |
RES_STATUSs |
String |
Optional. Comma delimited RES_STATUS. * |
Optional |
EMB_DATE_01 |
Date |
Optional. EMB_DATE_01 and EMB_DATE_02 specify the date range of NVL(res_emb_a,res_emb_e). Or CTR_BEG_DATE if NOB. |
Optional |
EMB_DATE_02 |
Date |
Optional. EMB_DATE_01 and/or EMB_DATE_02 specify the date range of NVL(res_emb_a,res_emb_e). Or CTR_BEG_DATE if NOB. |
Optional |
DEB_DATE_01 |
Date |
Optional. DEB_DATE_01 and/or DEB_DATE_02 specify the date range of NVL(res_dis_a,res_dis_e). Or CTR_END_DATE if NOB. |
Optional |
DEB_DATE_02 |
Date |
Optional. DEB_DATE_01 and/or DEB_DATE_02 specify the date range of NVL(res_dis_a,res_dis_e). Or CTR_END_DATE if NOB. |
Optional |
CTR_STATUSs |
String |
Optional. Comma delimited CTR_STATUS. * |
Optional |
SGR_IDs |
String |
Optional. Comma delimited SGR_ID. |
Optional |
CTR_TYP_CTRs |
String |
Optional. Comma delimited CTR_TYP_CTR. |
Optional |
CTR_NOB_FLAG |
String |
Optional. “1” for NOB assignments. “0” for normal assignments. |
Optional |
CTR_PCY_IDs |
String |
Optional. Comma delimited CTR_PCY_ID. |
Optional |
CTR_XCET_IDs |
String |
Optional. Comma delimited CTR_XCET_ID. |
Optional |
UXP_H_NATIONs |
String |
Optional. Comma delimited UXP_H_NATION. |
Optional |
ENDING_PYRL |
Boolean |
Optional. If TRUE, will return assignment with pending final month payroll. |
Optional |
Return Values
CResponseXml.bSuccess = False when WS function did not execute successfully. For example, due to invalid input parameters.
CResponseXml.bSuccess = True when WS function executed successfully, along with
CResponseXML.oDataSet = Nothing, when no record is found. Otherwise,
CResponseXML.oDataSet = ADO.NET dataset, which will contain table ACC (UXP/RES), CTR, SPD, COH, PCY, SED, SPO and XCET. *
CResponseXML.nTotalPage = total number of pages in the resultset, when input parameter RecordPerPage is specified.
Remark:
See SPMS Data Dictionary table for details of the fields.
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchCntrAssgn", "SessionID",
New Object() {60, True, 10, 1, “”, “123”, “UXP_C_EXTERNALID”, “RR,RE,RX,RN,CC,CL,DD”,
_
“”,“”,“”,“”, “A,C”, “”, “”, “”, “0”, “”,
“”, “”,False})
SearchComment
This function searches for the guest comment.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchComment” — below is the list of poParam.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”,“B,” = 2 Elements
Element 1 = A,
Element 2 = B,
Table 4-128 psParam
Code | Type | Description | Required |
---|---|---|---|
pdFrom |
Date |
From date range. |
Yes |
pdTo |
Date |
To date range. |
Yes |
psCabin |
Array of String |
List of Cabin. |
Optional |
pnUsrID |
Array of Long |
List of user who created the comment. |
Optional |
psComplaintCode |
Array of String |
List of Comment Description Code (TYP_CPL.TYP_ART). |
Optional |
psReportType |
Array of String |
List of Report Type Code (TYP_CPI,TYP_ART). |
Optional |
psCategory |
Array of String |
List of Comment Category (TYP_CMC.TYP_ART). |
Optional |
peDone |
Integer |
0 - All, 1 - Done, 2 - Not Done. |
Optional |
peUrgent |
Integer |
0 – All, 1 – Urgent, 2 – Not Urgent. |
Yes |
peSensitive |
Integer |
0 – All, 1 – Sensitive, 2 – Not Sensitive. |
Yes |
peGuestType |
Integer |
0 – All, 1 – Crew, 2 – Staff, 3 – Crew and Staff, 4 - Guest. |
Yes |
psDeptInvolved |
Array of String |
Department Involved code (TYP_CDI.TYP_ART). |
Yes |
psOperationPosition |
Array of String |
Operation Position (OPO_ID), operation position is link to department involved. |
Optional |
pbIncludePicture |
Boolean |
True = Will return the comment picture/document. False = Will return nothing, this is for slow device, so it will need to look up the picture using WSF using the value CPL_XDOC_ID, default = True. |
Optional |
pnAccID |
Array of Integer |
List of Account ID. |
Optional |
Return Values
CResponseXml.bSuccess = False when SearchComment has failed.
CResponseXml.bSuccess = True when SearchComment is successful, CResponse.oDataset will have 1 Data Table if paging is not use 2 Data Table is paging is use (Login.pnRowsPerPage > 0), please take note all the same cpl_link_id will be return with the exception of psCabin and pnAccID.
Table 4-129 ADO.NET Data Table field structure for data table for table 1 when paging is in use
Code | Type | Description |
---|---|---|
CPL_LINK_ID |
Integer |
Link ID between the parent comment and child comment and resolution and also link to multiple guest comment. |
CPL_ACC_ID |
Integer |
Link ID between the parent comment and child comment and resolution and also link to multiple guest comment. |
CPL_RES_DONE |
Integer |
0 – Not Resolved, 1 - Resolved. |
Table 4-130 ADO.NET Data Table field structure for table 1 - paging not in use, table 2 - paging in use.
Code | Type | Description |
---|---|---|
CPL_ID |
Integer |
Unique ID. |
CPL_LINK_ID |
Integer |
Link ID between the parent comment and child comment and resolution and also link to multiple guest comment. |
CPL_ACC_ID |
Integer |
Account ID. |
CPL_USR_ID |
Long |
User who create the comments/resolution. |
CPL_TYPE |
String |
C-Comment, R-Resolution. |
CPL_DATE |
Date |
Date/Time the comment/resolution created. |
CPL_EXT_ID |
String |
External Code. |
CPL_DESCR_CODE |
String |
Comment Description Code (TYP_CPL.TYP_ART) Resolution Description Code (TYP_RES.TYP_ART). |
CPL_DESCR |
String |
Comment/Resolution Description. |
CPL_COMMENT |
String |
Comment/Resolution Comment. |
CPL_REQ_RES_DATE |
Date |
Requested Resolution Date. |
CPL_RES_DONE |
Integer |
0 – Not Resolved, 1 - Resolved. |
CPL_RES_BY |
String |
Person who done the resolution. |
CPL_RES_DATE |
Date |
Resolution Resolved Date. |
CPL_RES_COST |
Decimal |
Comment/Resolution Associate Cost. |
CPL_REPORT_TYPE |
String |
Define Comment Reporting Method. |
CPL_URGENT |
Integer |
0-Default;1-Urgent. |
CPL_CRW_ID |
Integer |
The Crew link to the CPL_USR_ID. |
CPL_SENSITIVE |
Integer |
0-Default, 1-Sensitive. |
CPL_TYP_CMC |
String |
Comment Category Code (TYP_CMC.TYP_ART). |
CPL_XDOC_ID |
Integer |
Scan Document/Picture, Link to xdoc_id. |
CPL_VID |
String |
External Unique ID for use with import. |
CPL_VEN_ID |
Integer |
Vendor ID, link to VEN.VEN_ID |
CPL_INTERNAL |
Integer |
Internal Usage Flag |
CPL_DEPARTMENT_INVOLVED |
String |
Comment Department Involved Codes. Separated by comma (,) (TYP_CDI.TYP_ART). |
CRW_NAME |
String |
Crew Name who created the comment/resolution base on the crew link in user setup. |
UXP_A_TAG |
String |
P-Pax, C-Crew or Staff. |
NAME |
String |
Guest Name. |
RES_CAB |
String |
Cabin Number. |
CATEGORY |
String |
Comment Category Description. |
REPORTTYPE |
String |
Comment Report Type Description. |
DESCRCODE |
String |
Comment Description Code Description. |
XDOC_FILE |
Array of Byte |
The doc/picture uploaded. |
XDOC_FILENAME |
String |
The filename of the doc/picture, use the file extension to determine if it is a document or picture. |
XDOC_ISPICTURE |
Integer |
1-This is a picture,0-This is a document, need to use the XDOC_FILENAME to determine the document type. |
Example:
For example, this is to search all comment for cabin 05000 and 05002
oResponse = FidelioWS("SearchComment",
New Object() {DateTime.SpecifyKind(<From Date>, DateTimeKind.Unspecified),
_
DateTime.SpecifyKind(<To Date>, DateTimeKind.Unspecified),
_
New String() {"05002", "05000"}, Nothing,
Nothing, Nothing, _
Nothing, 0, 0, 0, 0, Nothing,
Nothing, False, False, Nothing})
SearchCrashCabin
This function searches for ‘crash cabins’ in SPMS. Crash Cabin is defined as guests who checks in and checks out into the same cabin on the same day and port.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchCrashCabin” — below is the list of poParam.
For Date field pass in 30-Dec-1899 if not required.
Table 4-131 psParam
Code | Type | Description | Required |
---|---|---|---|
pdDateSelected |
Date |
Date of check-in/check-out for searching crash cabins. If 30-Dec-1899 is passed in, then it will search based on SPMS system date. |
Yes |
psPortID |
String |
Port ID. Linked to SCD.SCD_PORT_ID. If an empty string is passed in, then it will search for all ports for pdDateSelected. |
Yes |
Return Values
CResponseXml.bSuccess = False when SearchCrashCabin has failed
CResponseXml.bSuccess = True when SearchCrashCabin is successful, CResponse.oDataset will have 1 Data Table.
Table 4-132 ADO.NET Data Table field structure for data table.
Code | Type | Description |
---|---|---|
CABIN |
String |
Unique Cabin ID. |
SCD_PORT_ID |
String |
Port Name. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchCrashCabin",
"Session ID", New Object() {DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified),0})
SearchGangwaylog
This function gets the gangway activities from SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchGangwaylog” — below is the list of psParam or poParam.
Table 4-133 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pdFromDate |
Date |
From date & time. |
Yes |
pdToDate |
Date |
To date & time. |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psLocation |
String |
Gangway location. |
Yes |
psMovement |
String |
Movement. |
Yes |
psAccType |
String |
Account Type. |
Yes |
psCab |
String |
Cabin Number. |
Yes |
psName |
String |
Name. |
Yes |
peSortType |
Integer |
Sort Type. |
Optional |
Below are the descriptions of the parameters.
pdFromDate
From date and time.
pdToDate
To date and time.
pnAccID
Unique Account ID, this is optional, if you want to search all guest, pass in 0.
psLocation
This is the location where the guest pass through the gangway.
psMovement
Pass in blank for all movement. Below is the valid value:
IMMIGRATION UNCHECK
IMMIGRATION CHECK
Going Shore-side
Coming Onboard
psAccType
Account Type, pass in blank for all. Below is the valid value:
C
G
V
psCab
Cabin number
psName
Guest Name, if “,” exists, all text before “,” will be first name, all text after “,” will be the last name. If “,” does not exist we will search the last name only.
peSortType
0 – Sort by GLG_ID ASC
1 – Sort by GLG_ID DESC
2 – Sort by GLG_DATE ASC
3 – Sort by GLG_DATE DESC
Default = 0
Return Values
CResponseXml.bSuccess = False when SearchGangwaylog has failed
CResponseXml.bSuccess = True when SearchGangwaylog is successful, CResponse.oDataset will have 1 Data Tables.
Table 4-134 ADO.NET Data Table field structure for data table
Code | Type | Description |
---|---|---|
GLG_DATE |
Date |
Movement Date and Time. |
GLG_STATION |
String |
PC Name where the movement is done. |
GLG_LOCATION |
String |
Location where the movement takes place. |
GLG_MOVEMENT |
String |
Movement direction. |
UXP_A_FSTN |
Integer |
First Name. |
UXP_A_NAME |
String |
Last Name. |
UXP_A_TAG |
String |
Account Type P-Passenger,C-Crew,V-Visitor. |
RES_CAB |
String |
Cabin Number. |
GLG_SHORE_DENIED |
Integer |
Flag overridden shore leave denied passenger. |
GLG_SWIPE |
String |
Yes-Card is swipe, No-Manual Enter. |
TYP_COMMENT |
String |
Port Name (Only exists in Ferry Mode). |
RES_ACC |
Integer |
Unique Account ID. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchGangwaylog",
"", New Object() { DateTime.SpecifyKind(#1/1/2011 1:00:00 pm#, DateTimeKind.Unspecified),
_
DateTime.SpecifyKind(#2/1/2011 6:00:00 pm#, DateTimeKind.Unspecified),0,
"", "", "", "", ""})
SearchHKForecast
This function returns a list of itinerary port days and list of guests’ reservations per cabin.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchHKForecast” — below is the list of poParam.
Please take note some parameters are optional. However, the more parameters passed in, the fewer records it will return.
For Date field pass in 30-Dec-1899 if not required.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,
Element 2 = B,
Table 4-135 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pdItineraryFrom |
Date |
Port Itinerary From Day. |
Yes |
pdItineraryTo |
Date |
Port Itinerary To Day. |
Yes |
psCabinHKstatus |
Array of String |
Cabin Housekeeping Status. |
Yes |
psHKSection |
Array of String |
Housekeeping Section. |
Yes |
psDeck |
Array of String |
Cabin Deck. |
Yes |
psCabin |
Array of String |
Cabins. |
Yes |
psCabinAvlStatus |
Array of String |
Cabin Availability Status. |
Yes |
pdCrashCabinDate |
Date |
Date to search for Crash Cabins. |
Yes |
Return Values
CResponseXml.bSuccess = False when SearchHKForecast has failed.
CResponseXml.bSuccess = True when SearchHKForecast is successful, CResponse.oDataset will have 4 Data Table.
Table 4-136 ADO.NET Data Table 1(“ITIN”) - Master Table 1 lists all the itinerary port days
Code | Type | Description |
---|---|---|
SCD_ID |
Integer |
Unique Port Day ID. |
SCD_DATE |
Date |
Port Date. |
PORTNAME |
String |
Port ID (SCD_PORT_ID). |
PORTDESCR |
String |
Port Name. |
SCD_DESCR |
String |
Port Description. |
SCD_ARRIVE_TIME |
Date |
Port Arrival Time. |
SCD_DEPART_TIME |
Date |
Port Departure Time. |
Table 4-137 ADO.NET Data Table 2 (“CABINS”) – Master Table 2 lists all cabins
Code | Type | Description |
---|---|---|
CAB_ID |
Integer |
Unique Cabin ID. |
CAB_STATE |
String |
Cabin State (OO=Out of Order, OS=Out of Service, BL=Blocked, AV=Available). |
CAB_CLEAN_STATE |
String |
Cabin Housekeeping status. |
CAB_BEG_BLOCK_D |
Date |
Date of cabin blocked from. |
CAB_REPAIR_D |
Date |
Date of cabin blocked until. |
CAB_REPAIR_T |
String |
Unavailability Reason. |
Table 4-138 ADO.NET Data Table 3 (“RESERV”) – linked to Data Table2 by cabin, lists all reservations grouped by booking number
Code | Type | Description |
---|---|---|
RES_BOOKNR |
String |
Reservation Booking Number. |
TOTALGUEST |
Integer |
Number of Guests. |
RES_CAB |
String |
Cabin. |
RES_STATUS |
String |
Reservation status. |
EMBARKDATE |
Date |
Embarkation Date (Arrival date & time) for expected guests. |
DEBARKDATE |
Date |
Debarkation Date (Arrival date & time) for already onboard guests. |
EMBARKPORT |
String |
Embarkation Port for expected guests. |
DEBARKPORT |
String |
Debarkation Port for already onboard guests. |
Table 4-139 ADO.NET Data Table 4 (“CRASH_CABINS”) – Master Table 4 lists all crash cabins and their reservations
Code | Type | Description |
---|---|---|
CAB |
String |
Cabin. |
EMBARK_RES_BOOKNR |
String |
Reservation Booking Number for the embarking guest. |
EMBARK_STATUS |
String |
Reservation Status of the embarking guest. |
EMBARK_PORT |
String |
Embarkation Port of the embarking guest. |
DEBARK_RES_BOOKNR |
String |
Reservation Booking Number for the debarking guest. |
DEBARK_STATUS |
String |
Reservation Status of the debarking guest. |
DEBARK_PORT |
String |
Debarkation Port of the debarking guest. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchHKForecast",
"Session ID", New Object() {DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified), DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified),Nothing,
Nothing, Nothing, Nothing, Nothing, DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified)})
SearchHouseKeeping
This function performs an advanced search for housekeeping cabins and its tasks.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchHousekeeping” — below is the list of poParam.
Please take note some parameters are optional. However, the more parameters passed in, the fewer records it will return.
For Date field pass in 30-Dec-1899 if not required.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,
Element 2 = B,
Table 4-140 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pbIsCabin |
Boolean |
True – Cabin, False = Location. |
Yes |
pdTaskDateFrom |
Date |
Date From - task that has been created for the cabin/location. |
Yes |
pdTaskDateTo |
Date |
Date To - task that has been created for the cabin/location. |
Yes |
psPort |
Array of String |
Port ID (SCD.SCD_ID) - for Housekeeping Tasks only. |
Yes |
psCabin |
Array of String |
Unique Cabin IDs (CAB.CAB_ID). |
Yes |
psTaskStatus |
Array of String |
0 – Pending, 1 – Started, 2 - Completed. |
Yes |
psCabinHKStatus |
Array of String |
Cabin Housekeeping Status (OD, OC, VD, VC). |
Yes |
psCabinAvlStatus |
Array of String |
Cabin Availability (OO, OV, BL, AV). |
Yes |
psHKSection |
Array of String |
Housekeeping section codes. |
Yes |
psCrewID |
Array of String |
Crew Account IDs (RES.RES_ACC) |
Yes |
psTaskID |
Array of String |
Task IDs (CTK.CTK_ID). |
Yes |
psDeck |
Array of String |
Cabin Deck (TYP_DEK.TYP_ART). |
Yes |
psCabinCategory |
Array of String |
Cabin Category (TYP_CAT.TYP_ART). |
Yes |
psCabinType |
Array of String |
‘P’ for Pax, ‘C’ for Crew. |
Yes |
psCabinVerticalZone |
Array of String |
Cabin Vertical Zone (TYP_VTZ.TYP_ART). |
Yes |
psLinenChange |
String |
1 – Task requires linen change. 0 – Task does not require linen change. If nothing is passed in, then it will skip this criteria. |
|
pnAMESRTstatus |
Integer |
0 – Not Delivered. 1 – Delivered. 2 – Both Delivered and Not Delivered. 3 – Do not return any Amenities or Special Requests. |
Yes |
pnAMESRTportID |
Integer |
Embarkation Port ID (SCD.SCD_ID) - for Amenities and Special Requests only. This is only for expected guests embarking on this port only. |
Yes |
pdAMESRTembarkdate |
Date |
Embarkation Date – for Amenities and Special Requests Only. This is only for expected guests embarking on this date only. |
Yes |
psAMESRTdepts |
Array of String |
Amenity/Special Requests Delivery Department. |
Yes |
pdAMESRTdeliverydate |
Date |
Amenity/Special Requests Delivery Date. |
Yes |
pdChangeModDate |
Date |
Last Changed Date from the last refresh from iCrew. |
Yes |
pbSortByCabinsOnly |
Boolean |
TRUE – CABINS and TASKS output table to be sorted by cabin number. FALSE – CABINS and TASKS output table to be sorted by port arrival time and cabin number. |
Yes |
pbShowAllInCompleteTasks |
Boolean |
TRUE - show all incomplete tasks regardless of created date. FALSE - show incomplete tasks within date range based on par pdTaskDateFrom and pdTaskDateTo. |
Yes |
pbShowAllCompletedTasksToday |
Boolean |
TRUE - show all completed tasks today. FALSE - show all completed tasks within date range based on par pdTaskDateFrom and pdTaskDateTo. |
Yes |
pbUseOldSorting |
Boolean |
TRUE - use the current method of sorting in .846 (ignores par pbShowAllInCompleteTasks and pbShowAllCompletedTasksToday). This is for backward compatibility. FALSE - use the new method of sorting (uses par pbShowAllInCompleteTasks and pbShowAllCompletedTasksToday, ignores psTaskStatus). |
Yes |
Return Values
CResponseXml.bSuccess = False when SearchHousekeeping has failed.
CResponseXml.bSuccess = True when SearchHousekeeping is successful, CResponse.oDataset will have 11 Data Tables for cabins/locations.
Table 4-141 ADO.NET Data Table field structure for data table (“SERVERDATETIME”), current server date/time.
Code | Type | Description |
---|---|---|
CURRENTDATETIME |
Date |
Server Date Time. |
Table 4-142 ADO.NET Data Table field structure for data table (“STATS”), Overall Housekeeping Task Statistics and pending amenities/special requests for Cabins based on parameters passed in.
Code | Type | Description |
---|---|---|
HK_PENDING_COUNT |
Integer |
Number of pending housekeeping tasks. |
HK_STARTED_COUNT |
Integer |
Number of housekeeping tasks that have started. |
HK_COMPLETED_COUNT |
Integer |
Number of completed housekeeping tasks. |
AME_PENDING_COUNT |
Integer |
Number of amenities count based on pnAMESRTstatus passed in. |
SRT_PENDING_COUNT |
Integer |
Number of special requests count based on pnAMESRTstatus passed in. |
Table 4-143 ADO.NET Data Table field structure for data table (“CABINS”) - Cabin Details. It returns a list of cabins with or without housekeeping tasks AND pending amenities/special requests, sorted by SCD_ARRIVE_TIME, CAB
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location ID. |
SCD_ARRIVE_TIME |
Date |
Port Arrival Time (linked to HAS_PORT_ID). |
CAB_NAME |
String |
Cabin/Location Name. |
CAB_DESIGN |
String |
‘P’ for Pax, ‘C’ for Crew. Does not apply to location. |
CAB_STATE |
String |
Cabin Availability Status (OO=Out of Order, OS=Out of Service, BL=Blocked, AV=Available). Does not apply to location. |
CAB_BEDS |
Number |
No of beds/berths in the cabin. |
CAB_BEDS_SETUP |
String |
Beds setup for each cabin. Format saved A,B,C,D,E or 1,2,3,4,5. |
CAB_TEL |
String |
Cabin Telephone Number. |
CAB_TEL2 |
String |
Cabin Telephone Number 2. |
CAB_BEG_BLOCK_D |
Date |
The cabin is pending repairs, this field stores the date for when this cabin is blocked from.This is the 'Block From' field in FC Admin Cabin setup. |
CAB_REPAIR_D |
Date |
The cabin is pending repairs, this field stores the date for when this cabin is blocked until.This is the 'Block Until' field in FC Admin Cabin setup. |
CAB_REPAIR_T |
String |
The cabin is pending repairs, this field stores the unavailability reason when CAB_STATE=OO or OS or BL. This is the 'Unavailability Reason' field in FC Admin Cabin setup. |
CAB_LIFEBOAT |
String |
Lifeboat this cabin is assigned to. TYP_BOT.TYP_ART. |
CAB_LIFEBOAT_NAME |
String |
Lifeboat this cabin is assigned to. TYP_BOT.TYP_COMMENT. |
CAB_STATION |
String |
Muster Station this cabin is assigned to. Linked to MST.MST_ID. |
CAB_STATION_NAME |
String |
Muster Station this cabin is assigned to. Linked to MST.MST_NAME. |
CAB_LOCATION |
Integer |
Null-Undefine, 1-Forward, 2-Mid Ship, 3-Aft |
CAB_STARBOARD |
Integer |
0-Portside, 1-Starboard. |
CAB_CAT |
String |
Cabin Type. Linked to TYP_CAT.TYP_ART. Does not apply to location. |
CAB_CAT_NAME |
String |
Cabin Type Description. Linked to TYP_CAT.TYP_COMMENT. Does not apply to location. |
CAB_DECK |
String |
Cabin Deck. Linked to TYP_DEK.TYP_ART. Does not apply to location. |
CAB_DECK_NAME |
String |
Cabin Deck Description. Linked to TYP_DEK.TYP_COMMENT. Does not apply to location. |
CAB_HKSTATUS |
String |
Cabin Housekeeping status (OD, VD, OC, VC). Linked to TYP_CCS.TYP_ART. Does not apply to location. |
CAB_HKSTATUS_NAME |
String |
Cabin Housekeeping status description. Linked to TYP_CCS.TYP_COMMENT. Does not apply to location. |
CAB_VZONE |
String |
Cabin vertical zone. Linked to TYP_VTZ.TYP_ART. Does not apply to location. |
CAB_VZONE_NAME |
String |
Cabin vertical zone description. Linked to TYP_VTZ.TYP_COMMENT. Does not apply to location. |
HKSECTION_ID |
Integer |
Housekeeping Section ID (HSC_ID). |
HKSECTION_NAME |
String |
Housekeeping Section Name (HSC_NAME). |
Table 4-144 ADO.NET Data Table field structure for data table (“CRASH_CABINS”) - Crash Cabins
Code | Type | Description |
---|---|---|
CAB |
String |
Cabin. |
PORTNAME |
String |
Port Name. |
PORTID |
Integer |
Port ID (SCD_ID). |
PORTDATE |
Date |
Port Date (SCD_DATE). |
Table 4-145 ADO.NET Data Table field structure for data table (“TASKS”) sort by SCD_ARRIVAL_TIME field - Cabin Task Assignments.
Code | Type | Description |
---|---|---|
CTK_ID |
Integer |
Task ID (CTK.CTK_ID). |
CTK_NAME |
String |
Task Name (CTK.CTK_NAME). |
CTK_DESCRIPTIONS |
String |
Task Description . |
CTK_DURATION |
Integer |
Duration of Task. |
CTK_LINENRULE |
Integer |
1 – requires linen change, 0 – does not require linen change. |
HAS_ID |
Integer |
Unique Housekeeping Task ID. |
CAB |
String |
Unique Cabin/Location ID. |
HAS_STATUS |
Integer |
0 – Pending, 1 – Started, 2 - Completed. |
HAS_ASSIGNDATE |
Date |
Task Created date. |
HAS_COMMENT |
String |
Task Comments. |
HAS_PORT_ID |
Integer |
Port ID. Linked to SCD.SCD_ID. |
SCD_PORT_ID |
Integer |
Port Name. |
HAS_MODDATE |
Date |
Last modified date for the task. |
HAS_COMPLETEDDATE |
Date |
Task Completed Date. |
CRW_ID |
Integer |
Unique Crew ID. |
CRW_NAME |
String |
Crew that has been assigned the task to. |
SCD_ARRIVE_TIME |
Date |
Port Arrival Time. |
Table 4-146 ADO.NET Data Table field structure for table “STATS_CABINS”, Housekeeping Task Statistics per Cabin based on parameters passed in.
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location. |
HK_PENDING_COUNT |
Integer |
Number of pending tasks per cabin/location. |
HK_STARTED_COUNT |
Integer |
Number of tasks that have started per cabin/location. |
HK_COMPLETED_COUNT |
Integer |
Number of completed tasks per cabin/location. |
Table 4-147 ADO.NET Data Table field structure for table “STATS_AME”, Pending Amenities per Cabin.
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location. |
AME_PENDING_COUNT |
Integer |
Number of pending amenities per cabin/location. |
Table 4-148 ADO.NET Data Table field structure for table “STATS_SRT”, Pending Special Requests per Cabin.
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location. |
SRT_PENDING_COUNT |
Integer |
Number of pending special requests per cabin/location. |
Table 4-149 ADO.NET Data Table field structure for table “EMB_PORTS”, Reservation Embark/Disembark Ports per Cabin
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location. |
EMBARKPORT |
String |
Embarkation port for the checked-in guest for this cabin. |
DEBARKPORT |
String |
Disembarkation port for the checked-in guest for this cabin. |
Table 4-150 ADO.NET Data Table field structure for table “RUSH_CABINS”, Rush Cabins
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location. |
EMBARKPORT |
String |
Embarkation port for the reservation that is embarking on pdTaskDate. |
DEBARKPORT |
String |
Disembarkation port for the reservation that is disembarking on pdTaskDate. |
EMBARKSTATUS |
String |
Embarkation status for the reservation that is embarking on pdTaskDate. |
EMBARK_ARRIVEDATE |
Date |
Date and Time of the reservation that is embarking on pdTaskDate. |
Table 4-151 ADO.NET Data Table field structure for table “COUT_CABINS”, Cabins with check-out tasks
Code | Type | Description |
---|---|---|
CAB |
String |
Unique Cabin ID/Location. |
HAS_PORT_ID |
Integer |
Port ID where the cabin has check-out tasks. |
PORTNAME |
String |
Port name where the cabin has check-out tasks. |
SCD_DATE |
Date |
Port Arrival Date. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchHouseKeeping",
"Session ID", New Object() {True, DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified), Nothing, Nothing, Nothing, Nothing, Nothing,
Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, Nothing, 1,
0, 12345, DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified),
Nothing, DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified),
DateTime.SpecifyKind(DEFAULT_DATE, DateTimeKind.Unspecified)})
SearchPassenger
This function searches for a guest using various criteria available in the SPMS system.
Input Parameters
psFunction= “SearchPassenger” — below is the list of psParam or poParam.
Table 4-152 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psFirstName |
String |
First Name. |
Optional |
psLastName |
String |
Embarkation Date. |
Optional |
psPassportNum |
String |
Guest Type Enumerator. |
Optional |
pdBirthDate |
Date |
Guest Birth date. |
Yes |
Below are the descriptions of the parameters.
psFirstName
Guest First Name, this field is optional, can pass in an empty string.
psLastName
Guest Last Name, this field is optional, can pass in an empty string.
psPassportNum
Guest Passport Number, this field is optional, can pass in an empty string.
Note: For psFirstName, psLastName and psPassportNum, must supply at least one information.
pdBirthdate
Guest Birth date
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.CPassenger when input values are valid.
Table 4-153 CPassenger field structure
Code | Type | Description |
---|---|---|
gnID |
Integer |
Unique Guest ID, this ID is used to perform in other search. |
gsFirstName |
String |
First Name. |
gsLastName |
String |
Last Name. |
gsMiddleName |
String |
Middle Name. |
gsTitle |
String |
Title. |
gsSalutation |
String |
Salutation. |
gdEmbDate |
Date |
Embarkation Date. |
gdDisDate |
Date |
Disembarkation Date. |
gsCabin |
String |
Cabin Number. |
gsCabCategory |
String |
Cabin Category. |
gsFreqCruiseNumber |
String |
Frequent Cruise Number. |
gsFreqCruiseStatus |
String |
Frequent Cruise Status. |
gsDeck |
String |
Cabin Deck. |
gsMusterStation |
String |
Muster Station Name. |
gsAward |
String |
Award Level. |
gsLoyaltyCode |
String |
Loyalty Discount Code. |
gsLoyaltyDesc |
String |
Loyalty Discount Description. |
gsAccTag |
String |
Account TAG,P – Pax, C - Crew. |
gsLanguage1 |
String |
Language 1. |
gsLanguage2 |
String |
Language 2. |
gsLanguage3 |
String |
Language 3. |
gnGrdID |
Integer |
Group ID |
gsGrdName |
String |
Group Name |
gsBookingNo |
String |
Reservation Booking No. |
gsDiscount |
String |
Current not in use. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchPassenger",
"SESSIONID", New Object() {<FIRST NAME>, <Last Name>, <Passport
Number>, #1/1/1970#})
SearchPassengerByID
This function searches for a guest with a unique Guest ID from the SPMS system.
Input Parameters
psFunction= “SearchPassengerByID” — below is the list of psParam or poParam.
Table 4-154 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
SPMS Unique Guest ID. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.CPassenger when input values are valid.
Table 4-155 CPassenger field structure
Parameter | Type | Description |
---|---|---|
gnID |
Integer |
Unique Guest ID, this ID is used to perform in other search. |
gsFirstName |
String |
First Name. |
gsLastName |
String |
Last Name. |
gsMiddleName |
String |
Middle Name. |
gsTitle |
String |
Title. |
gsSalutation |
String |
Salutation. |
gdEmbDate |
Date |
Embarkation Date. |
gdDisDate |
Date |
Disembarkation Date. |
gsCabin |
String |
Cabin Number. |
gsCabCategory |
String |
Cabin Category. |
gsFreqCruiseNumber |
String |
Frequent Cruise Number. |
gsFreqCruiseStatus |
String |
Frequent Cruise Status. |
gsDeck |
String |
Cabin Deck. |
gsMusterStation |
String |
Muster Station Name. |
gsAward |
String |
Award Level. |
gsLoyaltyCode |
String |
Loyalty Discount Code. |
gsLoyaltyDesc |
String |
Loyalty Discount Description. |
gsAccTag |
String |
Account TAG,P – Pax, C - Crew. |
gsLanguage1 |
String |
Language 1. |
gsLanguage2 |
String |
Language 2. |
gsLanguage3 |
String |
Language 3. |
gnGrdID |
Integer |
Group ID. |
gsGrdName |
String |
Group Name. |
gsBookingNo |
String |
Reservation Booking No. |
gsDiscount |
String |
Current not in use. |
SearchPayrolls
This function returns payroll data based on various search criteria from the SPMS system.
Input Parameters
psFunction=“SearchPayrolls” — below is the ordered list of input parameters and its descriptions.
Table 4-156 psParam
Parameter | Type | Description | Required |
---|---|---|---|
MemoryLifeSpan |
Integer |
Optional in seconds, default as zero. If set to non-zero, result set will be kept in memory for reuse when a subsequent call is issued within the specified time interval with MemoryReuse = TRUE. |
Optional |
MemoryReuse |
Boolean |
Optional, default as FALSE. When set to TRUE, the search will not query DB but instead just return records from the previous result set. |
Optional |
RecordPerPage |
Integer |
Optional, default as zero. Specify the number of CTR records for which their payroll data will be returned. If zero, will return all CTR records in the result set. |
Optional |
PageNum |
Integer |
Optional, default as zero for page 1. Specify the page to return in a multi-page result set. |
Optional |
CTR_IDs |
String |
Optional. Comma delimited CTR_ID. |
Optional |
SPP_STATUSs |
String |
Optional. Comma delimited SPP_STATUS. * |
Optional |
SSH_STATUSs |
String |
Optional. Comma delimited SSH_STATUS. * |
Optional |
Return Values
CResponseXml.bSuccess = False when WS function did not execute successfully. For example, due to invalid input parameters.
CResponseXml.bSuccess = True when WS function executed successfully, along with
CResponseXML.oDataSet = Nothing, when no record is found. Otherwise,
CResponseXML.oDataSet = ADO.NET dataset, which will contain table SSH, PAY, SPP, SED, BEN and USR. *
CResponseXML.nTotalPage = total number of pages in the resultset, when input parameter RecordPerPage is specified.
Remark:
See SPMS Data Dictionary for details of the fields.
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchPayrolls",
"SessionID", New Object() {60, True, 10, 1, 46598,46599,46600, “O,A,C,F”,
“A,P”})
SearchSpecialRequest
This function is an advanced search for special request.
Input Parameters
psFunction= “SearchSpecialRequest”— below is the list of poParam.
Please take note some parameters are optional. However, the more parameters passed in, the fewer records it will return.
For Date field pass in 30-Dec-1899 if not required.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,
Element 2 = B,
Table 4-157 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peReservationType |
Integer |
Reserve and CheckIn. 1 – Reserve 2 - CheckIn 3 - CheckOut |
|
pdExpDeliveryDateFrom |
Date |
Special Request Delivery Date (SRT_DDATE) If nothing is passed in, then it will skip this criteria. |
|
pdExpDeliveryDateTo |
Date |
Special Request Delivery Date (SRT_DDATE)If nothing is passed in, then it will skip this criteria. |
|
pdDeliveredDateFrom |
Date |
Special Request Delivery Date (SRT_DONE_DATE)If nothing is passed in, then it will skip this criteria. |
|
pdDeliveredDateTo |
Date |
Special Request Delivery Date (SRT_DONE_DATE)If nothing is passed in, then it will skip this criteria. |
|
psGuestLastName |
String |
Guest Last Name (UXP_A_NAME)If nothing is passed in, then it will skip this criteria. |
|
psCode |
Array of String |
Special Request Code (TYP_SRT.TYP_ART)If nothing is passed in, then it will skip this criteria. |
|
psExtCode |
Array of String |
Special Request Identifier Code. |
|
psGroupID |
Array of String |
Travel Group ID (UXP_A_ID)If nothing is passed in, then it will skip this criteria. |
|
psCabinCategory |
Array of String |
Cabin Category (TYP_CAT.TYP_ART)If nothing is passed in, then it will skip this criteria. |
|
psDeliveryLocation |
Array of String |
Delivery Location (SRT_LOCATION)If nothing is passed in, then it will skip this criteria. |
|
psDeck |
Array of String |
Cabin Deck (TYP_DEK.TYP_ART)If nothing is passed in, then it will skip this criteria. |
|
psDeliveryBy |
Array of String |
Special Request Delivery By. Linked to USR.USR_ID.If nothing is passed in, then it will skip this criteria. |
|
psCabin |
Array of String |
Unique Cabin IDs (CAB.CAB_ID)If nothing is passed in, then it will skip this criteria. |
|
psDepartment |
Array of String |
Amenity Delivery Division (SRT_ODI_ID)If nothing is passed in, then it will skip this criteria. |
|
psHKSection |
Array of String |
Housekeeping Section Name (HSC_NAME)If nothing is passed in, then it will skip this criteria. |
Return Values
CResponseXml.bSuccess = False when SearchSpecialRequest has failed.
CResponseXml.bSuccess = True when SearchSpecialRequest is successful, CResponse.oDataset will have 1 Data Table.
Table 4-158 ADO.NET Data Table field structure for data table
Code | Type | Description |
---|---|---|
SRT_ID |
Integer |
Special Request ID (Unique ID). |
SRTCODE |
String |
Special Request Code. Linked to TYP_SRT.TYP_ART. |
SRTNAME |
String |
Port Name. Linked to TYP_SRT.TYP_COMMENT. |
SRT_EXT_CODE |
String |
Special Request Identifier Code. |
ACCID |
String |
Account ID. |
Name |
String |
Guest Name. |
RESSTATUS |
String |
Reservation Status. |
VIPCODE |
String |
VIP ID. Linked to TYP_VIP.TYP_ART. |
VIPNAME |
String |
VIP Name. Linked to TYP_VIP.TYP_COMMENT. |
PORTID |
String |
Embarkation Port ID. |
PORTNAME |
Integer |
Embarkation Port Name. Linked to TYP_HRB.TYP_COMMENT. |
GROUPID |
String |
Travel Group Reference ID. |
GROUPNAME |
String |
Travel Group Name. |
CABINID |
String |
Unique Cabin ID. |
HSC_NAME |
String |
Housekeeping Section Code. |
HSC_COMMENT |
String |
Housekeeping Section Name. |
SRT_LOCATION |
String |
Delivery Location. |
SRT_ODI_ID |
String |
Amenity Delivery Division ID. Linked to TYP_ODI.TYP_ART. |
TYP_COMMENT |
String |
Amenity Delivery Division Name. Linked to TYP_ODI.TYP_COMMENT. |
CAB_VZONE |
String |
Cabin vertical zone. Linked to TYP_VTZ.TYP_ART. |
CAB_VZONE_NAME |
String |
Cabin vertical zone description. Linked to TYP_VTZ.TYP_COMMENT. |
CAB_TYPE |
String |
Cabin Type ID. Linked to TYP_CAT.TYP_ART. |
TYP_COMMENT1 |
string |
Cabin Type Name. Linked to TYP_CAT.TYP_COMMENT. |
CAB_DECK |
String |
Cabin Deck ID. Linked to TYP_DEK.TYP_ART. |
TYP_COMMENT2 |
String |
Cabin Deck Name. Linked to TYP_DEK.TYP_COMMENT. |
SRT_DDATE |
Date |
Special Request Delivery Date. |
SRT_DONE_DATE |
Date |
Special Request Service Done Date. |
SRT_DONE_BY |
Integer |
Special Request done by the waiter. Linked to USR.USR_ID. |
USR_LOGIN |
String |
User Login Name. |
CAB_KEEPER |
Integer |
Housekeeper ID. Linked to RES.RES_ACC. |
CAB_KEEPER_NAME |
String |
Housekeeper Name. |
CAB_A_KEEPER |
Integer |
Assistant Housekeeper ID. Linked to RES.RES_ACC. |
CAB_A_KEEPER_NAME |
String |
Assistant Housekeeper Name. |
CAB_G_WAITER |
Integer |
Waiter ID. Linked to RES.RES_ACC. |
CAB_G_WAITER_NAME |
String |
Waiter Name |
CAB_A_WAITER |
Integer |
Assistant Waiter. Linked to RES.RES_ACC. |
CAB_A_WAITER_NAME |
String |
Assistant Waiter Name. |
SRT_CREATED_BY |
Number |
The user that created this special request. |
SRT_DATE_CREATED |
Date |
Special request actual creation date. |
SRT_DESCR |
String |
Special Request Description. |
SRT_EVENTDATE |
Date |
Event Date & Time. |
SRT_EXT_ID |
Number |
Interface System Special Request ID. |
SRT_MODDATE |
Date |
Last Modification Date. |
SRT_QUANTITY |
Number |
Special Request Quantity. |
SRT_RESID |
Integer |
Guest Account ID. Linked to RES.RES_ID. |
SRT_VID |
String |
Unique ID (for import duplicate functionality). |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchSpecialRequest",
New Object() {<ReservationType>,<ExpDeliveryDateFrom>,<ExpDeliveryDateTo>,<DeliveryDateFrom>,<DeliveryDateTo>,<LastName>,<SRTCode>,<ExternalCode>,<GroupID>,<CabinCategory>,<DeliveryLocation>,<Deck>,<DeliveryBy>,<Department>,<HKSection>})
SearchWorkOrder
This function gets the maintenance work order from SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SearchWorkOrder” — below is the list of psParam or poParam.
Please take note all the parameter are optional except pdFromDate and pdToDate, the more parameters you pass in, the fewer records it will return.
For Array field, pass in an empty array or “Nothing” to skip this checking.
For Date field pass in 30-Dec-1899 if not required.
For JSON, the array of string will be a string separated by “,”, each string must start and end with a double quotation mark (“).
For example,
“A,”””,”B,” = 2 Element
Element 1 = A,”
Element 2 = B,
Table 4-159 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pdFromDate |
Date |
From date & time. |
Yes |
pdToDate |
Date |
To date & time. |
Yes |
pdCompleteFromDate |
Date |
Completion date & time from. |
Yes |
pdCompleteToDate |
Date |
Completion date & time to. |
Yes |
psWorkOrderTyp |
Array of String |
Work Order Type. |
Yes |
psCabin |
Array of String |
Cabin Location. |
Yes |
psPublicLocation |
Array of String |
Public Location. |
Yes |
psLocation |
Array of String |
Custom Location. |
Yes |
psTask |
Array of String |
Work Order Task. |
Yes |
psWorkGroup |
Array of String |
Work Order Assign Worker Group. |
Yes |
pnUsrCreate |
Array of String |
User ID which created the Work Order. Although the data type is numeric, you must pass in as Array of String due to .NET limitation. |
Yes |
pnUsrAssign |
Array of String |
Work Order Assign to the Crew. Although the data type is numeric, you must pass in as Array of String due to .NET limitation. |
Yes |
psPriority |
Array of String |
Priority. |
Yes |
pnMwrID |
Array of String |
Work Order Unique ID. Although the data type is numeric, you must pass in as Array of String due to .NET limitation. |
Yes |
psMwrNo |
Array of String |
Work Order Number. |
Yes |
pnCompleteStatus |
Array of String |
Completion Status, Range 0,25,50,75,100. Although the data type is numeric, you must pass in as Array of String due to .NET limitation. |
Yes |
pbIncludePicture |
Boolean |
True = Will return the work order picture. False = Will return nothing, this is for slow device, so it will need to look up the picture using WSF using the value WSF_XDOC_ID, default = True. |
Optional |
pbSortModDateAsc |
Boolean |
True it will sort the records by last modify date ASC. False it will sort the records by last modify date DESC. Default = True. |
Optional |
Return Values
CResponseXml.bSuccess = False when SearchWorkOrder has failed.
CResponseXml.bSuccess = True when SearchWorkOrder is successful, CResponse.oDataset will have 4 Data Tables.
Table 4-160 ADO.NET Data Table field structure for first data table, Work Order
Code | Type | Description |
---|---|---|
MWR_CSTATUS |
Integer |
Completion Status Percentage 0,25,50,75 or 100. |
MWR_DATE |
Date |
Date Time the order created. |
MWR_LOCATION |
String |
Custom Location of the maintenance. |
MWR_LOCATIONCABIN |
String |
Cabin Number. |
MWR_LOCATIONPUBLIC |
String |
Public Location. |
PRIORITY |
String |
Priority Description. |
MWR_TASK |
String |
Task Code. |
TSK_COMMENT |
String |
Task Name. |
MWR_TASKDESCR |
String |
Task Description. |
USR_LOGIN |
String |
User Login Name. |
MWR_TYPE |
String |
Work Order Type. |
WOT_NAME |
String |
Word Order Type Description. |
MWR_ID |
Integer |
Unique Work Order ID. |
MWR_WONUMBER |
String |
Work Order Number. |
ARE_CATEGORY |
String |
Custom Location Category. |
CAT_NAME |
String |
Custom Location Category Name. |
STATUS |
String |
Useable Status. |
XDOC_FILE |
Byte Array |
Picture of the work order. |
MWR_TIME_NEEDED |
Double |
Time Needed in Days. |
MWR_PICTUREFILE |
String |
File Name of the picture. |
MWR_COMMENT |
String |
Comment. |
MWR_CAB_ID |
String |
Report By Cabin Number. |
ARE_NAME |
String |
Custom Location Name. |
PUBLIC_NAME |
String |
Public Location Name. |
MWR_COMPLETEDATE |
Date |
Completion Date. |
MWR_PRINTED |
Integer |
Indicated how many time it printed. |
MWR_REJECTED |
Boolean |
True – Rejected. |
MWR_XDOC_ID |
Long |
The work order picture ID = xdoc_id. |
Table 4-161 ADO.NET Data Table field structure for second data table, Work Order Assignment
Code | Type | Description |
---|---|---|
MWA_ID |
Integer |
Unique Work Order Assignment ID. |
MWA_MWRID |
Integer |
Work Order ID. |
MWA_ASSIGNEDTOGROUP |
String |
Assign Group Code. |
MWA_ASSIGNEDTOWORKER |
Integer |
Unique Crew ID. |
MWA_ASSIGNEDWHEN |
Date |
Date and Time of assignment. |
MWA_REMARKS |
String |
Remarks. |
CRW_NAME |
String |
Crew Name. |
MWR_GROUP |
String |
Group Description. |
USR_LOGIN |
String |
User Login Name. |
Table 4-162 ADO.NET Data Table field structure for the third data table, Work Order Assignment
Code | Type | Description |
---|---|---|
MWI_ID |
Integer |
Unique Work Order Item ID. |
MWI_MWRID |
Integer |
Work Order ID. |
MWI_ITEMCODE |
String |
Item Code. |
MWI_QUANTITY |
Integer |
Quantity Needed. |
MWI_PRICE |
Double |
Price of the item. |
MWI_REMARKS |
String |
Remarks. |
MIT_DESC |
String |
Item Description. |
MIT_GROUP |
String |
Item Group. |
MIT_STOCK |
Integer |
Quantity On Hand. |
TYP_COMMENT |
String |
Item Group Description. |
Table 4-163 ADO.NET Data Table field structure for fourth data table, Work Order Additional Image
Code | Type | Description |
---|---|---|
MWP_ID |
Integer |
Unique Work Order Image ID. |
MWP_MWRID |
Integer |
Work Order ID. |
MWP_COMMENT |
String |
User Comment. |
MWP_FILENAME |
String |
Original Picture Filename, Information purpose. |
MWP_IMAGE |
Byte Array |
Additional Picture of the work order. |
Example:
oResponse = goWS.FidelioSPMSWSXML("SearchWorkOrder",
"", New Object()
{DateTime.SpecifyKind(#1/1/2000#,
DateTimeKind.Unspecified), _
DateTime.SpecifyKind(#1/1/2012#,
DateTimeKind.Unspecified), _
DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified), _
DateTime.SpecifyKind(DEFAULT_DATE,
DateTimeKind.Unspecified), _
Nothing, New String() {"05002",
"00000"}, Nothing, Nothing, _
Nothing, New String() {"1"},
Nothing, Nothing, Nothing, _
Nothing, Nothing, Nothing, False,
False})
SpaBooking
This function creates a single or Packaged Treatment Spa booking in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SpaBooking” — below is the list of psParam or poParam.
Table 4-164 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pnLocation |
Integer |
Location ID. |
Yes |
pnItem |
Integer |
Treatment Item ID. |
Yes |
pdDate |
Date |
Treatment Date and Time. |
Yes |
psNotes |
String(255) |
Notes (Default Empty). |
Optional |
psPin |
String(4) |
Pin Code (Default Empty). |
Optional |
psSource |
String(10) |
Booking Source (Default Empty). |
Optional |
pbForceBooking |
Boolean |
True = Allow posting even the guest who does not have credit limit or posting is disabled, False = Normal posting. |
Yes |
pbIsUnassignedBooking |
Boolean |
True = Allow booking without Treatment Date and Time in order to be manually confirmed onboard, False = Regular Booking with Treatment Date and Time. |
Yes |
pnPackageID |
Integer |
Package ID. |
Optional |
pnPackageControlNo |
Integer |
Unique ID Grouping Package Treatments and Retail Items. |
Optional |
pnAccID
Unique Guest ID, return from SearchPassenger.
pnLocation
The field identifies the unique location ID. The field is an internal, unique code. This value is retrieved from the SPALocation message type. For Package Treatments, the value is 0, because originally, packages can contain treatments from multiple/different locations. In this case, the function will automatically find the appropriate location schedule for the requested date and time.
pnItem
The field identifies the unique treatment item identification. The field is an internal, unique code. This field is retrieved from SPATreatmentItem.
pdDate
The field identifies the date and time in which the treatment takes place. This field is retrieved from SPATreatmentAvailability. If pbIsUnassignedBooking is True, then pdDate must be empty.
psNotes
The field identifies the additional information send by third-party.
psPin
The field identifies the telephone PIN code of the reservation account. The valid characters are 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS Parameter setting.
psSource
The field identifies the source of the booking. For example, Workstation ID, Kiosk ID, and so on or any other details describing the location where the booking was made.
pbForceBooking
True = Allow posting even if the guest does not have a credit limit or posting is disabled. This is applicable to check-in guest only.
False = Normal posting.
pbIsUnassignedBooking
True = Allow booking without Treatment Date and Time in order to be manually confirmed onboard.
False = Regular Booking with Treatment Date and Time.
pnPackageID
The field identifies the unique Package ID. The field is an internal, unique code. This value is retrieved from GetSPAPackages WebMethod.
pnPackageControlNo
The field identifies the grouping of Treatments and Retail Items that belong to the same package and are sold together in one transaction. When booking the first Package Treatment, this field must always be “0” in order to return the new Package ControlNo value upon booking of the first package treatment with return value CResponse.oObj(1). For the rest of treatment bookings, this value must contain the same Package ControlNo as returned after the 1st Package Treatment Booking.
Return Values
CResponseXml.bSuccess = True when Booking is successful.
CResponse.oObj(0) return the booking ID (spa_id).
CResponse.oObj(1) return the Package ControlNo (spa_control).
CResponseXml.bSuccess = False when Booking has failed.
Example:
For Regular single Treatments
oResponse = goWS.FidelioSPMSWSXML("SpaBooking", "SESSIONID",
New Object() {12345, 37464, 1, 123, #1/1/2011 3:00 pm#, "", "", "",
False, False})
For Unassigned single Treatment without Treatment Date & Time assignment
oResponse
= goWS.FidelioSPMSWSXML("SpaBooking", "SESSIONID", New Object() {12345,
37464, 1, 123, "", "", "", "", False, True})
For 1st Regular Package Treatment
oResponse
= goWS.FidelioSPMSWSXML("SpaBooking", "SESSIONID", New Object() {12345,
37464, 0, 123, #1/1/2011 3:00 pm#, "", "", "", False,False,4,0})
CResponse.oObj(0) return the booking id (spa_id) =
1342
CResponse.oObj(1) return the Package ControlNo
(spa_control) = 1341
For rest of Regular Package Treatments
oResponse = goWS.FidelioSPMSWSXML("SpaBooking",
"SESSIONID", New Object() {12345, 37464, 0, 133, #1/1/2011 3:00 pm#,
"", "", "", False,False,4,1341})
For 1st Unassigned Package Treatment
oResponse = goWS.FidelioSPMSWSXML("SpaBooking",
"SESSIONID", New Object() {12345, 37464, 0, 123, "", "", "", "", False,True,4,0})
CResponse.oObj(0) return the booking id (spa_id) =
1342
CResponse.oObj(1) return the Package ControlNo
(spa_control) = 1341
For rest of Unassigned Package Treatments
oResponse = goWS.FidelioSPMSWSXML("SpaBooking",
"SESSIONID", New Object() {12345, 37464, 0, 133, "", "", "", "", False,True,4,1341})
SpaBookingPackageRetail
This function creates a spa package retail booking in SPMS after all Package Treatments Bookings have been completed.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SpaBookingPackageRetail” — below is the list of psParam or poParam.
Table 4-165 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pnRetailItem |
Integer |
Retail Item ID. |
Yes |
pnPackageID |
Integer |
Package ID. |
Yes |
pnPackageControlNo |
Integer |
Unique ID Grouping Package Treatments and Retail Items. |
Yes |
psNotes |
String(255) |
Notes (Default Empty). |
Optional |
psPin |
String(4) |
Pin Code (Default Empty). |
Optional |
psSource |
String(10) |
Booking Source (Default Empty). |
Optional |
pbForceBooking |
Boolean |
True = Allow posting even the guest who does not have credit limit or posting is disabled, False = Normal posting. |
Yes |
pnAccID
Unique Guest ID, return from SearchPassenger.
pnRetailItem
The field identifies the unique retail item identification. The field is an internal, unique code. This field is retrieve from GetSPAPackageItems or GetSPAPackageItems ForPeriod.
pnPackageID
The field identifies the unique Package ID. The field is an internal, unique code. This value is retrieved from GetSPAPackages WebMethod.
pnPackageControlNo
The field identifies the grouping of Treatments and Retail Items that belong to the same package and are sold together in one transaction. Since all included Package Retail Items can only be booked after all Package Treatments have been booked, the Package Control No is already known because it has already been returned after the 1st Package Treatment Booking.
psNotes
The field identifies the additional information sent by third-party.
psPin
The field identifies the telephone PIN code of the reservation account. The valid characters are 0,1,2,3,4,5,6,7,8,9. Leading zero support depends on SPMS Parameter setting.
psSource
The field identifies the source of the booking. For example, Workstation ID, Kiosk ID and so on or any other details describing the location where the booking was made.
pbForceBooking
True = Allow posting even the guest who does not have credit limit or posting is disabled (This only apply to check-in guest only), False = Normal posting.
Return Values
CResponseXml.bSuccess = True when Booking is successful.
CResponse.oObj(0) return the booking ID (spa_id).
CResponseXml.bSuccess = False when Booking has failed.
Example:
For 1st Package Treatment
oResponse = goWS.FidelioSPMSWSXML("SPABookingPackageRetail",
"SESSIONID", New Object() {12345, 123, 4, 1341, "", "", "", False})
SpecialRequestCompleted
This function updates the special request status as “Completed.”
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “SpecialRequestCompleted” — below is the list of psParam or poParam.
Table 4-166 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnSrtID |
Integer |
Special Request Unique ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("SpecialRequestCompleted",
"SessionID", New Object() {12334})
UndoAmenityCompleted
This function updates the amenity status as “Not complete”.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UndoAmenityCompleted” — below is the list of psParam or poParam.
Table 4-167 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAmeID |
Integer |
Amenity Unique ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UndoAmenityCompleted",
"SessionID", New Object() {12334})
UndoSpecialRequestCompleted
This function updates the special status as “Not complete”.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UndoSpecialRequestCompleted” — below is the list of psParam or poParam.
Table 4-168 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnSrtID |
Integer |
Special Request Unique ID. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UndoSpecialRequestCompleted",
"SessionID", New Object() {12334})
UpdateAmenity
This function adds or updates the guest amenity.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateAmenity” — below is the list of psParam or poParam.
Table 4-169 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAmeID |
Integer |
Unique Amenity ID (0 for add new record). |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psCode |
String(6) |
Amenity Code. |
Yes |
psNote |
String(2500) |
Amenity Description. |
Yes |
pnAmount |
Double |
Amenity Price each. |
Yes |
pnQuantity |
Integer |
Amenity Quantity. |
Yes |
psSender1 |
String(255) |
Sender 1. |
Yes |
psSender2 |
String(30) |
Sender 2. |
Yes |
psMessage |
String(255) |
Message for sender. |
Yes |
pdDeliveryDate |
Date |
Expected Delivery Date and Time. |
Yes |
psLocation |
String(30) |
Location. |
Yes |
psOccurrence |
String(10) |
Occurrence. |
Yes |
psExtCode |
String(15) |
External Code. |
Yes |
pnCost |
Double |
Cost. |
Yes |
psComments |
String(2500) |
Comments. |
Yes |
psExtID |
String(20) |
External ID. |
Yes |
psVID |
String(100) |
Unique External ID. |
Yes |
psOdiID |
String(6) |
Delivery Division. |
Yes |
psCurID |
String(6) |
Currency Code. |
Yes |
psFlag |
String(1) |
Flag |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful, CResponseXML.oObj = ame_id (Unique Amenity ID).
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateAmenity",
"SessionID", New Object() {12345,1234576,"Code","Note",1.23,1, "Sender1",
"Sender2", "Message", DateTime.SpecifyKind(#01-01-2013 3:00:00 pm#,
DateTimeKind.Unspecified), "Location", "Once", "ExtCode", 0.45, "Comments",
"ExtID", "", "GRP", "US", "")
UpdateCabCleanStatus
This function updates the cabin clean status.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateCabCleanStatus — below is the list of psParam or poParam.
Table 4-170 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCabID |
String(20) |
Cabin Number. |
Yes |
psCabCleanStatus |
String(2) |
Available value is OD,OC,VD,VC,PU,FA,VF. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateCabCleanStatus",
"SessionID", New Object() {"05002", "OD"})
UpdateCabState
This function updates the cabin status, reason for cabin blocking and blocking period.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateCabState” — below is the list of psParam or poParam.
Table 4-171 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psCabId |
String |
Unique Cabin ID. |
Yes |
psCabStat |
String |
Cabin Status (OO, OV, BL, AV). |
Yes |
psComment |
String |
Cabin Blocking Reason. |
|
pdBlockFromDate |
Date |
Cabin Block From Date. |
|
pdBlockToDate |
Date |
Cabin Block To Date. |
Return Values
CResponseXml.bSuccess always return True, always show the CResponse.sErrMsg.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateCabState", "SessionID",
New Object() {12345,’OO’,<Comment>,<BlockFromDate>,<BlockToDate>})
UpdateComment
This function adds or updates the guest comment.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateComment” — below is the list of psParam or poParam.
Table 4-172 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peQuickAssignment |
Integer |
0-None,1-Same Cabin,2-Same Booking No,3-Same Group, this apply to new comment only, when adding a new comment. If the value is > 0, it will add the same comment to those related guest. |
Yes |
pnCplID |
Integer |
Unique Comment ID (0 for add new). |
Yes |
pnCplLinkID |
Integer |
This is the comment link ID, use to update the comment create with Quick Assignment only apply to parent comment. |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psComment |
String(1500) |
Comment Description. |
Yes |
psCommentCategory |
String(6) |
Comment Category (TYP_CMC.TYP_ART). |
Yes |
pnCost |
Decimal |
Comment/Resolution Cost. |
Yes |
psDepartmentInvolve |
Array of String(6) |
List of Department Involve Code (TYP_CDI.TYP_ART). |
Yes |
psDescCode |
String(6) |
Comment Description Code (TYP_CPL.TYP_ART). Resolution Description Code (TYP_RES.TYP_ART). |
Yes |
psDesc |
String(1500) |
Comment Description. |
Yes |
psExternalCode |
String(20) |
External ID. |
Yes |
psFileName |
String(300) |
This the original filename of the uploaded document. For picture, it uses the file extension to determine if the document is a doc or a picture, file extension .DOC, .DOCX and .PDF will be considered a document and the rest as a picture file. |
Yes |
pbInternal |
Boolean |
Internal Flag. |
Yes |
psInvolvePerson |
String(50) |
Person who resolved the issue or Person who reported the complaint. |
Yes |
pbComment |
Boolean |
True = Comment, False = Resolution. |
Yes |
pbSensitive |
Boolean |
Sensitive Flag. |
Yes |
pbUrgent |
Boolean |
Urgent Flag. |
Yes |
pbyPicture |
Array of Byte |
This can be a document or a picture, max size 4,000,000. |
Yes |
psReportType |
String(6) |
Report Type (TYP_CPI.TYP_ART). |
Yes |
pdRequestDate |
Date |
Requested resolution date. |
Yes |
pbResolved |
Boolean |
This only applies to resolution. |
Yes |
pdResolvedDate |
Date |
Resolved Date |
Yes |
pnVendorID |
Integer |
Vendor ID, we either send the Account ID or Vendor ID. |
Yes |
psVid |
String(100) |
External Unique ID for use with import. |
Yes |
pnXDocID |
Long |
Unique XDOC ID, the table where the picture is stored. If the value pass in = 0 and picture pbyPicture is passed in, it will create a new record and delete the old record. If the value pass in > 0 and picture pbyPicture is pass in, it will overwrite the existing record. If the value pass in = 0 and pbyPicture is nothing then it will delete the existing record. If the value pass in > 0 and pbyPicture is nothing then it will keep the existing record. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful.
CResponseXML.oObj(0) = cpl_id, comment unique ID.
CResponseXML.oObj(1) = cpl_link_id, comment link ID.
Example:
Add new comment
oResponse = FidelioWS("UpdateComment",
New Object() {0, 0, 0,12345, "Comment", _
"CAT1",
0.00, New String() {"HSE"}, "MISB", "Missing Bag",
"", "Bag.jpg", False, "Person
Name", True, False, Yes, File.ReadAllBytes("Bag.Jpg"), "FD", DateTime.SpecifyKind(Now(),
DateTimeKind.Unspecified), False, DateTime.SpecifyKind(Now(), DateTimeKind.Unspecified),
0, "", 0})
Update existing comment
oResponse = FidelioWS("UpdateComment", New Object() {0, 456, 457,
12345, "Comment", "CAT1", 0.00, New String() {"HSE"}, "MISB", "Missing
Bag", "",
"Bag.jpg", False, "Person Name", True, False, Yes, File.ReadAllBytes("Bag.Jpg"),
"FD", DateTime.SpecifyKind(Now(), DateTimeKind.Unspecified), False,
DateTime.SpecifyKind(Now(), DateTimeKind.Unspecified), 0, "", 0})
UpdateCompleteStatus
This function updates the maintenance work order completion status.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateCompleteStatus” — below is the list of psParam or poParam.
Table 4-173 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwrID |
Integer |
Unique Work Order ID (0 for add new record). |
Yes |
pnStatus |
Integer |
Completion Status, must be 0, 25, 50, or 100. |
Yes |
pdCompleteDate |
Date |
Completion Date, only use when pnStatus = 100. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateCompleteStatus",
"SessionID", New Object() {12345, 100, DateTime.SpecifyKind(#01-01-2013
3:00:00 pm#, DateTimeKind.Unspecified))
UpdateCreditCardInfo
This function to updates the guest credit card information.
To deactivate all credit card pass in, set psCardNumber and psCCTrack = Blank String.
Input Parameters
psFunction= "UpdateCreditCardInfo” — below is the list of psParam or poParam.
Table 4-174 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
SPMS Internal Account Number. |
Yes |
psCardNumber |
String |
Credit Card Number. |
Yes |
psCardExpMMYY |
String |
Card Expiry Date in MMYY format. |
Yes |
psCardName |
String |
Card Holder Name. |
Yes |
psCardCtlNo |
String |
3 Digits CVV. |
Yes |
psCCTrack |
String |
Credit Card Track data. |
Yes |
pbySignature |
Byte Array |
Byte Array of the signature image, this only apply when PAR->General->Enable Signature Capture for Credit Card is enable. |
Yes |
pbyEncTrack1 |
Byte Array |
Papagena Encrypted Track 1. |
Optional |
pbyEncTrack2 |
Byte Array |
Papagena Encrypted Track 1. |
Optional |
pbyEncTrack3 |
Byte Array |
Papagena Encrypted Track 1. |
Optional |
psDeviceSerial |
String(32) |
Papagena Device Serial Number. |
Optional |
psKSN |
String(32) |
Papagena KSN Number. |
Optional |
psToken |
String(120) |
Papagena Token. |
Optional |
pbAssignInvoice1 |
Boolean |
Assign the Credit Card to Invoice 1 (Default = True). |
Optional |
pbAssignInvoice2 |
Boolean |
Assign the Credit Card to Invoice 2 (Default = True). |
Optional |
pbAssignInvoice3 |
Boolean |
Assign the Credit Card to Invoice 3 (Default = True). |
Optional |
pbAssignInvoice4 |
Boolean |
Assign the Credit Card to Invoice 4 (Default = True). |
Optional |
pnParcelado |
Enum |
0 – Unknown (Pass in this value, the system will check is the card entitle for Parcelado). 1 – No (Default). 2 - Yes. |
Optional |
pnDCC |
Enum |
0 – Unknown (Pass in this value, the system will check is the card entitle for DCC). 1 – No (Default). 2 – Yes. |
Optional |
pbAllowRegisterSameCard |
Boolean |
True = Allow to register credit which already register to other guest False = Allow to register credit which already register to other guest depend on PAR. |
Optional |
psCardCurrency |
String(3) |
Three characters of ISO currency code. |
Optional |
Below are the descriptions of the parameters.
Note: For the first card, it always assigns to all invoice regardless of the pbAssignInvoice?
Value
If pnParcelado = “Unknow” and the card entitle for Parcelado, it will return an error. If the error ends with “?”. This means you can ask for a user confirmation. The error message will be per below, and you can check for the word Parcelado to determine if this is the question for Parcelado, or else the question will be for pnDCC.
If the user answer yes, pass in pnPaceldo = 2, if the user answer no, pass in pnParcelado = 1.
“This card is eligible for Parcelado Handling – would you like to enroll this card?”.
If pnDCC = “Unknow” and the card entitle for DCC, it will return and error ending with “?” This means you can ask for a user confirmation. If the user answer = yes, pass in pnDCC = 2, If the user answer = no, pass in pnDCC = 1.
pnAccID
You can get this value from the poUxpRes field uxp_a_id.
psCardNumber
This is the credit card number. Supply this field only when the credit card was manually entered.
psCardExpMMYY
This is the credit card expiry date (MMYY). Supply this field only when the credit card was manually entered.
psCardName
This is the credit card holder name. Supply this field only when the credit card was manually entered.
psCardCtlNo
This is the CVV number printed on the back of the credit card. This field is optional.
psCCTrack
This is the credit card track data. Supply this field only when the credit card was swiped.
The field must include the track preamble and postamble.
For example:
%B4509190000858834^VISA <NAME>^2019010142780000000000182000000?;4xxxxxxxxxxxxxxx=20190101427818200000?
pbySignature
Byte Array of the signature image, this only applies when PAR. ‘General’,’Enable Signature Capture for Credit Card’ is enabled. You only pass in when the signature capture device is available.
Return Values
CResponseXml.bSuccess = True when update is successful.
CResponseXml.bSuccess = False when update has failed.
Example:
oResponse =
goWS.FidelioSPMSWSXML("UpdateCreditCardInfo", "SESSIONID", New Object()
{ 1234, <CardNumber>, <ExpiryDate>, <CardName>, <Card
CVV>, <Card All Track>, <Signature Byte Array>})
UpdateCreditLimit
This function updates the guest credit limit. The credit limit also depends on the payment type. If the credit limit is greater than the payment type credit limit, it will take the payment type credit limit.
Input Parameters
psFunction= “UpdateCreditLimit” — below is the list of psParam or poParam.
Table 4-175 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peSearchType |
Enum |
0 = Internal ID. 1 = PGID. 2 = BoardCard. 3 = Pax ID. |
Yes |
psSearchStr |
String |
Unique Payer Account ID or Board Card or PGID or Pax ID depends on the peSearchType. |
Yes |
psCreditLimit |
Decimal |
The credit limit, -1 for unlimited. |
Yes |
pbDailyLimit |
Boolean |
This applies to the buyer only. This requires the PAR->General->Check Buyer Limit to be enabled. True – The amount is daily limit. False – The amount is cruise limit. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateCreditLimit",
"SessionID", New Object() {0,12345,5000.00,False})
UpdateCrewPinCode
This function updates the crew pin code.
Input Parameters
psFunction= “UpdateCrewPinCode” — below is the list of psParam or poParam.
Table 4-176 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. |
Yes |
pnNewPinCode |
New pin code. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateCrewPinCode",
"SessionID", New Object() {12345, 1234})
UpdateDayNeeded
This function updates the maintenance work order day needed to complete the task.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateDayNeeded” — below is the list of psParam or poParam.
Table 4-177 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwrID |
Integer |
Unique Work Order ID (0 for add new record). |
Yes |
pnDays |
Double |
Number of Days Needed. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateDayNeeded",
"SessionID", New Object() {12345, 1.5)
UpdateEmail
This function allows you to update the e-mail address (RES_EMAIL_SHIP) to SPMS.
Input Parameters
psFunction= “UpdateEmail” — below is the list of psParam or poParam.
Table 4-178 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
SPMS Guest Unique ID. |
Yes |
psOldEMail |
String |
Old E-Mail address. |
Yes |
psNewEMail |
String |
New E-Mail address. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
psOldEmail
This is the existing e-mail address for validation purpose. If there is no previous e-mail address pass in an empty string.
psNewEmail
This is the new e-mail address to update to the DB.
Return Values
CResponseXml.bSuccess = True when UpdateEmail is successful.
CResponseXml.bSuccess = False when UpdateEmail has failed.
Example:
oResponse
= goWS.FidelioSPMSWSXML("UpdateEmail", "SESSIONID", New Object() {12345,
“[EMAIL ADD]”, "[EMAIL ADD]", 0, ""})
UpdateGuestInfo
This function updates the guest information retrieved from GuestSearch function. There could be instances whereby, after the GuestSearch function is called, some updates could have taken place to the same account in the SPMS system on the customer side. In cases like this, an error message ‘xxxxxx’ will be returned by the function. This is to prevent the new information from being overwritten on either end. When this error message occurs, you must make another function call to the GuestSearch function or a refresh of the underlying data table and then only make a call to the UpdateGuestInfo function, to update the account details.
Input Parameters
psFunction= “UpdateGuestInfo” — below is the list of psParam or poParam.
Table 4-179 psParam
Parameter | Type | Description | Required |
---|---|---|---|
poUxpRes |
String/Datatable |
This is the data table send from GuestSearch. However, only one record is allowed at one time, JSON – string, XML = Datatable. |
Optional when pnAccID is required. |
pbyPicture |
Byte Array |
Byte Array of the picture content. |
Yes |
psPictureSource |
Integer |
How picture is capture (This is required when the pbyPicture exists) 0 – Unknown source. 1 – From Web Cam. 2 – From RFID passport. 3 – From Scan passport image. |
Yes |
pnAccID |
Integer |
SPMS Internal Account Number (For JSON pass in 0 to add new reservation). |
Optional when poUxpRes is required. |
psReason |
String |
Reason for change cabin. |
Optional |
psNatID |
String |
Nationality ID. |
Optional |
Below are the descriptions of the parameters:
For XML pass in poUxpRes.Rows(0)!uxp_a_id = 0 to add new reservation.
To update picture only pass in poUxpRes as nothing for XML, empty string for JSON
poUxpRes
This is the data table returned from the GuestSearch function. However, only one record is allowed at any one time. Therefore, if the GuestSearch function returns more than one record, you must copy the record that you want to a new data table. Refer to the sample code below on how this is done. Do note that not all fields will be updated. Below is the list of fields currently allowed for an update.
For FidelioSPMSWSXML function, the poUxpRes need to serialize first before using the function below.
Public Function SerializeObject(ByVal poObject As Object) As String
Dim oWriter As XmlSerializer
Dim oMemory As MemoryStream
oWriter = New XmlSerializer(poObject.GetType)
oMemory = New MemoryStream
oWriter.Serialize(oMemory, poObject)
SerializeObject = System.Text.UnicodeEncoding.Default.GetString(oMemory.ToArray)
oMemory.Dispose()
oMemory = Nothing
oWriter = Nothing
End Function
Table 4-180 Data Field Codes
Code | Description | Required |
---|---|---|
RES_AWARD_LEVEL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_BOARDCC_EXT |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_BOOKNR |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_CAB |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_CANCEL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_CLASSIFICATION |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_CRUISE_DAYS |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_DIS_E |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_EMAIL_SHIP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_EMB_E |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_GRP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_HANDICAPCODE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_HANDIREMARKS |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_NOOFCRUISES |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_PAXCLASS |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_PPD_TAG |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_QUEUEID |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_RFID |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_SIGNOFFPORT_ID |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_SIGNONPORT_ID |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_TRAVEL_TYPE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_V_GUESTID |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_V_PRIMARY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_CITY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_COUNTRY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_FRQ_CARDNO |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_FSTN |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_HANDICAPED |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_LOYALTY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_NAME |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Yes |
UXP_A_OTHNAME |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_SALUT |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_STATE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_STREET |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_STREET2 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_STREET3 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_TITEL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_TRAV_INSURE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_ZIP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_INSURE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_BIRTHD |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_BIRTHNAT |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_BIRTHP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_CITY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_ZIP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_COUNTRY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_EMAIL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_MOB_PHONE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_NAME |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_PHONE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_STATE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_STREET |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_CONT_STREET2 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_RELATIONSHIP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_EMAIL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_EMAIL2 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_MNAME |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_NATION |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_PASSDI |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_PASSEX |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_PASSNO |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_PASSPI |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_PASSPI_COUNTRY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_REPEATER |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_REPEATER_OTHER |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_SEX |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_TELNO |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_PROFESSION |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_ADDRESS1 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_ADDRESS2 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_CITY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_EMAIL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_PHONE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_STATE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_STREET |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_P_VISA_ZIP |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
RES_REMARKS2 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_LANG |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_LANG2 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_LANG3 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_LANG4 |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_EXTERNALID |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_MARTIAL |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_HAIR |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_EYES |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_WEIGHT |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_HEIGHT |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_MOB_TELNO |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_STAFF_DIV |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_H_STAFF_POS |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_BOOKNO |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_BKDATE |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_BKPASSEX |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_BKPASSPI |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_C_BKPASSPI_COUNTRY |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
UXP_A_OTHFSTN |
If no changes, please skip this field. See SPMS Data Dictionary for further description. |
Optional |
pbyPicture
This is the byte array of the picture file.
pnAccID
You can get this value from the poUxpRes field UXP_A_ID.
psReason
Input is optional when the absent of psNatID.
Input is required when the present of psNatID, pass this value as empty string if NO input reason needed.
psNatID
This field is optional.
Return Values
CResponseXml.bSuccess = True when update is successful.
CResponseXml.bSuccess = False when update has failed.
When success CResponseXml.oObj(0) = <uxp_a_id>
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateGuestInfo",
"SESSIONID", New Object() { SerializeObject(oUxpRes), <Picture
Byte Array>, 1})
UpdateGuestMessage
This function adds or updates the guest message.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateGuestMessage” — below is the list of psParam or poParam.
Table 4-181 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMsgD |
Integer |
Unique Message ID (0 for add new record). |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psSender |
String(50) |
Sender. |
Yes |
psMessage |
String(1000) |
Message to the guest. |
Yes |
peDeliveryMode |
Enum |
0-NoDelivery. 1-DeliverAtAdvanceQCIWizard. 2-DeliverAtGangway. |
Yes |
peAcknowledgement |
Enum |
0-NoAcknowledge. 1-UserAcknowledgeWithLog. 2-ManagerAcknowledgeWithLog. 3-DoNotContinue (8.0 only). |
Yes |
peType (8.0 only) |
Enum |
0-Standard. 1-Priority. 2-Silent. |
Yes |
pdStartDate (8.0 only) |
Integer |
Nothing=Always Active. |
Yes |
pdExpiry (8.0 only) |
Date |
Nothing=Always Active. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateGuestMessage",
"SessionID", New Object() {12345,1234576,"Guest","Guest have parcel
in front desk",2,1, 0,DateTime.SpecifyKind(#01-01-2014 3:00:00 pm#,
DateTimeKind.Unspecified), DateTime.SpecifyKind(#06-01-2014 3:00:00
pm#, DateTimeKind.Unspecified))
UpdateInvoiceStatus
This function updates the Invoice batch print status in SPMS.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateInvoiceStatus” — below is the list of psParam or poParam.
Table 4-182 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Guest ID. |
Yes |
pbBatchPrint |
Boolean |
True = Print in Quick Billing Screen. False = Do not print in Quick Billing Screen. |
Yes |
psEMail |
String(72) |
Ship Email Address. |
Yes |
Below are the descriptions of the parameters.
pnAccID
Unique Guest ID, return from SearchPassenger.
pbBatchPrint
True – Print in Quick Billing Screen.
False – Do not print in Quick Billing Screen.
psEMail
e-Mail address to send the invoice to.
Return Values
CResponseXml.bSuccess = True when UpdateInvoiceStatus is successful.
CResponseXml.bSuccess = False when UpdateInvoiceStatus has failed.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateInvoiceStatus",
"SESSIONID", New Object() {12345, True, “[EMAIL ADD]”})
UpdateLuggageLink
This function links the luggage to the guest. If the luggage is already linked to a different guest, it will overwrite it.
Input Parameters
psFunction= “UpdateRFIDEncoded” — below is the list of psParam or poParam.
Table 4-183 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psSearchStr |
String |
Unique Payer Account ID or Board Card or PGID or Pax ID depends on the peSearchType. |
Yes |
psRFIDUID |
String(16) |
Convert the value to HEX. |
Yes |
peSearchType |
Enum |
InternalID = 0 'res_acc PGID = 1 'res_pgid BoardCard = 2 'res_boardcc PaxID = 3 'res_referenz Cabin = 4 'res_cab Default value = InternalID |
Optional |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateLuggageLink",
"SessionID", New Object() {12345, ”E01581A07C123B”})
UpdateMessageStatus
This function updates the message delivered status.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateMessageStatus” — below is the list of psParam or poParam.
Table 4-184 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMsgID |
Integer |
SPMS Unique Message ID. |
Yes |
pbDelivered |
Boolean |
True = Set the message status to delivered. False – Set the message status to not delivered. |
Yes |
Below are the descriptions of the parameters.
pnMsgID
SPMS Unique Message ID, return from GetMessage.
pbDelivered
True = Set the message status to delivered.
False – Set the message status to not delivered.
Return Values
CResponseXml.bSuccess = True when UpdateMessageStatus is successful.
CResponseXml.bSuccess = False when UpdateMessageStatus has failed.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateMessageStatus",
"SESSIONID", New Object() {12345, #1/1/2011#, #1/12/2011#, 0, ""})
UpdatePostingStatus
This function updates the guest posting status.
Input Parameters
psFunction= “UpdatePostingStatus” — below is the list of psParam or poParam.
Table 4-185 psParam
Parameter | Type | Description | Required |
---|---|---|---|
peSearchType |
Enum |
0 = Internal ID. 1 = PGID. 2 = BoardCard. 3 = Pax ID. |
Yes |
psSearchStr |
String |
Unique Payer Account ID or Board Card or PGID or Pax ID depends on the peSearchType. |
Yes |
pnStatus |
Byte |
0 – Posting disable 1 - Posting enable. 2 – Posting disable but manual posting allow. |
Yes |
psReason |
String(900) |
The reason to change the status. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdatePostingStatus",
"SessionID", New Object() {0,12345,0,”Credit Limit Exceeded”})
UpdatePromoterStatus
This function notifies the SPMS that the promotion has been view in the web client.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdatePromoterStatus” — below is the list of psParam or poParam.
Table 4-186 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnPrdID |
Integer |
Promotion ID. |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psCode |
String(20) |
Promotion Code. This code is return from field ESE_ID in WSFunction, GetPromotWebClient. |
Yes |
Return Values
CResponseXml.bSuccess = False when update failed.
CResponseXml.bSuccess = True when update successful.
Example:
oResponse = FidelioWS("UpdatePromoterStatus",
New Object() {3565, 12345, "73B"})
UpdateRFIDEncoded
This function marks the RFID as encoded successfully. The GETRFIDEncodingData, ENCODED field will return “1” when this function is called and successfully executed.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateRFIDEncoded” — below is the list of psParam or poParam.
Table 4-187 psParam
Parameter | Type | Description | Required |
---|---|---|---|
psRFIDUID |
String(16) |
Convert the value to HEX. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateRFIDEncoded",
"SessionID", New Object() {”E01581A07C123B”})
UpdateSpecialRequest
This function adds or updates the guest special request.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateSpecialRequest” — below is the list of psParam or poParam.
Table 4-188 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnSrtD |
Integer |
Unique Special Request ID (0 for add new record). |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psCode |
String(6) |
Special Request Code. |
Yes |
psVid |
String(100) |
Special Request Unique External ID. |
Yes |
psDescription |
String(1000) |
Special Request Description. |
Yes |
pnExtID |
Double |
Special Request External ID. |
Yes |
psExtCode |
String(15) |
Special Request External Code. |
Yes |
pnQuantity |
Integer |
Special Request Quantity. |
Yes |
pdDeliveryDate |
Date |
Expected Delivery Date and Time. |
Yes |
psLocation |
String(30) |
Location. |
Yes |
psOdiID |
String(6) |
Delivery Division. |
Yes |
pdEventDate |
Date |
Special Request Event Date. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful. CResponseXML.oObj = srt_id (Unique Special Request ID).
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateSpecialRequest",
"SessionID", New Object() {12345,1234576,"Code","Vid","Description",
2, "ExtCode", 1, DateTime.SpecifyKind(#01-01-2013 3:00:00 pm#, DateTimeKind.Unspecified),
"Location", "GRP", DateTime.SpecifyKind(#01-01-2013 3:00:00 pm#, DateTimeKind.Unspecified))
UpdateTravelDoc
This function adds or updates the travel document.
Input Parameters
psFunction= “UpdateTravelDoc” — below is the list of psParam or poParam.
Table 4-189 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnVisID |
Integer |
Unique Travel Document ID (0 for add new record). |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Yes |
psCountry |
String(6) |
Country. |
Yes |
psNumber |
String(20) |
Document Number. |
Yes |
psVisType |
String(6) |
Internal Document Type. |
Yes |
pdIssueDate |
Date |
Issue Date. |
Yes |
psIssuePlace |
Date |
Issue Place. |
Yes |
pdExpiryDate |
Date |
Expiry Date. |
Yes |
psVid |
String(100) |
Unique External ID, for Data Import. |
Yes |
pdRMUDate |
Date |
RMU Date. |
Yes |
psDocType |
String(6) |
Document Type. |
Yes |
psFirstName |
String(40) |
First Name. |
Yes |
psMiddleName |
String(20) |
Middle Name. |
Yes |
psLastName |
String(40) |
Last Name. |
Yes |
pdBirthDate |
Date |
Birth Date. |
Yes |
psRemoteID |
String(30) |
Remote ID |
Yes |
psMrz1 |
String(100) |
MRZ 1. |
Yes |
psMrz2 |
String(100) |
MRZ 2. |
Yes |
psMrz3 |
String(100) |
MRZ 3. |
Yes |
psDocName |
String(100) |
Document Name. |
Yes |
psGUID |
String(50) |
GUID, for CMS. |
Yes |
pnEntry |
Integer |
Number of Allow Entry. |
Yes |
pdValidFrom |
Date |
Valid From. |
Yes |
pnDurationOfStay |
Integer |
Duration of Stay. |
Yes |
pbyDocImage |
Byte Array |
Document Image. |
Yes |
pbyDocPhoto |
Byte Array |
Document Photo. |
Yes |
pbyMultiPageDocImage |
Byte Array |
Multipage Scan document image. |
Yes |
psFileName |
String(100) |
Original File Name for file upload. |
Yes |
pbAssignPhotoToAccount |
Boolean |
True – Assign the Document Photo to Guest Photo. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful, CResponseXML.oObj = vis_id (Unique Document ID).
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateTravelDoc",
"SessionID", New Object() {12345,1234576,"US","Bxxxx","P",DateTime.SpecifyKind(#01-01-2009#,
DateTimeKind.Unspecified), "Florida", DateTime.SpecifyKind(#01-01-2019#,
DateTimeKind.Unspecified), "", DateTime.SpecifyKind(#12:00:00 AM#,
DateTimeKind.Unspecified), "P", "FirstName", "", "LastName", DateTime.SpecifyKind(#01-01-1960#,
DateTimeKind.Unspecified), "", "", "", "", "Passport", "", 999, DateTime.SpecifyKind(#01-01-2009#,
DateTimeKind.Unspecified), 30, Nothing, Nothing, Nothing, "", False)
UpdateTravelDocAdvance
This function updates the travel document with selected fields. To add a new record you must use function UpdateTravelDoc.
Input Parameters
psFunction= “UpdateTravelDocAdvance” — below is the list of psParam or poParam.
Table 4-190 psParam for XML
Parameter | Type | Description | Required |
---|---|---|---|
poVis |
String/Datatable |
You must create a WSF to return all fields from VIS view and the data table. One record is allowed at one time, JSON – string, XML = Datatable. Contact Oracle Support to obtain the WSF scripts. |
Yes |
pbAssignPhotoToAccount |
Boolean |
True – Assign the Document Photo to Guest Photo. |
Yes |
Table 4-191 psParam for JSON
Parameter | Type | Description | Required |
---|---|---|---|
poVis |
String/Datatable |
You must create a WSF to return all fields from VIS view and the data table. One record is allowed at one time, JSON – string, XML = Datatable. Please contact Oracle Support to obtain the WSF scripts. |
Yes |
pnVisID |
Integer |
Unique Travel Document ID. |
Yes |
pbAssignPhotoToAccount |
Boolean |
True – Assign the Document Photo to Guest Photo. |
Yes |
Below are the descriptions of the parameters.
poVis
This is the data table returned from the WSF (SELECT * FROM vis WHERE vis_id = <PARAMNUM1>). However, only one record is allowed at any one time. For FidelioSPMSWSXML function the poVis need to serialize first using the below function
Public Function SerializeObject(ByVal poObject As Object) As String
Dim oWriter As XmlSerializer
Dim oMemory As MemoryStream
oWriter = New XmlSerializer(poObject.GetType)
oMemory = New MemoryStream
oWriter.Serialize(oMemory, poObject)
SerializeObject = System.Text.UnicodeEncoding.Default.GetString(oMemory.ToArray)
oMemory.Dispose()
oMemory = Nothing
oWriter = Nothing
End Function
Table 4-192 xxxx
Parameter | Type | Description | Required |
---|---|---|---|
pnVisID |
Integer |
Unique Travel Document ID. |
Yes |
pnAccID |
Integer |
Unique Account ID. |
Optional |
psCountry |
String(6) |
Country. |
Optional |
psNumber |
String(20) |
Document Number. |
Optional |
psVisType |
String(6) |
Internal Document Type. |
Optional |
pdIssueDate |
Date |
Issue Date. |
Optional |
psIssuePlace |
Date |
Issue Place. |
Optional |
pdExpiryDate |
Date |
Expiry Date. |
Optional |
psVid |
String(100) |
Unique External ID, for Data Import. |
Optional |
pdRMUDate |
Date |
RMU Date. |
Optional |
psDocType |
String(6) |
Document Type. |
Optional |
psFirstName |
String(40) |
First Name. |
Optional |
psMiddleName |
String(20) |
Middle Name. |
Optional |
psLastName |
String(40) |
Last Name. |
Optional |
pdBirthDate |
Date |
Birth Date. |
Optional |
psRemoteID |
String(30) |
Remote ID. |
Optional |
psMrz1 |
String(100) |
MRZ 1. |
Optional |
psMrz2 |
String(100) |
MRZ 2. |
Optional |
psMrz3 |
String(100) |
MRZ 3. |
Optional |
psDocName |
String(100) |
Document Name. |
Optional |
psGUID |
String(50) |
GUID, for CMS. |
Optional |
pnEntry |
Integer |
Number of Allow Entry. |
Optional |
pdValidFrom |
Date |
Valid From. |
Optional |
pnDurationOfStay |
Integer |
Duration of Stay. |
Optional |
pbyDocImage |
Byte Array |
Document Image. |
Optional |
pbyDocPhoto |
Byte Array |
Document Photo. |
Optional |
pbyMultiPageDocImage |
Byte Array |
Multipage Scan document image. |
Optional |
psFileName |
String(100) |
Original File Name for file upload. |
Optional |
pbAssignPhotoToAccount
True – Assign the Document Photo to Guest Photo.
pnVisID
You can get this value from the WSF field vis_id.
Return Values
CResponseXml.bSuccess = True when update is successful.
CResponseXml.bSuccess = False when update has failed.
Example:
oResponse =
goWS.FidelioSPMSWSXML("UpdateTravelDocAdvance", "SESSIONID", New Object()
{ SerializeObject(oVis), True, <VIS_ID>})
UpdateWorkOrder
This function adds or updates the maintenance work order.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateWorkOrder” — below is the list of psParam or poParam.
Table 4-193 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwrID |
Integer |
Unique Work Order ID (0 for add new record). |
Yes |
psWorkOrder |
String(20) |
Work Order Number. |
Yes |
psPublicLocation |
String(6) |
Public Location, link to TYP_MWL.TYP_ART. |
Yes |
psCabin |
String(20) |
Cabin Number. |
Yes |
psTaskDesc |
String(1000) |
Task Description. |
Yes |
pnCompleteStatus |
Integer |
Completion Status. Must be 0, 25, 50, or 100 (This only applies to Insert new entry). |
Yes |
psLocation |
String(10) |
Location, link to ARE_CODE. |
Yes |
psPictureFileName |
String(50) |
Filename of the picture file uploaded. |
Yes |
psTask |
String(6) |
Task Code, link to TYP_MWT.TYP_ART, default value XXX. |
Yes |
psType |
String(6) |
Task Type, link to TYP_WOT.TYP_ART, default value WOT01. |
Yes |
pnXDocID |
Long |
Unique XDOC ID, the table where the picture is stored. |
Yes |
psPriority |
String(6) |
Priority Code, link to TYP_MPI.TYP_ART. |
Yes |
psLocationStatus |
String(6) |
Location Status, link to TYP_MLS.TYP_ART. |
Yes |
pbyPicture |
Byte Array |
Picture File, only needs to send when the picture is added or update. Send nothing or empty array when no picture to update. Existing picture will not be deleted even when no picture is send. |
Yes |
pbPrint |
Boolean |
Indicate to print the work order, PAR->Maintenance->Use Work Order Printer Service must be enabled in order to print. |
Yes |
psComment |
String(2000) |
Comment Field. |
Yes |
psReportByCabID |
String(20) |
Reported By Cabin Number. |
Yes |
pbRejected |
Boolean |
Rejected Status. |
Yes |
psReportByUser |
String(50) |
Reported By Person. |
Optional |
pdReportedDate |
Date |
Reported Date. |
Optional |
Note: psPublicLocation, psCabin and psLocation, only one of the three variable needs to pass in.
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful.
CResponesXml.oObj = mwr_id when bSuccess = True.
-
pnXDocID = 0 and picture upload during update/insert means the add new picture.
-
pnXDocID = 0 and no picture upload during update mean sremove picture.
-
pnXDocID = 0 and no picture upload during insert means no picture.
-
pnXDocID > 0 and picture upload during update/insert means overwrite the existing picture.
-
pnXDocID > 0 and no picture upload during update/insert means use the existing picture.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateWorkOrder",
"SessionID", New Object() {12345,"1234576","LOC1","","Testing", 0,
"", "", "XXX", "WOT01", 0, "1" , "1", Nothing, True)
UpdateWorkOrderAssignment
This function will assign person/group to the maintenance work order.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateWorkOrderAssignment” — below is the list of psParam or poParam.
Table 4-194 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwaID |
Integer |
Unique Work Order Assignment ID (0 for add new record). |
Yes |
pnMwrID |
Integer |
Unique Work Order ID. |
Yes |
psAssignGroup |
String(6) |
Assignment Group, link to TYP_MWG.TYP_ART. |
Yes |
psAssignCrew |
Integer |
Unique Crew ID. |
Yes |
psRemark |
String(1000) |
Remarks. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateWorkOrderAssignment",
"SessionID", New Object() {12345,123457, "1", 12345, "Testing")
UpdateWorkOrderImage
This function adds or updates the maintenance work order additional image.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateWorkOrderImage” — below is the list of psParam or poParam.
Table 4-195 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwpID |
Integer |
Unique Work Order Image ID (0 for add new record). |
Yes |
pnMwrID |
Integer |
Unique Work Order ID. |
Yes |
psFileName |
String(50) |
Original filename of the image file. |
Yes |
psComment |
String(100) |
Comment on the image. |
Yes |
pbyImage |
Byte Array |
Image. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateWorkOrderImage",
"SessionID", New Object() {12345,123457,"Cabin.jpg","Shower not working",<Image
byte array>)
UpdateWorkOrderItem
This function adds or updates the maintenance work order item required.
Note: Not supported when it is connected to an offline QCI Sync database.
Input Parameters
psFunction= “UpdateWorkOrderItem” — below is the list of psParam or poParam.
Table 4-196 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnMwiID |
Integer |
Unique Work Order Item ID (0 for add new record). |
Yes |
pnMwrID |
Integer |
Unique Work Order ID. |
Yes |
pnItemCode |
Integer |
Unique Maintenance Item ID, link to MIT_ID. |
Yes |
pnQuantity |
Integer |
Quantity. |
Yes |
pnPrice |
Double |
Price. |
Yes |
psRemark |
String(500) |
Remarks. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update/Add failed.
CResponseXml.bSuccess = True when Update/Add successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateWorkOrderItem",
"SessionID", New Object() {12345,123457,1,1,2.0, "Testing")
ValidateCrewPinCode
This function validates the crew PIN code to see if it matches with the existing PIN code.
Input Parameters
psFunction= “ValidateCrewPinCode” — below is the list of psParam or poParam.
Table 4-197 psParam
Parameter | Type | Description | Required |
---|---|---|---|
pnAccID |
Integer |
Unique Crew Account ID. |
Yes |
pnPinCode |
Integer |
New pin code. |
Yes |
Return Values
CResponseXml.bSuccess = False when Update failed.
CResponseXml.bSuccess = True when Update successful.
Example:
oResponse = goWS.FidelioSPMSWSXML("UpdateCrewPinCode",
"SessionID", New Object() {12345, 1234})
Version
This function returns the version number of the Web Service in use. This is used to determine a list of available services for each version as more services will be added from time to time. It is advisable to check the version number of the Web Services to ensure the client application is backward compatible and to determine the list of services available before proceeding.
Input Parameters
psFunction= “Version”. There is no input parameter and sends NULL to psParam or poParam.
psParam
None.
Return Values
CResponseXml .oObj = Version number of the web service in use.
Example:
oResponse
= goWS.FidelioSPMSWSXML("Version", "SESSIONID", Nothing)
WSFunction
This function retrieves information from SPMS by calling a user defined function. You must read a separate document on the available function as they differ from customer to customer.
Input Parameters
psFunction= “WsFunction” — below is the list of psParam or poParam.
Table 4-198 psParam
Parameter | Type | Description | Required |
---|---|---|---|
poParam |
Array |
Array of parameter, this parameter different from function to function. |
Optional |
Below are the descriptions of the parameters.
poParam
The first element is the function name, the rest depends on one function to another.
If the parameter is date field, you must pass in a date string in YYYYMMDDHHMMSS format.
Return Values
CResponseXml.bSuccess = False when input values are invalid or no record found.
CResponseXml.bSuccess = True and CResponseXML.oTables = Array of ADO.NET data table when input values are valid.
Example:
oResponse
= goWS.FidelioSPMSWSXML("WSFunction", "SESSIONID", New Object() {"GetCabin",
"05002"})
