Gate Location

The Gate Location setup enables you to configure the location of the security gate. You can turn off any of the gate locations that you do not need. On the Gateway Location page, the drop-down selection will only list active gate locations.

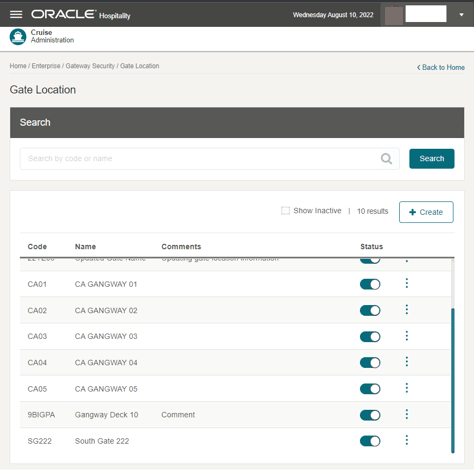

Figure 4-6 Gate Location

The Gate Location enables you to assign an active gate location to the Gateway Security, Gate Settings page. You can create a new gate location, and if it is no longer in use or needed, you can deactivate it by sliding the Status to off.

Creating a Gate Location

1. From the Administration menu, select Enterprise, Gate Location.
2. On the Gate Location page, click Create.
3. The system navigates to the Create Gate Location page.
4. Enter the following information and then click Save.

   • Status: The system default Status is active. Toggling the button will set it to active or inactive.

   • Code: Enter a unique code for the gate location.

   • Name: Enter the gate location name.

   • Comment(s): Enter gate location description. This is an optional field.

Editing a Gate Location

1. On the Gate Location page, click the vertical ellipsis of the gate location and then click Edit option.
2. The system navigates to the Edit Gate Location page.
3. Update the information and click Save.

Deleting a Gate Location

1. On the Gate Location page, click the vertical ellipsis of the gate location and then click Delete option.

2. At the confirmation message, choose Delete to proceed deleting the record or Cancel to return to the previous screen.

Searching a Gate Location

1. On the Gate Location page, all active gate location records are shown in the results view.
2. To lookup a gate location, enter a value in the search box then click Search.
3. The system shows all the matching active records in the results view.
4. To include all inactive records in the result view, select the Show Inactive checkbox.
