Alternative Configuration

In the configuration shown below, the SPMS Database Server and SPMS Web Server are installed separately on different machines. Here, the SPMS Secure Server is installed on the same machine as the SPMS Database. In the older SPMS version, the SPMS Database Server handles all database requests and also manages the secure server responsibilities through the two SPMS Database schemas.

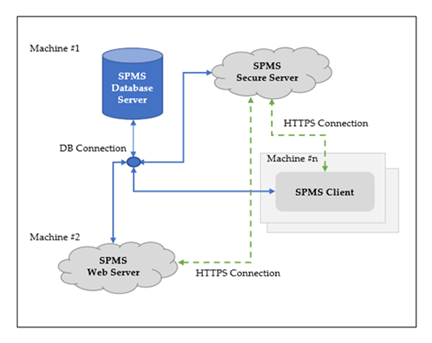

Figure 1-3 Alternative SPMS Configuration


This figure shows the Alternative SPMS Configuration

Minimum System Specification for Combined Secure Server and Database Server

  • Operating System:

    • Microsoft Windows Server 2016

  • Memory:

    • 8 GB of RAM, and

    • 160 GB of disk space.

  • Oracle Database Version:

    • Oracle Database Server 19c

  • Oracle Database Client Version:

    • Oracle Database 32-bit Full Client for 19c including the ODAC

  • Web Browser:

    • any web browser, visit Oracle Software Web Browser Support Policy.

  • Microsoft Internet Information Services (IIS):

    • IIS v10 with Management Compatibility Services

  • Microsoft .NET Framework runtime:

    • Framework version 2 enabled,

    • Framework version 3.5 enabled, and

    • Framework version 4.8 enabled.
