Typical Configuration

In the configuration shown below, the SPMS Database Server and SPMS Web Server are installed separately on different machines. The benefit of this configuration is that there is a clear delineation where all the database traffic will be directed to the machine hosting the SPMS Database, and all the web requests will go to the SPMS Web Server. The minimum system specification for this configuration remains the same as recommended in SPMS Database Server, SPMS Secure Server, SPMS Web Server, and SPMS Application Clients.

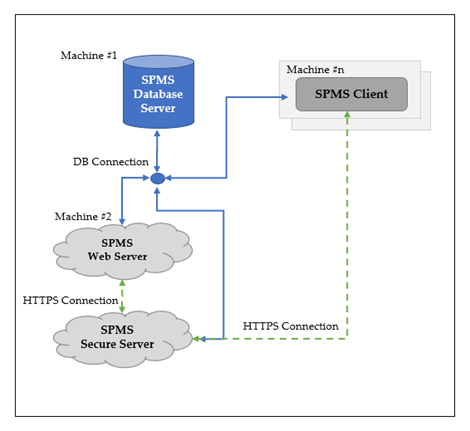

Figure 1-2 Typical SPMS Configuration
