6 Setting Up SPMS QCI Offline Operation

In SPMS, there is a feature that allows the shore side client machines to continue operating in real-time, even in an off-line mode, where there is no connection to the ship side SPMS Database Server.

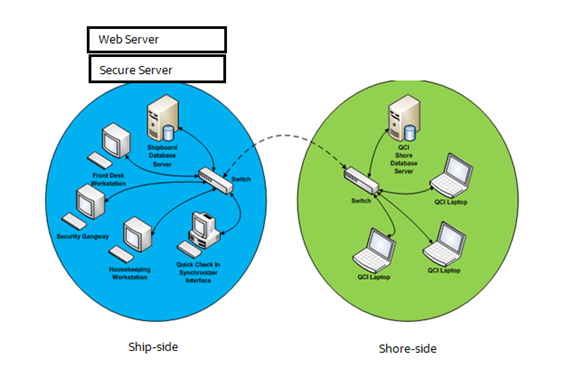

Figure 6-1 SPMS QCI Offline Operation


This figure shows the SPMS QCI Offline Operation

To support this, you need an additional Database Server that must be placed on the shore side, as depicted in the diagram above. On the shore-side, only the Database Server is required. SPMS Web Server and Secure Server do not to be placed on the shore side.

Prerequisites

  • The version of Oracle Database Edition of the QCI Shore database and Ship database must be identical. For example; if the ship is running on Oracle 19c then the shore QCI database must also run on Oracle 19c.

  • Both the Ship database and the QCI Shore database password must be identical. If a different password is used, the connection will show Disconnected.
