OPERA Cloud Outbound Configuration for IGT

A new outbound system configuration is required for OPERA Cloud to connect to IGT.

For additional details on creating an outbound configuration, refer to Configuring Outbound Systems in the OPERA Cloud Services documentation.

  1. Log in to OPERA Cloud and click the vertical ellipsis and select Toolbox.

    This image shows the OPERA Cloud Toolbox menu.

  2. Select System Setup, select Outbound, and then select Outbound Configuration.


    This image shows the OPERA Cloud Toolbox System Setup menu with Outbound Configuration being selected.

  3. Select the Property and then click New to set up the new Outbound Configuration.


    This image shows the Property search on the Outbound Configuration page.

    This image shows the configuration fields on the Outbound Configuration screen.
  4. Complete the following fields and click Save. For the specific details on each field and how to create an Outbound Configuration, see Managing Outbound System Configuration in the OPERA Cloud Services documentation.

    1. Context: Select the Property option.

    2. Property: Select the property for which this configuration is being set up.

    3. Outbound Type: Select GAMING_CUSTOM from the list of options.

    4. Outbound Code: Provide the unique identifier (for example: IGT_{Property_Name}).

    5. Outbound Description: Provide the description (optional).

    6. Authorization Type: Select NONE from the list of options. By selecting this option, all other Authorization related fields no longer appear.

    7. Application Key: Leave this field blank.

    8. Enable External System: Select this option.

    9. Enable Conversions: Select this option.

    10. External Property: Enter the Site ID provided by IGT.

    11. Bypass Proxy: Select this option.

    Once the configuration is saved, the final configuration is shown below:

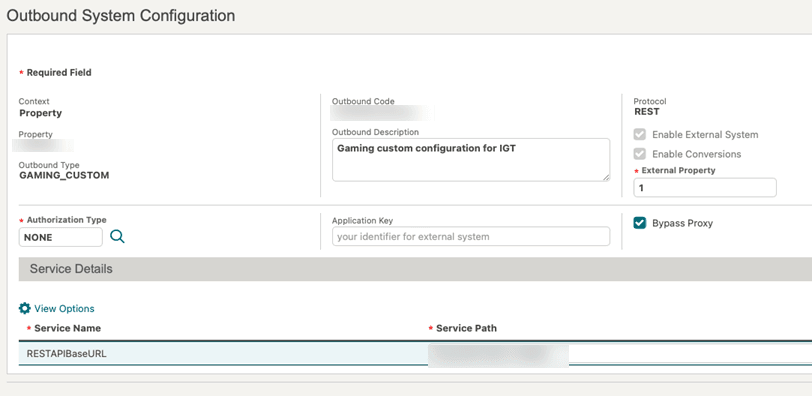

    This image shows the completed configuration.

  5. Add the following Custom Headers for this outbound configuration. Click the I Want To... from the search results row where you want to define Custom Headers.

    Once the configuration is saved, the final configuration is shown below:

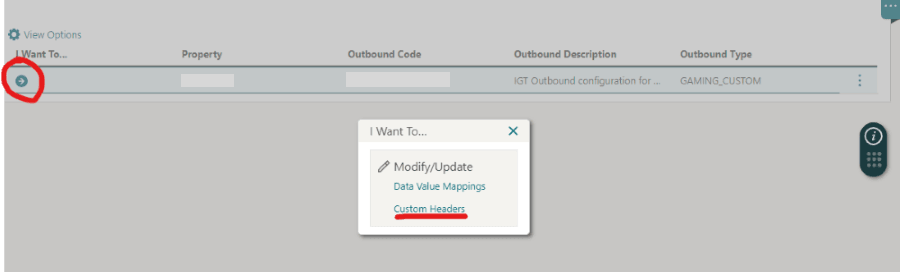

    This image shows how to add custom headers.
    Header Name Header Value

    CompPostingURL

    This is the URL that is going to be used for the Comp Posting operations.

    HotelID

    The Site ID from IGT.

    UserID

    The UserID used in CRM operations.

    CompPostingUserID

    The MicrosUserId.

    CompRedemptionUserID

    The user id for Comp redemption

    Once the above fields are completed, save the outbound configuration and proceed to Data Value Mappings (DVM).

Parent topic: IGT
