Scenario 3: Settlement on Existing Credit Card Payment Method

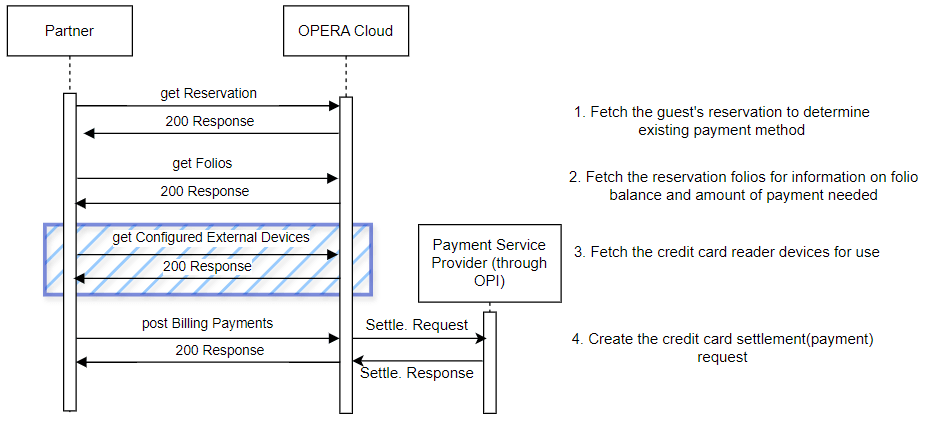

Figure 6-3 Sequence Diagram for Scenario 3


This image shows the sequence diagram for Scenario 3 with settlement on existing credit card payment method.

Table 6-3 Description of Steps

Description of Steps Operation Samples

1

Partner queries the guest reservation to retrieve the reservation payment method and inform the guest that a payment can be made on the credit card during the stay (to reduce the charges existing on the reservation folio) or it is time to checkout (to pay for the reservation charges).

The get reservation response includes the payment method on the reservation and the last 4 digits of the credit card. The guest is informed that a credit card settlement is requested on the VISA card’s last 4 digits of 1007.

If the guest verifies this is the card for the settlement, the cardId id value, the cardType, and the paymentMethod found in the get reservation response is used in the request for settlement (postBillingPayments) to indicate use of an existing credit card payment method.

getReservation

{{HostName}}/rsv/v1/hotels/{{HotelId}}/reservations/{{ReservationId}}?fetchInstructions=Reservation&fetchInstructions=ReservationPaymentMethods

200 Response with reservationPaymentMethods>paymentMethod=VA (VISA) and paymentCard>cardId>id:

{
    "reservations": {
        "reservation": [
            {
                "reservationIdList": [
                    {
                        "id": "<ID_NUMBER>",
                        "type": "Reservation"
                    },
                    {
                        "id": "<ID_NUMBER>",
                        "type": "Confirmation"
                    }
                ],
                "sourceOfSale": {
                    "sourceType": "PMS",
                    "sourceCode": "HOTEL"
                },
                "roomStay": {
                    "registrationNumber": {
                        "id": "",
                        "type": "Reservation"
                    },
                    "currentRoomInfo": {
                        "roomType": "STDQ",
                        "roomOwnershipType": "Regular"
                    },
                    "roomRates": [
                        {
                            "total": {
                                "amountBeforeTax": 200
                            },
                            "rates": {
                                "rate": [
                                    {
                                        "base": {
                                            "amountBeforeTax": 200,
                                            "baseAmount": 200
                                        },
                                        "shareDistributionInstruction": "Full",
                                        "total": {
                                            "amountBeforeTax": 0
                                        },
                                        "start": "2024-09-11",
                                        "end": "2024-09-11"
                                    }
                                ]
                            },
                            "guestCounts": {
                                "childBuckets": {
                                    "bucket1Count": 0,
                                    "bucket2Count": 0,
                                    "bucket3Count": 0,
                                    "bucket4Count": 0,
                                    "bucket5Count": 0
                                },
                                "adults": 2,
                                "children": 0
                            },
                            "roomType": "STDQ",
                            "ratePlanCode": "IHUBASE1",
                            "start": "2024-09-11",
                            "end": "2024-09-11",
                            "suppressRate": false,
                            "marketCode": "CORP",
                            "marketCodeDescription": "Group Corporate (SUBH)",
                            "sourceCode": "CAT",
                            "sourceCodeDescription": "Catering",
                            "numberOfUnits": 1,
                            "pseudoRoom": false,
                            "roomTypeCharged": "STDQ",
                            "houseUseOnly": false,
                            "complimentary": false,
                            "fixedRate": false,
                            "discountAllowed": true,
                            "bogoDiscount": false,
                            "allowAutoCheckIn": false
                        }
                    ],
                    "arrivalDate": "2024-09-11",
                    "departureDate": "2024-09-12",
                    "expectedTimes": {
                        "reservationExpectedArrivalTime": "2024-09-11",
                        "reservationExpectedDepartureTime": "2024-09-12"
                    },
                    "guarantee": {
                        "guaranteeCode": "6PM",
                        "shortDescription": "6pm Hold"
                    },
                    "total": {
                        "amountBeforeTax": 0
                    },
                    "totalPoints": {
                        "points": 0
                    },
                    "roomNumberLocked": false,
                    "printRate": true
                },
                "reservationGuests": [
                    {
                        "profileInfo": {
                            "profileIdList": [
                                {
                                    "id": "<ID_NUMBER>",
                                    "type": "Profile"
                                }
                            ],
                            "profile": {
                                "customer": {
                                    "personName": [
                                        {
                                            "givenName": "<FIRST_NAME>",
                                            "surname": "<LAST_NAME>",
                                            "nameType": "Primary"
                                        },
                                        {
                                            "givenName": "<FIRST_NAME>",
                                            "surname": "<LAST_NAME>",
                                            "nameType": "Alternate"
                                        },
                                        {
                                            "nameType": "External"
                                        }
                                    ],
                                    "gender": "Unknown",
                                    "birthDate": "<DATE_OF_BIRTH>",
                                    "nationality": "CA",
                                    "nationalityDescription": "<NATIONALITY>"
                                },
                                "addresses": {
                                    "addressInfo": [
                                        {
                                            "address": {
                                                "isValidated": true,
                                                "addressLine": [
                                                    "<ADDRESS>",
                                                    null,
                                                    null,
                                                    null
                                                ],
                                                "postalCode": "<POSTAL_CODE>",
                                                "country": {
                                                    "value": "United States of America",
                                                    "code": "USA",
                                                    "displayCountryFlag": true
                                                },
                                                "language": "ES",
                                                "type": "HOMES",
                                                "primaryInd": true
                                            },
                                            "id": "<ID_NUMBER>",
                                            "type": "Address"
                                        }
                                    ]
                                },
                                "emails": {
                                    "emailInfo": [
                                        {
                                            "email": {
                                                "emailAddress": "username@example.com",
                                                "type": "EMAIL",
                                                "primaryInd": true
                                            },
                                            "id": "<ID_NUMBER>",
                                            "type": "Email"
                                        },
                                        {
                                            "email": {
                                                "emailAddress": "username@example.com",
                                                "type": "EMAIL",
                                                "primaryInd": false
                                            },
                                            "id": "<ID_NUMBER>",
                                            "type": "Email"
                                        }
                                    ]
                                },
                                "profileType": "Guest"
                            }
                        },
                        "arrivalTransport": {
                            "transportationReqd": false
                        },
                        "departureTransport": {
                            "transportationReqd": false
                        },
                        "primary": true
                    }
                ],
                "reservationPaymentMethods": [
                    {
                        "paymentCard": {
                            "cardId": {
                                "id": "874911",
                                "type": "CreditCard"
                            },
                            "cardType": "Va",
                            "cardNumberMasked": "XXXXXXXXXXXXXXXX",
                            "expirationDateMasked": "XX/XX",
                            "expirationDateExpired": false,
                            "cardHolderName": "<FULL_NAME>",
                            "processing": "Eft",
                            "swiped": false,
                            "cardPresent": false,
                            "cardOrToken": "Token"
                        },
                        "emailFolioInfo": {
                            "email": {
                                "emailAddress": "username@example.com"
                            },
                            "emailFolio": false,
                            "id": "<ID_NUMBER>",
                            "type": "Email"
                        },
                        "paymentMethod": "VA",
                        "description": "<CREDITCARD_TYPE>",
                        "folioView": 1
                    }
                ],
                "cashiering": {
                    "billingPrivileges": {
                        "postingRestriction": false,
                        "preStayCharging": true,
                        "postStayCharging": false,
                        "videoCheckout": true,
                        "creditLimitAutoPay": true
                    },
                    "reverseCheckInAllowed": false,
                    "reverseAdvanceCheckInAllowed": false,
                    "transactionsPosted": false
                },
                "extSystemSync": true,
                "hotelId": "{{HotelId}}",
                "roomStayReservation": true,
                "reservationStatus": "Reserved",
                "computedReservationStatus": "Reserved",
                "walkIn": false,
                "printRate": true,
                "createDateTime": "2024-02-28 22:23:18.0",
                "creatorId": "FIRST_TEST@TEST_ENT1",
                "lastModifyDateTime": "2024-02-28 22:23:18.0",
                "lastModifierId": "FIRST_TEST@TEST_ENT1",
                "createBusinessDate": "2024-02-29",
                "preRegistered": false,
                "upgradeEligible": false,
                "allowAutoCheckin": false,
                "hasOpenFolio": false,
                "allowMobileCheckout": true,
                "allowMobileViewFolio": false,
                "allowPreRegistration": false,
                "optedForCommunication": false,
                "chargeCardNumber": "XXXXXXXXX",
                "backToBack": false,
                "payeeSharer": false
            }
        ]
    },
    "masterInfoList": [
        {
            "codeInfo": [
                {
                    "description": "United States of America",
                    "code": "USA"
                }
            ],
            "codeType": "Country"
        },
        {
            "codeType": "State"
        },
        {
            "codeInfo": [
                {
                    "description": "Home Address",
                    "code": "HOMES"
                }
            ],
            "codeType": "AddressType"
        }
    ],
    "links": [...  ]
}

2

The Partner can use the get Folios call to fetch the amounts that are outstanding on the reservation and inform the guest of their reservation charges and the amount that will be posted to their credit card.

A reservation can have multiple folios open with charges on each. The payment method can also be specific to the folio window. The get Folios response will provide this data.

The roomStay balance amount is the full amount balance on the reservation.

The reservationsFolioWindows section provides the balance amount for the individual folio window number and the payment method set for that folio. Each folio window with a balance amount will need to be settled individually.

getFolios

{{HostName}}/csh/v1/hotels/{{HotelId}}/reservations/{{ReservationId}}/folios?guestPayOnly=true&includeFolioHistory=false&groupType=CheckNo&fetchInstructions=Windowbalances&fetchInstructions=Reservation&fetchInstructions=Payment&fetchInstructions=Payee&simpleFolio=false&limit=100200

Response:

{
    "reservationFolioInformation": {
        "reservationInfo": {
            "reservationIdList": [
                {
                    "id": "<ID_NUMBER>",
                    "type": "Reservation"
                },
                {
                    "id": ",<ID_NUMBER>",
                    "type": "Confirmation"
                }
            ],
            "roomStay": {
                "arrivalDate": "2017-08-27",
                "departureDate": "2017-08-30",
                "originalTimeSpan": {
                    "startDate": "2017-08-27",
                    "endDate": "2017-08-30"
                },
                "bookingTimeSpan": {},
                "expectedTimes": {
                    "reservationExpectedArrivalTime": "2024-07-19 16:36:39.0",
                    "reservationExpectedDepartureTime": "2017-08-30"
                },
                "adultCount": 1,
                "childCount": 0,
                "roomClass": "ALL",
                "roomType": "ASTQ",
                "numberOfRooms": 1,
                "roomId": "501",
                "roomOwnershipType": "Regular",
                "ratePlanCode": "ANI",
                "rateAmount": {
                    "amount": 300,
                    "currencyCode": "USD"
                },
                "rateSuppressed": false,
                "fixedRate": false,
                "guarantee": {
                    "guaranteeCode": "CHECKED IN",
                    "shortDescription": "Checked In"
                },
                "marketCode": "ADH",
                "marketDescription": "AD HOC GROUPS",
                "sourceCode": "VOI",
                "sourceCodeDescription": "Call Center",
                "balance": {
                    "amount": 355.86,
                    "currencyCode": "USD"
                },
                "compBalance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "roomTypeCharged": "ASTQ",
                "roomNumberLocked": false,
                "pseudoRoom": false,
                "backToBackSequence": {},
                "backToBack": false
            },
            "reservationGuest": {
                "givenName": " <FIRST_NAME",
                "surname": "<LAST_NAME>",
                "vip": {},
                "address": {
                    "country": {}
                },
                "anonymization": {},
                "accompanyGuests": [],
                "externalInfo": {},
                "guestRestricted": false,
                "nameType": "Guest",
                "id": "<ID_NUMBER>",
                "type": "Profile"
            },
            "sharedGuests": [],
            "attachedProfiles": [],
            "reservationPaymentMethod": {
                "paymentCard": {
                    "cardType": "Va"
                },
                "paymentMethod": "VA"
            },
            "reservationFolioWindows": [
                {
                    "payeeInfo": {
                        "payeeName": "<FULL_NAME>"
                    },
                    "balance": {
                        "amount": 345.86
                    },
                    "paymentMethod": "VA",
                    "folioWindowNo": 1
                },
                {
                    "payeeInfo": {
                        "payeeName": "<FULL_NAME>"
                    },
                    "balance": {
                        "amount": 10
                    },
                    "paymentMethod": "CA",
                    "folioWindowNo": 2
                }
            ],
            "reservationIndicators": [
                {
                    "indicatorName": "CALLHISTORY",
                    "count": 1
                },
                {
                    "indicatorName": "HISTORYFUTURE",
                    "count": 1
                },
                {
                    "indicatorName": "ASSOCIATEDPROFILES",
                    "count": 1
                },
                {
                    "indicatorName": "DAILYDETAILS",
                    "count": 0
                }
            ],
            "roomStatus": "Clean",
            "sourceOfSale": {
                "sourceType": "PMS",
                "sourceCode": "WEB"
            },
            "waitlist": {},
            "taxType": {
                "collectingAgentTax": false,
                "printAutoAdjust": false
            },
            "guestPreferredCurrency": "USD",
            "reservationCommunication": {
                "telephones": {},
                "emails": {}
            },
            "advanceCheckIn": {
                "advanceCheckedIn": false
            },
            "hotelId": "HotelId",
            "hotelName": "Executive Cloud Hotel",
            "roomStayReservation": true,
            "createDateTime": "2024-07-18 20:45:40.0",
            "lastModifyDateTime": "2024-07-19 17:06:41.0",
            "reservationStatus": "InHouse",
            "computedReservationStatus": "InHouse",
            "walkInIndicator": false,
            "commissionPayoutTo": "None",
            "paymentMethod": "VA",
            "preRegistered": false,
            "openFolio": false,
            "allowMobileCheckout": false,
            "optedForCommunication": false
        },
        "folioWindows": [
            {
                "revenue": {
                    "amount": 345.86,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 345.86,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "paymentMethod": {
                    "paymentCard": {
                        "cardId": {
                            "id": "874911",
                            "type": "CreditCard"
                        },
                        "cardType": "Va",
                        "cardNumberMasked": "XXXXXXXXXXXXXXXX",
                        "expirationDateMasked": "XX/XX",
                        "expirationDateExpired": false,
                        "processing": "Manual",
                        "swiped": true,
                        "cardPresent": false,
                        "cardOrToken": "Token"
                    },
                    "authorizationRule": {
                        "code": 2,
                        "amount": {
                            "amount": 25,
                            "currencyCode": "USD"
                        }
                    },
                    "paymentMethod": "VA",
                    "description": "<CREDITCARD_TYPE>",
                    "folioView": 1
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 1,
                "internalFolioWindowID": "2482498",
                "emptyFolio": false,
                "emptyWindow": false,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 10,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 10,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "paymentMethod": {
                    "paymentMethod": "CA",
                    "folioView": 2
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 2,
                "internalFolioWindowID": "2481826",
                "emptyFolio": false,
                "emptyWindow": false,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 3,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": true
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 4,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": true
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 5,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": true
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 6,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": true
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 7,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": true
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 8,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": true
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 101,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 102,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 103,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 104,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 105,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 106,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 107,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            },
            {
                "revenue": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "payment": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "balance": {
                    "amount": 0,
                    "currencyCode": "USD"
                },
                "debitPayment": {
                    "currencyCode": "USD"
                },
                "debitBalance": {
                    "currencyCode": "USD"
                },
                "payeeInfo": {
                    "payeeId": {
                        "id": "<ID_NUMBER>",
                        "type": "Profile"
                    },
                    "payeeName": "<FULL_NAME>",
                    "payeeAddress": {
                        "address": {
                            "country": {}
                        }
                    }
                },
                "compAccountingInfo": {},
                "folioWindowNo": 108,
                "emptyFolio": true,
                "emptyWindow": true,
                "simpleFolio": false,
                "paymentsOnly": false
            }
        ],
        "postStayChargeAllowed": false,
        "preStayChargeAllowed": false,
        "autoCheckInAllowed": false,
        "postToNoShowCancelAllowed": false,
        "roomAndTaxPosted": false
    },
    "links": []
}

3

The configured credit card reader devices must be known to send with the authorization and settlement requests. A kiosk system might have the credit card reader device attached. Others will need to fetch the hotels configured external devices to get the id of a configured device to populate the terminalId element in the authorization and settlement APIs. The label is expected to be descriptive to indicate where that reader exists. The deviceArea can also be used to identify an area where more than one reader device can belong.

This configuration does not change often, and it is recommended to cache the result and refresh only if issues occur around the credit card reader devices.

getConfiguredExternalDevices

{{HostName}}/int/config/v1/configuredExternalDevices?deviceType=CreditCard&active=true&hotelId={{HotelId}}&deviceCode=ChipAndPin

200 Response:

{
    "configuredExternalDevices": {
        "deviceType": "CreditCard",
        "supportedExternalDevices": [
            {
                "hotelId": "{{HotelId}}",
                "supportedDevices": [
                    {
                        "deviceType": "CreditCard",
                        "deviceCode": "ChipAndPin",
                        "deviceArea": "FRONTOFFICE",
                        "displayName": "Chip and Pin Terminal/Device",
                        "mobileYN": false,
                        "desktopYN": false,
                        "active": true,
                        "id": "1CCREADER1",
                        "label": "Lobby East",
                        "translatableLabel": {
                            "defaultText": "Lobby East",
                            "translatedTexts": []
                        },
                        "iDEditable": true
                    },
                    {
                        "deviceType": "CreditCard",
                        "deviceCode": "ChipAndPin",
                        "deviceArea": "FRONTOFFICE",
                        "displayName": "Chip and Pin Terminal/Device",
                        "mobileYN": false,
                        "desktopYN": false,
                        "active": true,
                        "id": "2CCREADER2",
                        "label": "Lobby West",
                        "translatableLabel": {
                            "defaultText": "Lobby West",
                            "translatedTexts": []
                        },
                        "iDEditable": true
                    },
                    {
                        "deviceType": "CreditCard",
                        "deviceCode": "ChipAndPin",
                        "deviceArea": "BACKOFFICE",
                        "displayName": "Chip and Pin Terminal/Device",
                        "mobileYN": false,
                        "desktopYN": false,
                        "active": true,
                        "id": "3CCREADER3",
                        "label": "Back Office Accounting",
                        "translatableLabel": {
                            "defaultText": "Back Office Accounting",
                            "translatedTexts": []
                        },
                        "iDEditable": true
                    },
                    {
                        "deviceType": "CreditCard",
                        "deviceCode": "ChipAndPin",
                        "deviceArea": "FRONTOFFICE",
                        "displayName": "Chip and Pin Terminal/Device",
                        "mobileYN": false,
                        "desktopYN": false,
                        "active": true,
                        "id": "KIOSKREADER",
                        "label": "Kiosk 1 Reader",
                        "translatableLabel": {
                            "defaultText": "Kiosk 1 Reader",
                            "translatedTexts": []
                        },
                        "iDEditable": true
                    },
                    {
                        "deviceType": "CreditCard",
                        "deviceCode": "ChipAndPin",
                        "displayName": "Chip and Pin Terminal/Device",
                        "mobileYN": false,
                        "desktopYN": false,
                        "active": true,
                        "id": "5CCREADER5",
                        "label": "FD Center",
                        "translatableLabel": {
                            "defaultText": "FD Center",
                            "translatedTexts": []
                        },
                        "iDEditable": true
                    }
                ]
            }
        ]
    },
    "links": []
}

4

When guests have verified the amount to charge and indicated they would like to use the credit card that is on their reservation, the postBillingPayments call can be made to process the credit card settlement request.

The request body of the post Billing Payments requires the cardId, id, cardType, and paymentMethod retrieved from the get reservation or get folios response.

Also, the terminalId and the postingAmount>amount is needed.

This request will send a settlement request to the PSP through OPI for the credit card that is on the reservation and for the amount asked.

If there was existing authorization up to the amount asked for on the reservation's credit card, a settlement request is processed with that existing approval code.

If there was not an authorization or not enough authorization for the asked for amount, an automatic authorization (or top-up) will be processed first and then the settlement request will be processed.

A successful response from the PSP is returned with the amount, payment type, and transaction information. The payment is saved to the guest's reservation folio and the folio balance will be reduced by that amount.

If the settlement is declined, the message from the PSP (if provided) for the decline reason will be included in the response.

Sample 400 Response:

{
    "type": "Bad Request",
    "title": "Failed to settle amount on credit card ( Decline no process )",
    "detail": "Failed to settle amount on credit card ( Decline no process )",
    "o:errorCode": "FOF00227",
    "instance": "instance-XXXXXXX",
    "language": "en"
}

postBillingPayments

{{HostName}}/csh/v1/hotels/{{HotelId}}/reservations/{{ReservationId}}/payments

Request Body:

{
    "criteria": {
        "paymentMethod": {
            "paymentCard": {
                "cardId": {
                    "type": "CreditCard",
                    "id": "874911"
                },
                "cardType": "Va"
            },
            "paymentMethod": "VA",
            "folioView": "1"
        },
        "postingAmount": {
            "amount": "345.86",
            "currencyCode": "USD"
        },
        "terminalId": "KIOSKREADER",
        "applyCCSurcharge": false,
        "overrideInsufficientCC": false,
        "overrideARCreditLimit": false,
        "vATOffset": false,
        "action": "Billing",
        "cashierId": "{{CashierId}}",
        "folioWindowNo": "1",
        "postingReference": "cardid test"
    }
}


201 Response:

{
    "postings": [
        {
            "reference": "cardid test",
            "postedAmount": {
                "amount": 345.86,
                "currencyCode": "USD"
            },
            "price": {
                "amount": 345.86,
                "currencyCode": "USD"
            },
            "quantity": 1,
            "transactionType": "Payment",
            "creditAmount": {
                "amount": 345.86,
                "currencyCode": "USD"
            },
            "cashierInfo": {
                "cashierId": 140,
                "cashierName": "Test Cashier"
            },
            "paidOut": false,
            "exchange": {
                "creditAmount": {
                    "amount": 345.86,
                    "currencyCode": "USD"
                }
            },
            "stampDuty": false,
            "customCharge": false,
            "transactionNo": 1011526563,
            "transactionDate": "2017-08-27",
            "transactionCode": "XXXXX",
            "transactionAmount": 345.86,
            "postingDate": "2017-08-27",
            "postingTime": {
                "time": "2024-07-19 22:32:59.0",
                "timezone": "UTC"
            },
            "revenueDate": "2017-08-27",
            "receiptNo": 8,
            "roundingDifferenceTrx": false,
            "folioWindowNo": 1,
            "deferredTax": false
        }
    ],
    "trxCodesInfo": [
        {
            "description": "<CREDITCARD_TYPE>",
            "transactionGroup": "PAY",
            "transactionSubGroup": "CCARD",
            "trxServiceType": "S",
            "transactionCode": "XXXXX",
            "hotelId": "HotelId",
            "printTrxReceipt": false
        }
    ]
}
