3 APIs Available in Brand Compliance
The APIs deployed in a particular implementation of Brand Compliance can be found at /services: https://<hostname>/<context>/services.
Individual Services
The following table lists the individual services available in Brand Compliance, indicating at which version each was introduced and, where appropriate, at which version it was deprecated.
Brand Compliance API Services
Service Name and Functions | Description | Type | From Version | To Version |
---|---|---|---|---|
User Details |
||||
userDetails |
Manages single sign-on between the main Brand Compliance application and the Reports module. This is superseded by the SSO Restful Service. |
SOAP |
1.0 |
15.0 |
Product Service |
||||
createProduct |
Creates a new Product Record. |
SOAP |
1.8 |
TBC |
updateProduct |
Updates existing Product Records. |
SOAP |
1.8 |
TBC |
submitProduct |
Allows the update and creation of Product Records. If the record already exists, it is updated; otherwise, a new record is created. |
SOAP |
1.8 |
TBC |
Retrieve Product Specifications |
||||
getProductSpecificationV1 |
Retrieves a paged list of Product Specification records filtered according to the parameters defined in the request. |
SOAP |
1.8 |
TBC |
Project Activities |
||||
Activity Management |
Allows updates to Project Activities from an external service. Used in Artwork integration. This service has been superseded by the Artwork Rest Service. |
SOAP |
1.8 |
1.10 |
UserRestService |
||||
List of Values |
Retrieves a list of retailer or supplier users in a paged list. |
REST |
1.9 |
NA |
Retrieve Record by ID |
Retrieves a single user's details. There are no request parameters, but the URL contains the id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Retrieve Record by Business Key |
Retrieves a single user's details. There are no request parameters, but the URL contains the login id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a user. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Create Record |
Creates a new retailer or supplier user. |
REST |
1.9 |
NA |
Update Record |
Updates an existing retailer or supplier user. |
REST |
1.9 |
NA |
SupplierRestService |
||||
List of Values |
Retrieves a list of suppliers in a paged list. |
REST |
1.9 |
NA |
Retrieve Record by ID |
Retrieves a single supplier's details. There are no request parameters, but the URL contains the id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Retrieve Record by Business Key |
Retrieves a single supplier's details. There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a supplier. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Create Record |
Creates a new supplier. |
REST |
1.9 |
NA |
Update Record |
Updates an existing supplier . |
REST |
1.9 |
NA |
SiteRestService |
||||
List of Values |
Retrieves a list of sites in a paged list. |
REST |
1.9 |
NA |
Retrieve Record by ID |
Retrieves a single site's details. There are no request parameters, but the URL contains the id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Retrieve Record by Business Key |
Retrieves a single site's details. There are no request parameters, but the URL contains the supplier and site code parameters that determine the record to retrieve. |
REST |
1.9 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a site. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Create Record |
Creates a new site. |
REST |
1.9 |
NA |
Update Record |
Updates an existing site. |
REST |
1.9 |
NA |
ContactRestService |
||||
List of Values |
Retrieves a list of contacts in a paged list. |
REST |
15.0 |
NA |
Retrieve Record by ID |
Retrieves a single contact's details. There are no request parameters, but the URL contains the id parameter that determines the record to retrieve. |
REST |
15.0 |
NA |
Retrieve Supplier Contact Record by Business Key |
Retrieves a single supplier contact's details. There are no request parameters, but the URL contains the supplier code, name, and email address parameters that determine the record to retrieve. |
REST |
15.0 |
NA |
Retrieve Site Contact Record by Business Key |
Retrieves a single site contact's details. There are no request parameters, but the URL contains the supplier and site codes, name, and email address parameters that determine the record to retrieve. |
REST |
15.0 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a contact. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
15.0 |
NA |
Create Record |
Creates a new contact. |
REST |
15.0 |
NA |
Update Record |
Updates an existing contact. |
REST |
15.0 |
NA |
ProductRecordRestService |
||||
List of Values |
Retrieves a list of Product Records in a paged list. |
REST |
1.9 |
NA |
Retrieve Record by ID |
Retrieves a single Product Record's details. There are no request parameters, but the URL contains the id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Retrieve Record by Business Key |
Retrieves a single Product Record's details. There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a Product Record. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Create Record |
Creates a new Product Record. |
REST |
1.9 |
NA |
Update Record |
Updates an existing Product Record. |
REST |
1.9 |
NA |
ProductSpecificationRestService |
||||
List of Values |
Retrieves a list of Product Specifications in a paged list. |
REST |
1.9 |
NA |
Retrieve Record by ID |
Retrieves a single Product Specification's details. There are no request parameters, but the URL contains the id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Retrieve Record by Business Key |
Retrieves a single Product Specification's details. There are no request parameters, but the URL contains the specification number and version parameters that determine the record to retrieve. |
REST |
1.9 |
NA |
Retrieve List with Advanced Filtering |
Retrieves a list of Product Specifications in a paged list using advanced filtering. Parameters are passed to filter the returned list by values such as specification status, specification type, country where sold, and so on. |
REST |
1.9 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a Product Specification. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
1.9 |
NA |
Create Record |
Creates a new Product Specification. |
REST |
16.0 |
NA |
Update Record |
Updates an existing Product Specification. |
REST |
16.0 |
NA |
BusinessCategoryService |
||||
List of Values |
Retrieves a list of Business Categories in a paged list. |
REST |
16.0 |
NA |
Retrieve Record |
Retrieves a single Business Category (a path of all levels). There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a Business Category. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Create Record |
Creates a new Business Category. |
REST |
16.0 |
NA |
Update Record |
Updates an existing Business Category. |
REST |
16.0 |
NA |
Delete Record |
Deletes an existing Business Category. |
REST |
16.0 |
NA |
AuditRestService |
||||
List of Values (Audit) |
Retrieves a list of Audits or Visits in a paged list. |
REST |
16.0 |
NA |
Retrieve Record by ID (Audit) |
Retrieves a single Audit or Visit (and its Non Conformances/Issues). There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Retrieve Record by Business Key (Audit) |
Retrieves a single Audit or Visit (and its Non Conformances/Issues). There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Check Record Modification Timestamp (Audit) |
Retrieves the last modification time for an Audit or Visit. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Create Record (Audit) |
Creates a new Audit or Visit. |
REST |
16.0 |
NA |
Update Record (Audit) |
Updates an existing Audit or Visit. |
REST |
16.0 |
NA |
List of Values (Checklist) |
Retrieves a list of Checklists in a paged list. |
REST |
16.0 |
NA |
Retrieve Record by ID (Checklist) |
Retrieves a single Checklist. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Retrieve Record by Business Key (Checklist) |
Retrieves a single Checklist. There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
16.0 |
NA |
Create Record (Checklist) |
Creates a new Checklist. |
REST |
16.0 |
NA |
Update Record (Checklist) |
Updates an existing Checklist. |
REST |
16.0 |
NA |
Delete Record (Checklist) |
Deletes an existing Checklist. |
REST |
16.0 |
NA |
TaskRestService |
||||
List of Values |
Retrieves a list of current tasks for the user in the given language. |
REST |
1.9 |
NA |
UrgentItemsRestService |
||||
Number of Urgent Items |
Retrieves the number of urgent items pending for a given user. |
REST |
1.9 |
NA |
ArtworkRestService |
||||
Started Activities |
Retrieves a list of Project Activities that are flagged as Artwork activities, and their status has changed to Started within the specified date range. |
REST |
1.10 |
NA |
Update Record |
Updates the sub-status of existing Artwork Project Activities. |
REST |
1.10 |
NA |
SSO |
Single sign-on integration between Brand Compliance and the external Artwork system. |
REST |
1.10 |
Removed in 18.2 |
DataPrivacyService |
||||
Right to Access |
Retrieves personal data from the system relating to the name of an individual. |
REST |
15.0 |
NA |
Right to be Forgotten |
Erases personal data from the system for an individual (subject to conditions). |
REST |
15.0 |
NA |
AttachmentRestService |
||||
Retrieve Report Attachment |
Retrieves attachment files that have been generated by the system as report outputs. |
REST |
18.0 |
NA |
Retrieve Attachment |
Retrieves files that have been attached to records. |
REST |
18.1 |
NA |
ScorecardRestService |
||||
List of Values |
Retrieves a list of Scorecards in a paged list. |
REST |
18.1 |
NA |
Retrieve Record by ID |
Retrieves a single Scorecard. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
Retrieve Record by Business Key |
Retrieves a single Scorecard. There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a Scorecard. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
ProjectRestService |
||||
List of Values |
Retrieves a list of Projects in a paged list. |
REST |
18.1 |
NA |
Retrieve Record by ID |
Retrieves a single Project. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
Retrieve Record by Business Key |
Retrieves a single Project. There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a Project. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
ActivityRestService |
||||
List of Values |
Retrieves a list of Project Activities in a paged list. |
REST |
18.1 |
NA |
Retrieve Record by ID |
Retrieves a single Project Activity. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
Retrieve Record by Business Key |
Retrieves a single Project Activity. There are no request parameters, but the URL contains the key code parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
Check Record Modification Timestamp |
Retrieves the last modification time for a Project Activity. There are no request parameters, but the URL contains the record id parameter that determines the record to retrieve. |
REST |
18.1 |
NA |
History of Enhancements
Release Version | Enhancements |
---|---|
16.0 |
Business Categories REST API Audits & Visits REST API Specs REST API update & create Supplier REST API - Linked Suppliers? Updated to REST Spec Inbound API Additional Supplier Info added to Produce Product Record Sustainability added to Spec |
17.0 |
Business Categories REST API Audits & Visits REST API Specs REST API update & create Supplier REST API - Linked Suppliers? Updated to REST Spec Inbound API Additional Supplier Info added to Produce Product RecordSustainability added to Spec |
18.0 |
Additional filters on Specs REST API Attachments REST API for Reports Changes to Specs REST API for use as report data source Alternative Product Number & Division added to Spec Date Approved added to Spec Main Details section Fields added to Main Details Spec section XML Additional Supplier Info updated in Produce Product Record |
18.1 |
Scorecards REST API Projects & Activities REST API Attachments REST API (Scorecards, Projects & Activities) Additional filters for Spec, Supplier & Site REST APIs Audit/Visit code added to Audits REST API Wildcard searching & error logging added to REST APIs Extended Nutrient Target fields added to Spec Combined Specs fields added to Spec |
18.2 |
Artwork SSO API removed ORBC-IDCS APIs Password fields removed from Users API for IDCS Advanced Packaging section added to Spec |
18.3 |
Nutri-Score data added to Spec Dual Nutrition Panel data added to Spec |
Services Grouped by Area
The following sections summarize the service features available by area of Brand Compliance functionality.
User and Supplier APIs
The following service features are applicable to the functionality available for user and supplier APIs:
Allows Supplier, Site, Contact, and User records to be created, updated, and extracted. |
Does not allow deletion of records. |
Does not import or export file attachments. |
Does not include Scorecards, Audits & Visits, or Alerts. |
A system log of service transactions is kept (not reportable). |
Product APIs
The following service features are applicable to the functionality available for product APIs:
Allows Product Records to be created, updated, and extracted. |
Barcodes transmitted by the data feed are stored on the Product Record and automatically transferred to the Product Specification when linked (using normal specification editor procedures). |
A Product Record must be activated before it can be linked to a Product Specification. |
Does not import file attachments. |
Not intended for bulk upload of Product Records. |
Does not include Pack Copy files or Surveillance test results. |
If the full content of the Product Record is not included in the data feed, subsequent manual data entry may be required. |
Does not apply to Produce Product Record types as they are created through a different process in Brand Compliance. |
The SOAP version only applies to the single variant mode of operating the Product module, that is, does not handle multiple variants on the same Product Record. |
A system log of service transactions is kept (not reportable). |
Specification Outbound API
The following service features are applicable to the functionality available for the specification outbound API:
Transmit Product Specification data in XML form for Product Specifications that meet the filters used in the service call from the external system. |
All specification types, including Produce and Counter Tickets, are supported. |
Does not export file attachments. |
Does not export Deleted Product Specifications. |
A system log of service transactions is kept (not reportable). |
Specification Inbound API
The following service features are applicable to the functionality available for the specification inbound API:
Allows Product Specification records to be created, updated, and extracted. |
All specification types, including Produce and Counter Tickets, are supported. |
Does not allow deletion of records. |
Does not import or export file attachments. |
Specifications can be created at any status; validation is applied when the user manually edits and progresses the specification through the Brand Compliance application UI. |
A system log of service transactions is kept (not reportable). |
Audits API
The following service features are applicable to the functionality available for the audits API:
Allows Audit and Visit records to be created, updated, and extracted. |
Includes the associated Issues/Non Conformances and Checklists. |
Does not allow deletion of records. |
Does not import or export file attachments. |
A system log of service transactions is kept (not reportable). |
Artwork Project Activities
The following service features are applicable to the functionality available for the Artwork Project Activities API:
Enables external Artwork systems to update the sub-status of specific Project Activities that relate to Artwork. The external system is not enabled to complete the activity in Brand Compliance; this must be done manually. |
Activity templates in the Project module of Brand Compliance have an option to integrate that activity with an Artwork system. |
Project Activities in Brand Compliance, which have been set to integrate with Artwork and which have a status of Started, are available to the external system. Pack Copy data is not sent using an API, it is automatically sent in email to the designer. |
The start and end dates of the Activity are not sent to the Artwork system. The Artwork process is usually well defined and it is usual for a project to be set up in the Artwork system at this point, using the Artwork system's own templates and based on the date that the message is received. |
The Artwork API is secured and initiated per other Brand Compliance APIs. The following table summarizes the features introduced by each Brand Compliance release:
Artwork Integration Features by Release
Release | Feature |
---|---|
1.0 |
Activity Management SOAP API available to send a message when an activity status is set to Started. Message can be returned to set the Activity's sub-status accordingly in Brand Compliance. |
1.5/1.6 |
Single Sign-on (SSO) Phase I:
|
1.8 |
Single Sign-on (SSO) Phase II:
|
1.10 |
The Activity Management SOAP API is deprecated. It is superseded by the equivalent Artwork Rest Service. |
15.0 |
Security Improvements:
|
18.2 |
Single sign-on SSO API is removed. Single sign-on between Brand Compliance and the Artwork module is achieved using IDCS. A separate IDCS tenant must be created for the Artwork system. See the Oracle Retail Brand Compliance Management Cloud Service Administration Guide for details of the use of IDCS in Brand Compliance. The Artwork solution must be upgraded to a version that can communicate with the IDCS tenant to continue to utilize Single Sign-on. |
Data Privacy API
The following service features are applicable to the functionality available for the Data Privacy API:
Right to Access requests, to retrieve personal data relating to the name of an individual. |
Right to be Forgotten requests, to erase personal data for an individual (subject to conditions). |
Certain due diligence approval data is not permitted to be erased. |
Data is erased by being overwritten with randomly-generated text. |
The erasure of data is not recorded in Change History logs. |
Dependencies

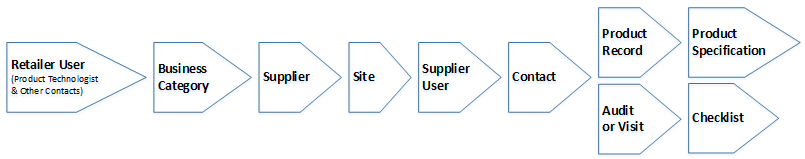

Following is the typical sequence of records to be created in order to create all of the above services:
Figure 3-1 Dependencies
The following table indicates the dependencies of each type of record that can be created using the APIs, that is, what configuration or other records must be in place for the creation to succeed:
Record Creation Dependencies
Record Type | Configuration | Other Record Types | Comments |
---|---|---|---|
User |
Company (mandatory) Languages (mandatory) User Roles (mandatory) Authority Profiles Time Zones Users (Managers and Delegates) Areas |
Supplier (if a supplier user) |
When creating a user, it is associated to either the retailer or a supplier. If it is a supplier user, the ID of the Supplier record must be provided. The notification email sent to a new user is not generated when creating a user through the API. |
Supplier |
Billing Codes (mandatory) Business Units (mandatory) Supplier Types (mandatory) Countries Supplier Top Grades Currencies Invoicing Systems Supplier Statuses Areas |
NA |
When creating a Supplier, omit the Site and Supplier Contact elements, and omit the Billing Details ID. Create Sites, Contacts, AND Users after creating the Supplier. The initial user account is not automatically created when creating a supplier through the API. |
Site |
Product Technologists (mandatory) Business Categories (mandatory) Site Types (mandatory) Business Units Currencies Invoicing Systems Countries Audit Reasons Reference Types Reference Statuses Site Top Grades Site Statuses Risk LevelsOther Production Details |
Supplier User (Product Technologist) |
When creating a Site, the ID of the Supplier record must be provided. Omit the Scorecards and Audit elements, and omit the Billing Details ID and Reference ID. If assigning a Business Category, the ID of the Business Category record must be provided; if assigning a Product Technologist, the IDs of the User record must be provided. Create Contacts after creating the Site. |
Contact |
Contact Roles (mandatory) |
User Supplier Site (if a Site contact) |
When creating a Contact, the IDs of the associated User and Person records must be provided. The Person record holds an individual's personal contact details; the Contact record holds the individual's contact details in relation to that role (which may be different per role); the User record represents the individual's user account. A contact is associated to a supplier and/or a site; the IDs of the Supplier and Site records must be provided as appropriate. Omit the Site element if not a site-level contact. |
Product |
RecordSpecification Types (mandatory) Product Record Statuses (mandatory) Product Technologist (mandatory) Other Contacts (mandatory) Test Disciplines Specification Formats Business Categories |
Supplier (if Active) Site (if linked to a site) User |
A Product Record may be linked to a supplier/site; the IDs of the Supplier and Site records must be provided as appropriate. Omit the Discipline Detail, Product Covered, Barcode and Shipping Case Code IDs when creating. If assigning a Business Category, the ID of the Business Category record must be provided; if assigning a Product Technologist or Other Contact, the IDs of the User record must be provided. Product Technologist and Other Contacts are mandatory, however will be defaulted to TBC on creation if not provided, however, the dummy TBC User record must already exist. The status must be Active in order to be linked to a specification; for the status to be Active the Product Record must be linked to a supplier. |
Product Specification |
Specification Glossaries (some are mandatory) |
Supplier (if linked to PR) Site (if linked to PR) Product Record (if linked to PR Contact (if linked to PR) User (if linked to PR) Business Category (if linked to PR) |
A Specification may be linked to a Product Record by providing the ID of a Product Record which it is at Active status. If linking to a Product Record, the Supplier, Site, and Product Record (and associated Users, Contacts and Business Categories) must be created first. Some links to Specification Glossaries are mandatory. |
Business Category |
Business Categories (parent levels) Specification Types |
NA |
When creating a Business Category, if the category is a lower-level category, the ID of its parent Business Category record must be provided. |
Audit/Visit |
Audit/Visit Template (mandatory) Audit/Visit Status (mandatory) Product Technologist (mandatory) People Present (mandatory) Supplier Contacts Business Categories Non Conformance: Assigned to Completed by Approved by |
Supplier Site User |
An Audit or Visit is linked to a supplier/site; the IDs of the Supplier and Site records must be provided. If assigning a Business Category, the ID of the Business Category record must be provided; if assigning a Product Technologist or People Present, the IDs of the User record must be provided. Non Conformances may include links to User records for the users who the issue is assigned to, was completed by, or is approved by. If the person is not a user of the application, a corresponding text field can be used to record the name. Also, see notes below. |
Checklists |
Audit/Visit (mandatory) Checklist Question (mandatory) |
Audit/Visit Checklist Template |
A Checklist is linked to an Audit/Visit, the IDs of the Audit or Visit record must be provided. The Checklist's questionnaire questions and available answers are derived from the Checklist Templates assigned to the Audit/Visit, the IDs of the Template records must be provided. |
Notes on the Creation and Maintenance of Audits/Visits and Checklists
-

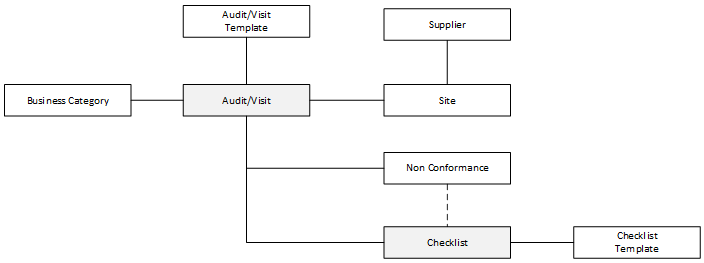

The following diagram shows the main links between Audits/Visits, their Checklists, and other entities:
Figure 3-2 Links Between Audits/Visits and Other Entities
-
For the creation of an Audit/Visit and its Checklists, in addition to providing the links to the associated Audit/Visit Template and Checklist Template records, certain values from the templates must also be included in the payload of the Audit/Visit Create and Update functions.
-
It is recommended that the creation of Audits/Visits and Checklist be managed within the Brand Compliance application. Once created, records can be taken into the external system where the audit is performed, prior to importing back into Brand Compliance.
This approach ensures the necessary template fields will have been obtained with the initial Retrieve Record function.

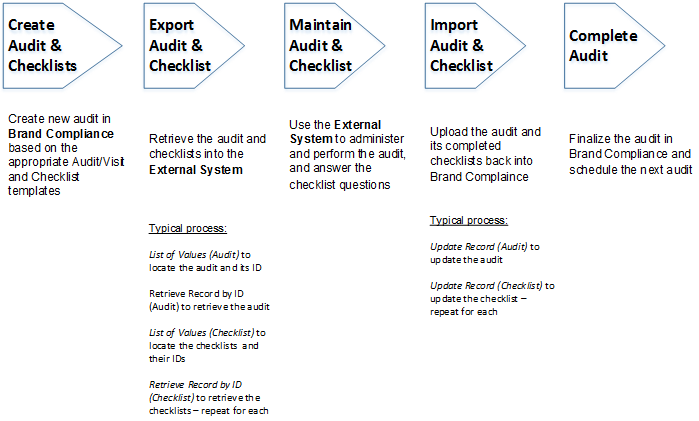

The following diagram shows the stages of a typical scenario:
Figure 3-3 Stages of a Typical Scenario
-
If it is necessary to create audits or visits from scratch in the external system, the recommended approach would be to create a set of gold standard audits/visits in Brand Compliance, which are assigned to a dummy supplier and site.
To create a new audit or visit, the process would be to retrieve the appropriate gold standard audit/visit through the GET function, amend the retuned XML data to reflect the audit/visit to be created, and then submit the creation of the new audit/visit (plus any non conformances and checklists) using the POST function.
-
If a checklist audit is to be created using the Create Audit service, the Audit/Visit record must first be created using the Create Audit function, followed by the creation of each of its Checklist records.
Creating an audit through the API which is linked to a checklist template does not automatically create the checklists. They must be individually created using the Create Checklist function.
-
An audit/visit's non conformances are included as separate elements within the audit/visit data. An audit/visit's non conformances are allocated when creating or updating the audit/visit.
Note:
The API does not automatically create non conformances based on the answers of checklist questions.
Linking to Related Records
Links to associated records are included in the XML as an id element, which holds the record ID of the related record. In some cases, a code element also holds the related record's business key.
For example, the XML returned from the SiteRestService API will contain a supplier element, which itself contains an id element and a code element. The value in the id element can be used by the SupplierRestService Retrieve Record by ID function to retrieve the full details of the Supplier record. Alternatively, the value in the code element can be used by the SupplierRestService Retrieve Record by Business Key function to retrieve the Supplier record.
The id element is also used in the XML to hold the record ID of a value that is held in a glossary such as a recipe ingredient or a country.
The following table shows where an API provides links to other records, and the id or code elements used to locate those records. The list of notes below the table indicates the service to use to retrieve the related record.
Related Record Links
API | Links to Records |
---|---|
Supplier |
Contact: contactDetail/id (Contact record ID link). See note 7. Contact (User): person/id (User record ID link). See note 1. Site: site/id (Site record ID link). See note 3. Site: site/code site (Site business key link). See note 4. |
Site |
Supplier: supplier/id (Supplier record ID link). See note 5. Supplier: supplier/code (Supplier business key link). See note 6. Business Categories: businessCategories/id (Business Category record ID link). See note 10. Lead Business Category: leadBusinessCategory/id (Business Category record ID link). See note 10. Lead Product Technologist (User): leadTechnicalManager/id (User record ID link). See note 1. Lead Product Technologist (User):leadTechnicalManager/code (User business key link). See note 2. Other Technologists (User): otherTMs/id (User record ID link). See note 1. Other Technologists (User): otherTMs/code (User business key link). See note 2. Contact: siteContact/id (Contact record ID link). See note 7. |
Contact |
Contact (User): person/id (User record ID link). See note 1. Supplier: company/id (Supplier record ID link). See note 5. Supplier: Company/code (Supplier business key link). See note 6. Site: site/id (Site record ID link). See note 3. Site: Site/code (Site business key link). See note 4. |
User |
Supplier: supplier/id (Supplier record ID link). See note 5. Supplier: Supplier/code (Supplier business key link). See note 6. |
Audit/Visit |
Supplier: supplier/id (Supplier record ID link). See note 5. Supplier: supplier/code (Supplier business key link). See note 6. Site: site/id (Site record ID link). See note 3. Site: Site/code (Site business key link). See note 4. People Present (User): user/id (User record ID link). See note 1. People Present (User): user/code (User business key link). See note 2. Lead Product Technologist (User): leadTechnicalManager/id (User record ID link). See note 1. Lead Product Technologist (User): leadTechnicalManager/code (User business key link). See note 2. Business Categories: businessCategories/id (Business Category record ID link). See note 9. Lead Business Category: leadBusinessCategory/id (Business Category record ID link). See note 9. Non Conformance Assigned To (User): assignedTo/id (User record ID link). See note 1. Non Conformance Completed By (User): completedBy/id (User record ID link). See note 1. Non Conformance Approved By (User): approvedBy/id (User record ID link). See note 1. |
Checklist |
Audit/Visit: audit/id (Audit/Visit record ID link). See note 11. |
Product Record |
Supplier: supplier/id (Supplier record ID link). See note 5. Supplier: supplier/code (Supplier business key link). See note 6. Site: site/id (Site record ID link). See note 3. Site: site/code (Site business key link). See note 4. Business Categories: businessCategory/id (Business Category record ID link). See note 10. Technologist (User): technologist/id (User record ID link). See note 1. Technologist (User): technologist/code (User business key link). See note 2. Other Contacts (User): user/id record ID link). See note 1. Other Contacts (User): user/code (business key link). See note 2. |
Produce Product Record |
As per Product Record, except Business Categories, which are derived from the Product Specification. |
Product Specification |
Supplier: site/supplierId (Supplier record ID link). See note 5. Supplier: site/supplierCode (Supplier business key link). See note 6. Site: primarySites/site/id (Site record ID link). See note 3. Site: primarySites/site/code (Site business key link). See note 4. Product Record: productRecord/id (Product Record record ID link). See note 8. Product Record: productRecord/code (Product Record business key link). See note 9. Supplier Contact: contactDetails/id (Contact record ID link). See note 7. Supplier Contact (User): person/id (User record ID link). See note 1. For further details on locating a Specification's Product Record, see the Main Details page of the Oracle Retail Brand Compliance Management Cloud Service Data Dictionary, Volume 4 - Product (Food Specification). |
Notes:
-
User record ID link: UserRestService - Retrieve Record by ID
-
User business key link: UserRestService - Retrieve Record by Business Key
-
Site record ID link: SiteRestService - Retrieve Record by ID
-
Site business key link: SiteRestService - Retrieve Record by Business Key
-
Supplier record ID link: SupplierRestService - Retrieve Record by ID
-
Supplier business key link: SupplierRestService - Retrieve Record by Business Key
-
Contact record ID link: ContactRestService - Retrieve Record by ID
-
Product Record record ID link: ProductRestService - Retrieve Record by ID
-
Product Record business key link: ProductRestService - Retrieve Record by Business Key
-
Business Category record ID link: BusinessCategoryService - Retrieve Record
-
Audit/Visit Record ID link: AuditRestService - Retrieve Record by ID (Audit)
