6 setDSShipConfirm Request Message
Overview: Use the setDSShipConfirm request message to confirm full or partial shipment of a purchase order.
Endpoint and resource:
The endpoint for this message is https://<SERVER>:<PORT>
, where <SERVER>
is the name of the server and <PORT>
is the port.
The resource for this message is /Locate/adws/DSShipConfirm/setDSShipConfirm.
In this chapter:
For more information: See

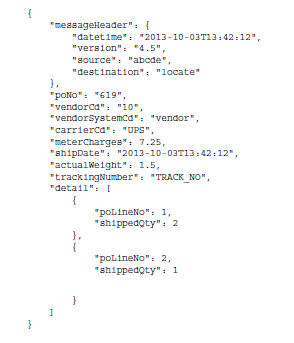

Sample setDSShipConfirm Request Message
The following sample confirms shipment of two lines on a purchase order.
setDSShipConfirm Request Message Contents
Message Element or Attribute | Alpha/numeric | Description |
---|---|---|
messageHeader Example |
||
datetime |
datetime |
Standard datetime format |
version |
alphanumeric |
Indicates the current version of Oracle Retail Order Broker. Must be set to 4.5 or higher. Required. |
source |
alphanumeric |
The external system originating the request. Required. |
destination |
alphanumeric |
The name of the Oracle Retail Order Broker database. Must match the Account value specified at the Tenant Admin Screen. Required. |
Shipment Identifying Information Example |
||
poNo |
alphanumeric |
The number identifying the purchase order shipped. |
vendorCd |
alphanumeric |
A code identifying the vendor shipping the purchase order. The vendor code is displayed in the Vendor Portal at the Vendor Configuration screen. Required. |
vendorSystemCd |
alphanumeric |
A code identifying the default vendor system for the organization (not the system originating the purchase orders). Required. |
carrierCd |
alphanumeric |
A code identifying the ship via used to ship the purchase order. Must be a valid code for a carrier assigned to the vendor. Does not need to be flagged as Active. Displayed in the Vendor Portal at the Carriers tab of the Vendor Configuration screen. Required. |
meterCharges |
numeric |
Information will be provided at a later date. |
shipDate |
datetime |
The date when the shipment took place. Can be a future date,
but cannot be earlier than the date when the purchase order was created.
Standard datetime format ( |
actualWeight |
numeric |
The shipping weight. Information will be provided at a later date. |
trackingNumber |
alphanumeric |
The tracking number that the customer can use to track the shipment. Required if the Tracking # Required flag is selected for the carrier. |
Shipment detail information Example |
Identifies the purchase order line number shipped and the shipment quantity. Can include multiple lines on a single purchase order. |
|
poLineNo |
numeric |
Identifies the line number shipped. Required. |
shippedQty |
numeric |
Identifies the quantity shipped. Must be a valid quantity greater than 1 and not greater than the printed quantity. Required. |
