Manage Job Templates

From the Quality Control Configuration, it is possible to create job check templates to be used on job inspections. Users are able to create, edit, or delete job templates. The following template types are available:

  • PO/ASN:
    • Applies to the job header.
    • Applies to jobs that have one PO or ASN associated to the job (Based-On PO or ASN).
    • Can be applied during the manual creation or during the rule execution for automatic job creation.
  • Item:
    • Applies to items only.
    • Can be applied during the manual creation or during the rule execution for automatic job creation.

  • Ad-Hoc

    If this template is set to be applied:

    • Applies to all the items inserted in the job, instead of the Template type Item.
    • Can be applied during the manual creation.

Define Job Templates

From the side menu, choose Configuration Management and then choose Quality Control Configuration.This image shows Quality Control Configuration.

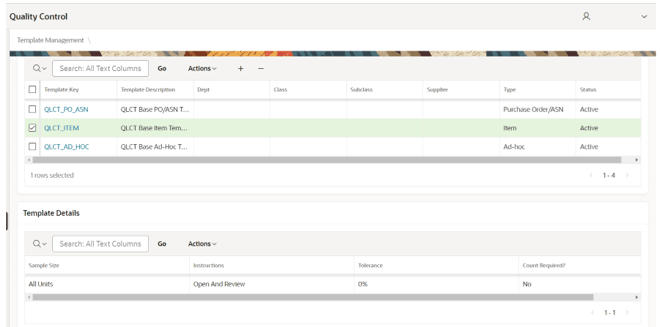

The template management screen is displayed. The user is able to see the template header table. Selecting a template displays the Checks within the template on the table Template.

This image shows the Quality Control screen.

Note:

The Template Details are for visualization only. To edit, the user needs to click the Template Key link on the Header table.
