Creating a Report Design

To create a new report design:

1. Select the New action. The New Report Design page appears.

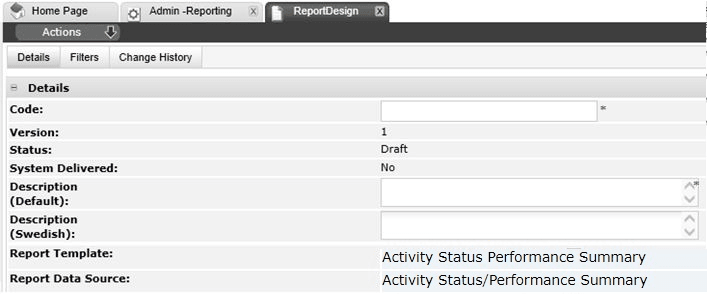

   Figure 3-11 New Report Design Page



2. Enter the details.

   Table 3-6 New Report Design Page

   Details	Description
   Code	Enter a unique uppercase code for this report design. Mandatory field.
   Version	The version will default to 1. Read-only field.
   Status	This will default to Draft. Read-only field.
   System Delivered	This will default to No. Read-only field.
   Description	Enter the description for this report design in the supported languages. The description for the default language is mandatory.
   Report Template	Click the icon to select the report template to be used for this report design.
   Report Data Source	Click the icon to select the data source to be used for this report design.

3. Optionally add any filters to be applied to the report design. See Filters for Report Designs.

4. Save the changes and exit.
