25 Customer Order Fulfillment
The Customer Order Fulfillment module is an application available in Supply Chain Hub. This chapter describes the implementation considerations and the operation details.
Implementation Overview
This section provides an implementation overview for Customer Order Fulfillment.
Functionality
This module offers the possibility to review, download and provide updates to Customer Orders. Depending on System Parameters configuration it can follow 2 different flows:
- SPCO Flow: Customer Orders are integrated directly to Customer Order Fulfillment and in Customer Order Fulfillment users can get details, provide status updates and create Invoices for them.
- MFCS Flow: Customer Orders are integrated directly to MFCS and in Customer Order Fulfillment users can get the details and provide status updates.
Status Workflow

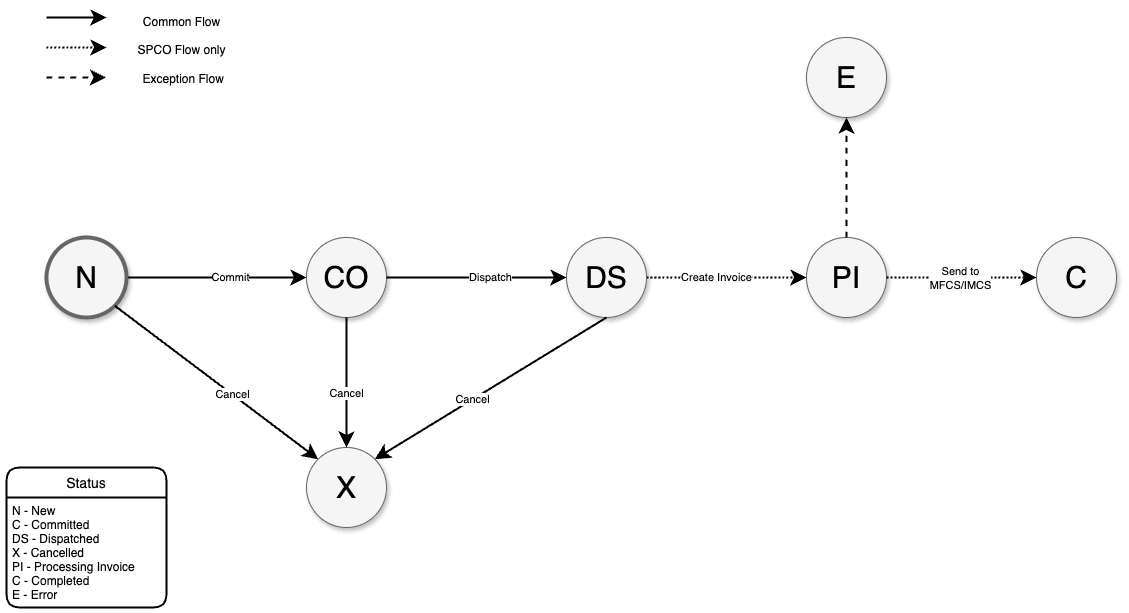

Figure 25-1 Customer Order Fulfillment Status Workflow
Customer Order Fulfillment follows a workflow path for Customer Orders and status can change depending on:
- The user permission
- The current status of the Customer Order
Customer Order Status:
- New (N) - This status is used when the Customer Order are created in MFCS or Customer Order Fulfillment.
- Committed (C) - This Status used when Supplier committed to dispatch the Customer Order, on this status it is possible to provide the Estimated Ship Date and Shipment Status.
- Dispatched (DS) - When the Customer Order is marked as Dispatched by the Supplier the Customer Order moves to this Status. On this status the Customer Order is considered completed whilst in MFCS mode and completed with missing Invoice when in SPCO Mode.
- Cancelled (X) - This Status is used when a Customer Order is cancelled. The cancellation can be initiated by the Supplier or by OMS.
- Processing Invoice (PI) - This Status is only available whenCustomer Order Fulfillment controls Supplier Sourced Customer Orders instead of MFCS and is used while the consolidated Customer Order, Invoice and ASN are being published to MFCS/IMCS.
- Completed (C) - Once all processing has been completed the Customer Order is moved to Completed.
- Error (E) - This is a technical status used when during the Processing Invoice publishing process an error is found.
Integration High Level

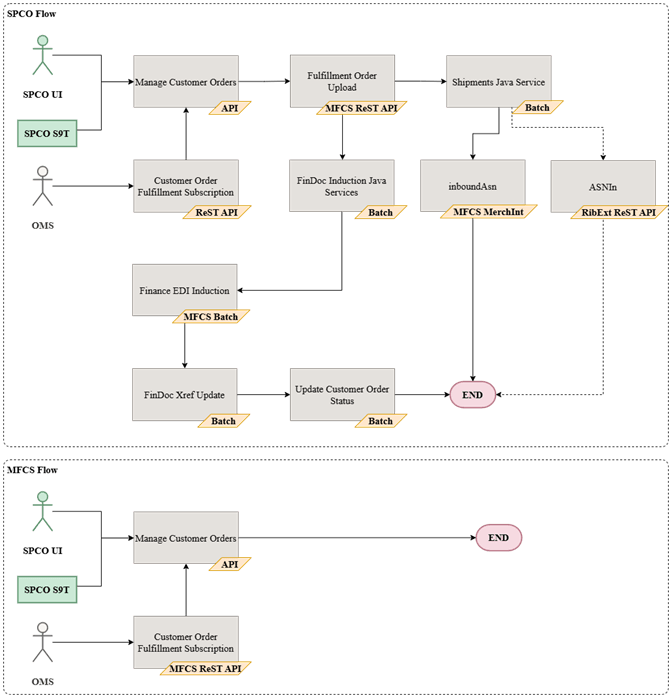

Figure 25-2 Customer Order Fulfillment Integration High Level
Note:
Shipments Java Service integration via RIB-EXT is an optional flow that requires enabling from the configuration. For more details on this process, see the Supply Chain Hub Frameworks section.Configuration
This sections describes Customer Order Fulfillment configurations.
POM Configuration

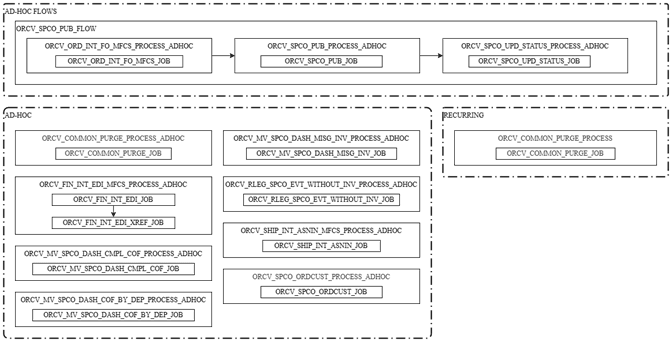

Batch scheduler details with all batches, dependencies and frequencies can be downloaded following the steps in the Supply Chain Hub Frameworks section.
Other Cloud Services Configuration
This section describes implementation details that must be reviewed from an Oracle Retail Merchandising System perspective.
Other Implementation Considerations
This section describes Customer Order Fulfillment implementation considerations.
Notifications and Alerts
Customer Orders Fulfillment uses the Events Framework to inform users about some actions with notifications and alerts. Below is the list of notifications available. The notifications are implemented via the Rule Engine Framework documented in the Supply Chain Hub Frameworks section.
Notifications
SPCO_EVENT_NEW_CUSTOMER_ORDER
New Customer Order(s) received.
Table 25-1 Notifications - SPCO_EVENT_NEW_CUSTOMER_ORDER
| PROPERTY | VALUE |
|---|---|
| Event Name | SPCO_EVENT_NEW_CUSTOMER_ORDER |
| Event Type | ORCV_SPCO_EVENT_NEW_CUSTOMER_ORDER |
| Description | Notification triggered when new Customer Order is received. |
| Trigger | Subscription Rest Service |
| Target Users | Supplier users that are associated with supplier of the Customer Order |
Alerts
SPCO_EVENT_COF_WITHOUT_INV
Customer order fulfillment without invoice.
Table 25-2 Alerts - SPCO_EVENT_COF_WITHOUT_INV
| PROPERTY | VALUE |
|---|---|
| Event Name | SPCO_EVENT_COF_WITHOUT_INV |
| Event Type | ORCV_SPCO_EVENT_COF_WITHOUT_INV |
| Alert Type | |
| Description | Email with the Customer Orders without invoice. |
| Trigger | BATCH |
| Target Users | Supplier users that are associated with supplier with Customer Orders without invoice. |
Custom Validations
The module performs validations by implementing Custom Validation Groups of the Custom Validations Framework described in the Supply Chain Hub Frameworks section.
The groups listed below can be used to add Custom Validations for Customer Order Fulfillment.
| Group Id | Executed When |
|---|---|
| SPCO_COF_CANCEL | Customer Order is cancelled. |
| SPCO_COF_COMMIT | Customer Order is committed. |
| SPCO_COF_CREATE | Customer Order is created. |
| SPCO_COF_DISPATCH | Customer Order is dispatched. |
| SPCO_COF_EDIT | Customer Order is Changed. |
Specific Batch Configuration
This section describes Customer Order Fulfillment specific batch configurations.
MFCS Control Tables Update Batch
This batch will be responsible for populating the control tables (ORCV_SPCO_ORDCUST_CONTROL, ORCV_SPCO_ORDCUST_DEPT_CONTROL, ORCV_SPCO_ORDCUST_ORD_CONTROL). If the flow is MFCS it will populate the control tables with the Customer Order information existing in the MFCS, enriching this same information with the value of the total_cost, the department of the item(s) belonging to the Customer Order, and the order. If the flow is SPCO it will only calculate the total_cost of the Customer Order, searching for the department of the item(s) belonging to the Customer Order.
- Job: ORCV_SPCO_ORDCUST_JOB
- Frequency: Ad-hoc
- Dependency: None
- Inter Scheduler Dependency: None
Batch default configuration (ORCV_BATCH_CONFIG):
| COLUMN NAME | DEFAULT VALUES |
|---|---|
| Program Name | ORCV_SPCO_ORDCUST_JOB |
| Maximum Chunk Size | 1000 |
| Maximum Concurrent Threads | 4 |
| Retry Lock Attempts | 3 |
| Retry Wait Time | 3 |
| Retry Maximum Attempts | 3 |
| Retry Ordered | N |
| Retry Indicator | N |
Shipments and Finance Documents Publish Batch
This batch will be responsible for publishing shipments and financial documents associated with one or more Customer Orders.
- Job: ORCV_SPCO_PUB_JOB
- Frequency: Ad-hoc
- Dependency: None
- Inter Scheduler Dependency: None
Batch default configuration (ORCV_BATCH_CONFIG):
| COLUMN NAME | DEFAULT VALUES |
|---|---|
| Program Name | ORCV_SPCO_PUB_JOB |
| Maximum Chunk Size | 1000 |
| Maximum Concurrent Threads | 4 |
| Retry Lock Attempts | 3 |
| Retry Wait Time | 3 |
| Retry Maximum Attempts | 3 |
| Retry Ordered | N |
| Retry Indicator | N |
Customer Order Status Update Batch
This batch will be responsible for updating the Customer Order status. If the financial document was not successfully integrated into IMCS, the status will be 'E'rror, otherwise it will be 'C'ompleted.
- Job: ORCV_SPCO_UPD_STATUS_JOB
- Frequency: Ad-hoc Flow ORCV_SPCO_PUB_FLOW
- Dependency: ORCV_FIN_INT_EDI_MFCS_PROCESS_ADHOC, ORCV_SHIP_INT_ASNIN_MFCS_PROCESS_ADHOC
- Inter Scheduler Dependency: None
Batch default configuration (ORCV_BATCH_CONFIG):
| COLUMN NAME | DEFAULT VALUES |
|---|---|
| Program Name | ORCV_SPCO_UPD_STATUS_JOB |
| Maximum Chunk Size | 10000 |
| Maximum Concurrent Threads | 4 |
| Retry Lock Attempts | 4 |
| Retry Wait Time | 2 |
| Retry Maximum Attempts | 3 |
| Retry Ordered | N |
| Retry Indicator | N |
Events Notifications and Alerts Batch
Triggers notifications for Events described in Notifications and Alerts.
- Job: ORCV_RLEG_SPCO_EVT_WITHOUT_INV
- Frequency: Ad-hoc
- Dependency: None
- Inter Scheduler Dependency: None
This batch uses the Rule Engine Framework described in the Supply Chain Hub Frameworks section with the following configurations.
Rule default configuration (ORCV_RLEG_RULE):
| RULE KEY | RULE NAME | PROGRAM NAME | APP ALIAS | RULE MODE |
|---|---|---|---|---|
| SPCO_EVT_WITHOUT_INV | ORCV_SPCO_EVT_WITHOUT_INV | ORCV_RLEG_SPCO_EVT_WITHOUT_INV | SPCO | BATCH |
Batch default configuration (ORCV_BATCH_CONFIG):
| COLUMN NAME | DEFAULT VALUES |
|---|---|
| Program Name | ORCV_RLEG_SPCO_EVT_WITHOUT_INV |
| Maximum Chunk Size | 1000 |
| Maximum Concurrent Threads | 4 |
| Retry Lock Attempts | 3 |
| Retry Wait Time | 3 |
| Retry Maximum Attempts | 3 |
| Retry Ordered | N |
| Retry Indicator | Y |
Materialized Views
This application requires some results to be materialized in tables using the Materialized View Framework described in the Supply Chain Hub Frameworks section, below is the list for this application. Materialized Views used in Customer Order Fulfillment home page.
ORCV_MV_SPCO_DASH_COF_BY_DEP
Returns the sum of total cost items by department. Used in Customer Order Fulfillment home page.
Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc
Codes
Certain operations require codes to define the options available at system level. Below you can find the list of code types available.
The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.
| CODE TYPE | CODE TYPE DESCRIPTION |
|---|---|
| COBL | Badges labels, to be used on the dashboard screen. |
| CORS | Customer Order Reason. |
| COST | Customer Order Status. |
| SHST | Shipment Status. |
Templates
Customer Order Fulfillment uses spreadsheets to download and upload process, developed as part of the Retail Supply Chain Hub Frameworks, for creation, maintenance, and extraction of data. To support these processes there are some templates which must be configured, and several configurations should be reviewed as part of the implementation.
Template Customer Order Fulfillment Data
Template key: SPCO_COF
The required permissions per action for this template are the following:
Table 25-3 Template key: SPCO_COF
| ACTION TYPE | ROLE NAME |
|---|---|
| Download Blank | ORCV_SPCO_APP_JOB |
| Download | ORCV_SPCO_COF_VIEW_JOB |
| Download | ORCV_SPCO_COF_EDIT_JOB |
| Upload | ORCV_SPCO_COF_EDIT_JOB |
Table 25-4 Worksheet Customer Order Header
| ACTION | MANDATORY CELLS / FIELDS | NOTES |
|---|---|---|
| Update | Ordcust No |
Edits Customer Orders Note: It is only allowed to change the shipment status and expected shipment date fields |
| Commit | Ordcust No | Commits Customer Orders |
| Dispatch | Ordcust No | Dispatchs Customer Orders |
| Cancel | Ordcust No | Cancels Customer Orders |
Codes
Certain operations require codes to define the options available at system level. Below you can find the list of code types available.
The codes are defined in the ORCV_S9T_CODE_HEAD and ORCV_S9T_CODE_DETAIL tables.
| CODE TYPE | CODE TYPE DESCRIPTION |
|---|---|
| SPCA | Customer Order Fulfillment - Customer Order Action |
References
Customer Order Fulfillment also uses the Queries module to enable communication between retailer and supplier users, details about Queries are available in the Supply Chain Hub Frameworks section.
Operations
This section describes Customer Order Fulfillment operations.
Integration by Module

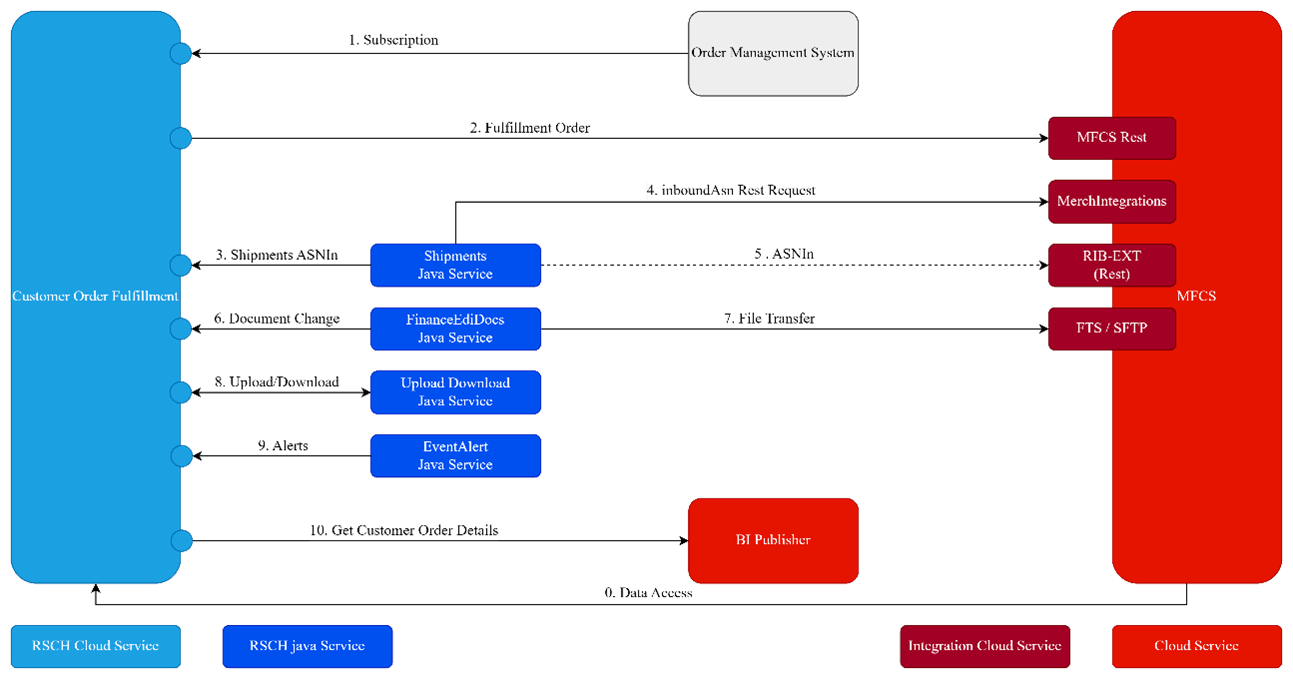

Figure 25-4 Customer Order Fulfillment Integration by Module
| STEP | DESCRIPTION |
|---|---|
| 0 | RSCH Data Access of MFCS data |
| 1 | Order Management System calls Customer Order Fulfillment subscription Rest Service. |
| 2 | Customer Order Fulfillment calls MFCS Fulfillment Upload Rest Service to create/cancel Fulfillment Orders. |
| 3 | Shipments Java Services checks if Customer Order Fulfillment has shipments to be published. |
| 4 | If there are ASNin to be published, Shipments Java Services sends calls MFCS via RIB-EXT Rest. |
| 5 | Finance Document Induction Java Services checks if Customer Order Fulfillment has documents to be published. |
| 6 | Finance Document Induction Java Services sends produced files to Integration File Transfer. |
| 7 | Integration File Transfer publishes files to MFCS File Transfer Services (FTS) or MFCS shared folder (depending on configuration). |
| 8 | Customer Order Fulfillment calls Upload Download Java Service to transform files, depending on the request details, Upload Download Java Service might need to callback to SPCO to get more details. |
| 9 | Event Alert Java Service checks if there are alerts to be triggered. |
| 10 | Customer Order Fulfillment uses Reports application to call BI Publisher Rest Service to retrieve the Customer Order details from a BI Publisher report. |
Services by Module
This section describes the Customer Order Fulfillment services.
Fulfillment Order Service
This service is used to create or cancel Customer Order Fulfillment requests from an external order management system (OMS).
Create
Table 25-5 Create API
| Create | |
|---|---|
| Url Path | <BASE URL>/ords/mfcs/orcv/merch/customerorder/fulfillmentorder/create |
| Request Method | POST |
| Sample Request Body |
{ "items": [ { "customerOrderNo": "47244", "fulfillOrderNo": "47244", "details": [ { "item": "100202777", "orderQuantitySuom": 25, "substituteInd": "N", "standardUom": "EA", "transactionUom": "EA", "unitRetail": 99, "retailCurrency": "USD", "comments": "Lalalala", "itemLineNo": 1 }, { "item": "100202742", "orderQuantitySuom": 59, "substituteInd": "N", "standardUom": "EA", "transactionUom": "EA", "unitRetail": 99, "retailCurrency": "USD", "comments": "Test", "itemLineNo": 2 } ], "fulfillLocation": 3000, "partialDeliveryInd": "N", "sourceLocationType": "SU", "sourceLocation": 6200, "fulfillLocationType": "V", "deliveryType": "S", "carrierCode": "30", "carrierServiceCode": "D", "consumerDeliveryDate": "2024-06-19", "deliveryCharges": 99, "deliveryChargesCurrency": "USD", "comments": "Test", "orderPlacedStore": null } ] } |
| Sample Success Message |
{ "items": [ { "customerOrderNo": "47244", "fulfillOrderNo": "47244", "confirmationType": "C", "confirmationNo": 1, "fulfillLocation": 3000, "systemCode": "INV", "details": [ { "item": "100202777", "confirmedQuantity": 25, "confirmedQuantityUom": "EA", "itemLineNo": 1 }, { "item": "100202742", "confirmedQuantity": 59, "confirmedQuantityUom": "EA", "itemLineNo": 2 } ] } ] } Response Code: 200 (Success) |
| Sample Failure Message |
{ "status": "ERROR", "message": "Error found in validation of input payload", "validationErrors": [ { "error": "must be one of Y, N", "field": "createRecord.partialDeliveryInd", "inputValue": "X" } ], "businessError": [ "Invalid Order Placed Location. Customer order no UNIT_TEST, Fulfill order no UNIT_TEST. 2", "Consumer_delivery_date and Consumer_delivery_time cannot both be populated. Customer order no 03-MAR-24, Fulfill order no 03-MAR-24.", "Invalid substitute indicator for item <string>, Customer order no UNIT_TEST, Fulfill order no UNIT_TEST. Valid values are Y or N.", "Fulfill Location ID must be a valid non-stockholding company store that supports customer orders. Customer order no UNIT_TEST, Fulfill order no UNIT_TEST. V" ] } Response Code: 400 (Bad Request) |
| Affected Tables |
ORCV_ORD_SUB_ORDCUST_HEAD ORCV_ORD_SUB_ORDCUST_DETAIL ORCV_ORD_SUB_ORDCUST_ERR ORCV_SPCO_ORDCUST_HEAD ORCV_SPCO_ORDCUST_DETAIL |
Table 25-6 Customer Order Fulfillment Object
| Element Name | Required | Data Type | Description |
|---|---|---|---|
| customer_order_no | Yes | String (48) | This column contains the master customer order number from the Order Management System. |
| fulfill_order_no | Yes | String (48) | This column contains the number from OMS related to the fulfillment details. One or more fulfillment orders could relate back to a single customer order in OMS. |
| details | Yes | Collection of FulfillOrder Details Object | A list of items associated with Customer Order Fulfillment. |
| fulfill_location | Yes | Number (10) | This contains the fulfillment location of the customer order. It can only be either a physical store or a virtual store. |
| partial_delivery_ind | Yes | String (1) | This column indicates if the order can be picked and shipped partially or if it should be shipped only when complete. Valid values are Y or N. |
| source_location_type | Yes | String (2) | This column contains the source type for the customer order. Valid values are SU for supplier, ST for store and WH warehouse. This would only contain a value for vendor, warehouse, or multi-site fulfillment orders. |
| source_location | Yes | Number (10) | This column contains the supplier, store or warehouse the customer order is sourced from. This would only contain a value for vendor, warehouse or multi-site fulfillment orders. |
| fulfill_location_type | Yes | String (1) | This column contains the fulfillment location type of the customer order. Valid values are S for physical store and V for virtual store. |
| delivery_type | Yes | String (1) | This column contains the fulfillment method. Valid values are S for ship direct and C for customer pickup. |
| carrier_code | No | String (4) | This column contains the carrier the order is to be shipped with, if specified on the order. |
| carrier_service_code | No | String (6) | This column contains the shipping method that was selected by the customer. Valid values are defined as codes for code_type CSVC: F (Free 2 Day Shipping), D (Discounted 4 Day Shipping), O (Overnight Shipping), P (Premium Next Business Day Delivery) and S (Standard Shipping). |
| consumer_delivery_date | Yes | Date | This column contains the desired date the delivery is required by the customer. |
| delivery_charges | No | Number (20,4) | This column contains the delivery charges for Drop Ship purchase orders. |
| delivery_charges_currency | No | String (3) | This column contains the currency of the delivery charge. |
| comments | No | String (2000) | This column contains any comments about the customer order. |
| order_placed_store | Yes | Number (10) | Indicates the store number associated with the location that the customer order was placed. For on-line orders this will contain the virtual store number associated with the on-line store. For orders captured in a physical store this will contain the store number for the physical store. |
Table 25-7 Fulfillment Order Details Object
| Element Name | Required | Data Type | Description |
|---|---|---|---|
| item | Yes | String (25) | This field contains the item in the customer order. This field will contain the original ordered item from the customer order message. This field can also hold the substitute item when a new record is inserted in this table to hold the substitution details when store fulfills using a substitute item. |
| reference_item | No | String (25) | This field contains the reference item ordered. This will be used only when a specific UPC is ordered. This is supported for vendor drop-ships orders only. |
| order_quantity_suom | Yes | Number (12,4) | This field holds the quantity ordered for the customer order/fulfillment no/item number. This quantity is in STANDARD_UOM. |
| substitute_ind | No | String (1) | This field indicates substitute items are allowed for an item on a customer order at the time of store fulfillment. This field is applicable for store fulfillment only in SIM. The valid values are Y or N. |
| standard_uom | Yes | String (4) | This field contains the standard UOM of the item. |
| transaction_uom | Yes | String (4) | This field contains the original unit of measure in which the customer had placed the order in OMS. This field is informational only for RMS. |
| unit_retail | Yes | Number (20,4) | Indicates the unit sales retail of item on the customer order and is maintained in standard UOM. |
| retail_currency | Yes | String (3) | Indicates currency of unit retail. |
| comments | Yes | String (2000) | Used to indicate any special instructions for the item, such as services (monograms, engrave, etc). |
| item_line_no | Yes | Number (10) | Indicates the detail item line number on the customer order. |
Cancel
Table 25-8 Cancel API
| Cancel | |
|---|---|
| Url Path | <BASE URL>/ords/mfcs/orcv/merch/customerorder/fulfillmentorder/cancel |
| Request Method | POST |
| Sample Request Body |
{ "items": [ { "customerOrderNo": "5", "fulfillOrderNo": "5", "sourceLocationType": "SU", "sourceLocation": 6200, "fulfillLocationType": "V", "fulfillLocation": 3000, "details": [ { "item": "100202742", "cancelQuantityInSuom": 1, "standardUom": "EA", "transactionUom": "EA", "itemLineNo": 2 } ] } ] } |
| Sample Success Message |
{ "status": "SUCCESS", "message": "Service call is successful" } Response Code: 200 (Success) |
| Sample Failure Message |
{ "status": "ERROR", "message": "Error found in validation of input payload", "validationErrors": [ { "error": "must be one of Y, N", "field": "createRecord.partialDeliveryInd", "inputValue": "X" } ], "businessError": [ "Item %s1 with invalid direct shipment indicator." ] } Response Code: 400 (Bad Request) |
| Affected Tables |
ORCV_ORD_SUB_ORDCUST_HEAD ORCV_ORD_SUB_ORDCUST_DETAIL ORCV_ORD_SUB_ORDCUST_ERR ORCV_SPCO_ORDCUST_HEAD ORCV_SPCO_ORDCUST_DETAIL |
Table 25-9 Customer Order Fulfillment Object
| Element Name | Required | Data Type | Description |
|---|---|---|---|
| Element Name | Required | Data Type | Description |
| customer_order_no | Yes | String (48) | This column contains the master customer order number from the Order Management System. |
| fulfill_order_no | Yes | String (48) | This column contains the number from OMS related to the fulfillment details. One or more fulfillment orders could relate back to a single customer order in OMS. |
| details | Yes | Collection of FulfillOrder Details Object | A list of items associated with Customer Order Fulfillment. |
| fulfill_location | Yes | Number (10) | This contains the fulfillment location of the customer order. It can only be either a physical store or a virtual store. |
| source_location_type | Yes | String (2) | This column contains the source type for the customer order. Valid values are SU for supplier, ST for store and WH warehouse. This would only contain a value for vendor, warehouse, or multi-site fulfillment orders. |
| source_location | Yes | Number (10) | This column contains the supplier, store or warehouse the customer order is sourced from. This would only contain a value for vendor, warehouse or multi-site fulfillment orders. |
| fulfill_location_type | Yes | String (1) | This column contains the fulfillment location type of the customer order. Valid values are S for physical store and V for virtual store. |
Table 25-10 Fulfillment Order Details Object
| Element Name | Required | Data Type | Description |
|---|---|---|---|
| item | Yes | String (25) | This field contains the item in the customer order. This field will contain the original ordered item from the customer order message. This field can also hold the substitute item when a new record is inserted in this table to hold the substitution details when store fulfills using a substitute item. |
| cancelQuantityInSuom | Yes | Number (12,4) | This field holds the quantity cancelled for the customer order/fulfillment no/item number. This quantity is in STANDARD_UOM. |
| standard_uom | Yes | String (4) | This field contains the standard UOM of the item. |
| transaction_uom | Yes | String (4) | This field contains the original unit of measure in which the customer had placed the order in OMS. This field is informational only for RMS. |
| item_line_no | Yes | Number (10) | Indicates the detail item line number on the customer order. |
Materialized Views Refresh Details
ORCV_MV_SPCO_DASH_COF_BY_DEP
| Parameter | Value |
|---|---|
| Result Synonym | ORCV_MV_SPCO_DASH_COF_BY_DEP |
| Result Table A | ORCV_SPCO_DASH_COF_BY_DEP_A_R |
| Result Table B | ORCV_SPCO_DASH_COF_BY_DEP_B_R |
| Source View | ORCV_V_SPCO_DASH_COF_BY_DEP_R |
| Driving View | ORCV_V_SPCO_DASH_COF_BY_DEP_RC |
| Pre-Processor | ORCV_COMMON_MV_REFRESH.COMMON_PRE_PROCESSOR |
| Check Function | ORCV_SPCO_DASH_MV.CHECK_SPCO_DASH_COF_BY_DEP |
| Preserve Data | Y |
| Restart Indicator | N |
| Max Concurrent Threads | 4 |
| Filter Fields | SUPPLIER,DEPT |
ORCV_MV_SPCO_DASH_CMPL_COF
| Parameter | Value |
|---|---|
| Result Synonym | ORCV_MV_SPCO_DASH_CMPL_COF |
| Result Table A | ORCV_SPCO_DASH_CMPL_COF_A_R |
| Result Table B | ORCV_SPCO_DASH_CMPL_COF_B_R |
| Source View | ORCV_V_SPCO_DASH_CMPL_COF_R |
| Driving View | ORCV_V_SPCO_DASH_CMPL_COF_RC |
| Pre-Processor | ORCV_COMMON_MV_REFRESH.COMMON_PRE_PROCESSOR |
| Check Function | ORCV_SPCO_DASH_MV.CHECK_SPCO_DASH_CMPL_COF |
| Preserve Data | Y |
| Restart Indicator | N |
| Max Concurrent Threads | 4 |
| Filter Fields | SUPPLIER,DEPT |
ORCV_MV_SPCO_DASH_MISG_INV
| Parameter | Value |
|---|---|
| Result Synonym | ORCV_MV_SPCO_DASH_MISG_INV |
| Result Table A | ORCV_SPCO_DASH_MISG_INV_A_R |
| Result Table B | ORCV_SPCO_DASH_MISG_INV_B_R |
| Source View | ORCV_V_SPCO_DASH_MISG_INV_R |
| Driving View | ORCV_V_SPCO_DASH_MISG_INV_RC |
| Pre-Processor | ORCV_COMMON_MV_REFRESH.COMMON_PRE_PROCESSOR |
| Check Function | ORCV_SPCO_DASH_MV.CHECK_SPCO_DASH_MISG_INV |
| Preserve Data | Y |
| Restart Indicator | N |
| Max Concurrent Threads | 4 |
| Filter Fields | SUPPLIER,DEPT |
