Procure to Pay

13 Procure to Pay

This section describes the common functionality and configurations available for Procure to Pay.

Procure to Pay features include the possibility of creating and maintaining Purchase Orders, Shipments and create Finance Documents. It also includes the functionality of downloading and uploading majority of those entries being a more effective way to maintain in bulk. Each of the entities maintained in Procure to Pay have specific sections to details of the implementation details.

Purchase Orders

This section describes the Purchase Orders features.

Implementation Overview

This section provides an implementation overview of the Purchase Orders functionality.

Functionality

Procure to Pay, Purchase Orders, will allow retailers and suppliers to create and maintain purchase orders.

Status Workflow

Figure 13-1 Procure to Pay Purchase Orders Status Workflow

Purchase Order follows a workflow path, and the status can change depending on:

The user permissions
The current status of the purchase order

Purchase Order Status:

New – New is the initial status of a Purchase Order. In this status a Purchase Order can be approved to send the Purchase Order to MFCS or Rejected to change the status of the Purchase Order to rejected.
Rejected – Reject status is for Purchase Orders that were not previously approved.
Approved – This status is used after the Purchase Order is Approved, in this state the Order has been sent to MFCS.
Changes Proposed – Changes proposed is the status used when a user without approval permissions updates an approved Purchase Order. During this status the changes made on the purchase order can be approved and then sent to MFCS or rejected and the changes are discarded.
Cancelled – Cancelled status is used when the Purchase Order is cancelled in Procure to Pay.
Shipped – Shipped status is used whenever a shipment has been created for the Purchase Order.
Closed – Closed is the final status of the order once MFCS closes the order. This status can also be used for MFCS side cancelled orders, i.e., not done via SCH.

Integration High Level

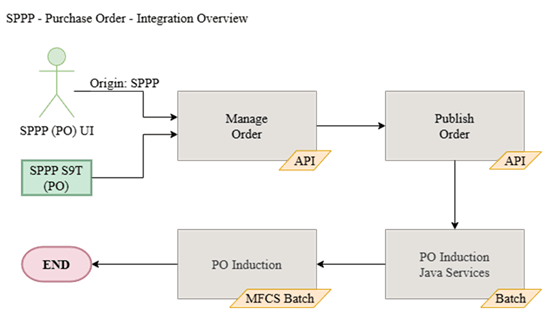

Figure 13-2 SPPP Purchase Order Integration Overview

The integration of Purchase Orders from Procure to Pay to MFCS described above is done in the following order:

Purchase Orders are created and managed in Procure to Pay, either through the UI or via upload functionality.
After being approved or cancelled, Purchase Orders are published by a batch process.
Purchase Orders Induction Java Services adds Purchase Orders to an MFCS induction file, which is transferred to MFCS SFTP/FTS.
Finally, MFCS induction batch for Purchase Orders is executed and integrates Purchase Orders to MFCS.

Configuration

This section describes the Procure to Pay configuration.

POM Configuration

Batch scheduler details with all batches, dependencies and frequencies can be downloaded following the steps in the Supply Chain Hub Frameworks section.

Schedule Overview

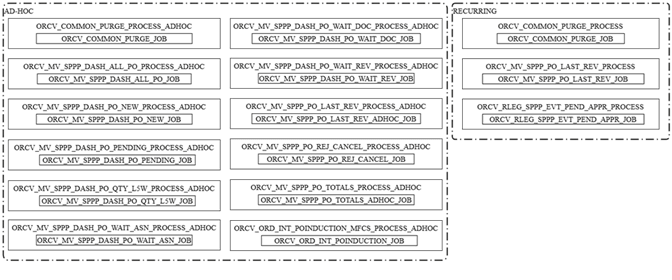

Figure 13-3 Procure to Pay Purchase Orders Batch Schedule Overview

Other Cloud Services Configuration

This section describes implementation details that must be reviewed from an Oracle Retail Merchandising System perspective.

Batches

The MFCS integration order induction job, POINDUCT_JOB, should be configured to execute with high frequency to assure that purchase orders changes made in Procure to Pay are integrated into MFCS as soon as possible with final target the merchandising tables via parameter “RMS”.

Other Implementation Considerations

This section describes implementation considerations for Purchase Order features.

Custom Validations - Purchase Orders

The module performs validations by implementing Custom Validation Groups of the Custom Validations Framework described in the Supply Chain Hub Frameworks section. The groups listed below can be used to add Custom Validations for Purchase Orders.

Group Id	Executed When
SPPP_ORDER_APPROVE	Purchase Order is Approved
SPPP_ORDER_CANCEL	Purchase Order is Cancelled
SPPP_ORDER_REJECT	Purchase Order is Rejected
SPPP_ORDER_SUBMIT	Purchase Order is Submitted for Approval

Materialized Views

This application requires some results to be materialized in tables using the Materialized View Framework described in the Supply Chain Hub Frameworks section, below is the list for this application. Materialized views used in Procure to Pay, Purchase Orders, are listed in this section.

ORCV_MV_SPPP_DASH_ALL_PO

Materialize View to support Supply Chain Hub dashboard “All POs Available” showing all Purchase Orders available.

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc.

ORCV_MV_SPPP_DASH_PO_NEW

Materialize View to support Supply Chain Hub dashboard “New POs to be Approved” showing Purchase Orders with Status "New".

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc

ORCV_MV_SPPP_DASH_PO_PENDING

Description: Materialize View to support Supply Chain Hub dashboard “POs Pending Action” showing Purchase Orders with pending actions by Status.

Pre-Dependencies: None

Post-Dependencies: None

Frequency: Ad-hoc.

ORCV_MV_SPPP_DASH_PO_QTY_L5W

Materialize View to support Supply Chain Hub dashboard “PO Quantity Expected” showing Purchase Orders expected Quantities.

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc.

ORCV_MV_SPPP_DASH_PO_WAIT_ASN

Materialize View to support Supply Chain Hub dashboard “POs Waiting Shipment” showing Purchase Orders with Status "Approved" without shipment.

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc.

ORCV_MV_SPPP_DASH_PO_WAIT_DOC

Materialize View to support Supply Chain Hub dashboard “POs Waiting Invoices” showing Purchase Orders with Status "Approved" or "Closed" without invoice.

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc.

ORCV_MV_SPPP_DASH_PO_WAIT_REV

Materialize View to support Supply Chain Hub dashboard “POs Waiting Review” showing Purchase Orders with Status "Changes Proposed" without revision.

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc.

ORCV_MV_SPPP_PO_LAST_REV

Revision number for Purchase Orders.

Pre-Dependencies: None

Post-Dependencies: None

Frequency: Ad-hoc, Nightly

ORCV_MV_SPPP_PO_REJ_CANCEL

Returns the number of cancelled and rejected POs, by supplier and department displayed in Procure to Pay Home page.

Pre-Dependencies: None

Post-Dependencies: None

Frequency: Ad-hoc.

ORCV_MV_SPPP_PO_TOTALS

Returns the total quantity and total cost of the POs, displayed in Procure to Pay Home page grid.

Pre-Dependencies: None
Post-Dependencies: None
Frequency: Ad-hoc.

Codes

Certain operations require codes to define the options available at system level. Below you can find the list of code types available.

The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.

Table 13-1 Codes

CODE TYPE	CODE TYPE DESCRIPTION
ORRC	Purchase Order Reason Codes
ORST	Purchase Order Status
ORTP	Purchase Order Type
PRTP	Purchase Order Type
PYMT	Payment Method

Templates

Procure to Pay, Purchase Orders, uses a spreadsheet download and upload process, developed as part of the Supply Chain Hub Frameworks framework, for creation, maintenance, and extraction of data. To support these processes there are some templates which must be configured, and several configurations should be reviewed as part of the implementation.

Templates SPPP Purchase Orders Data

Table 13-2 Template Key: SPPP_PURCHASE_ORDER_DATA

ACTION TYPE	ROLE NAME
Download	ORCV_SPPP_ORDER_APPR_JOB
Download	ORCV_SPPP_ORDER_EDIT_JOB
Download	ORCV_SPPP_ORDER_VIEW_JOB
Download Blank	ORCV_SPPP_APP_JOB
Upload	ORCV_SPPP_ORDER_APPR_JOB
Upload	ORCV_SPPP_ORDER_EDIT_JOB

Table 13-3 Orders Worksheet

ACTION	STATUS	MANDATORY CELLS / FIELDS	NOTES
Create	New	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	When user has edit permissions Create an order status New.
Create	Approve	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	When user has approval permissions Create an approved order
Update	New	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	If the upload is done by a user with edit permissions, the order keeps the status New, if it is done by a user with approval permissions, the order status will change to Approved. Update order/items data (Applicable to scenarios where the order only exists in the SPPP application
Update	Approve	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	If the upload is done by a user with approval permissions, the order keeps the approved status, if it is done by a user with edit permissions, the order status will change to Change Proposed. If the order does not yet exist in SPPP, the order will be created based on information that exists in MFCS
Update	Change Proposed	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	If the upload is done by a user with edit permissions, the order keeps the change proposed status, if it is done by a user with approval permissions, the order status will change to Approved. If the order does not yet exist in SPPP, the order will be created based on information that exists in MFCS.
Approve	Not Applicable	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	When the user has approval permissions. Only for order status evolution. The order will be approved (applicable to existing SPPP orders with status New or Change Proposed) Order items worksheet data will not be used; worksheet can be left blank, or if there is data, leave the action field empty.
Acknowledge	Not Applicable	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	When user has edit permissions. This action will only be executed successfully if there is a higher approved order revision in the MFCS than the one in the SPPP. If the order does not yet exist in SPPP, the order will be created based on information that exists in MFCS. Order items worksheet data will not be used; worksheet can be left blank, or if there is data, leave the action field empty
Cancel	Not Applicable	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	When the user has approval permissions. Only for order status evolution. The order will be cancelled (applicable to existing orders with status Approve or Change Proposed). If the order does not yet exist in SPPP, the order will be created based on information that exists in MFCS. Order items worksheet data will not be used; worksheet can be left blank, or if there is data, leave the action field empty.
Reject	Not Applicable	Action, Master order number, order number, status, location type, location, supplier, currency code, exchange rate terms	When the user has edit permissions, can only reject orders with status New. When user has approval permissions, can reject order with status New and Change Proposed. If the order has change proposed status, status orders will stay approve and order's data will be reverted to the last approved values. Order items worksheet data will not be used; worksheet can be left blank, or if there is data, leave the action field empty.

Table 13-4 Order Items Worksheet

ACTION	MANDATORY CELLS / FIELDS	NOTES
Create	Action, Quantity Item or Reference Item or VPN Supplier pack size Country of sourcing	Add items to delivery. Applicable when the action on the orders worksheet is Create or Update
Update	Action, Quantity Item or Reference Item or VPN Supplier pack size Country of sourcing	Update delivery items data Applicable when the action on the orders worksheet is Update
Cancel	Action, Item or Reference Item or VPN	Cancel delivery items data (zero out quantity value) Applicable when the action on the orders worksheet is Update

ACTION

MANDATORY CELLS / FIELDS

NOTES

Create

Action,

Quantity

Item or Reference Item or VPN

Supplier pack size

Country of sourcing

Add items to delivery.

Applicable when the action on the orders worksheet is Create or Update

Update

Action,

Quantity

Item or Reference Item or VPN

Supplier pack size

Country of sourcing

Update delivery items data

Applicable when the action on the orders worksheet is Update

Cancel

Action,

Item or Reference Item or VPN

Cancel delivery items data (zero out quantity value)

Applicable when the action on the orders worksheet is Update

Codes

Certain operations require codes to define the options available at system level. Below you can find the list of code types available.

The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.

CODE TYPE	CODE TYPE DESCRIPTION
PPAC	Purchase Order Actions
PPST	Purchase Orders Status
PPIA	Purchase Order Items Actions

Interactive Grid Additional Columns

This application supports adding additional fields to the Interactive Grids by using the Interactive Grid Additional Columns functionality described in the Supply Chain Hub Frameworks section.

The Interactive Grids that support this functionality are listed below:

Interactive Grid	Grid ID	User Types	Page	Non Based View	Entity Key
Purchase Orders Dashboard Grid	P1_IG_ORDERS	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Home	ORCV_V_SPPP_ORD_NB	ORDER_NO
Deliveries Grid	P2_IG_DELIVERY_GRID	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Create or Edit PO	ORCV_V_SPPP_ORD_NB	ORDER_NO

References

Procure to Pay, Purchase Orders, also uses the Queries module to enable communications between retailer and supplier users, the details about Queries are available in the Supply Chain Hub Frameworks section. It also has dependencies from other modules batch jobs listed in POM Configuration that are documented in the Supply Chain Hub Frameworks section.

Operations

This section describes Purchase Order operations.

Integration by Modules

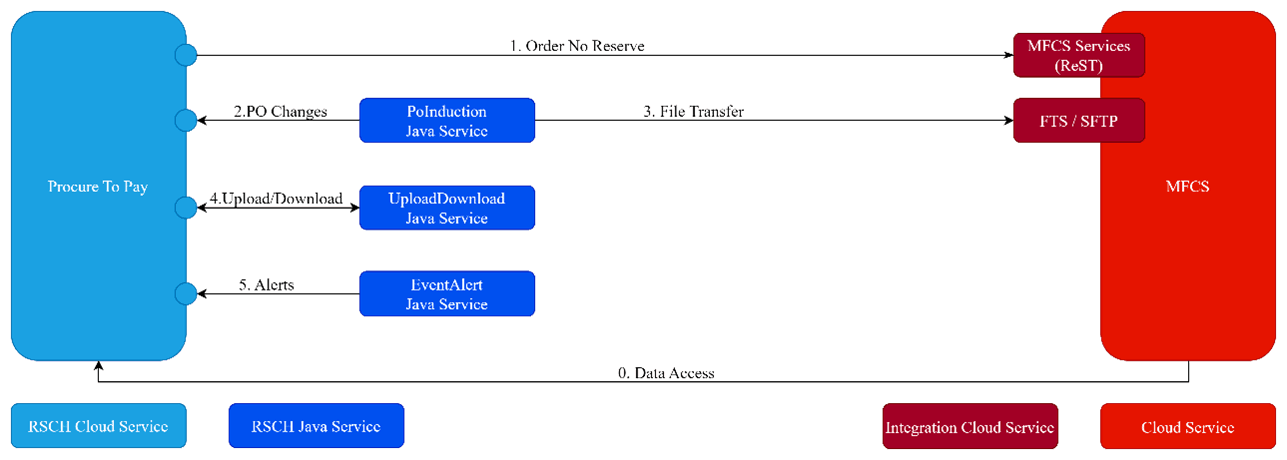

Figure 13-4 Procure to Pay Purchase Orders Integration by Module

STEP	DESCRIPTION
0	RSCH Data Access of MFCS data
1	Order No Reserve calls MFCS Services with a request to reserve Order No.
2	PO Induction Java Services checks if Procure to Pay has purchase orders to be published and produces ODS files to be consumed by MFCS PO Induction Job.
3	PO Induction Java Services sends produced files to Integration File Transfer.
4	Integration File Transfer publishes files to MFCS File Transfer Services (FTS) or MFCS shared folder (depending on configuration).
5	Procure to Pay calls Upload Download Java Service to transform files, depending on the request details, Upload Download Java Service might need to callback to Procure to Pay to get more details.
6	Event Alert Java Service checks if there are alerts to be triggered.

Reference

For operational details on integration and order reserve services, refer to the Supply Chain Hub Frameworks section.

Materialized Views Refresh Detail

This section describes Materialized Views Refresh Details.

ORCV_MV_SPPP_DASH_ALL_PO

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_ALL_PO
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_ALL_PO_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_ALL_PO_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_ALL_PO_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_ALL_PO_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_PO_NEW

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_PO_NEW
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_PO_NEW_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_PO_NEW_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_PO_NEW_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_PO_NEW_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_PO_PENDING

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_PO_PENDING
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_PO_PENDING_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_PO_PENDING_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_PO_PENDING_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_PO_PENDING_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_PO_QTY_L5W

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_PO_QTY_L5W
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_PO_QTY_L5W_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_PO_QTY_L5W_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_PO_QTY_L5W_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_PO_QTY_L5W_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_PO_WAIT_ASN

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_PO_WAIT_ASN
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_PO_WAIT_ASN_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_PO_WAIT_ASN_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_PO_WT_ASN_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_PO_WT_ASN_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_PO_WAIT_DOC

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_PO_WAIT_DOC
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_PO_WAIT_DOC_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_PO_WAIT_DOC_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_PO_WT_DOC_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_PO_WT_DOC_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_PO_WAIT_REV

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_PO_WAIT_REV
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_PO_WAIT_REV_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_PO_WAIT_REV_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_PO_WT_REV_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_PO_WT_REV_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_PO_LAST_REV

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_PO_LAST_REV
Result Table A	Name of _A result table.	ORCV_SPPP_PO_LAST_REV_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_PO_LAST_REV_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_PO_LAST_REV_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_PO_LAST_REV_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	SUPPLIER

ORCV_MV_SPPP_PO_REJ_CANCEL

COLUMN	DESCRIPTION	VALUE
Result Synonym	Name of the synonym pointing to the result table.	ORCV_MV_SPPP_PO_REJ_CANCEL
Result Table A	Name of _A result table.	ORCV_ SPPP_PO_REJ_CANCEL_A_R
Result Table B	Name of _B result table.	ORCV_ SPPP_PO_REJ_CANCEL_B_R
Source View	The View contains business logic to be used to populate the result table.	ORCV_V_ SPPP_PO_REJ_CANCEL_R
Driving View	This field contains the view to distribute the refresh process.	ORCV_ SPPP_PO_REJ_CANCEL_RC
Pre-Processor	Name of the pre-process procedure if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Name of the check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if to allow restart batch processor or not.	N
Max Concurrent Threads	This field contains the maximum concurrent threads that created the record.	4
Filter Fields	Column name of the view to be used for threading.	SUPPLIER

ORCV_MV_SPPP_PO_TOTALS

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_PO_TOTALS
Result Table A	Name of _A result table.	ORCV_SPPP_PO_TOTALS_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_PO_TOTALS_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_PO_TOTALS_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_PO_TOTALS_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	ORDER_NO

Shipments

This section describes the Shipments features.

Implementation Overview

Procure to Pay, Shipments, will allow retailers and suppliers to create and maintain purchase ASNs.

Status Workflow

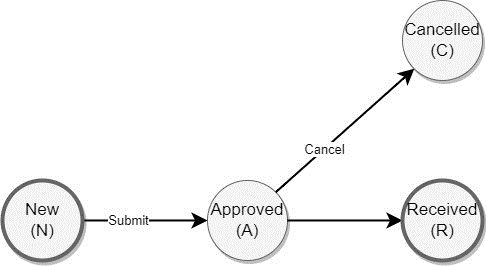

Figure 13-5 Shipments Status Workflow

Shipments follow a workflow path, and the status can change depending on:

The user permissions
The status of the Shipment

Shipment Status:

New – New is the initial status while creating the Shipment in SPCH, this status is only an interim status and it is not possible to save a shipment in this status.
Approved – This status is used once a Shipment is submitted and integrated into MFCS. Whenever updates are made to the Shipment it remains in Approved Status.
Cancelled – Cancelled status is used when the shipment is cancelled in Procure to Pay.
Received – This status is shown once the Shipment has been received in MFCS.

Integration High Level

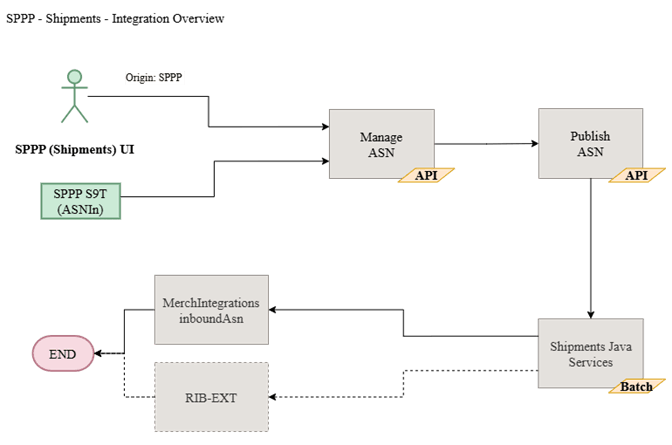

Figure 13-6 Procure to Pay Shipments Integration Overview

Note:

Shipments Java Service integration via RIB-EXT is an optional flow to integrate with SIOCS or WMS that requires enabling from the configuration. For more details on this process, see the Supply Chain Hub Frameworks section.

Configuration

This section describes configurations.

POM Configuration

Batch scheduler details with all batches, dependencies and frequencies can be downloaded following the steps in the Supply Chain Hub Frameworks section.

Schedule Overview

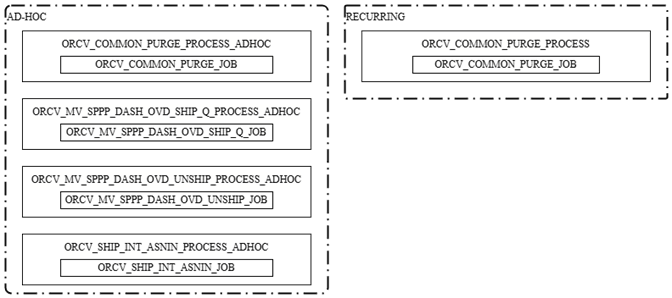

Figure 13-7 Procure to Pay Shipments Batch Schedule Overview

Other implementation Considerations

This section describes implementation considerations.

Custom Validations

Group ID	Executed When
SPPP_ASN_CANCEL	Shipment is cancelled
SPPP_ASN_SUBMIT	Shipment is created or updated

Materialize Views

ORCV_MV_SPPP_DASH_OVD_UNSHIP

Materialize View to support Supply Chain Hub dashboard “Overdue Commitment (Units) - Top 5” showing Purchase Orders without shipments by department that are expected to be already shipped.

Pre-Dependencies: None

Post-Dependencies: None

Frequency: Ad-hoc.

ORCV_MV_SPPP_DASH_OVD_SHIP_Q

Materialize View to support Supply Chain Hub dashboard showing Purchase Orders with shipments with quantities remaining.

Pre-Dependencies: None

Post-Dependencies: None

Frequency: Ad-hoc.

Codes

Certain operations require codes to define the options available at system level. Below you can find the list of code types available.

The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.

CODE TYPE	CODE TYPE DESCRIPTION
ASST	Shipment status.
ASRC	Shipment reason codes

Templates

This section describes templates.

Template SPPP ASNIN Data

Table 13-5 Template Key: SPPP_ASNIN_DATA

ACTION TYPE	ROLE NAME
Download	ORCV_SPPP_ASN_APPR_JOB
Download	ORCV_SPPP_ASN_VIEW_JOB
Download Blank	ORCV_SPPP_APP_JOB
Upload	ORCV_SPPP_ASN_APPR_JOB

Table 13-6 ASN Worksheet

ACTION	STATUS	MANDATORY CELLS / FIELDS	NOTES
Create	New	Action, ASN, Supplier, To Location Type, To location, Shipment Date, Estimated Arrival Date	Creates an ASN with approved status.
Update	Approve	Action, ASN, Supplier, To Location Type, To location, Shipment Date, Estimated Arrival Date	The action needs to be “Update” at the ASN Container worksheet even if the update is only at the container or item level. Updates the ASN.
Cancel	Approve	Action, ASN, Supplier, To Location Type, To location, Shipment Date, Estimated Arrival Date	Cancel an ASN.

ACTION

STATUS

MANDATORY CELLS / FIELDS

NOTES

Create

New

Action,

ASN,

Supplier,

To Location Type,

To location,

Shipment Date,

Estimated Arrival Date

Creates an ASN with approved status.

Update

Approve

Action,

ASN,

Supplier,

To Location Type,

To location,

Shipment Date,

Estimated Arrival Date

The action needs to be “Update” at the ASN Container worksheet even if the update is only at the container or item level.

Updates the ASN.

Cancel

Approve

Action,

ASN,

Supplier,

To Location Type,

To location,

Shipment Date,

Estimated Arrival Date

Cancel an ASN.

Table 13-7 ASN Container Worksheet

ACTION	STATUS	MANDATORY CELLS / FIELDS	NOTES
Create	New	Action, ASN, Container	Adds container to the ASN.
Update	Approve	Action, ASN, Container	The action needs to be “Update” in the ASN worksheet even if the update is only at the container level. Updates the container.
Cancel	Approve	Action, ASN, Container	Removes all quantities for the items associated with the container.

ACTION

STATUS

MANDATORY CELLS / FIELDS

NOTES

Create

New

Action,

ASN,

Container

Adds container to the ASN.

Update

Approve

Action,

ASN,

Container

The action needs to be “Update” in the ASN worksheet even if the update is only at the container level.

Updates the container.

Cancel

Approve

Action,

ASN,

Container

Removes all quantities for the items associated with the container.

Table 13-8 ASN Items Worksheet

ACTION	STATUS	MANDATORY CELLS / FIELDS	NOTES
Create	New	Action, ASN, Order No, Item, Description, Shipped Quantity, Received Quantity	Adds items to the ASN.
Update	Approve	Action, ASN, Order No, Item, Description, Shipped Quantity, Received Quantity	The action needs to be “Update” in the ASN worksheet and ASN Container worksheet if the item is associated with a container even if the update is only at the item level.
Cancel	Approve	Action, ASN, Order No, Item, Description, Shipped Quantity, Received Quantity	The item quantity is adjusted to 0. If the remaining quantity for the ASN is null the cancel action should be done at ASN worksheet level.

ACTION

STATUS

MANDATORY CELLS / FIELDS

NOTES

Create

New

Action,

ASN,

Order No,

Item,

Description,

Shipped Quantity,

Received Quantity

Adds items to the ASN.

Update

Approve

Action,

ASN,

Order No,

Item,

Description,

Shipped Quantity,

Received Quantity

The action needs to be “Update” in the ASN worksheet and ASN Container worksheet if the item is associated with a container even if the update is only at the item level.

Cancel

Approve

Action,

ASN,

Order No,

Item,

Description,

Shipped Quantity,

Received Quantity

The item quantity is adjusted to 0. If the remaining quantity for the ASN is null the cancel action should be done at ASN worksheet level.

Codes

Certain operations require codes to define the options available at system level. Below you can find the list of code types available.

The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.

CODE TYPE	CODE TYPE DESCRIPTION
ASAC	Shipments Actions
ASST	Shipment Status

Interactive Grid Additional Columns

This application supports adding additional fields to the Interactive Grids by using the Interactive Grid Additional Columns functionality described in the Supply Chain Hub Frameworks section.

The Interactive Grids that support this functionality are listed below:

Interactive Grid	Grid ID	User Types	Page	Non Based View	Entity Primary Key
Shipments Dashboard Grid	P1_IG_SHIPMENTS	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Home	ORCV_V_SPPP_ASN_NB	ASN_NO
Purchase Orders Grid	P3_IG_PO	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Create or Edit ASN	ORCV_V_SPPP_ASN_NB	ASN_NO

References

Procure to Pay, Shipments, also uses the Queries module to enable communication between retailer and supplier users, details about Queries are available in the Supply Chain Hub Frameworks section. It also has dependencies from other modules batch jobs listed in POM Configuration that are documented in the Supply Chain Hub Frameworks section.

Operations

This section describes operations.

Integration by Module

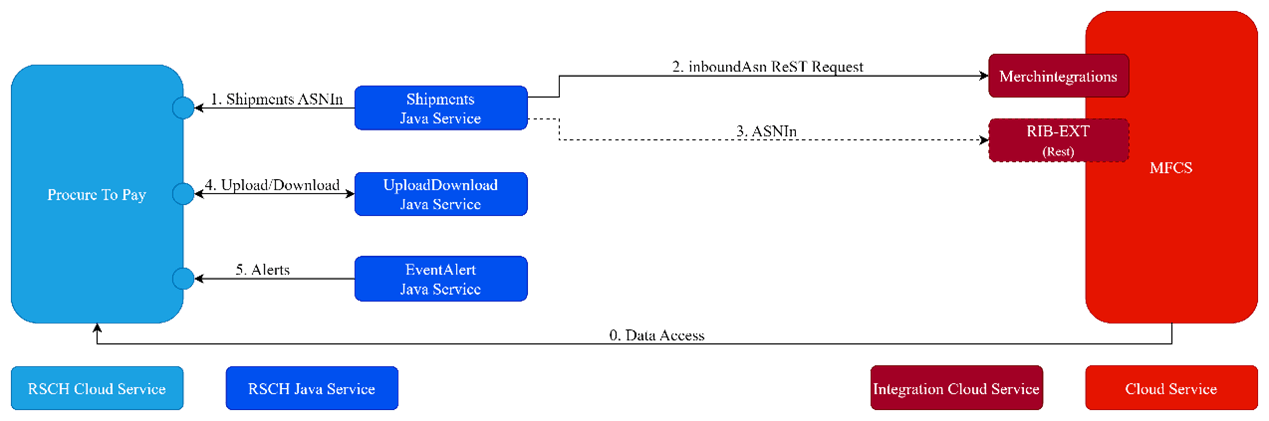

Figure 13-8 Procure to Pay Shipments Integration by Module

STEP	DESCRIPTION
0	RSCH Data Access of MFCS data
1	Shipments Java Services checks if Procure to Pay has shipments to be published
2	If there are ASNin to be published, Shipments Java Services sends to MFCS via RIB-EXT REST
3	Procure to Pay calls Upload Download Java Service to transform files, depending on the request details, Upload Download Java Service might need to callback to Procure to Pay to get more details.
4	Event Alert Java Service checks if there are alerts to be triggered.

Reference

The Shipments ASNIN integration service will support the integration of ASNINs managed in the Procure to Pay module into MFCS via RIB-EXT REST. For more details on this process, consult the Supply Chain Hub Frameworks section.

Materialized Views Refresh Detail

This section describes the Materialized Views Refresh Details for Shipments.

ORCV_MV_SPPP_DASH_OVD_SHIP_Q

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_OVD_SHIP_Q
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_OVD_SHIP_Q_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_OVD_SHIP_Q_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_OVD_SHIP_Q_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_OVD_SHIP_Q_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

ORCV_MV_SPPP_DASH_OVD_UNSHIP

Parameter	Description	Value
Result Synonym	Synonym name pointing to the latest result table.	ORCV_MV_SPPP_DASH_OVD_UNSHIP
Result Table A	Name of _A result table.	ORCV_SPPP_DASH_OVD_UNSHIP_A_R
Result Table B	Name of _B result table.	ORCV_SPPP_DASH_OVD_UNSHIP_B_R
Source View	View used to refresh the result tables.	ORCV_V_SPPP_DASH_OVD_UNSHIP_R
Driving View	View used to distribute the refresh of result tables.	ORCV_V_SPPP_DASH_OVD_UNSHIP_RC
Pre-Processor	Pre-process procedure to execute, if applicable.	ORCV_COMMON_MV_REFRESH. COMMON_PRE_PROCESSOR
Check Function	Check function to validate if there is a need to refresh or if there are any batch dependencies.	NA
Preserve Data	Flag to decide if the data needs to be preserved until the next run cycle.	Y
Restart Indicator	Flag to indicate if restart is allowed or not.	N
Max Concurrent Threads	The maximum concurrent threads to refresh result tables.	4
Filter Fields	Column(s) to distribute the refresh of result tables.	DEPT, SUPPLIER

Finance Documents

This section describes the Finance Documents features.

Implementation Overview

Procure to Pay, Purchase Orders, will allow retailers and suppliers to create and maintain financial documents.

Status Workflow

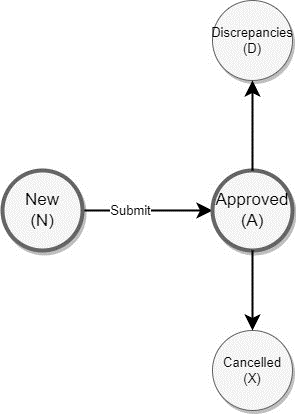

Figure 13-9 Procure to Pay Finance Documents Status Workflow

Finance Documents follow a workflow path, and the status can change depending on:

The user permissions

Finance Document Status:

New – New is the initial status while creating the Document in SPCH, this status is only an interim status and is not possible to save a Finance Document in this status.
Approved – This status is used once a Finance Document is submitted and integrated into IMCS.
Discrepancies – This status is used if any discrepancies are found during the matching process in IMCS.
Cancelled – Cancelled status is used if the Finance Document is cancelled in IMCS

Integration High Level

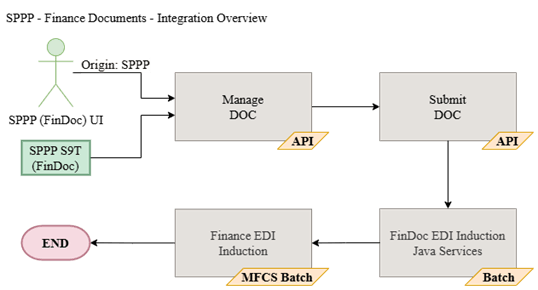

Figure 13-10 Procure to Pay Finance Documents Integration Overview

Configuration

This section describes configurations.

POM Configuration

Batch scheduler details with all batches, dependencies and frequencies can be downloaded following the steps in the Supply Chain Hub Frameworks section.

Schedule Overview

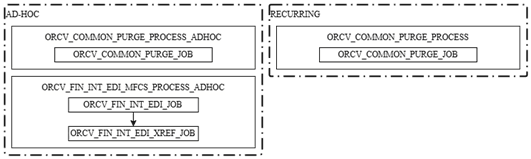

Figure 13-11 Procure to Pay Finance Documents Batch Schedule Overview

Other Cloud Services Configuration

This section describes implementation details that must be reviewed from an Oracle Retail Merchandising System perspective.

System Options

MFCS System Option LOCALIZATION_CONFIG_OPTIONS.DEFAULT_TAX_TYPE defines the default tax type used for Procure to Pay, Finance Documents.

Other implementation Considerations

This section describes implementation considerations.

Custom Validations - Finance Documents

Group Id	Executed When
SPPP_FINDOC_SUBMIT	Financial Document is created

Codes

Certain operations require codes to define the options available at system level. Below you can find the list of code types available.

The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.

CODE TYPE	CODE TYPE DESCRIPTION
DOCC	Finance Document – Doc types, create mode
DOCV	Finance Document – Doc types, view mode
FDST	Finance Documents status.

Templates

This section describes templates.

Template SPPP Finance Document Data

One of these templates will be active, according to the configuration that exists in the MFCS for the default tax type.

Table 13-9 Templates

TEMPLATE KEY	STATUS
SPPP_DOC_SVAT_DATA	Active (if MFCS system option for default tax type is SVAT) Inactive (if MFCS system option for default tax type is different than SVAT)
SPPP_DOC_SALES_DATA	Active (if MFCS system option for default tax type is SALES) Inactive (if MFCS system option for default tax type is different than SALES)
SPPP_DOC_GTS_DATA	Active (if MFCS system option for default tax type is GTS) Inactive (if MFCS system option for default tax type is different than GTS)

TEMPLATE KEY

STATUS

SPPP_DOC_SVAT_DATA

Active (if MFCS system option for default tax type is SVAT)

Inactive (if MFCS system option for default tax type is different than SVAT)

SPPP_DOC_SALES_DATA

Active (if MFCS system option for default tax type is SALES)

Inactive (if MFCS system option for default tax type is different than SALES)

SPPP_DOC_GTS_DATA

Active (if MFCS system option for default tax type is GTS)

Inactive (if MFCS system option for default tax type is different than GTS)

Table 13-10 Template Key: SPPP_DOC_SVAT_DATA or SPPP_DOC_SALES_DATA or SPPP_DOC_GTS_DATA

ACTION TYPE	ROLE NAME
Upload	ORCV_SPPP_FINDOC_APPR_JOB
Download Blank	ORCV_SPPP_APP_JOB

Table 13-11 Template Worksheets

WORKSHEET KEY	WORKSHEET NAME	SEQUENCE
SPPP_DOCS	Documents	1
SPPP_DOC_REFS	Document References	2
SPPP_DOC_ITEMS	Document Items	3
SPPP_DOC_VAT	Document VAT	4
SPPP_DOC_ITEM_TAX	Document Item Tax	4

Note:

In case MFCS default tax type equals ‘SVAT’ the SPPP_DOC_VAT worksheet is used, in case of ‘GTS’ SPPP_DOC_ITEM_TAX is used, otherwise none of the previous worksheets are used.

Codes

Certain operations require codes to define the options available at system level. Below you can find the list of code types available.

The codes are defined in the ORCV_CODE_HEAD and ORCV_CODE_DETAIL tables.

CODE TYPE	CODE TYPE DESCRIPTION
FDAC	Finance Document Actions
FDOR	Finance Document reference type

Interactive Grid Additional Columns

This application supports adding additional fields to the Interactive Grids by using the Interactive Grid Additional Columns functionality described in the Supply Chain Hub Frameworks section.

The Interactive Grids that support this functionality are listed below:

Interactive Grid	Grid ID	User Types	Page	Non Based View	Entity Primary Key
Invoices Dashboard Grid	P1_IG_INVOICES	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Home	ORCV_V_SPPP_DOC_NB	DOC_ID, SUPPLIER
Purchase Orders Grid	P4_IG_PO	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Create or Edit Document	ORCV_V_SPPP_ORD_NB	ORDER_NO
Purchase Orders/ Return to Vendor Grid	P4_IG_ORDRTV	Retail Administrator, Retailer User, Supplier Administrator, Supplier User	Create or Edit Document	ORCV_V_SPPP_ORD_NB	ORDER_NO

References

Procure to Pay, Finance Documents, also use the Queries module to enable communication between retailer and supplier users, details about Queries are available in the Supply Chain Hub Frameworks section. It also has dependencies from other modules batch jobs listed in POM Configuration that are documented in the Supply Chain Hub Frameworks section.

Operations

This section describes operations.

Integration by Module

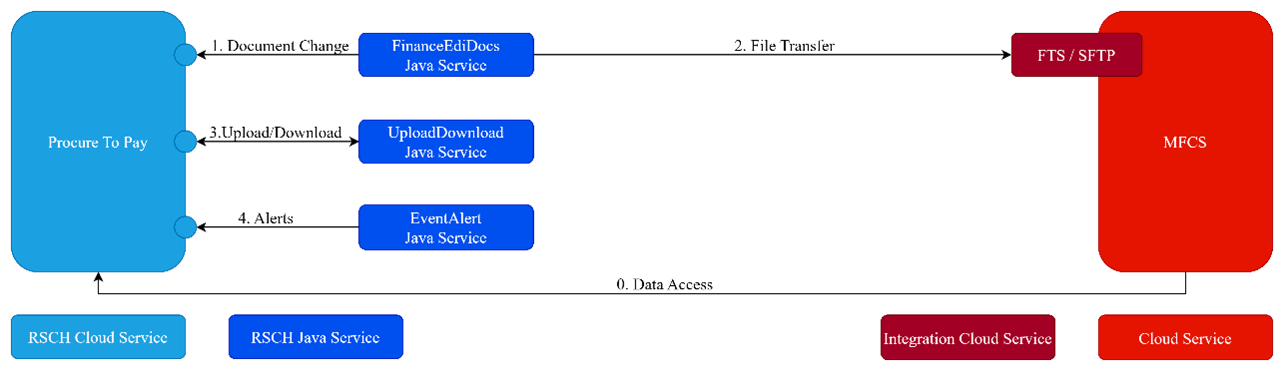

Figure 13-12 Procure to Pay Finance Documents Integration by Module

STEP	DESCRIPTION
0	RSCH Data Access of MFCS data
1	Finance Document Induction Java Services checks if Procure to Pay has documents to be published
2	Finance Document Induction Java Services sends produced files to Integration File Transfer.
3	Integration File Transfer publishes files to MFCS File Transfer Services (FTS) or MFCS shared folder (depending on configuration).
4	Procure to Pay calls Upload Download Java Service to transform files, depending on the request details, Upload Download Java Service might need to callback to Procure to Pay to get more details.
5	Event Alert Java Service checks if there are alerts to be triggered.

Reference

The EDI finance document injector service will support the integration of Invoices and Credit Notes managed in the Procure to Pay module into IMCS via induction batch. For more details on this process, please consult the Supply Chain Hub Frameworks section.
