10 Operational Issues Screens
Note:
Date search range has been defaulted to last 14 days. Users can change the date range.
-
Scheduled background work tasks that handle importing mass data from external systems (through file or BDI). The issue counts the number of work tasks that failed.
Primary Tables: BATCH_EXECUTION, BATCH_ACTIVITY
-
Scheduled background work tasks that archive and remove data from the database. The issue counts the number of work tasks that failed.
Primary Tables: BATCH_EXECUTION, BATCH_ACTIVITY
-

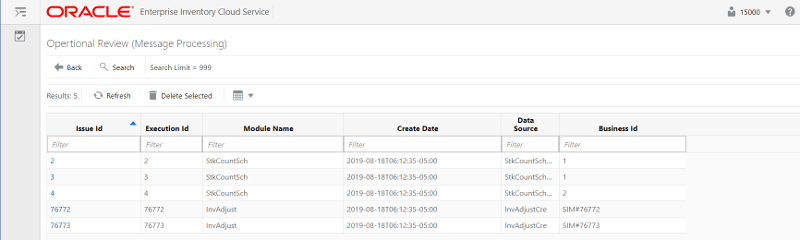

Scheduled background work tasks that process asynchronous messages in a queue. The issue counts the number of messages that failed.
Primary Tables: MPS_STAGED_MESSAGE
-

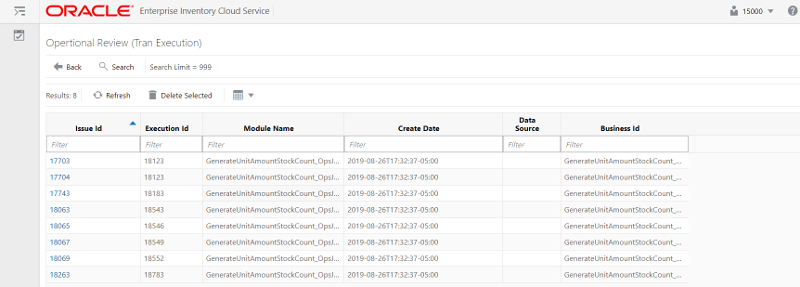

Scheduled background work tasks that execution business processes on transactional data. The issue counts the number of work tasks that failed.
Primary Tables: BATCH_EXECUTION, BATCH_ACTIVITY
Operational Issues List Screen
This screen displays the summary of operational issues for each category.

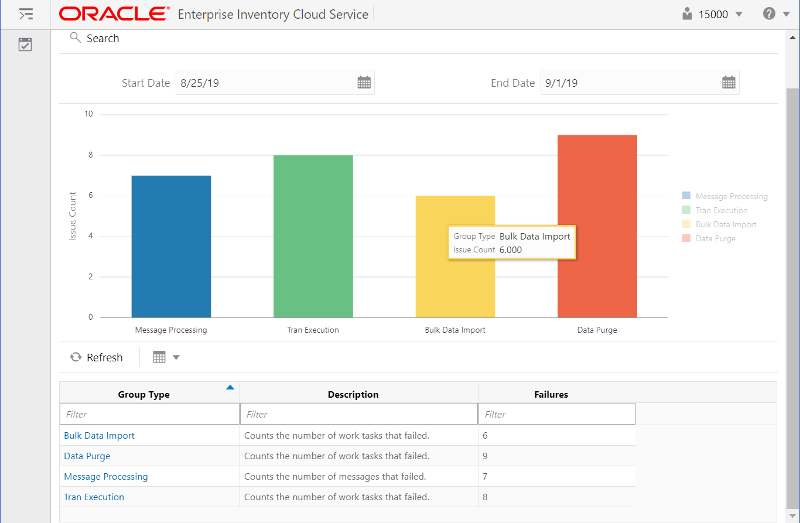

Figure 10-1 Operational Issues List Screen
Note:
On the bar graph, the Issue Count will be displayed when user moves the cursor to the bar graph
Operational Issues Review
This screen displays the operational issues for selected categories and date ranges.
It provides following common actions in the operational issue review screens.
Operational Review Screen Actions
-
Search Filter
Each Operational Review Screen has the Search filters.
The search filter fields would vary based on the operational groups.
The search filter fields are: search limit, date range.

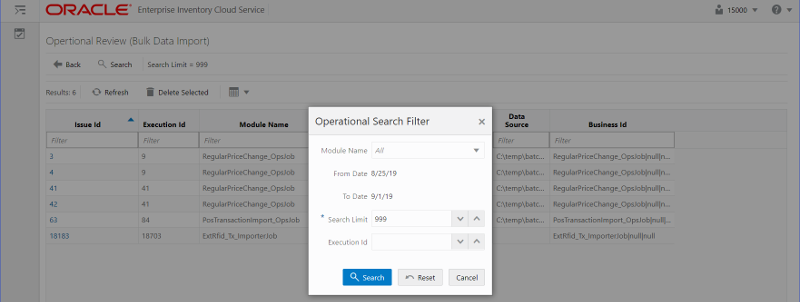

Figure 10-2 Search Filter
-
Issue Detail
Click the Issue Link, the issue detail dialog will be displayed. For example, the following screen shot displays the Bulk Data Import Issue Detail.

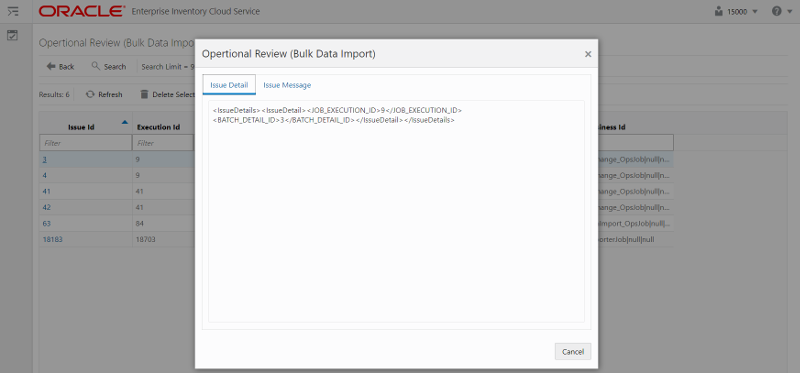

Figure 10-3 Issue Detail
-
Delete Button
Mark the record as deleted, user needs to have Batch Execution Delete security permission to delete a record.
The following security permissions are required to perform delete actions.
Table 10-1 Security Permissions for Delete Actions
Operational Issue Category Security Permissions Bulk Data Import
Batch Execution Delete
Data Purge
Batch Execution Delete
Tran Execution
Batch Execution Delete
Message Processing
Delete MPS Staged Message
Bulk Data Import
This screen displays list of failed scheduled background work tasks that handle importing mass data from external system (through file or BDI).

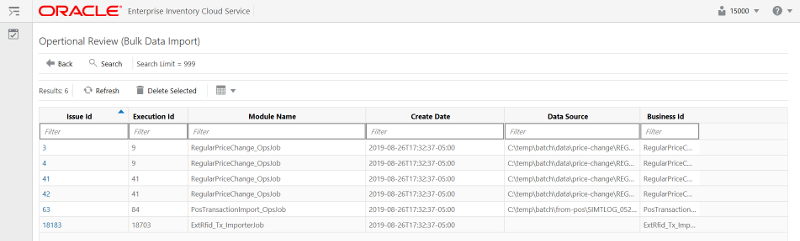

Figure 10-4 Bulk Data Import Screen
Data Purge
This screen displays a list of failed scheduled background work tasks that archive and remove data from the database.

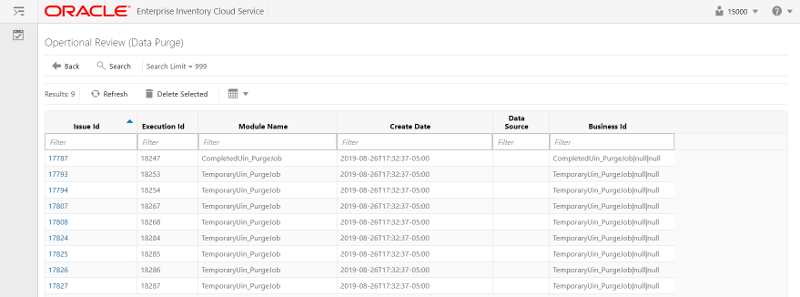

Figure 10-5 Data Purge Screen
